簡介
The SL25 ends complicated builds. This elegantly styled, lightweight frame is packed with quality-of-life features and is highly customizable, making assembly intuitive for pilots of any skill level. Choose from multiple sizes to find your perfect fit. Supports both analog and digital systems.
商品詳情
Frame Specification
Item: SL25 2.5” Freestyle Frame

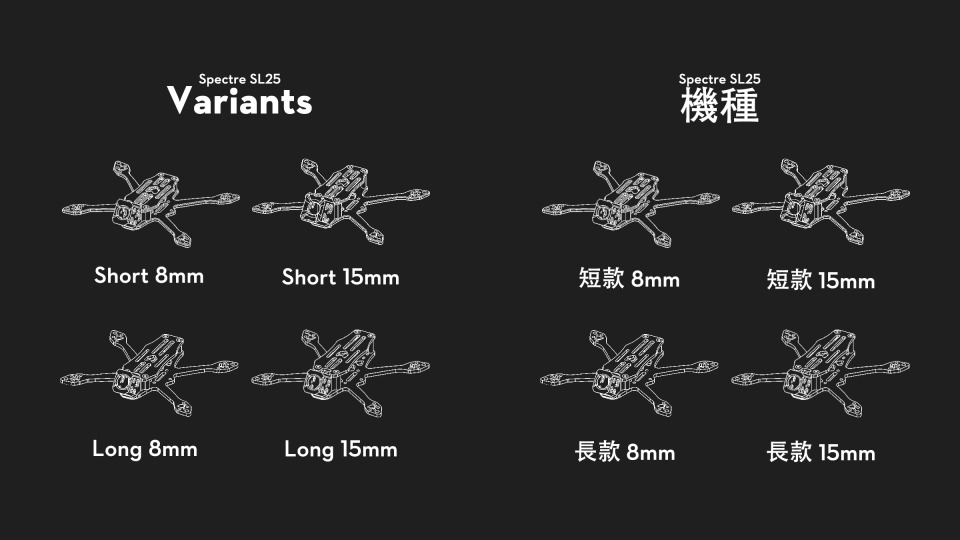

Configurations: Short/Long
Wheelbase: 108mm
Material: T700 Twill weave CFRP/Aluminium
Top Plate Thickness: 2mm
Bottom Plate Thickness: 2.5mm
Weight: 17±1g (short 8mm); 19.8±1g(long 15mm)
Standoff Colour: Onyx Black by default; Apex Red, Cobalt Blue, Royal Violet, Aurum Gold, Gunmetal (NEW)
Standoffs: 8mm(1 board, 5in1 AIO)
15mm(2 boards, 4in1 AIO + VTX/RX)
Camera: 14mm/19mm
Canopy: Custom, On-demand; Support props out of view
FC Mount: 25.5×25.5mm, suitable for conventional whoop FC
Motor Mount: 6.6mm*3, 9mm
Recommended Battery Strap Size:
Width: 10-15mm
Total Length:
(2s) 100-150mm
(3s) 150-150mm
Short
Long
8mm
5in1 AIO
4in1 AIO + Receiver/VTX
15mm
4in1 AIO + VTX
or
5in1 AIO + DVR module
3in1 AIO + Receiver + VTX
or
4in1 AIO + Receiver + DVR module

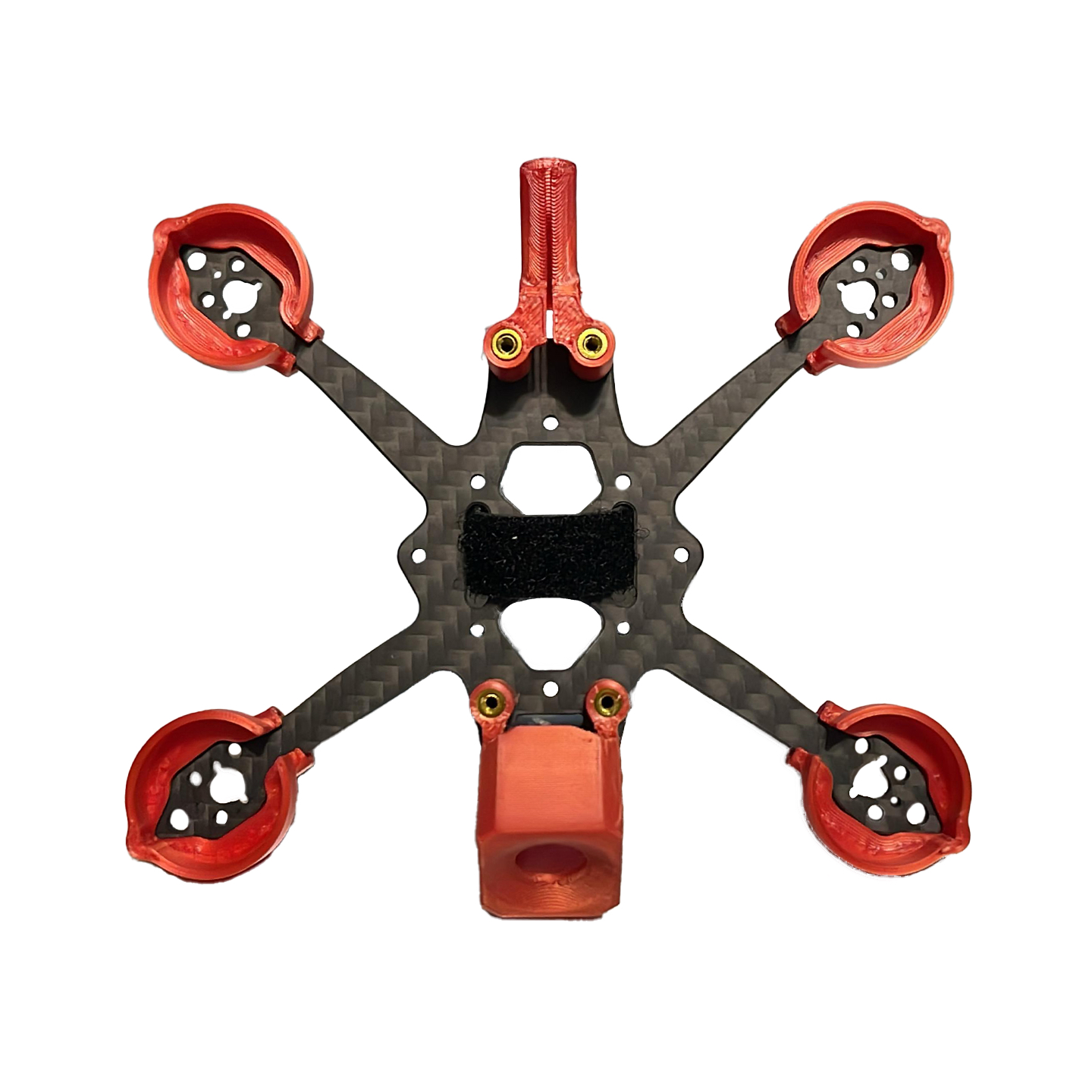

3D Print Files
https://www.printables.com/model/1362952-sl25-accessories
