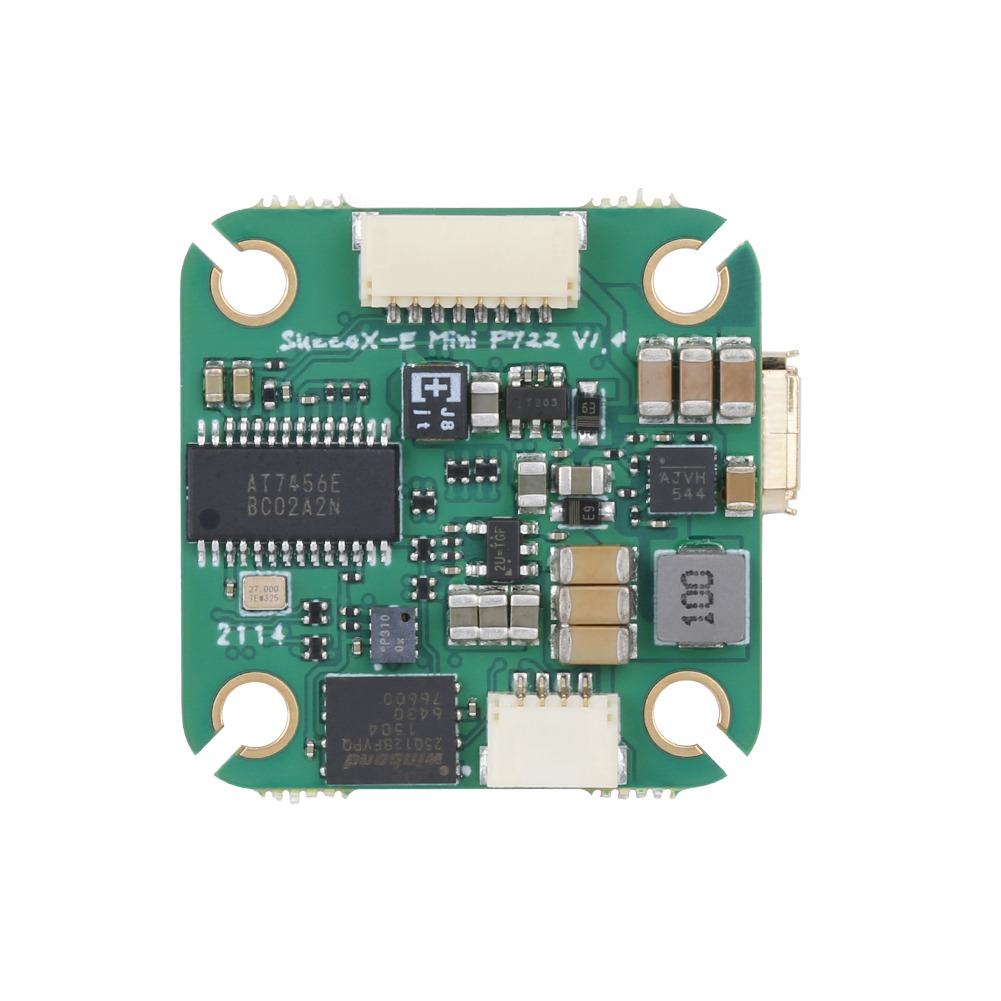

iFlight SucceX-E Mini F722 V1.4 Flight Controller MPU6000

数量

简介

+

商品详情

Top Features:

  • Gold-plated plug
  • BlackBox: 16MB
  • Vista HD Plug-and-Play. No need to solder tiny wires.
  • BAT, +5V, 3.3, Start indicator
  • Smartaudio & IRC Tramp VTX protocol supported

Specifications:

MCU: STM32F22RET6 216 MHz

Gyro: MPU6000

Baro: No

OSD: IFLIGHT OSD (AT7456E)

BEC: 5V 2.5A

BlackBox: 16MB

Uart: 4*UART(UART1、UART2、UART4、UART5)

UART1 for VTX HD/Analog Telemetry

UART2 for Receiver

UART4 for GPS

UART5 for ESC Telemetry

4×Dshot/PWM outputs

Smartaudio & IRC Tramp VTX protocol supported

WS2812 led Strip: Yes

Bepper: Yes

Firmware: IFLIGHT_SUCCEX_E_F7 4.2.9

Outer Size: 27*27mm / 20*20mm φ3 mounting

Weight: 6g

Physical

Mounting hole: 20*20mm,φ3mm

Size: 27*27mm
