iFlight Borg F7 Mini Stack (60 Mini 4-IN-1 ESC)

數量

簡介

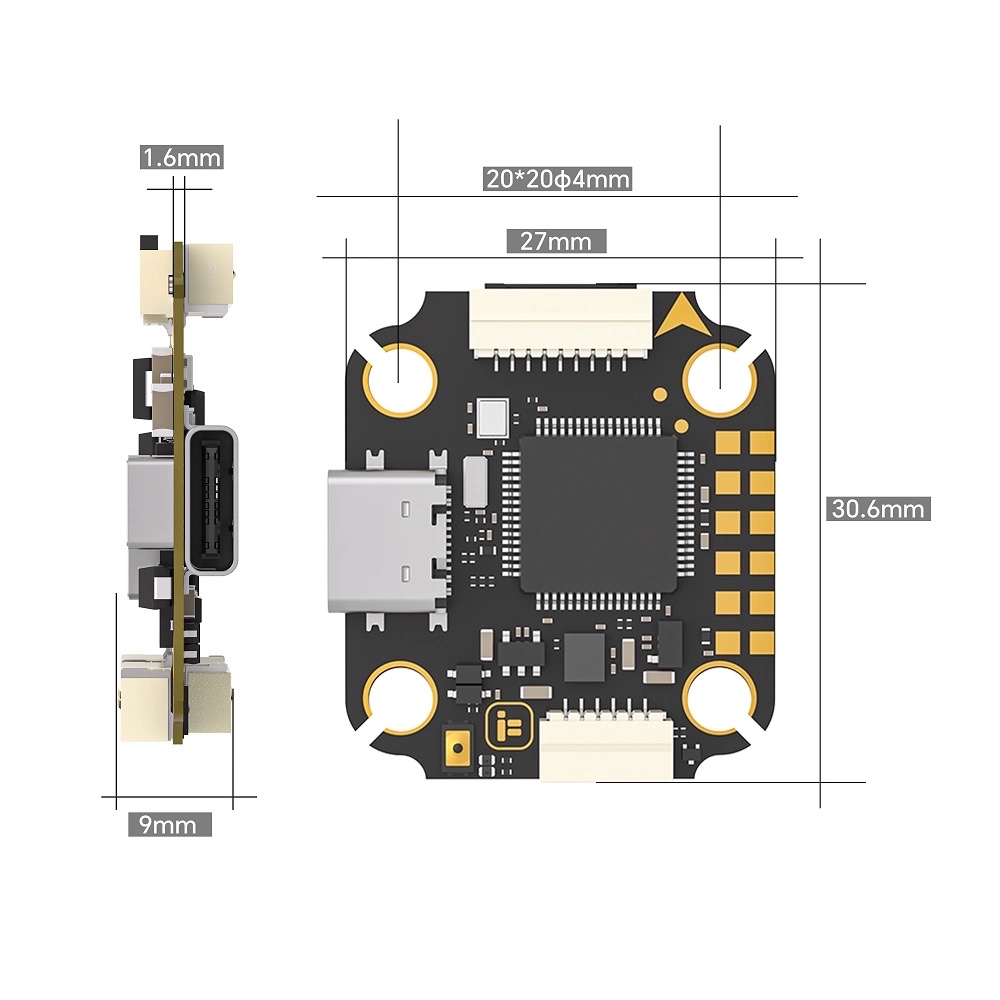

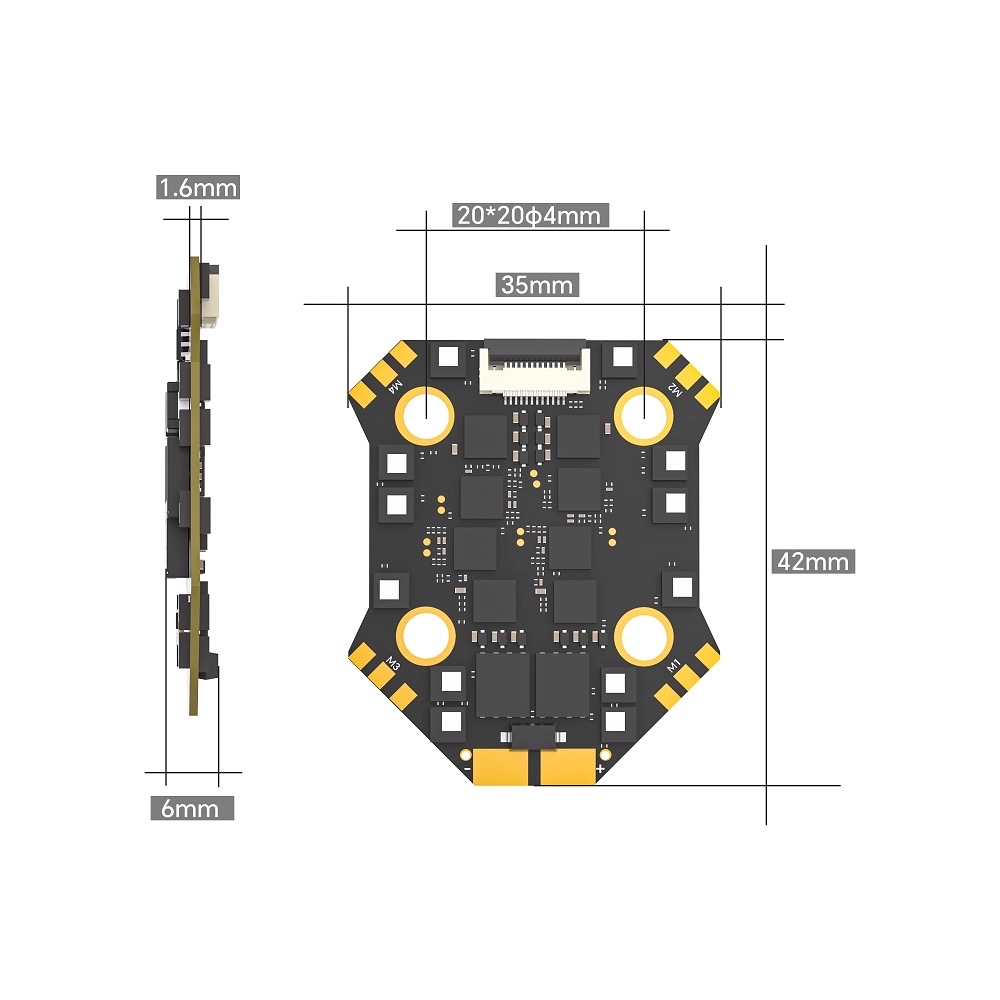

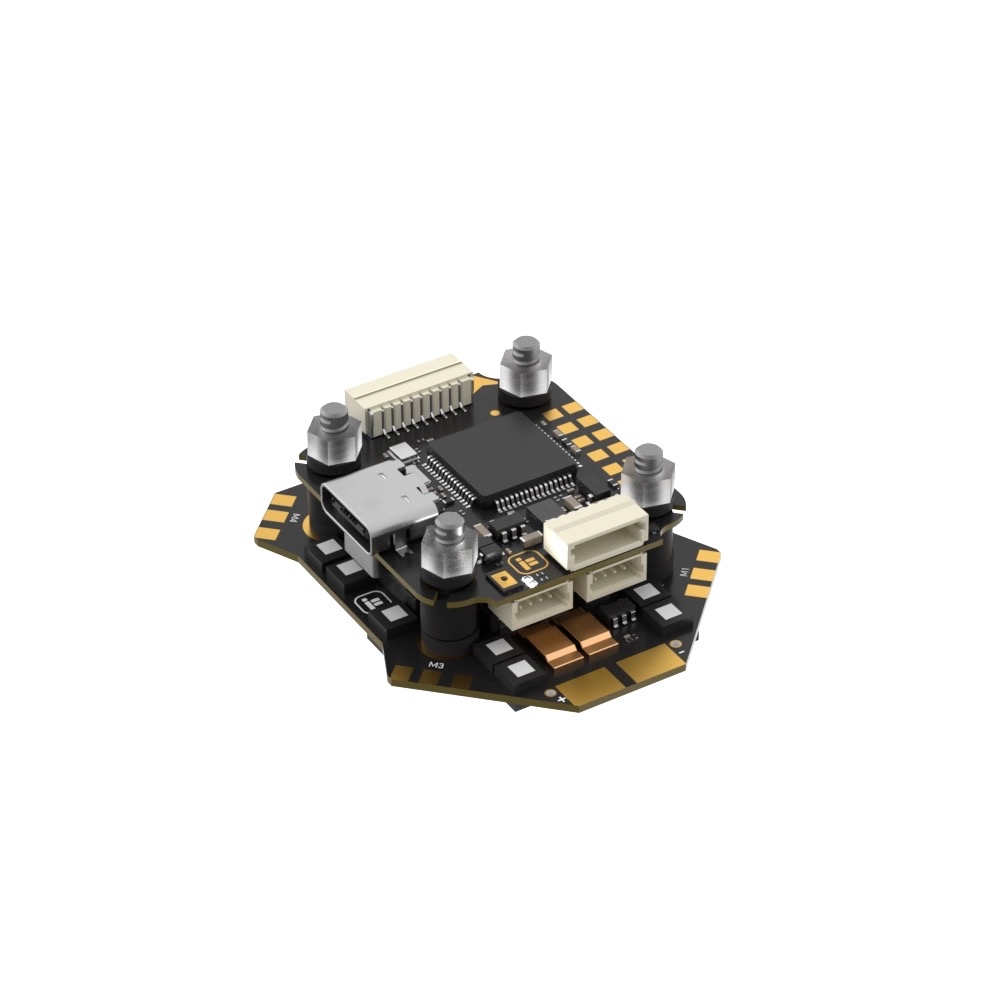

+ Description Introducing the All-New Borg Series – Power Meets Precision! The Borg F7 Mini Flight Controller is specifically designed for racing fpv, providing unmatched performance. Elevate your racing experience with the cutting-edge technology of the Borg Series! FC Features Supports 4S to 8S battery inputs, offering versatility for various racing setups. Integrated 12V BEC provides stable power for your VTX system and allows remote control to switch it on and off. FPC cables ensure secure connections with ESCs, while SH1.0 connectors enhance reliability across all other interfaces. FC Specifications Input voltage: 4-8S; Support LIHV battery MCU: STM32F722RET6 Gyro: ICM42688 Barometer: SPA06-003 OSD Chip: AT7456E（LGA） Flash: 32MB (Blackbox flash) UARTS: 6 Motor outputs: 4 I2C serial: Not supported VTX protocol: support DJI MSP/Smartaudio/IRCTramp/HDZero LED controller: Yes Beeper pad: Yes Betaflight Firmware target: IFLIGHT_BLITZ_F722 INAV Firmware target: IFLIGHT_BLITZ_F722 Mount pattern: 20*20φ4 Dimensions: 27*30.6mm±1 Weight: 6.8g±1 BEC: 5V 2.5A, 12V 2A (12V with VTX switch) Wiring Suggestion UART 1 for VTX HD / Analog UART 2 for Receiver UART 3 for GPS or other sensors that require a serial port UART 4 for GPS UART 5 for GPS or other sensors that require a serial port UART 6 for ESC Telemet ESC Specifications Product Name: Borg Mini 60 ESC Input Voltage: 2-6S; Support LIHV battery Max. Continuous Current: 60A Max. Burst Current: 65A (10s) MCU: STM32G071N Driver: FD6288 Firmware: BL32 (32bit ESC) Target: IFLIGHT_BLITZ_G3 32.9 Current Sensor: Yes BEC: N/A Telemetry: Supported Bidirectional DSHOT: Supported Dimensions: 42*35mm±1 Mounting Holes: 20 x20 mm/Φ4mm Weight: 9.8g±1 Protocol: Supports DShot150/300/600、MultiShot、OneShot etc. Packing List 1 x Borg F7 Mini Flight Controller 1 x Borg 60 Mini ESC 1 x Cable set 5 x silicon grommets
