YRRC Switchable 3-6S 12V 3A BEC

Quantity

Summary

+

Product Details

Can be switched on/off remotely using PINIO function on Betaflight flight controller firmware, suitable for LED lights and cameras.

Specifications:

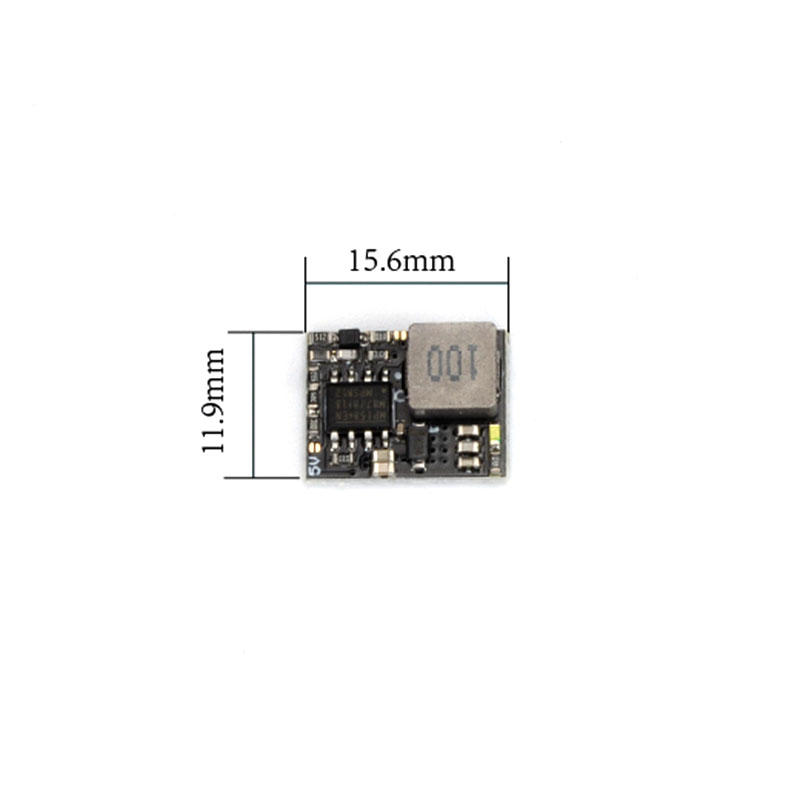

Dimensions: 15.6x11.9mm
Input Voltage: 3-6S LiPo
Output Voltage: 12V
Output Current: 3A



CLI command example:

resource SERIAL_TX 2 none
resource PINIO 1 C12
set pinio_box =40,255,255,255
set pinio_config =1,129,129,129
save

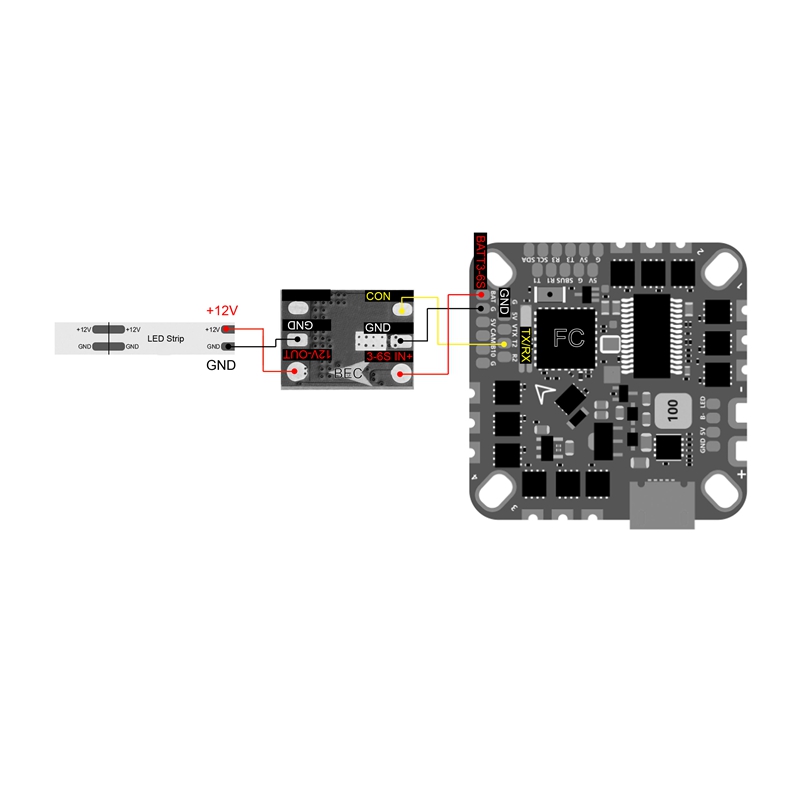

Given that you're connecting to the TX2 pad and its resource is C12

Then assign RC channel to USER1 mode in Modes Tab
