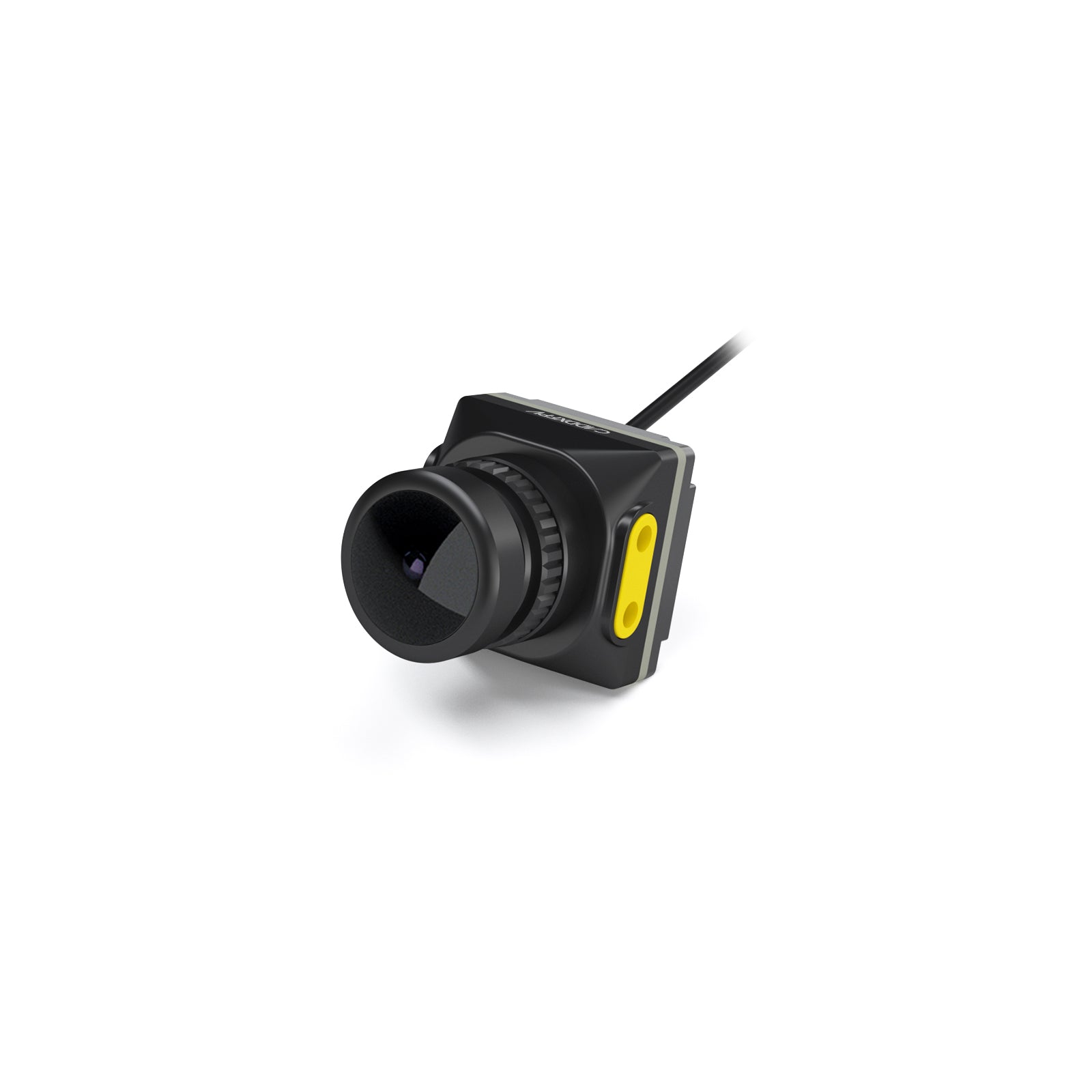

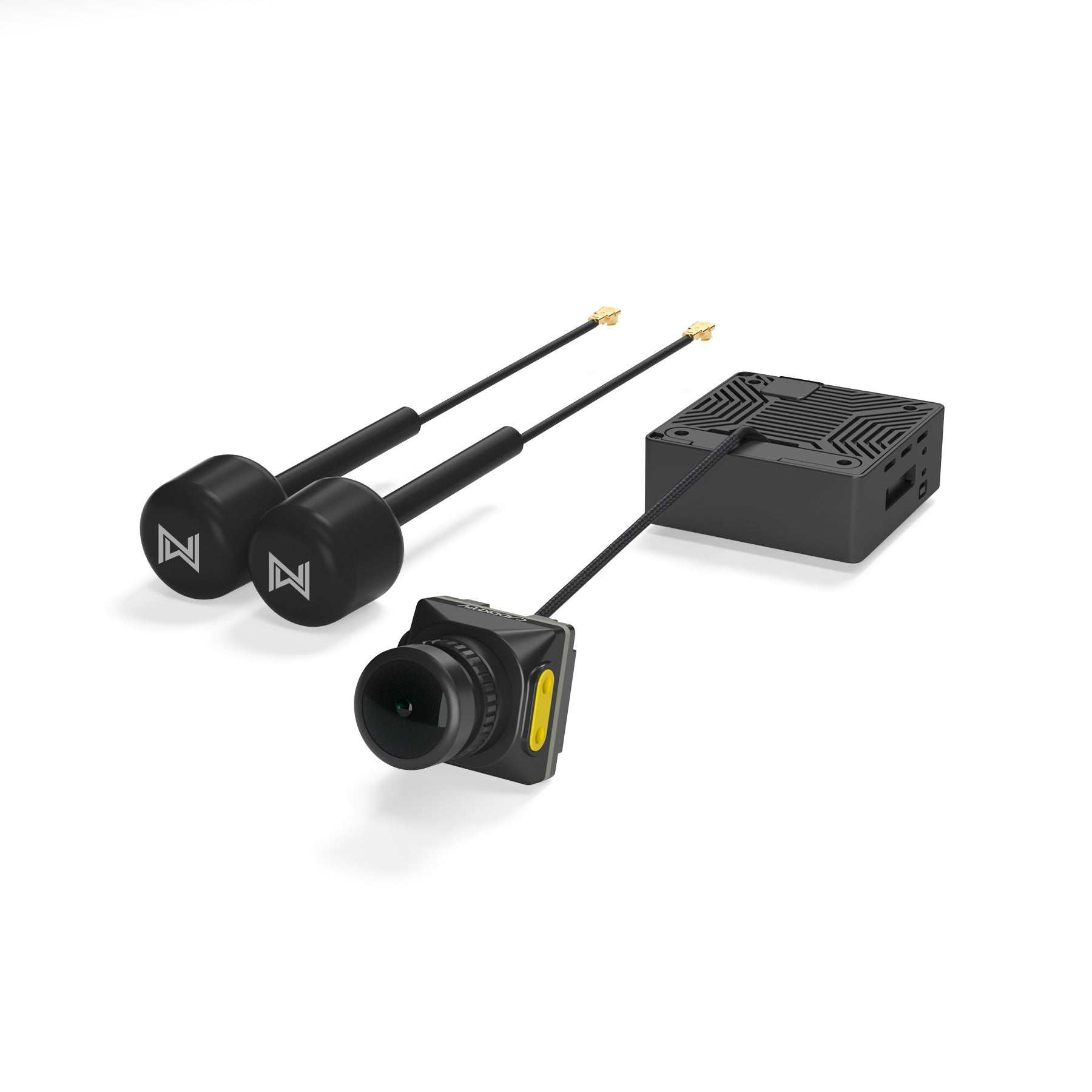

Walksnail Moonlight kit

Quantity

Summary

+
ETA: Early March 2024

Product Details

features:

●4k/60FPS●Startlight Camera
●Built-in EIS●Support Gyroflow
●Sd card●FOV 160°
●Dual Antennas●7.4V-25.2V

Bullet Points:

  • Supports 4K/60fps, ensuring that FPV embraces true 4K. Shooting stable and HD videos without unnecessary latency, bring pilots a smoother FPV experience.
  • Feature starlight sensor, to improve image quality and performance in low-light scene shooting, ensuring night vision shooting and eliminating frequent camera switching.
  • Built-in EIS and supports Gyroflow technology, taking you a smooth and stable video quality, to facilitate and enjoy freestyle fly.
  • Comes with silicone pads for mounting the camera, ensuring stability and minimizing camera shake for perfect captures.

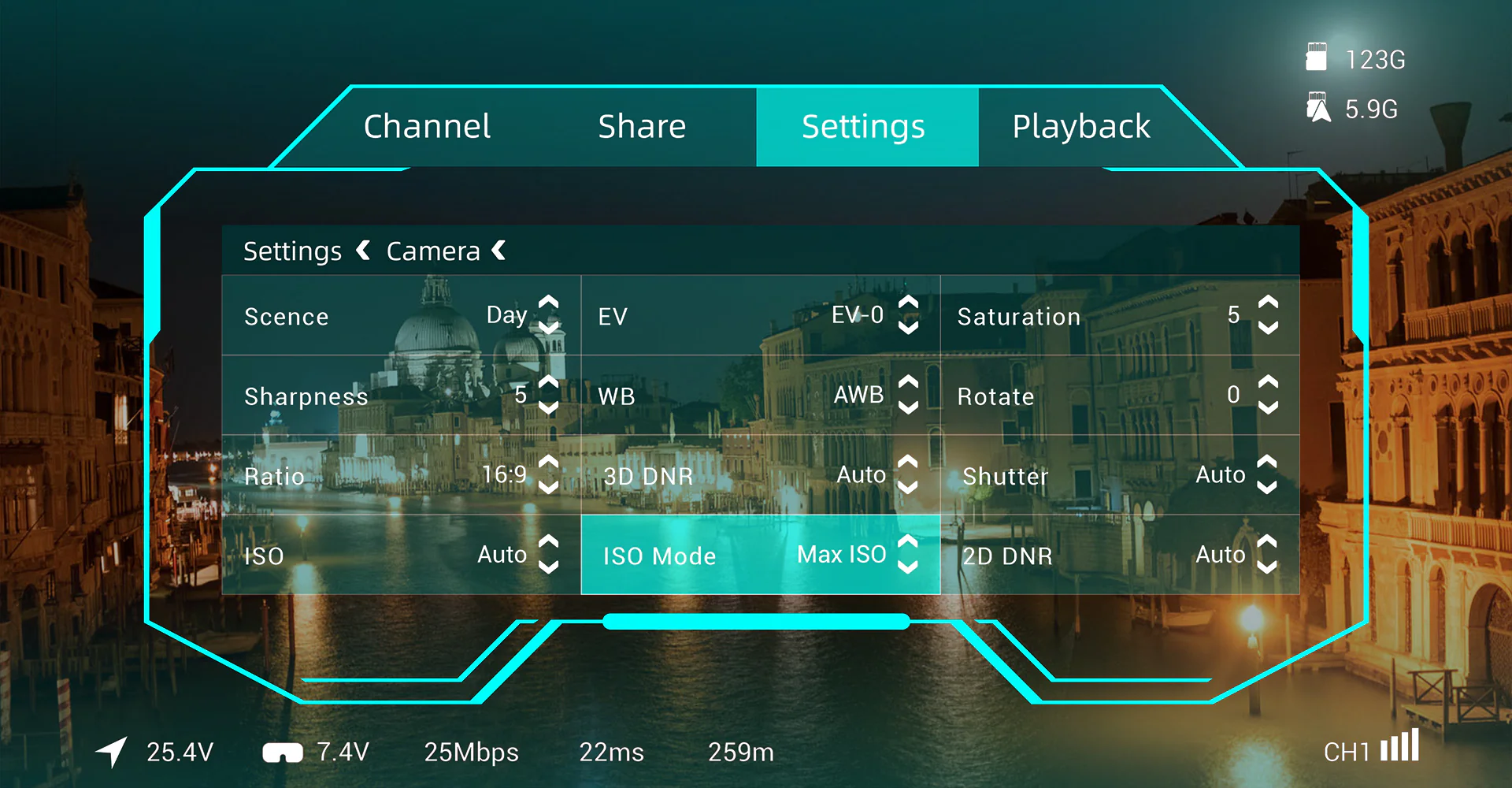

  • Supports manual shutter and manual ISO settings, take perfect photos regardless of any lighting limits.

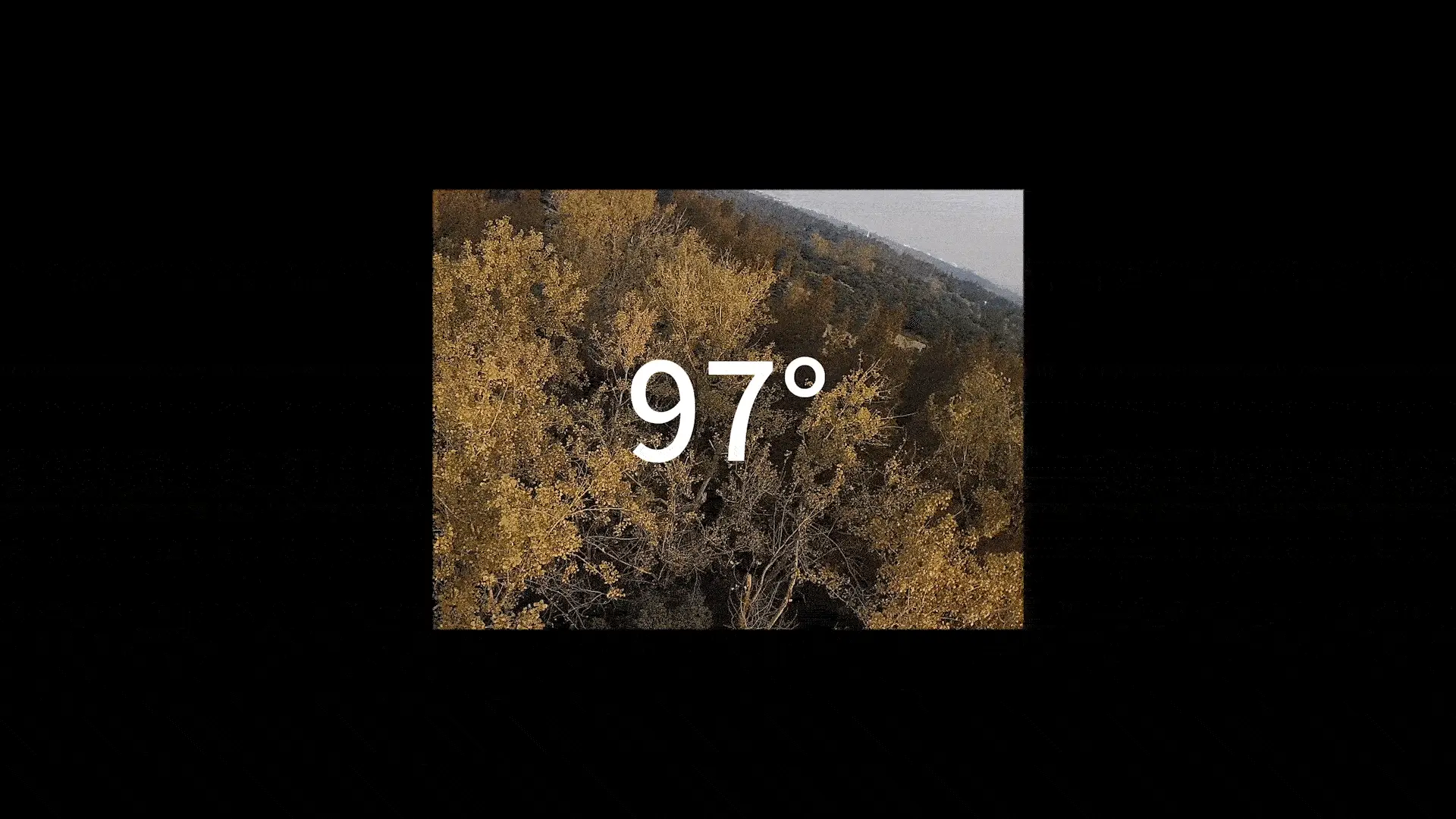

  • The moonlight camera has a 160° FOV, providing you with a more natural and real picture for the ultimate flying experience.

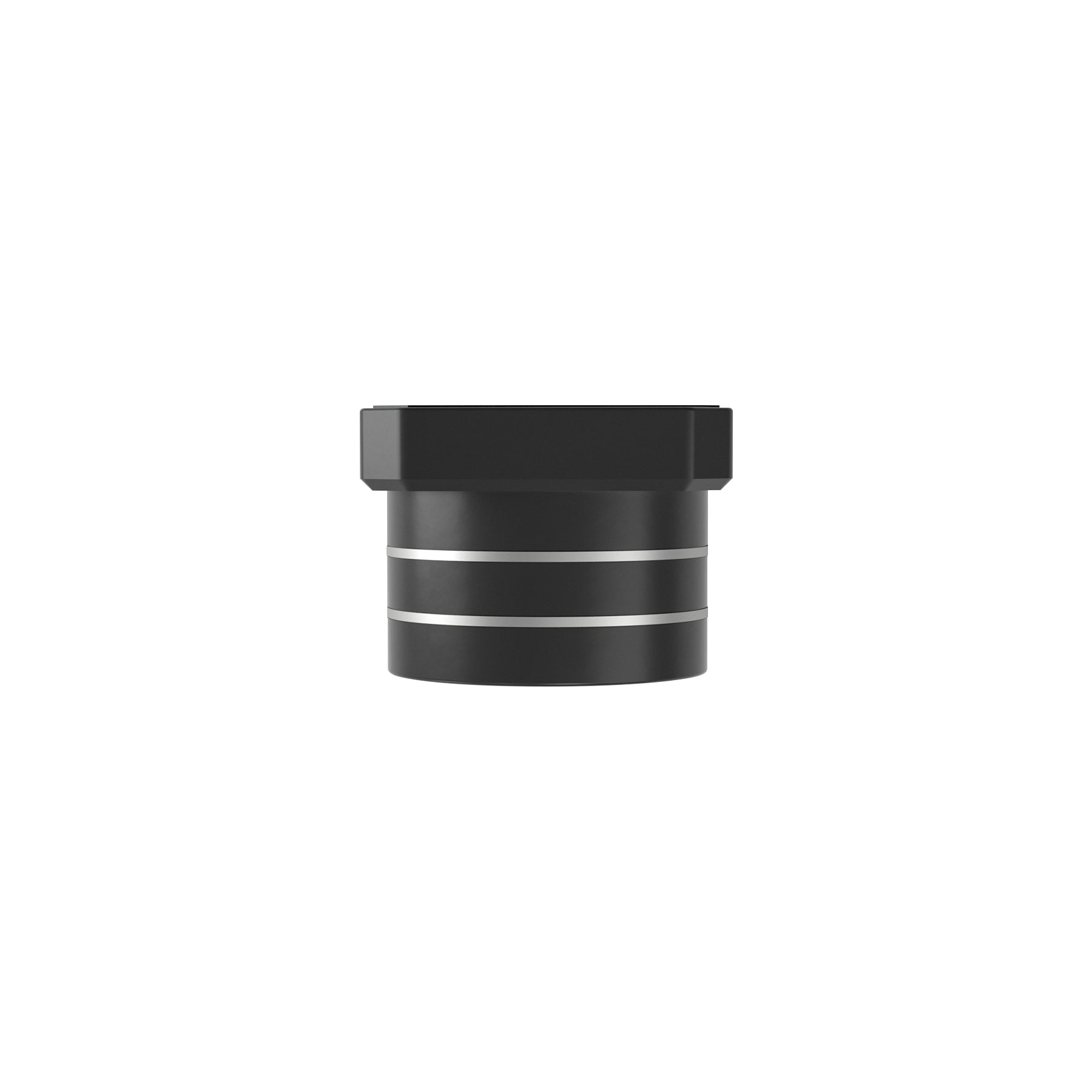

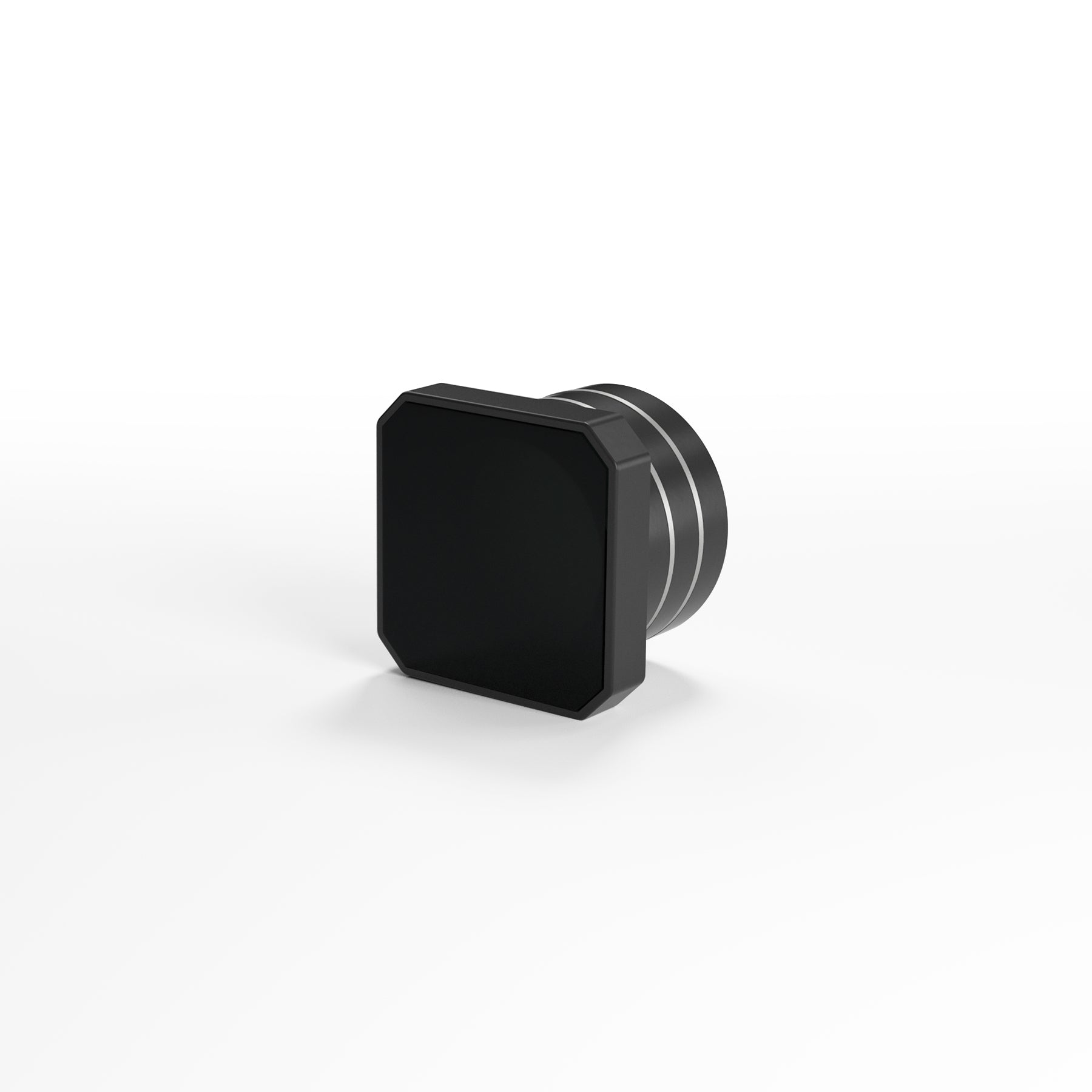

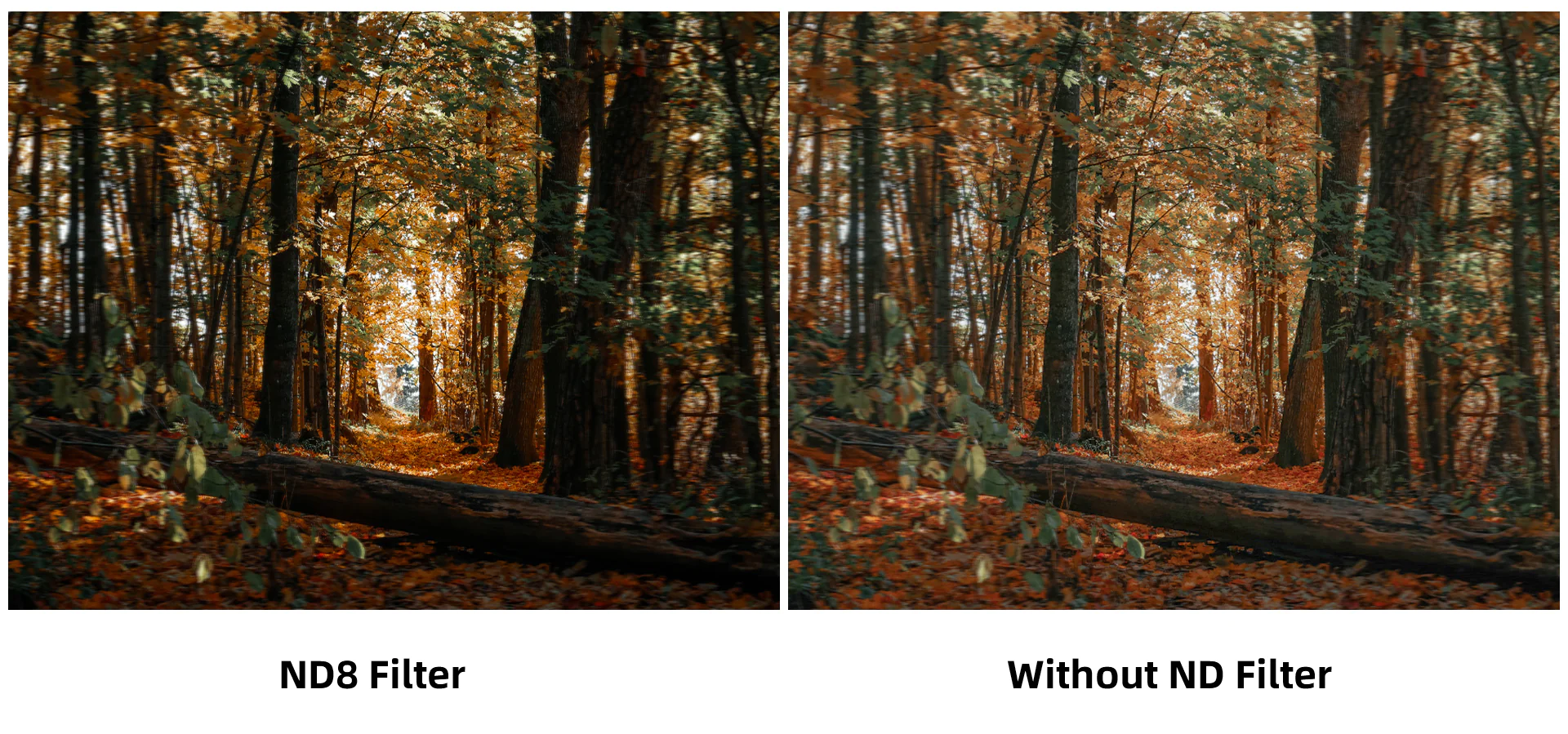

  • Come with ND8 filters to meet the needs of more different shooting scenes, to bring different effects to the shooting.
Specification
ModelMoonlight kit
Firmware nameAvatarMoonlight_Sky_X.X.X
Communication Frequency5.725-5.850GHz
Transmitter Power (EIRP)FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm

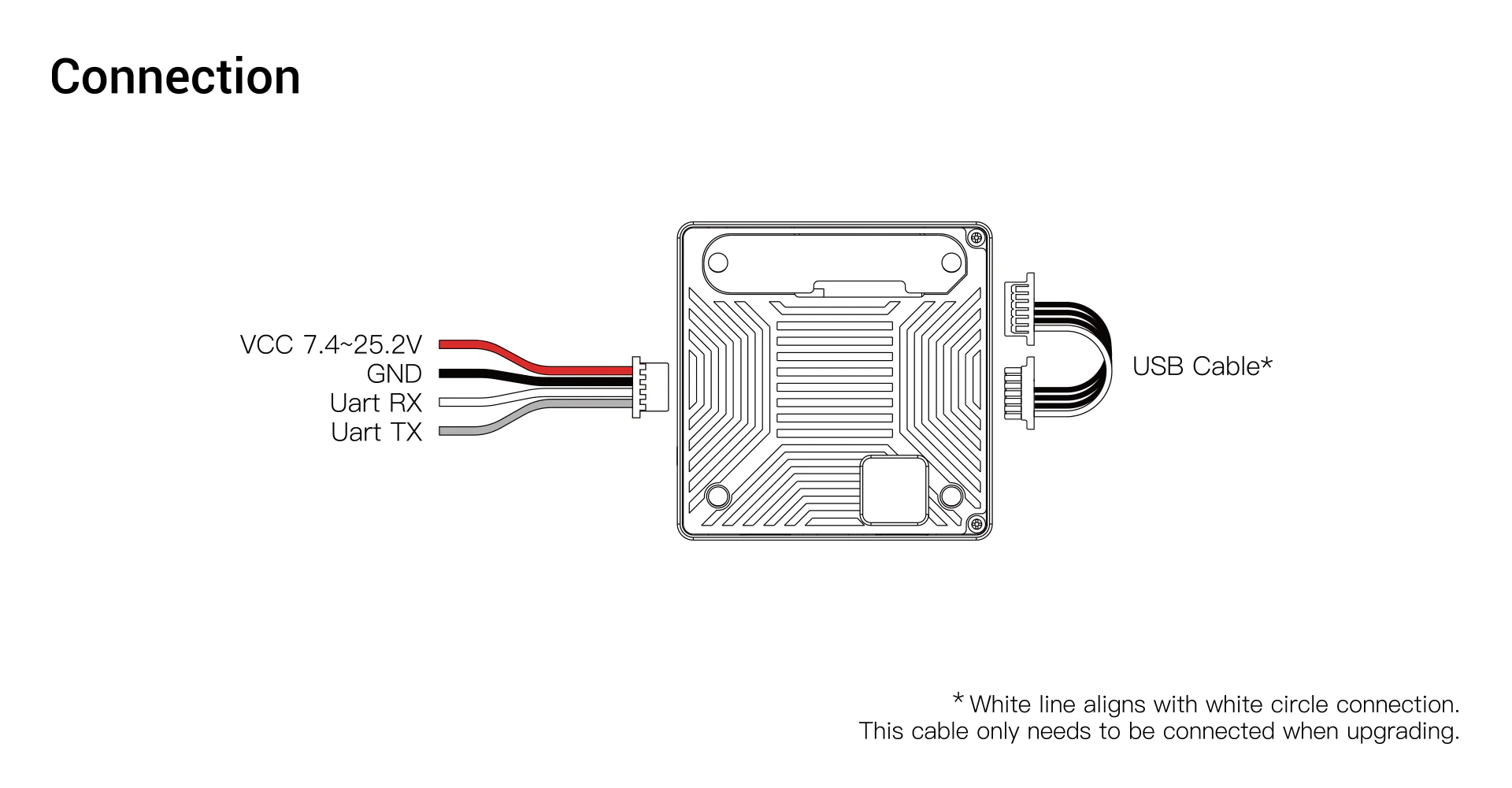

1/O InterfaceJST1.0*4(Power in)JST0.8*6(USB),Micro SD card Slot;IPEX-1

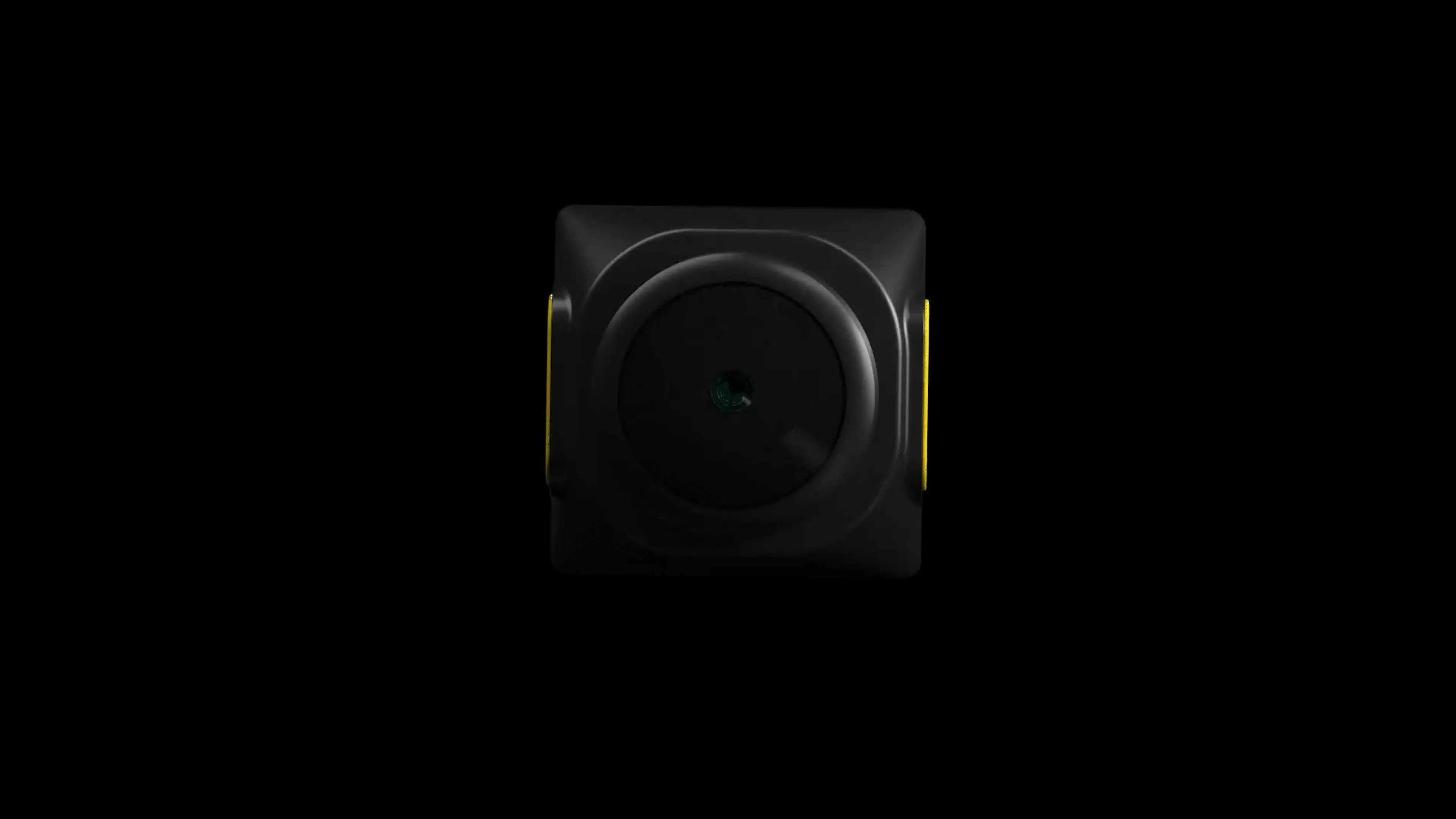

SensorStarlight sensor

FOVMax 160°
ApertureF2.1
ShutterRolling shutter
ISO100-25600
Recording resolution4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps
Max Mbps150Mbps
Video formatMP4 (H.264)
3D DNRSupport
GyroflowSupport
Built-in EISSupport
Wide Power Input

7.4V-25.2V
Power consumption12V@1.4A, 8V@2.2A
Memory card typeU3 MicroSD, Max 256G

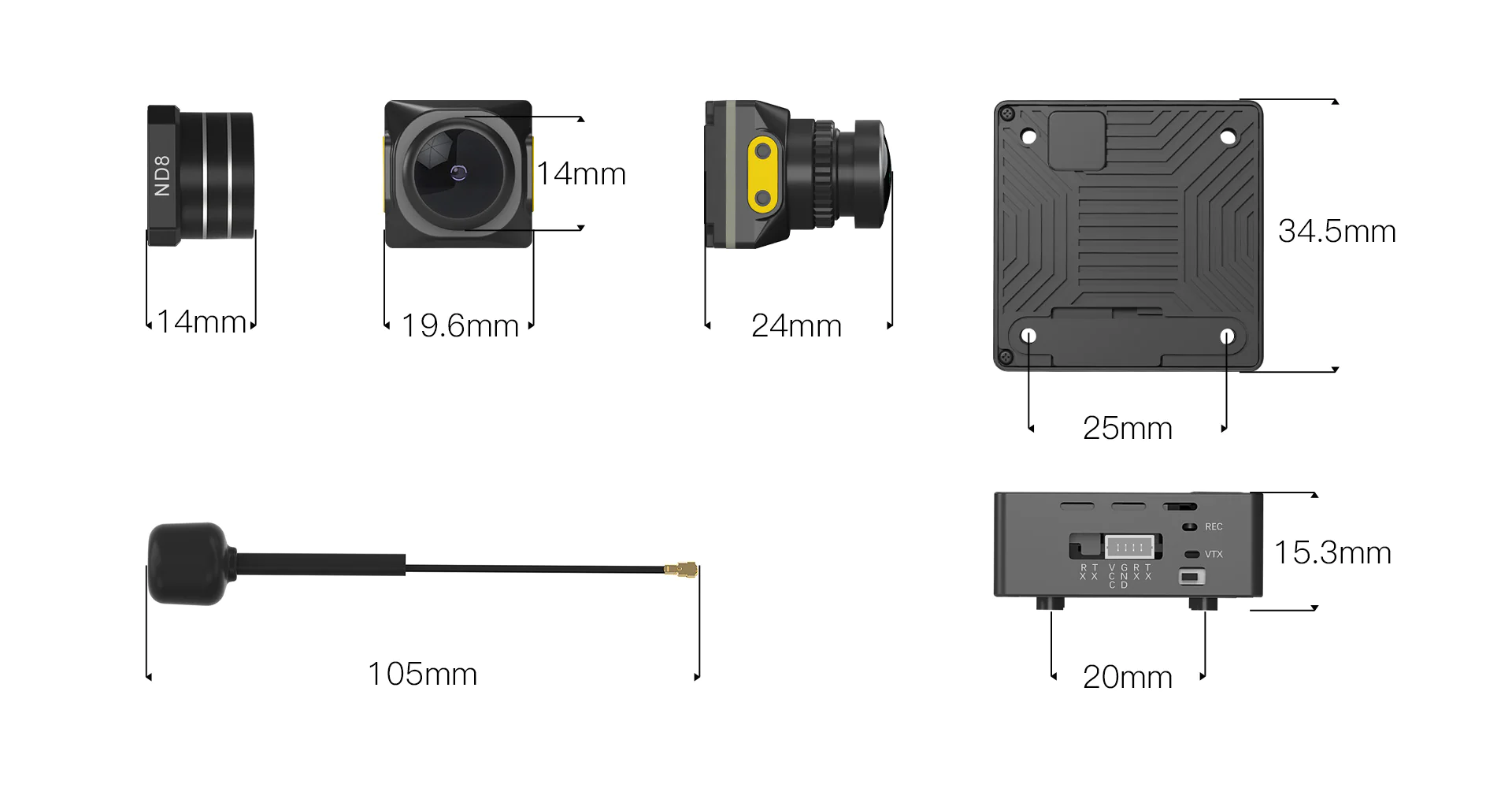

Camera size19.6mm*19mm*24mm
VTX size15.3mm*34.5mm*34.5mm
VTX Installation hole distance20*20mm/25*25mm (M2)
Weight

38.5g(Antenna not included)

OSDCanvas mode
LatencyAverage delay 22ms
Antenna2 (IPEX)
VTX Antenna
modelavatar V2 antenna
PolarizationLHCP
Frequency range5600MHz-6000MHz
Average Gain1.9dBi
VSWR<1.5
Input Impedance50Ω
InterfaceIPEX-1
DimensionR15 X 45mm (without cable)
Weight2g

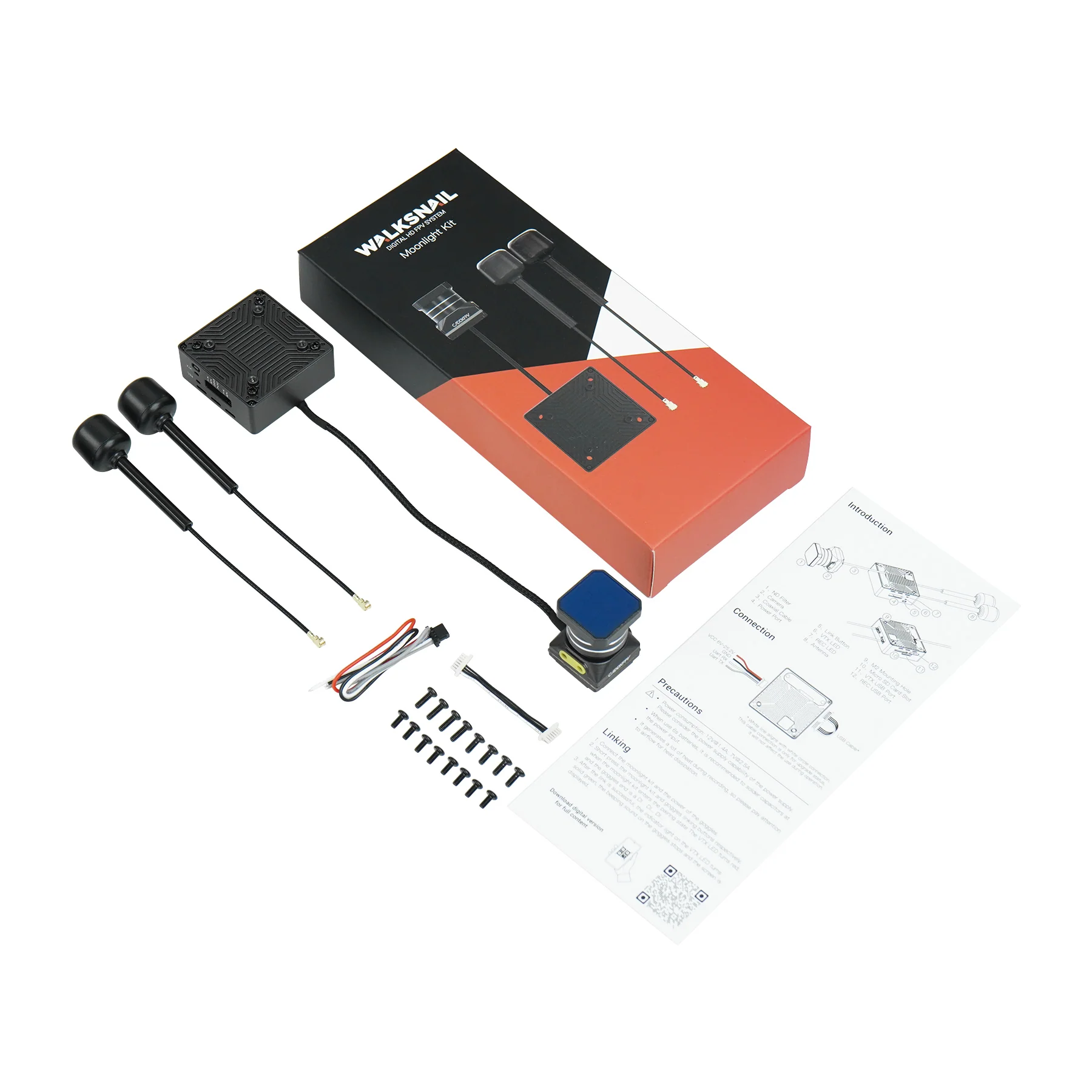

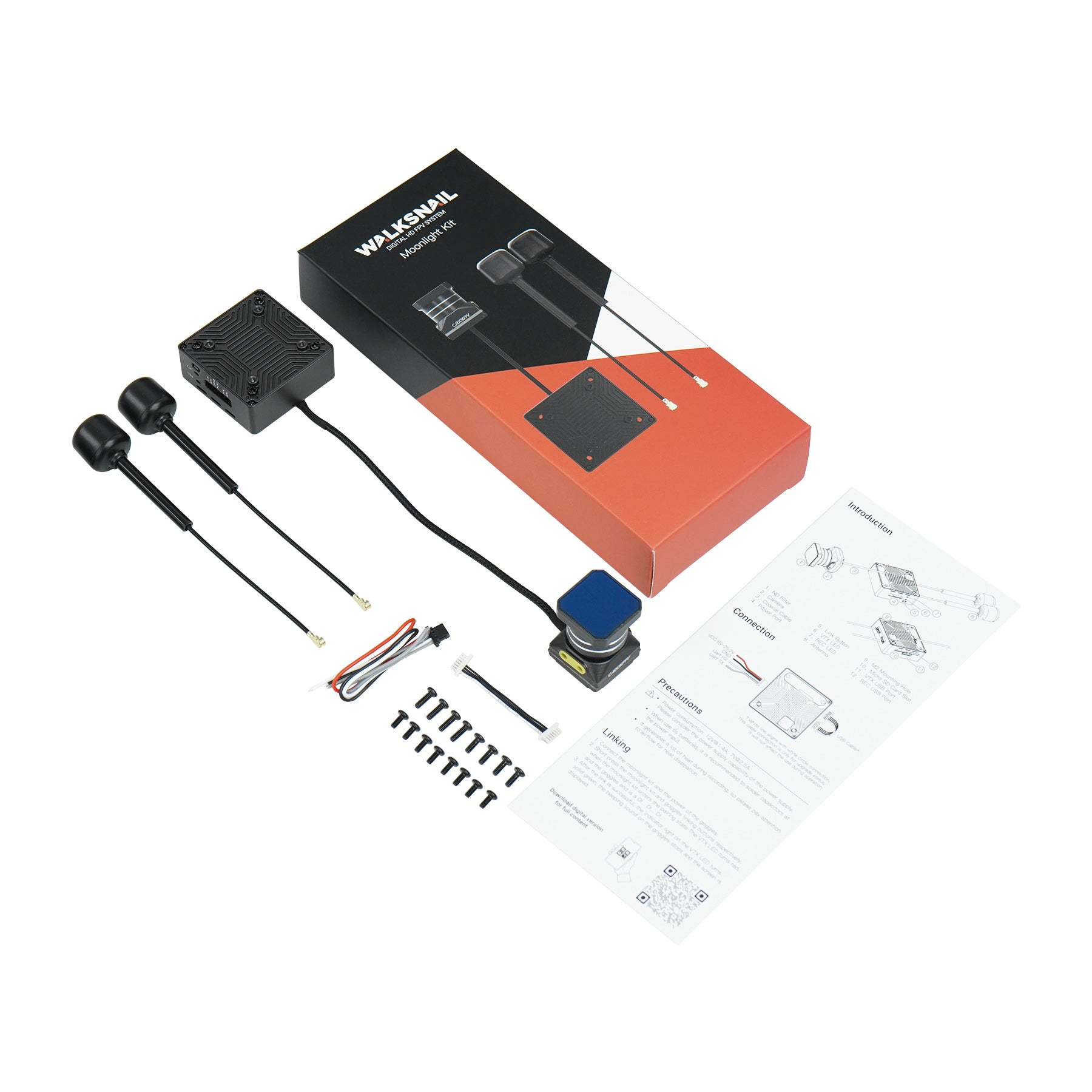

Packing List:
