Walksnail Avatar VRX

Kit

Quantity

Summary

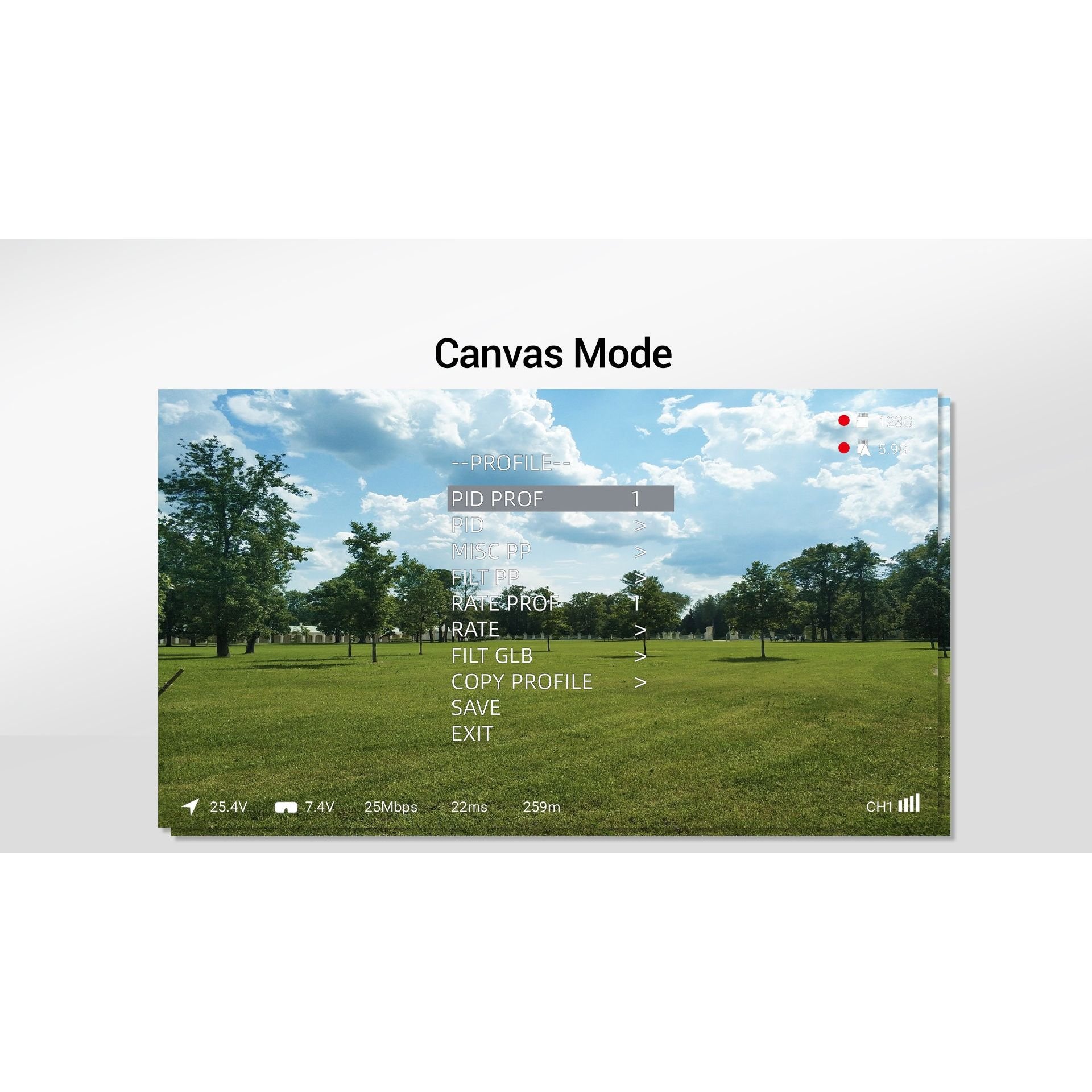

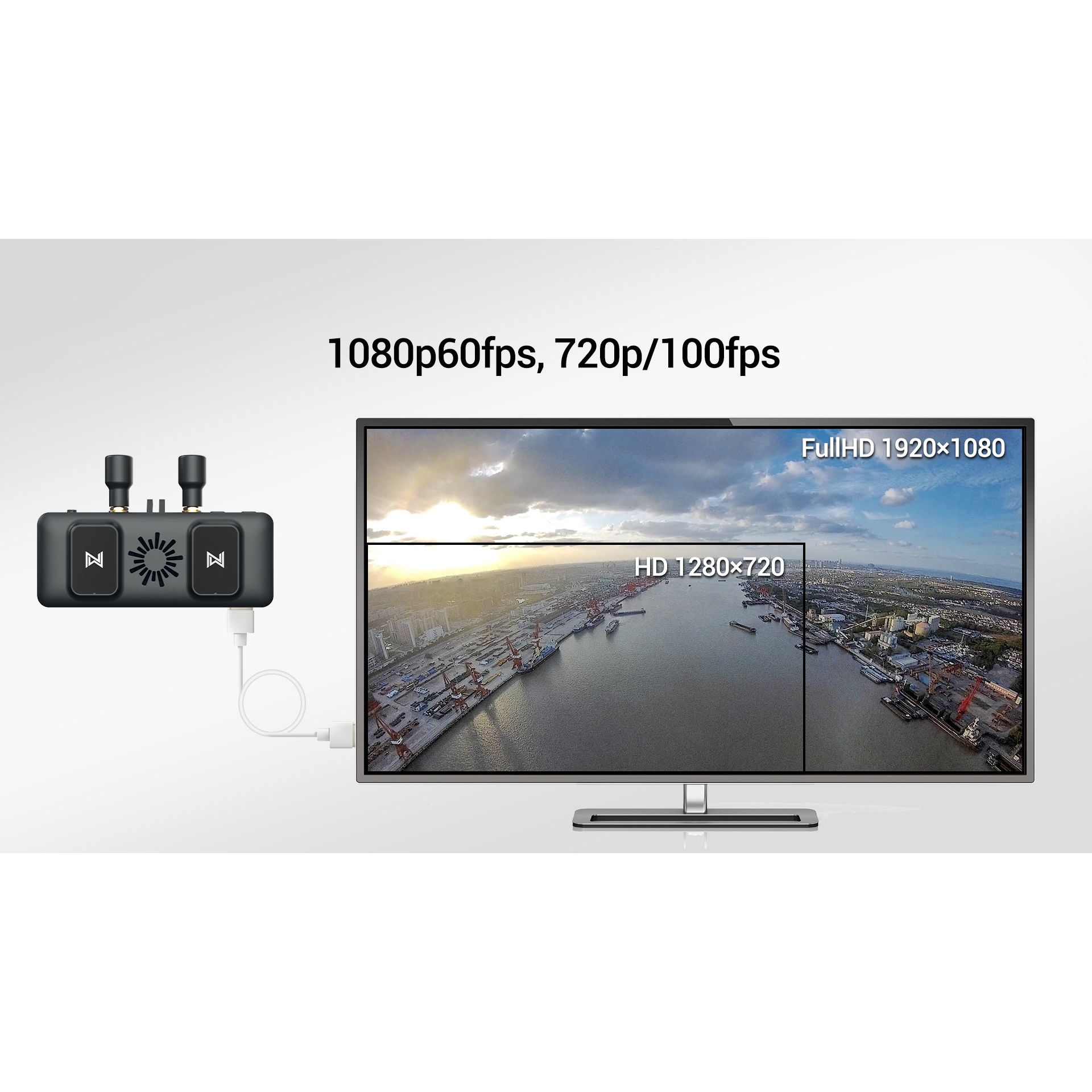

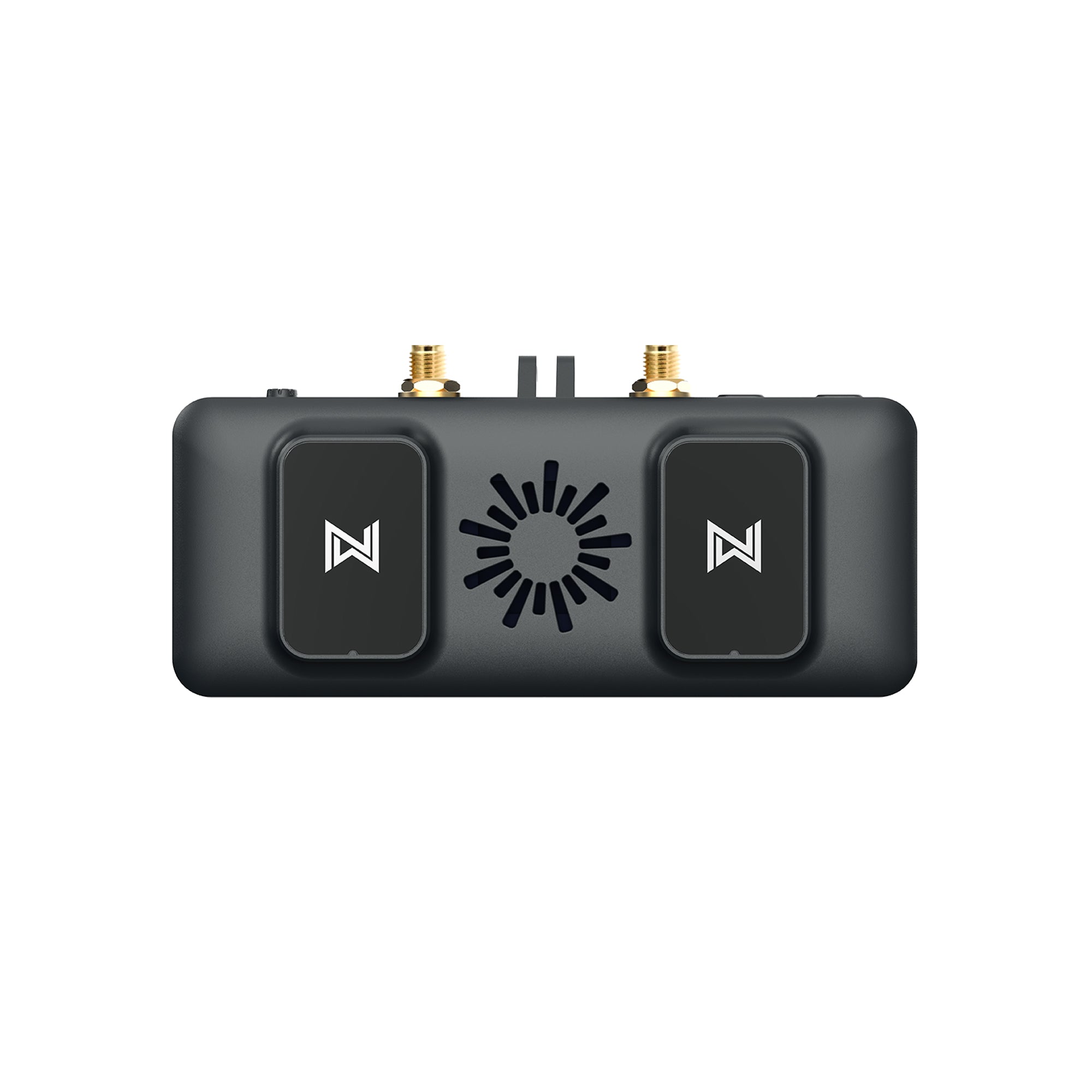

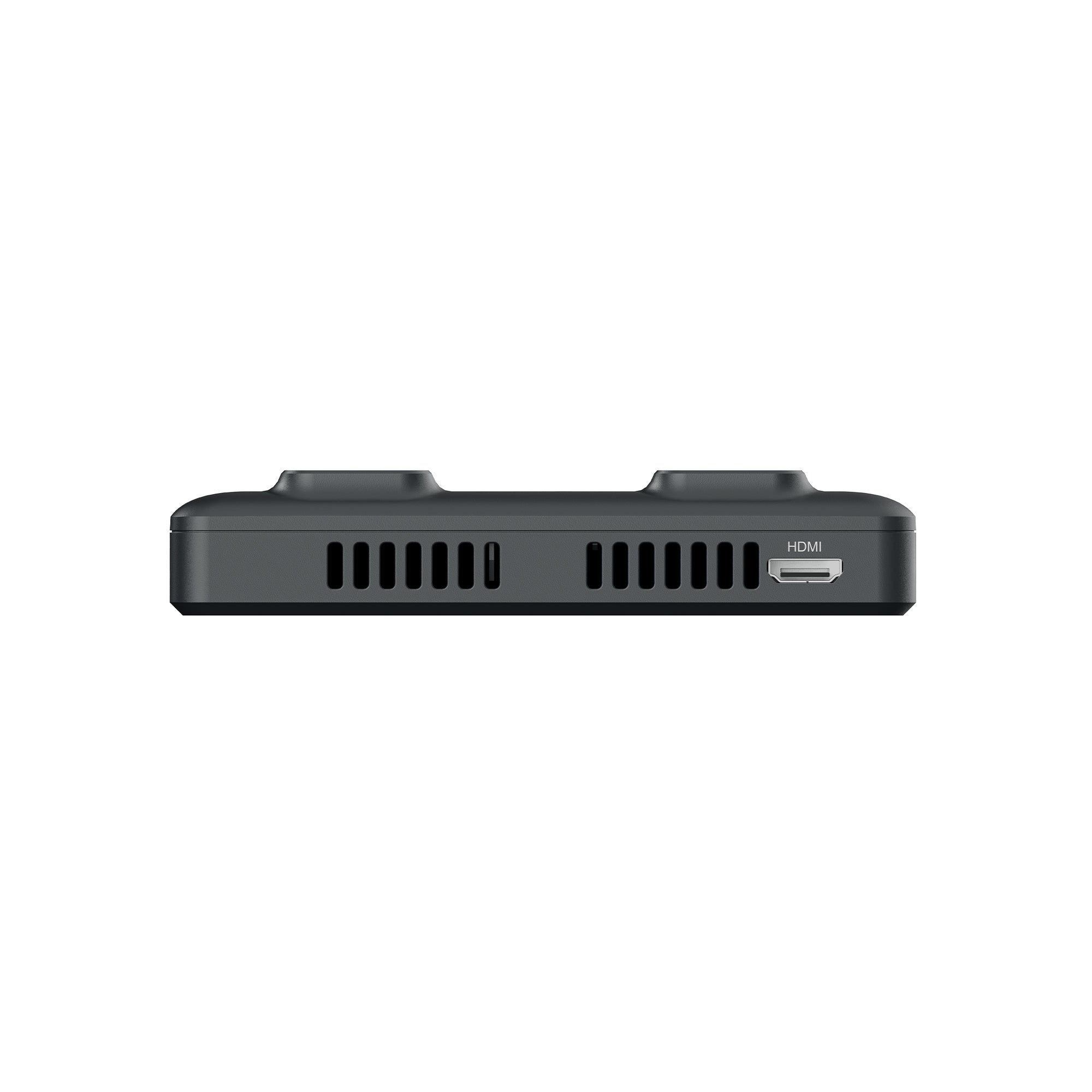

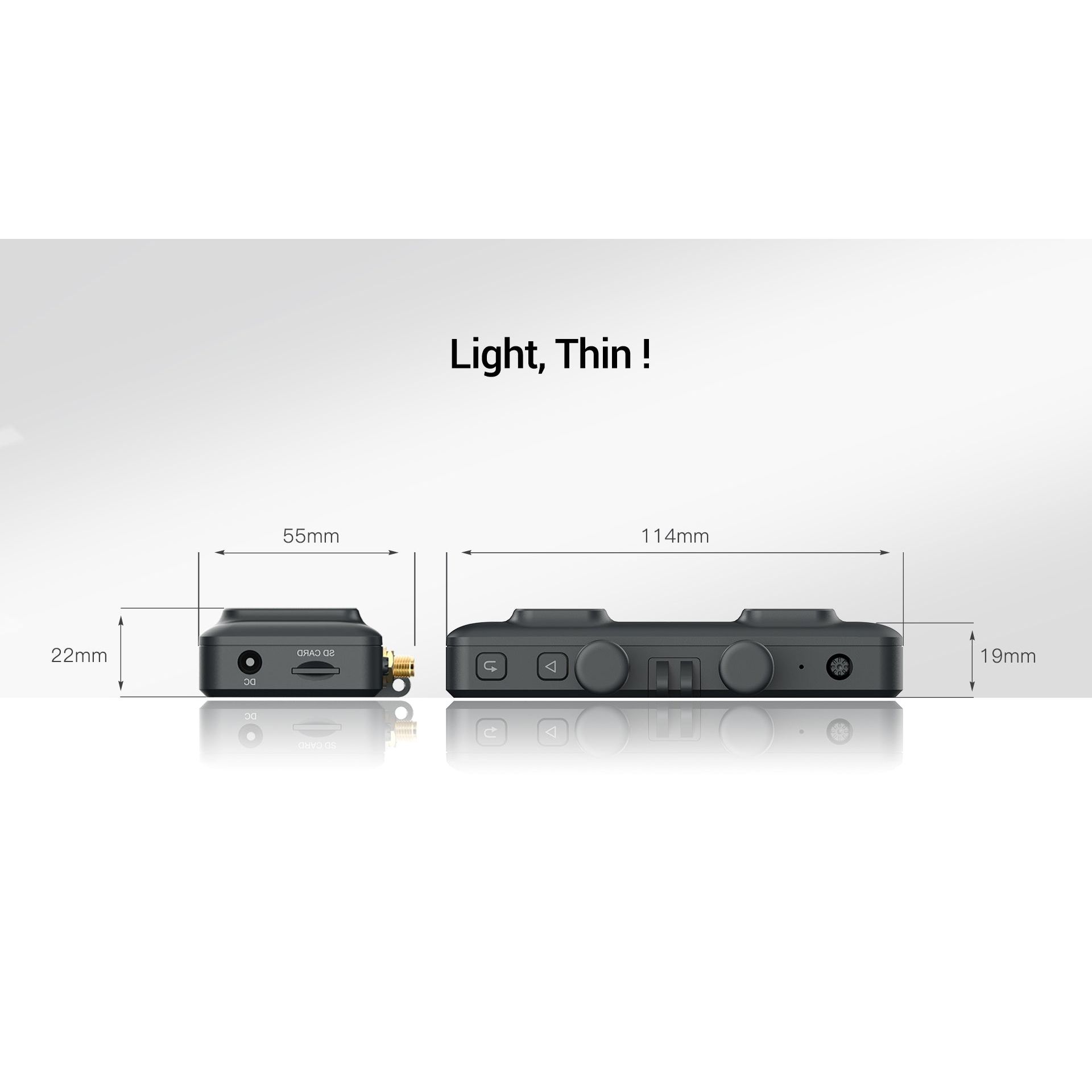

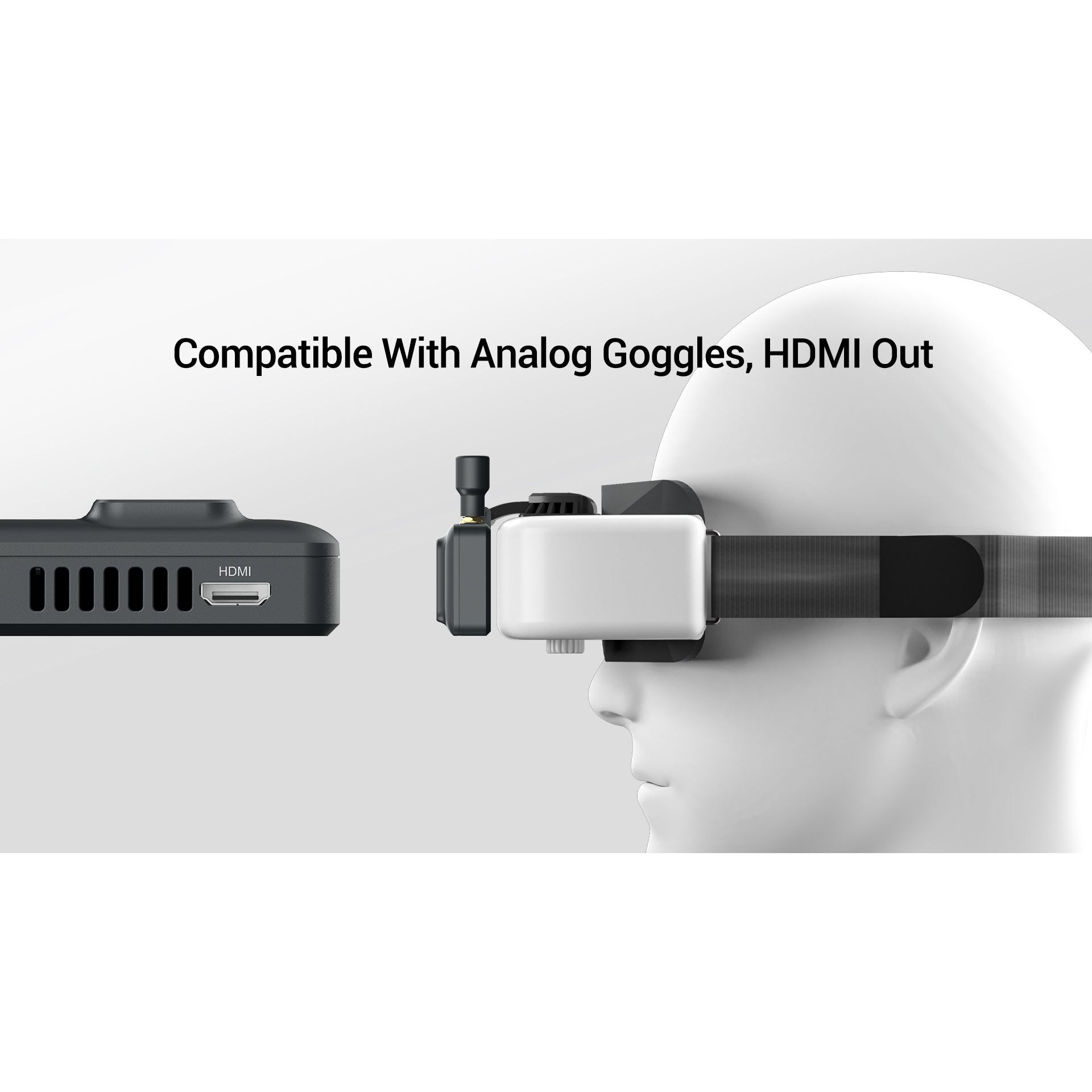

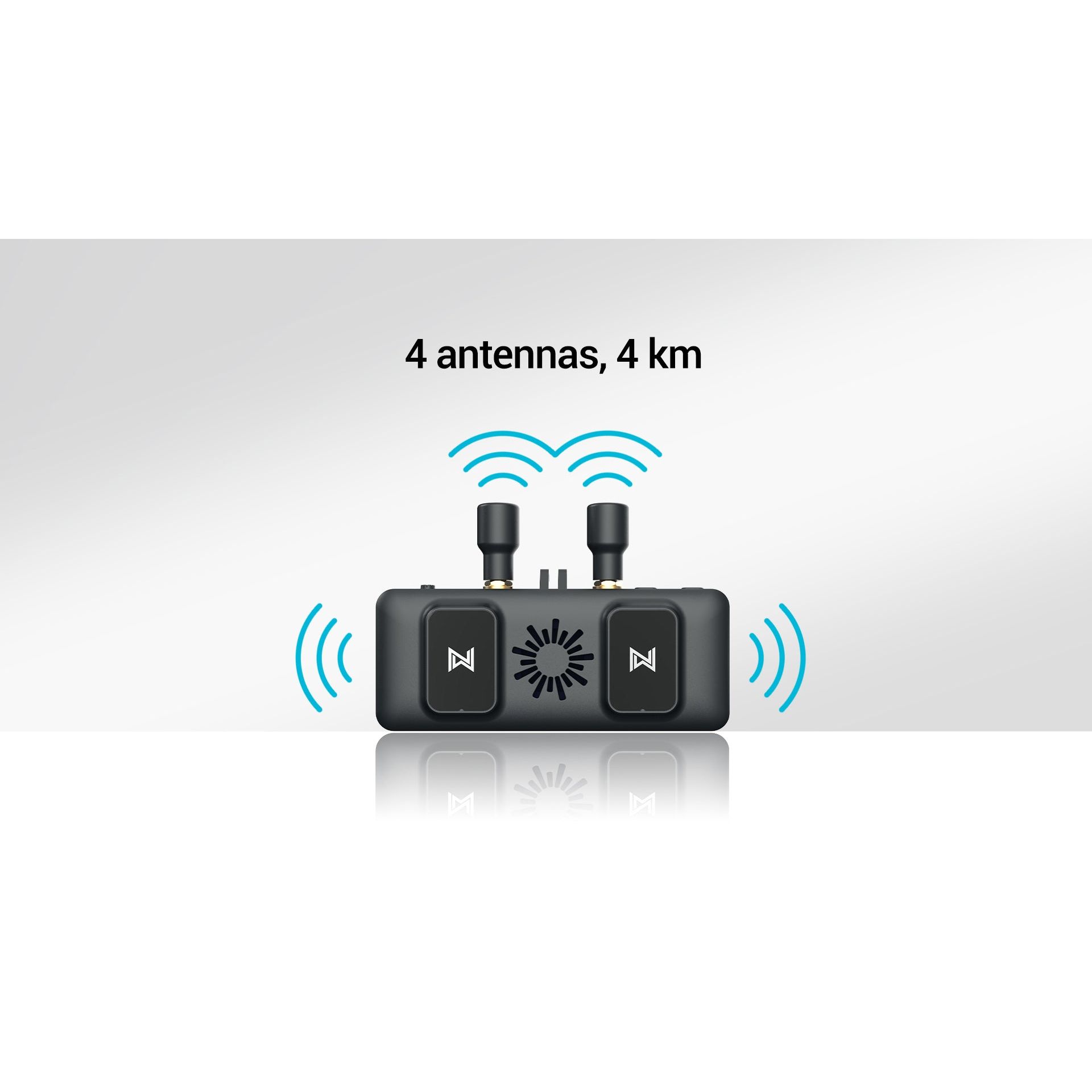

+ Lightweight design, ultra-thin experience Walksnail VRX only 83g and comes with 114*55*22mm size, easy to carry. Walksnail VRX adopts a 4pcs antenna design, with 2pcs directional antennas with a maximum transmission distance of more than 4km 1080P/60FPS Walksnail VRX adopts industry-leading H.265 encoding technology, which can provide a minimum delay of 22ms and a maximum resolution of 1080p. The HD picture quality takes you to experience the fun of flying a drone. HDMI output ensure you to enjoy uncompressed audio and video signals from the Walksnail HD system Canvas Mode Supports betaflight full OSD display,supports betaflight, inav, kiss full osd display you can easily adjust the parameters you want by remote control. Specification Camera Model Avatar nano/Avatar camera Image Sensor 1/2.7”1nch Resolution 1080P/60fps,720P/120fps,720P/60fps Ratio 16/9 4/3 Lens 2.1mm FOV 170° Aperture F2.0 Shutter Rolling shutter Min.Illumination 0.001Lux Weight 3.5g/6g Dimensions 14*14*17mm/19*19*22mm Coaxial Cable 90mm/140mm VTX Model Avatar module Communication Frequency 5.725-5.850GHz Transmitter Power (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm 1/O Interface JST1.0*6(Power in)JST1.0*4(USB) Mounting Holes 25.5*25.5mm Dimensions 33*33*9.5mm Storage 8G Recording 1080p/720p Weight 16g Operating Temperature -20-40℃ Channels 8 Wide Power Input 6V-25.2V Supported FC System Betaflight OSD Canvas mode Latency Average delay 22ms Antenna 2(IPEX) Goggles Antenna Model Red bird Polarization LHCP Bandwidth 5.6GHz-6.0GHZ Average Gain 1.9dBi Radiation Efficiency ≥97% VSWR ≤1.3 Cross-Polar Rejection -15to-30dB Connector RP-SMA Dimension H24.8mm*R15.3mm Weight 4.2g Avatar HD VRX Model Avatar HD VRX CommunicationFrequency 5.725-5.850GHz TransmitterPower(EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm I/OInterface HDMI,microSDcardslot,DC5.5*2.1mm HDMIOutput 1080p60fps,720p100fps,720p60fps PowerInput 7-21V(2S-5S) SDCard Support256G System AvatarHDsystem Packing List Avatar VRX ×1 RedBirdAntenna ×2 HDMICable ×1 2in1DCPowerCable ×1 Avatar HD KIT X1 4 Pin USB Cable X1 6 Pin Power Cable X1 M2x3/4/5mm Screws X4 M1.2x1.5mm Screws X2 Avatar HD Nano KIT X1 4 Pin USB Cable X1 6 Pin Power Cable X1 M2x3/4/5mm Screws X2 M1.2x1.5mm Screws X2 14-19mm Bracket X1 Avatar Mini 1S KIT X1 4 Pin USB Cable X1 6 Pin Power Cable X1 M2x3/4mm Screws X2 M2x16mm Screws X4 M2 Screw nut X4 2.1x3.4x1mm Gasket X5
