Signal Amplification and Extension
5.2G and 5.8G high-power transmission with high-gain directional antennas enhance the signal.

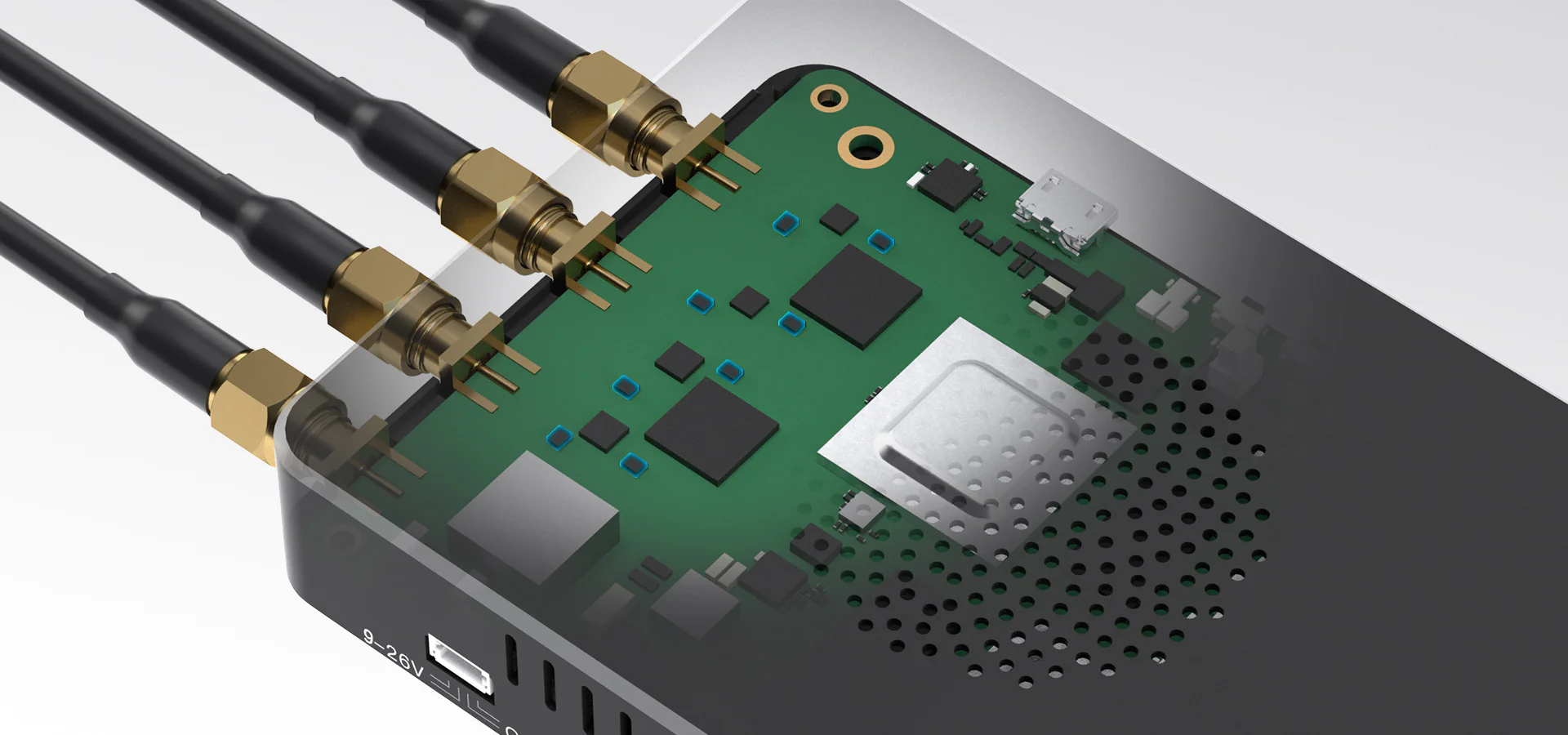

Improved Reliability
Built-in hardware filter – reduces the device's adjacent channel interference, helping to achieve more stable transmission.
Easy & Convenient Setup

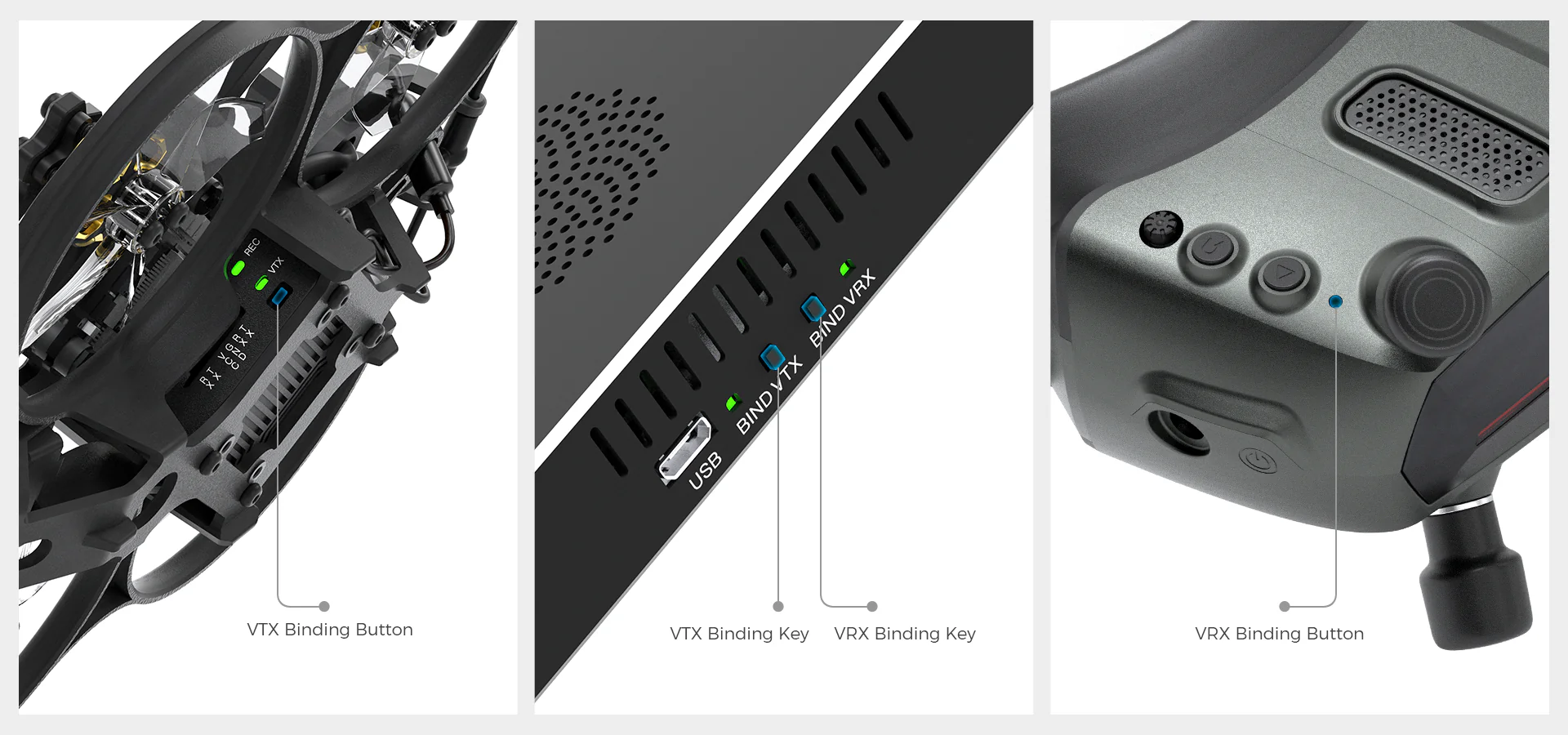

Step 1：Power on the ground unit, repeater, and air unit，Step 2：Press the pairing buttons on both the ground unit and the air unit，Step 3：After successful pairing, the indicator light turns green，Step 4：Binding is completed, and the VRX displays the image.

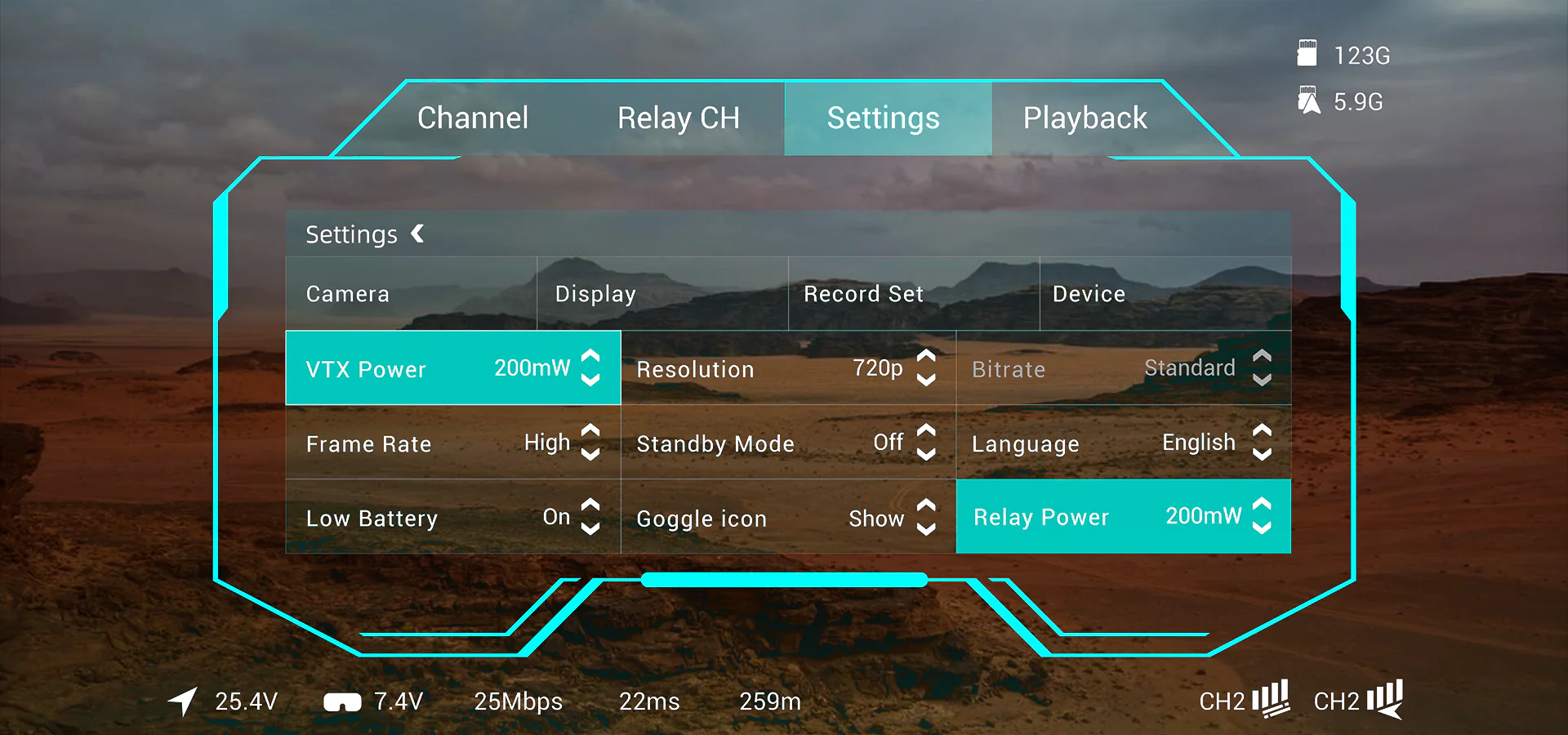

Adjustable Power
Walksnail Avatar Repeaters provide greater range with power adjustments to meet different environmental needs.
Adaptability To Various Environments
Film and Media Production，Outdoor Travel Photography，Miracle Adventures.
Seamless Compatibility
Avatar Repeater is designed to seamlessly integrate with Walksnail and is compatible with Goggles X, Avatar VRX, and all Walksnail VTXs.

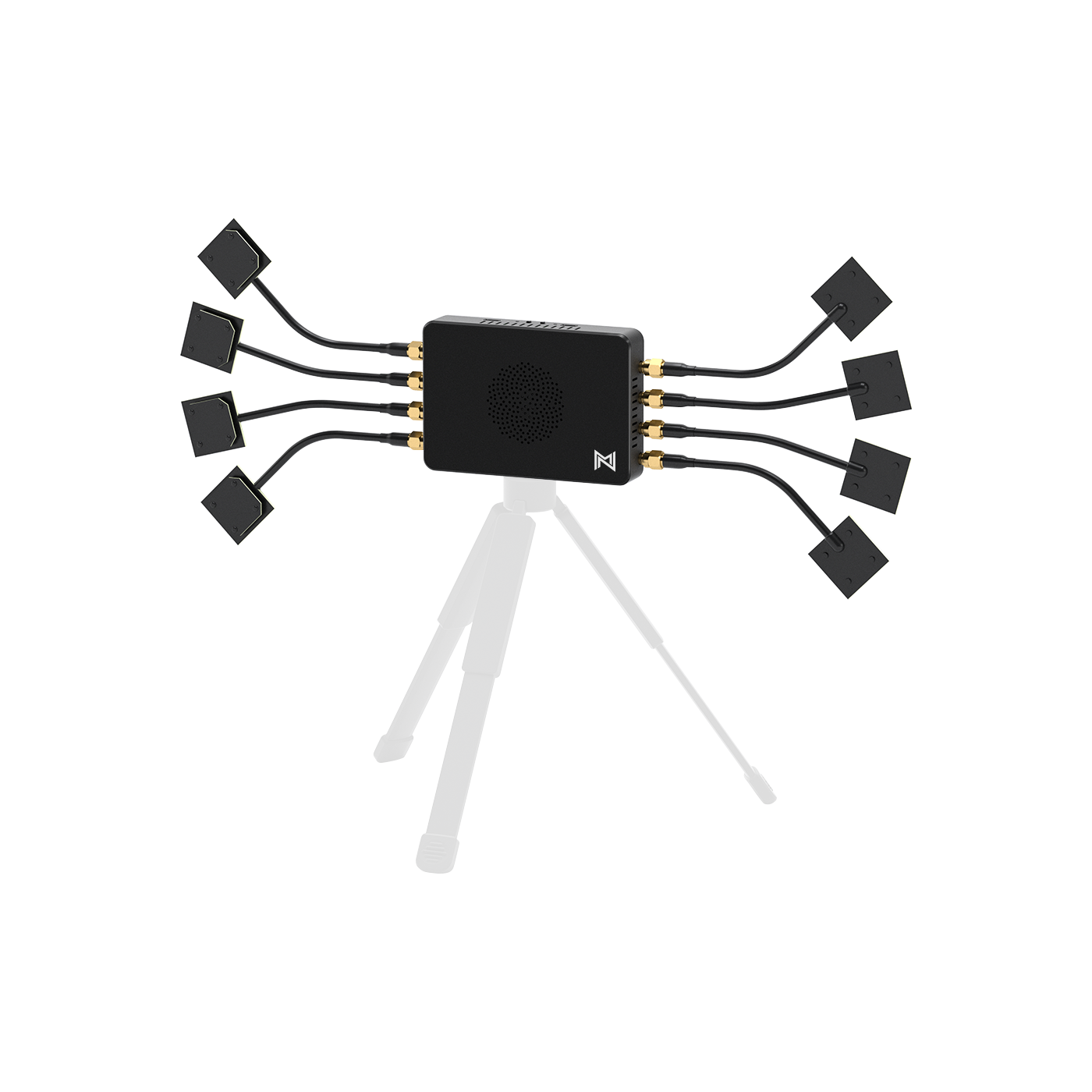

Unleash the full potential of FPV with the first HD digital video transmission repeater. Enhance signal strength, extend transmission range, and enjoy smoother, clearer video.
| Specification | |
| System | Avatar HD system |
| Power input | 9V-26V |
| Dimensions | 119.5*72*18.6mm |
| Weight | 145.9g(Antenna not included) |
| l/O Interface | Type-C ,4Pin 1.0mm Port |
| Transmission Resolution | 1080p/100fps, 1080p/60fps, 720p/100fps,720p/60fps |
| Communication Frequency | 5.15GHz-5.30GHz;5.50GHz-5.85GHz; |
| Transmitter Power(EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| 5.2G Antenna | Frequency range:5.15GHz-5.30GHz; Gain:7dBi(AVG) Polarization:LHCP |
| 5.8G Antenna | Frequency range: 5.50GHz-6.00GHz Gain:7dBi(AVG) Polarization:LHCP |
FAQs
ls there HDMl Out?
- No, repeaters do not support HDMI output.
Does the Repeater have a DVR?
- No, Repeaters do not have DVR functionality.
How far does the WalksnailAvatar Repeater radiate?
- The extended distance added by the repeater exceeds 4 kilometers.
Are there any limitations when using the Walksnail Avatar Repeater?
- The repeater does not support 50Mbps high bitrate, sharing mode, head tracking, or racing mode. Additionally, it must be used within legal frequency bands.
Is the Walksnail Avatar Repeater compatible with FPV goggles and drones from other brands?
- Supports Avatar VRX, Avatar Goggles, Goggles X, and all Avatar air unit products.
