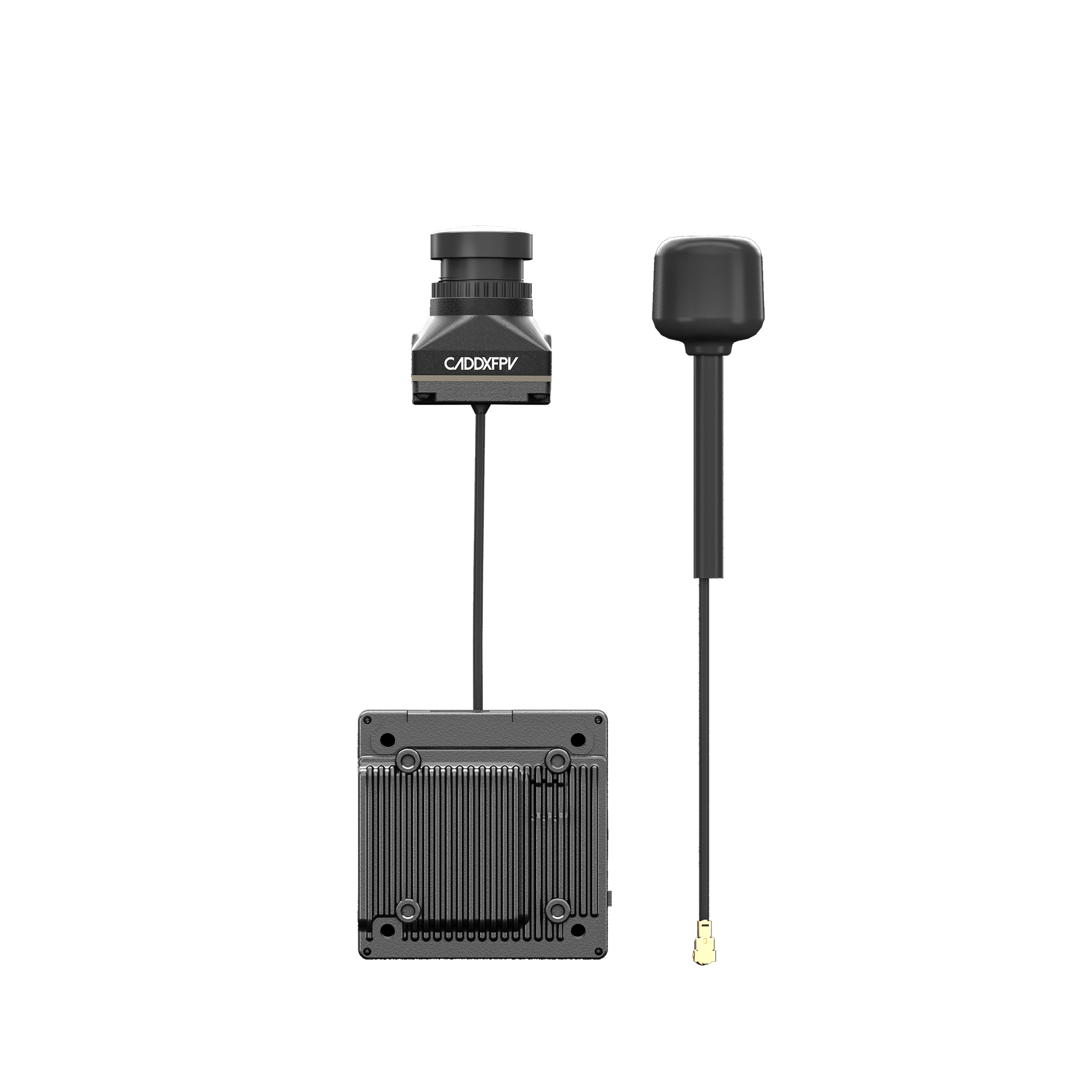

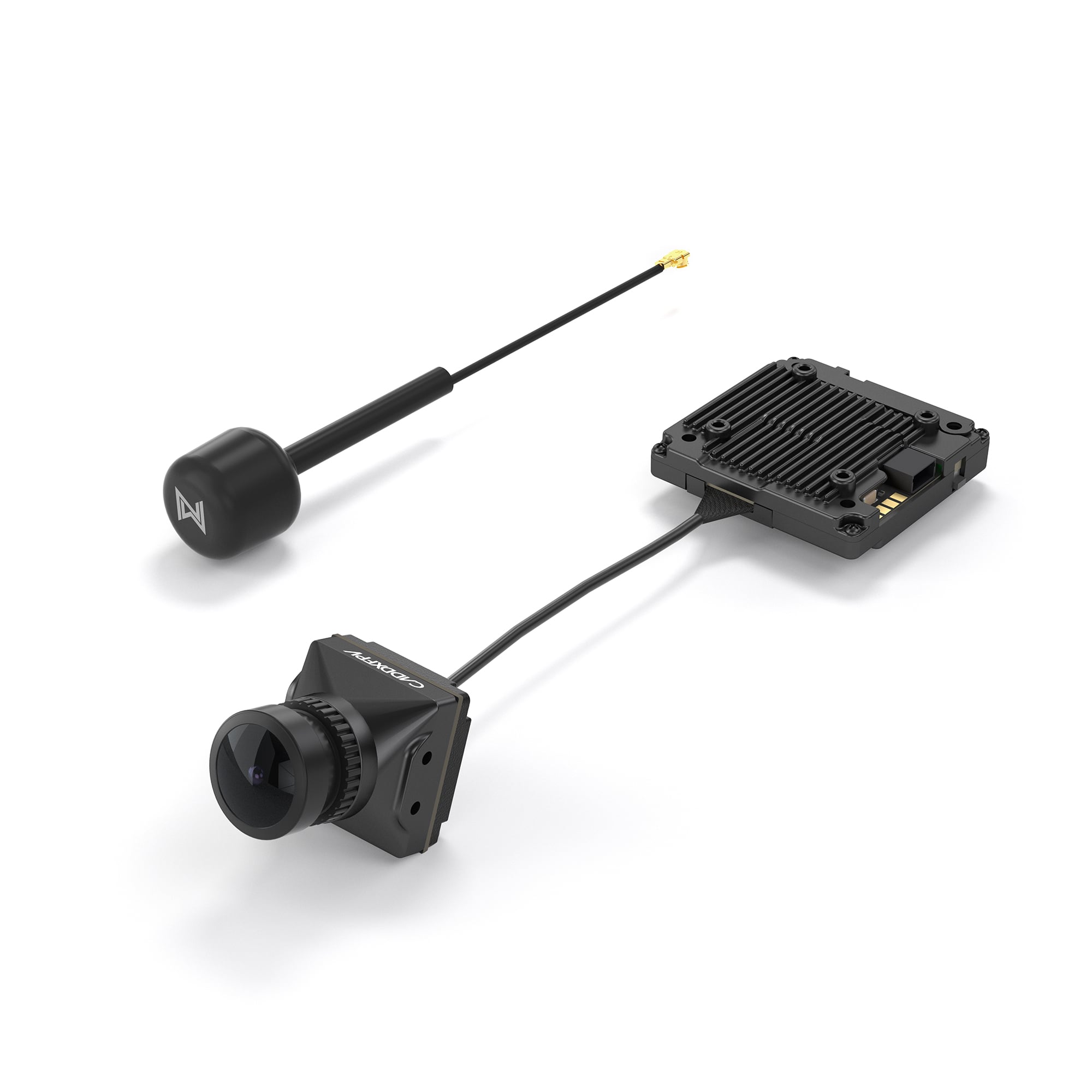

Walksnail Avatar HD Pro Kit

Style

Quantity

Summary

+

Product Details

Bullet Point :


  • 1/1.8 inch Sony Starvis Ⅱ sensor, come with extremely clear night vision as long as day vision.
  • Support 1080P/120fps high frame, also the first high frame night vision HD camera in FPV market.
  • Supporting Gyroflow for more stable and smoother footage.

Bullet Point:


  • Add 20*20mm mounting holes for easy installation.
  • Add 32g built-in storage option.
  • Updated the design of PCB board and outer shell, more durable.
  • A spare pad is added to provide two power connection modes.
  • Optimized antenna base design and frequency button position for greater convenience.

Bullet Point for Avatar HD Pro kit

features:

  • 1080P 120fps compatibility
  • High frame starlight
  • 22ms low latency
  • Ranging Mode
  • 4km range
  • Light weight design
  • FOV160°
  • Built-in 32G storage
  • 6V-25.2V
  • Sony Starvis Ⅱ Technology

  • The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. Support 1080P/60FPS, 720P/120FPS.
  • Featuring a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera delivers excellent night vision that's just as clear as day.

  • The camera ( 32G VTX KIT) supports Gyroflow, take you smooth and stable video quality.




  • In addition to the original 25mm x 25mm mounting holes, the kit now includes 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.
  • Updated the design of PCB board and shell, improved the quality of VTX, more durable.
  • Optimized the installation place of the antenna, so as to better protect the VTX.
  • The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
  • A spare pad is added to provide two power connection modes.



  • New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

  • The Avatar VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference.32G built-in storage, recording video time increased by 4 times.

  • It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.

  • The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.





Specification
Camera
ModelAvatar HD pro camera
Image Sensor1/1.8-Inch Sony Starvis Ⅱ Sensor
Resolution1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;
Ratio16/9; 4/3
Lens8Mp
FOV160°
ApertureF1.6
ShutterRolling shutter
Min.Illumination0.00001Lux
Weight9.5g
Dimensions19*19*24mm
Coaxial Cable140mm
VTX
ModelAvatar V2 module
Communication Frequency5.725-5.850GHz
Transmitter Power (EIRP)FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
1/O InterfaceJST1.0*4(Power in)JST0.8*6(USB)
Mounting Holes25.5*25.5mm; 20*20mm
Dimensions33.5*33.5*10.5mm
Storage8G/32G
Recording1080p/720p
Weight17.6g
Operating Temperature-20-40℃
Channels8
Wide Power Input6V-25.2V
Supported FC SystemBetaflight; Inav; Fettec; ArduPilot;Kiss
OSDCanvas mode
LatencyAverage delay 22ms
Antenna1(IPEX)
Avatar V2 antenna
PolarizationLHCP
Frequency range5600MHz-6000MHz
Gain1.9dBi
VSWR≤1.5
Input Impedance50Ω
InterfaceIPEX-1
SizeR15 X 45mm(without cable)
Weight2g
Packing List
USB transfer extension cableX1
4 Pin silicone cableX1
M2*4mm screwsX8
M2*5mm screwsX4
M2*6mm screwsX4
M2*14mm screwsX4
M2*5*0.5mm gasketX4
