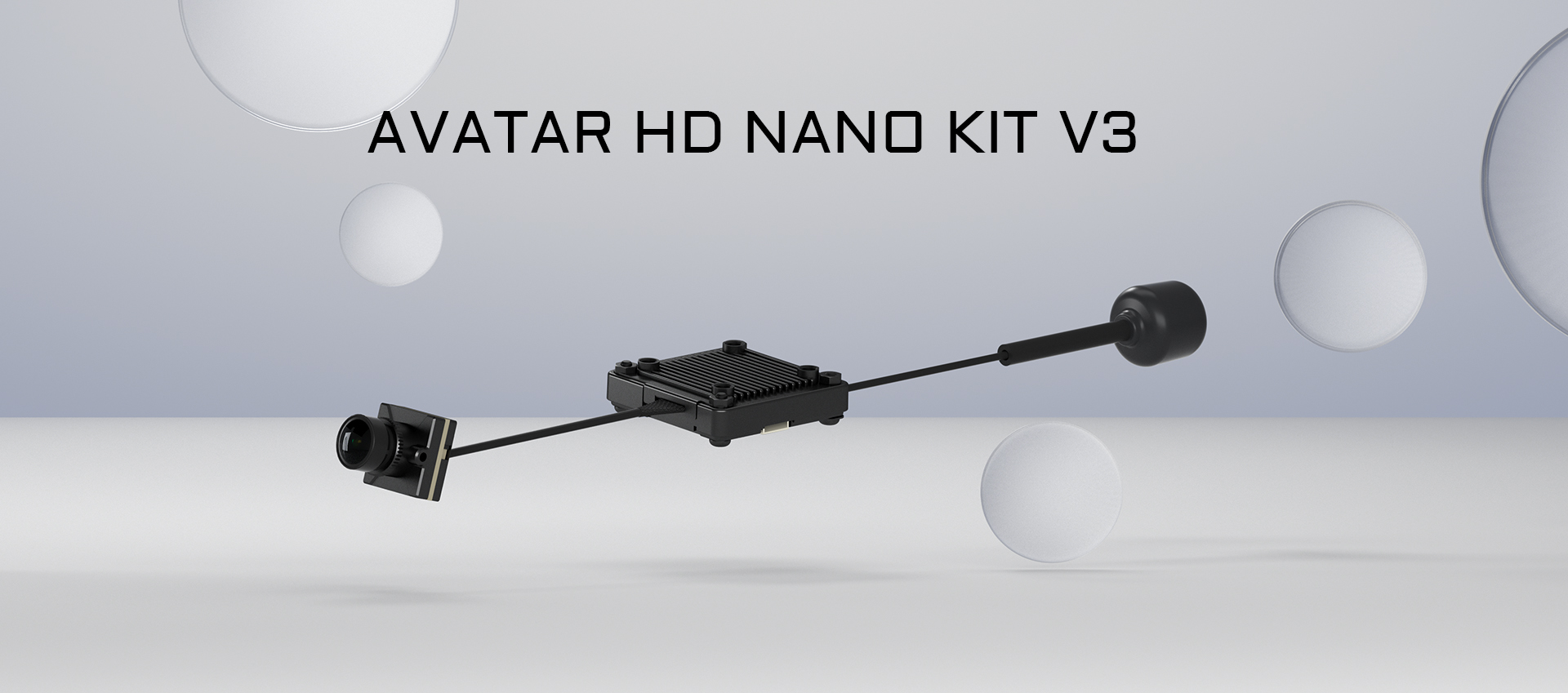

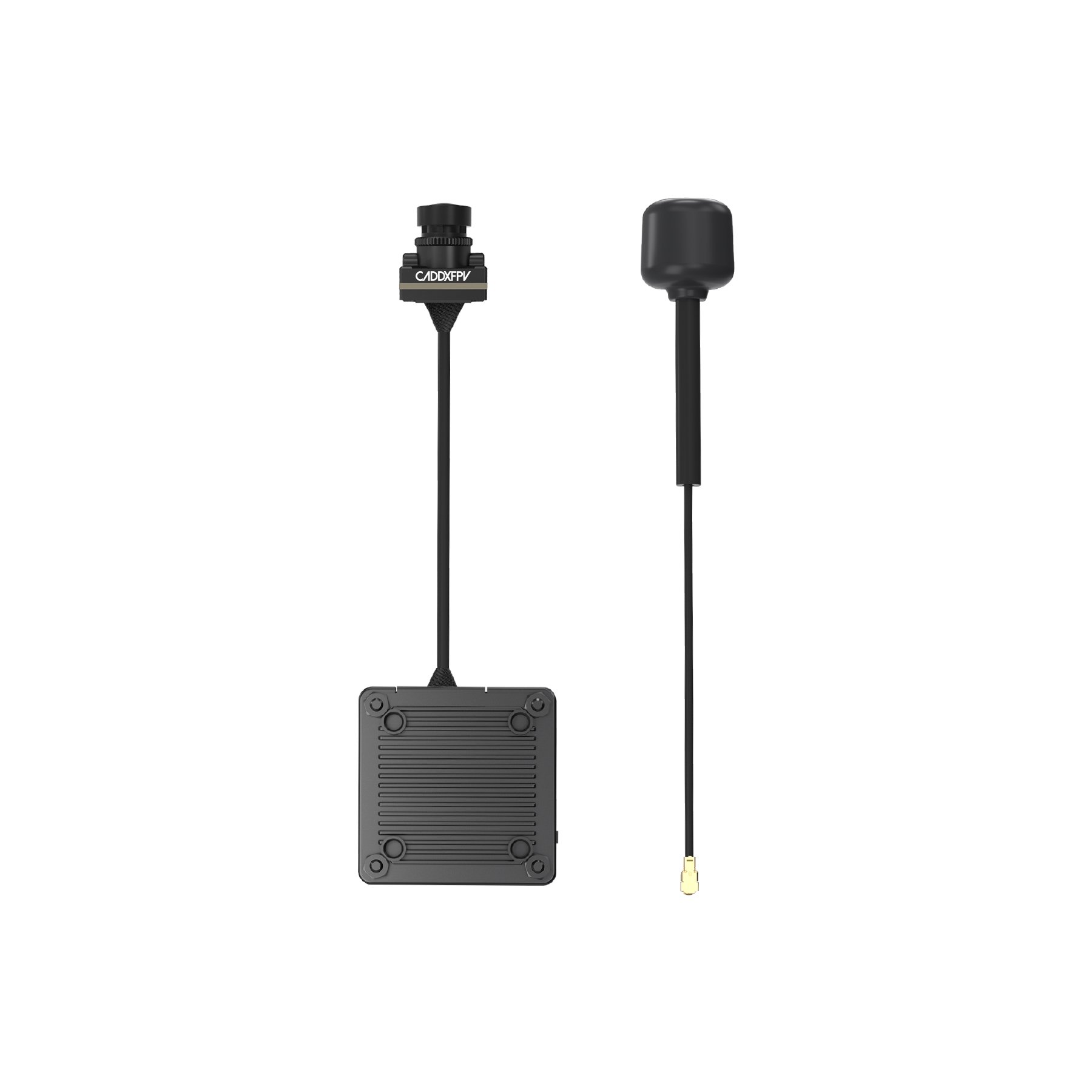

Walksnail Avatar HD Nano Kit V3

Coax Cable Length

Quantity

Summary

+

Product Details

Product features:

  • 3.1~13V
  • 500mW
  • FOV160°
  • Metal case
  • 1080P/60fps
  • 4:3 native sensor
  • Built-in 32G storage
  • 18.5g light-weight
  • Nano Camera 14*14mm
  • The Walksnail Avatar HD Nano Kit V3 supports 1080P/60fps, with a 4:3 native sensor that provides smooth and stunning images. With this kit, you can capture flying footage with exceptional clarity and detail.

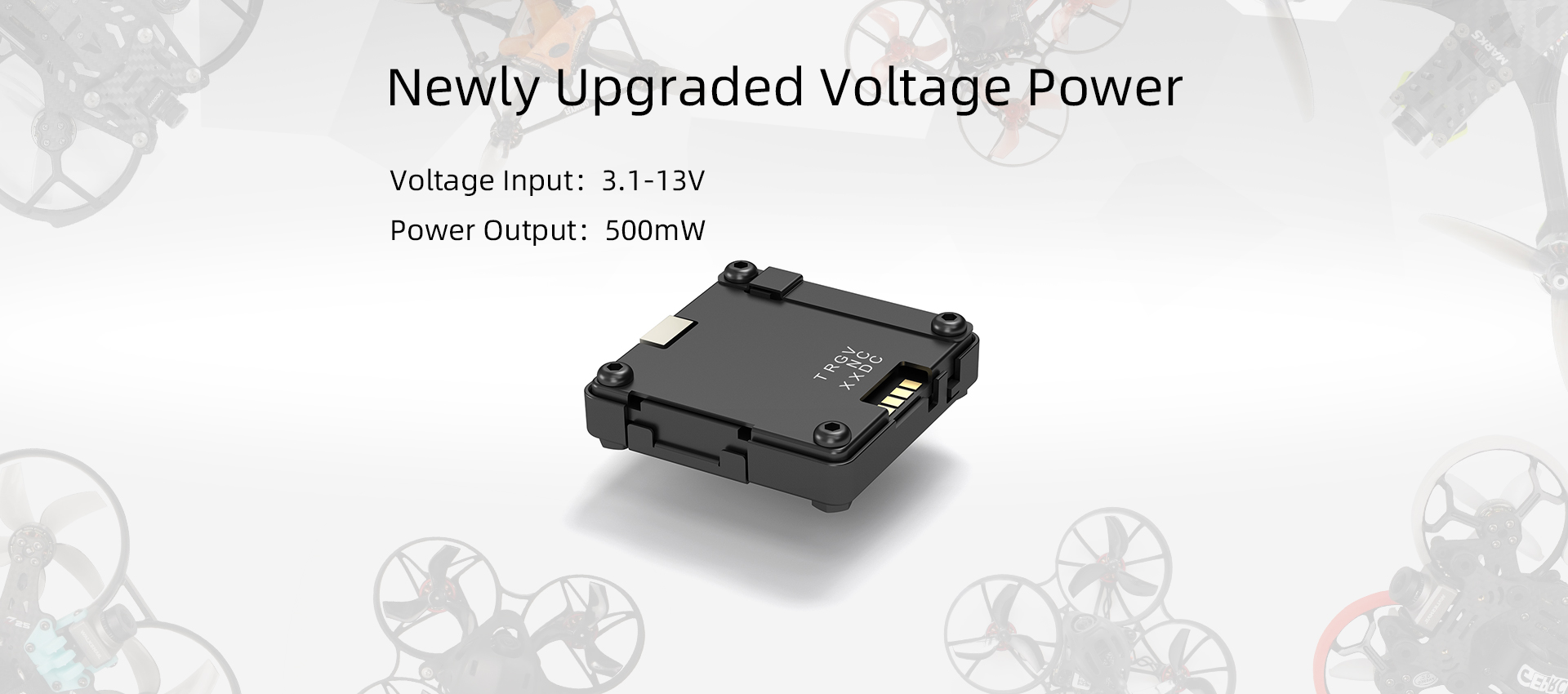

  • Walksnail Avatar HD Nano Kit V3 is suitable for more drones, with 3.1-13V voltage input and 500mw power output, you'll be able to fly various kinds of drones with amazing video quality and range.

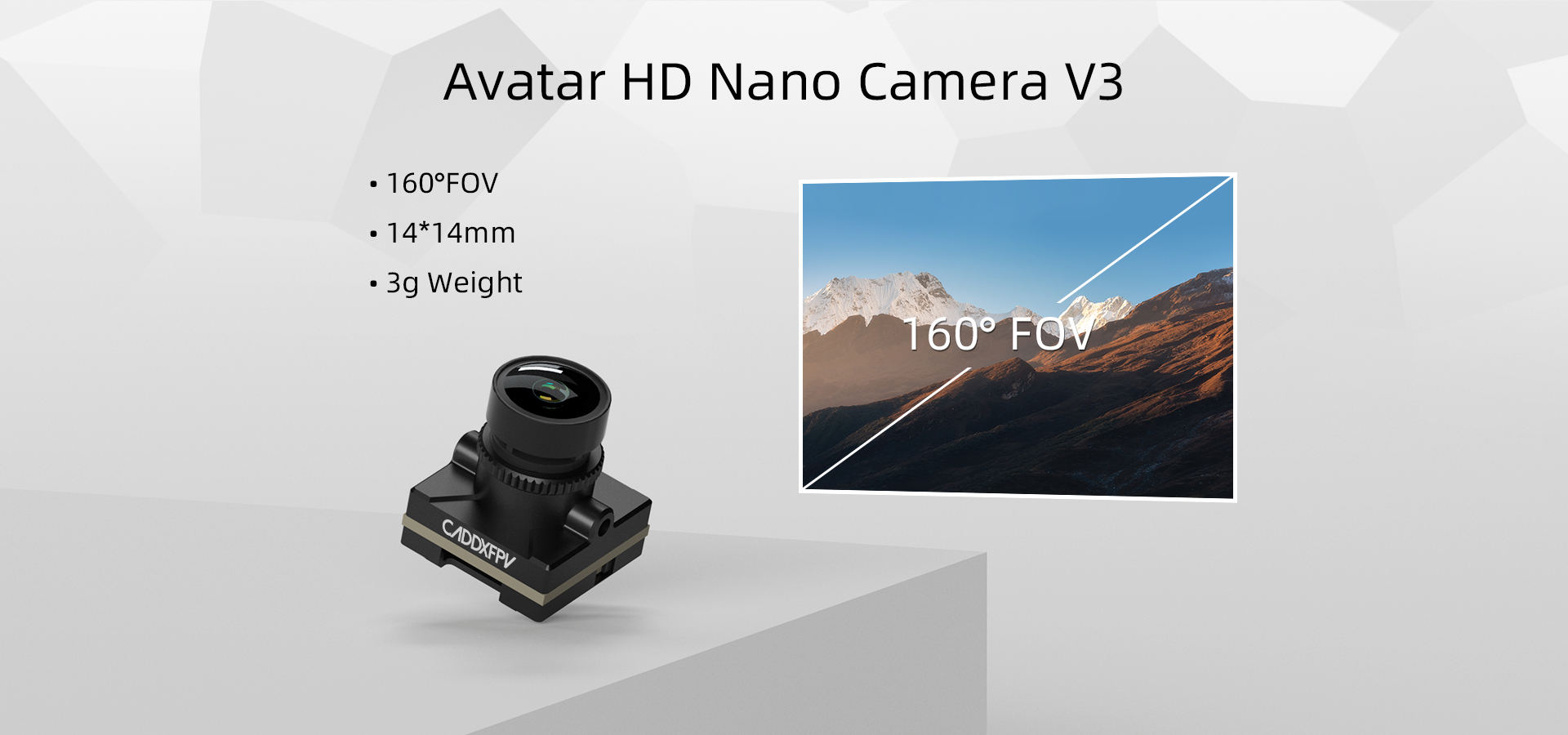

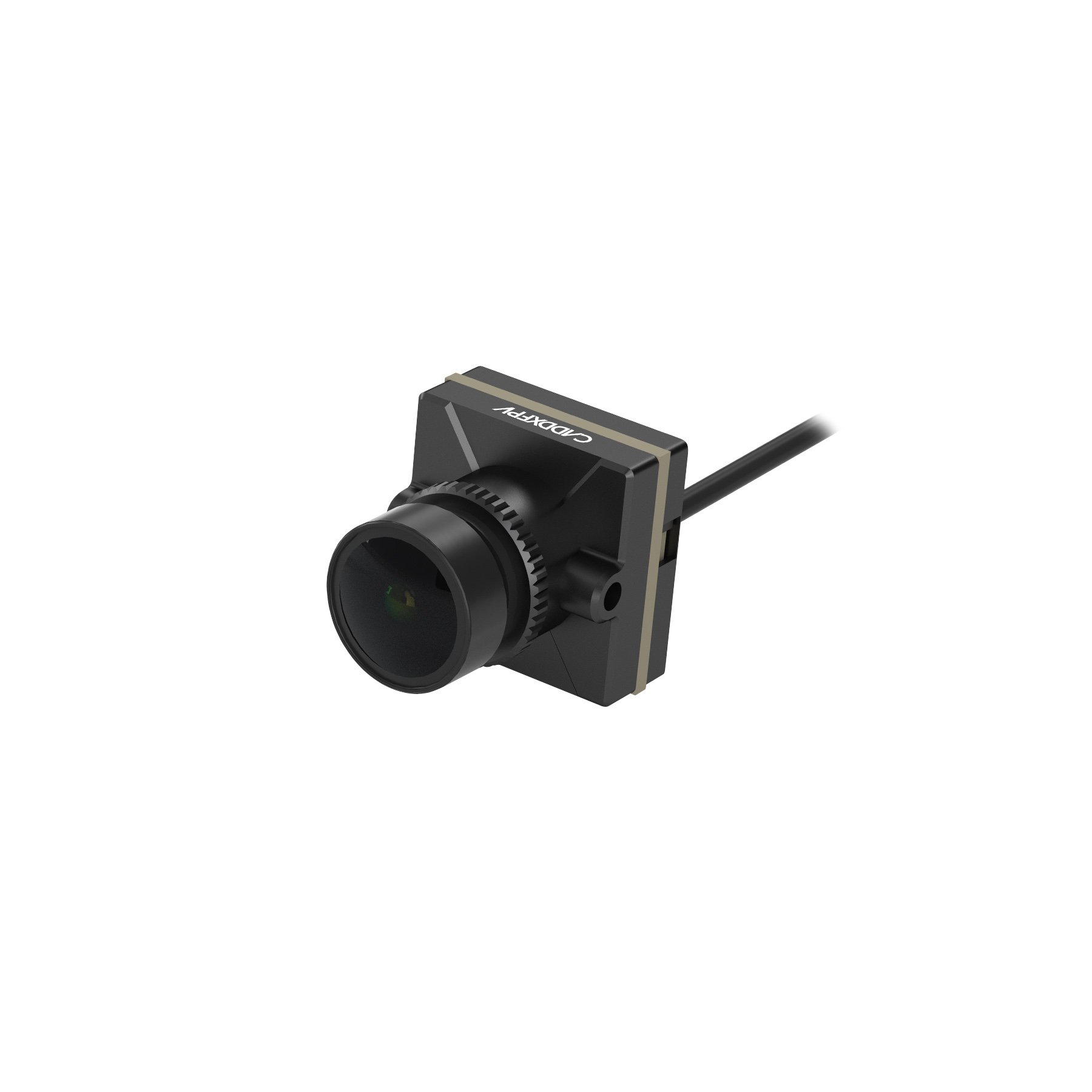

  • Nano camera V3 with dimensions of 14*14mm and a weight of only 3g, equipped with a 2.1mm lens and 160° FOV, provides clearer and more realistic image quality.
  • The Avatar vtx comes with 32g built-in storage, it can record 1080p HD and interference-free flight footages without adding an extra SD card and an action camera, reducing the overall weight of the drones and extending the flight time, allowing you to experience a more comfortable flight while recording 1080 HD videos.

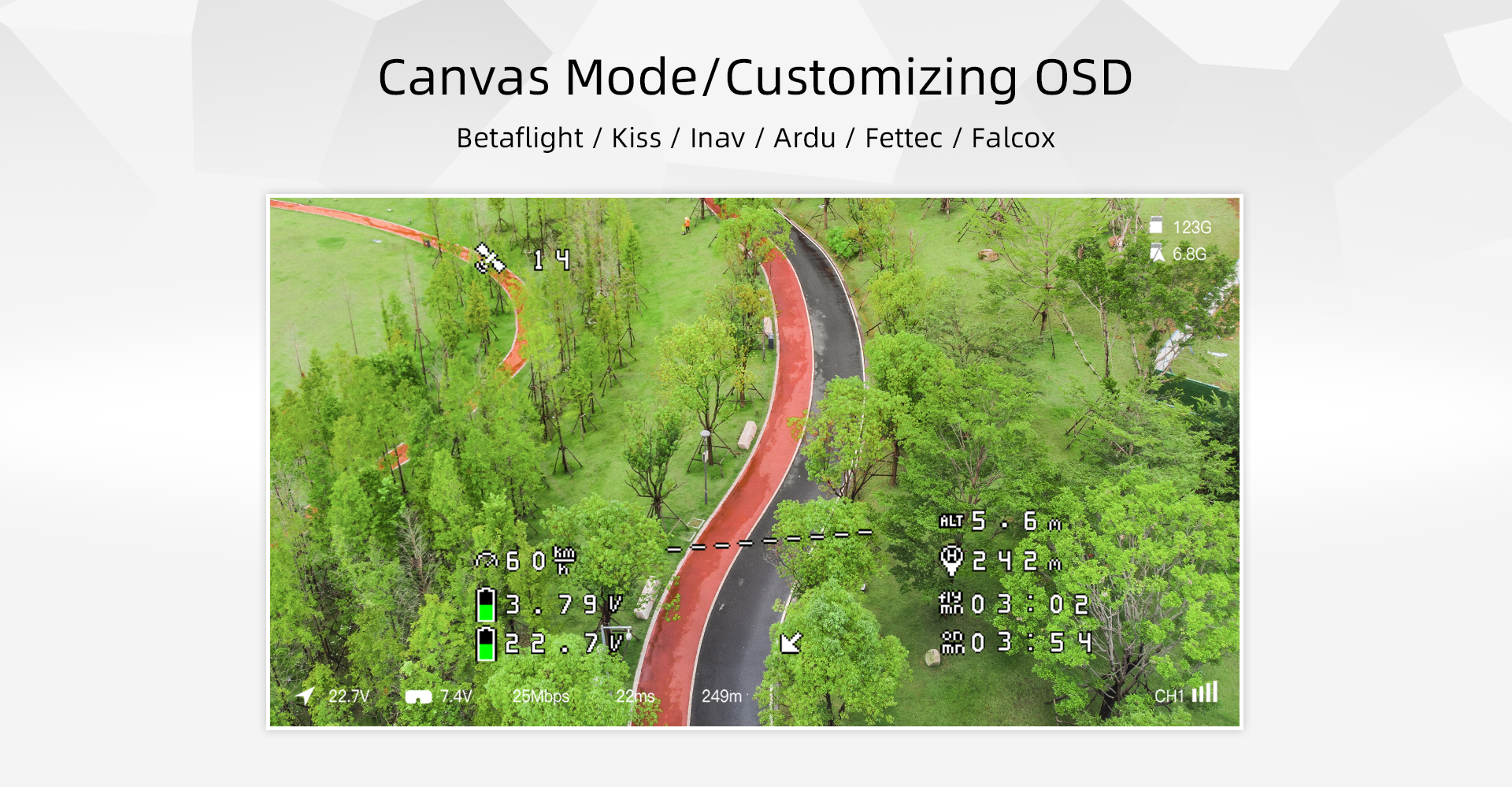

  • Canvas Mode:supporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you'll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.

Q: Can I use analog channels?/Can I fly with other analog pilots?

A: Yes, when you upgrade the firmware to 34.40.15 version, need switch to racing mode.



Specification

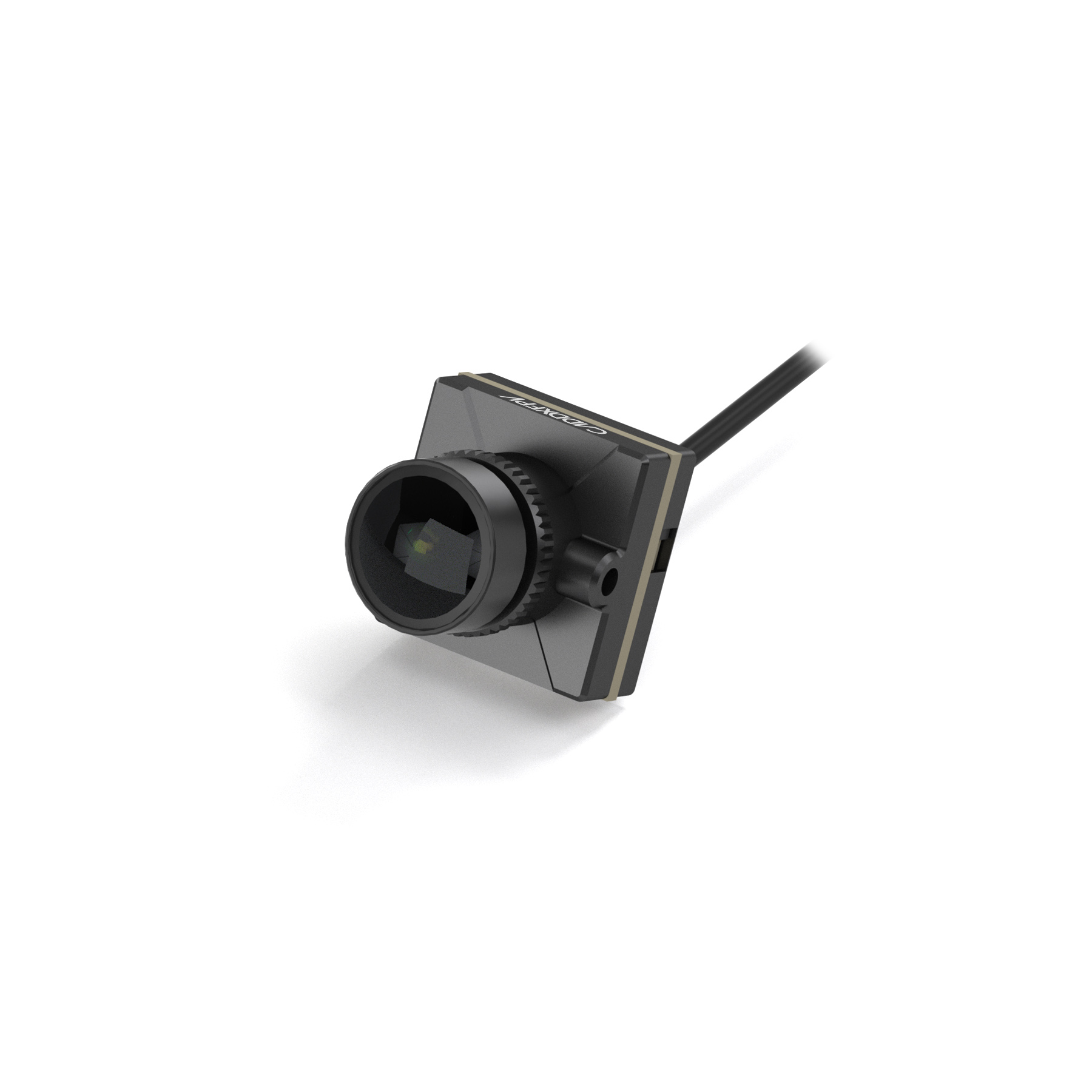

Camera
Model   Avatar HD Nano Camera V3
Image Sensor 1/3.2-Inch 4Mp 4:3 sensor
Resolution  1080P/60fps,720P/120fps,720P/60fps
Ratio      4:3 native / 16:9
Lens 2.1mm
FOV    160°
Aperture    F2.0
Shutter Rolling Shutter
Min.Illumination  0.001Lux
Weight 3g (without cable)
Dimensions 14*14*16.8mm
Coaxial Cable 90mm(default)/140mm

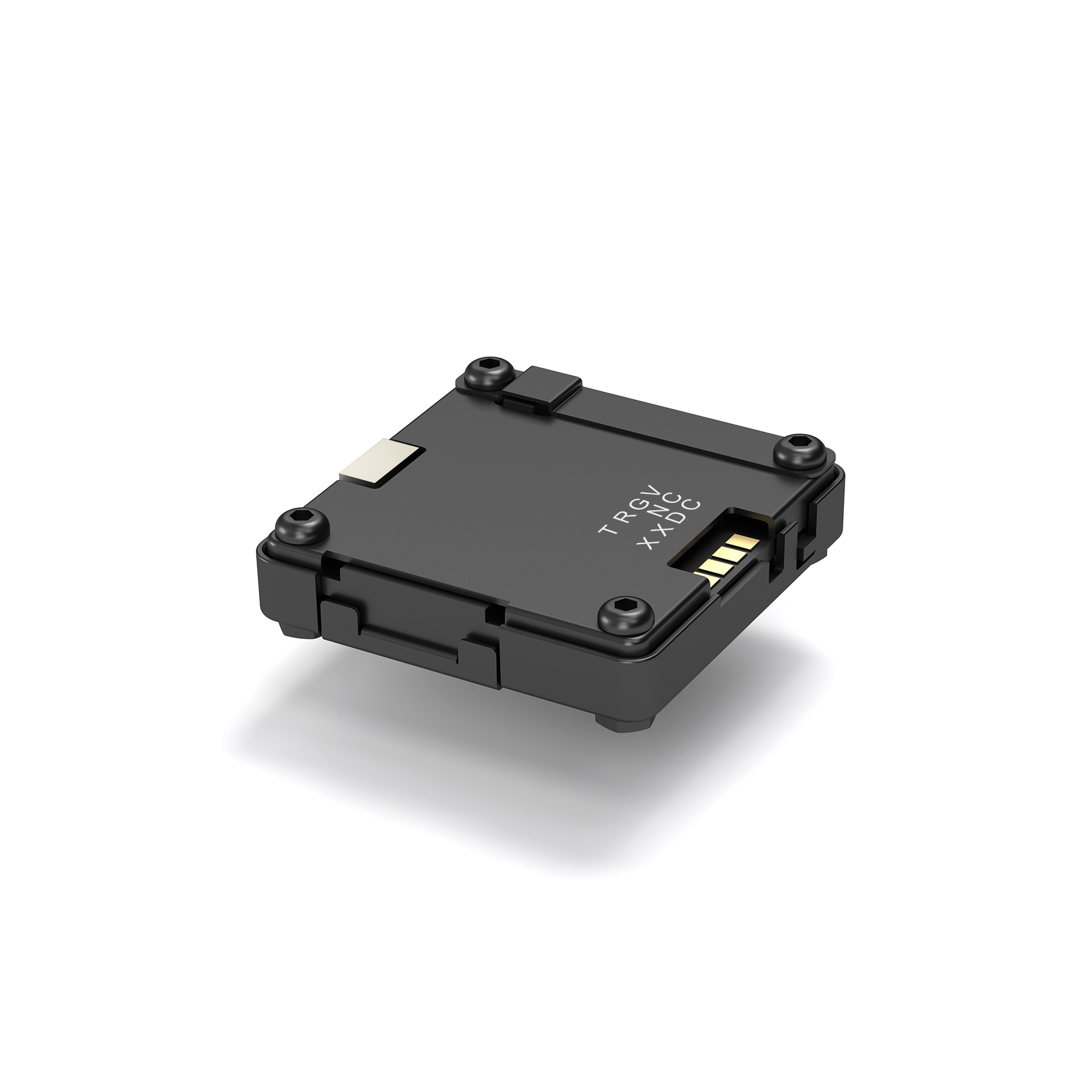

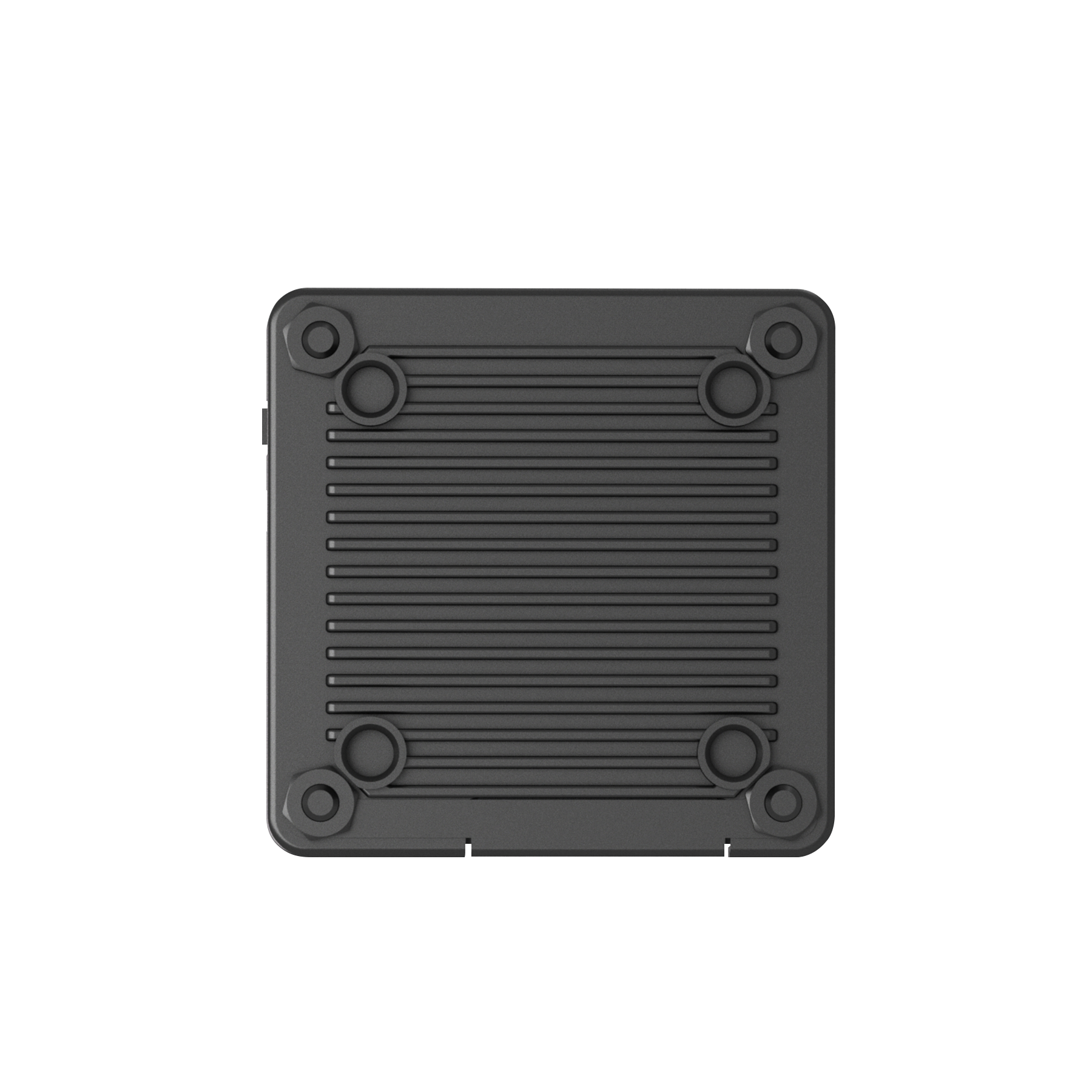

VTX
ModelAvatar HD Mini VTX V3
Communication Frequency5.725-5.850GHz
Transmitter Power (EIRP)FCC:<27dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm

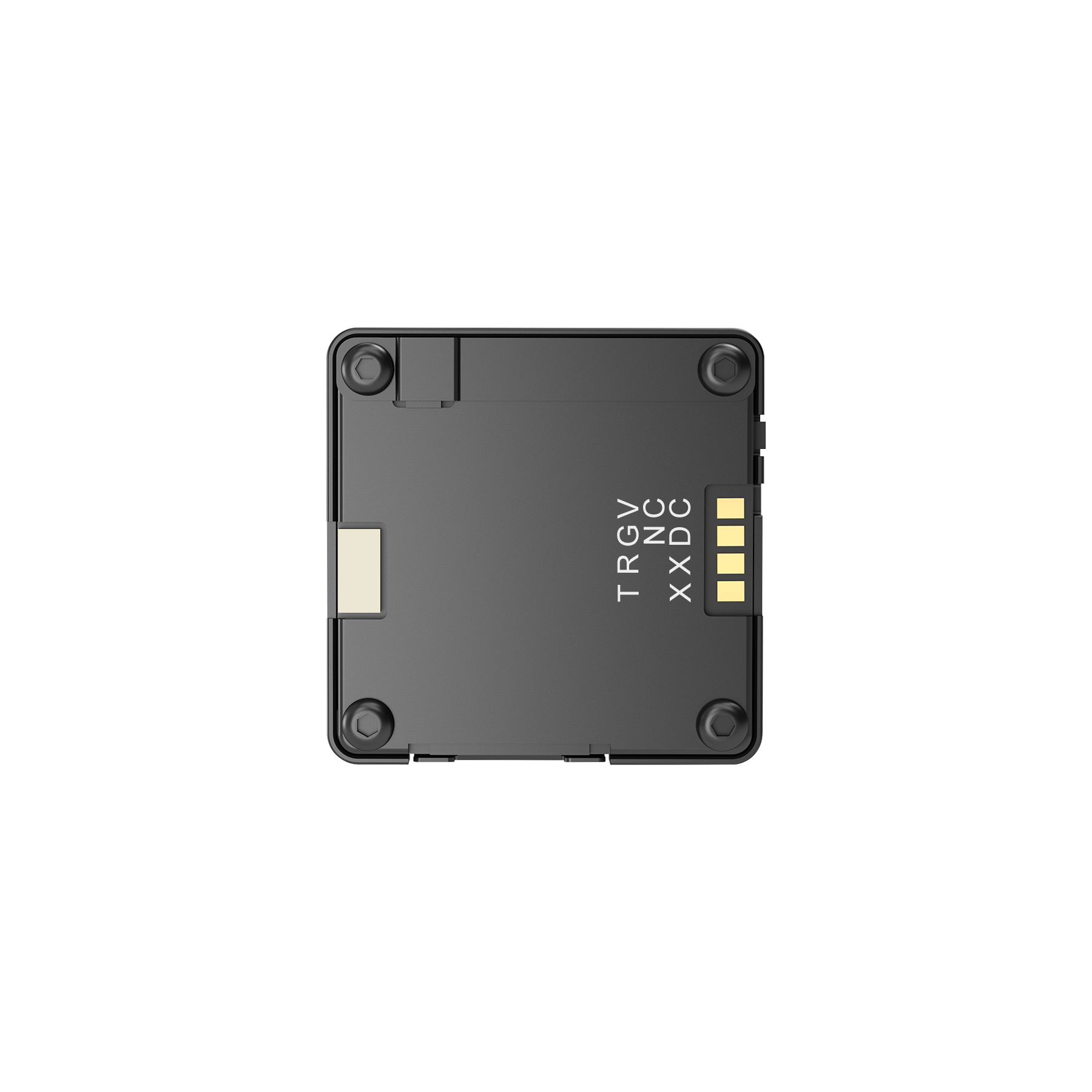

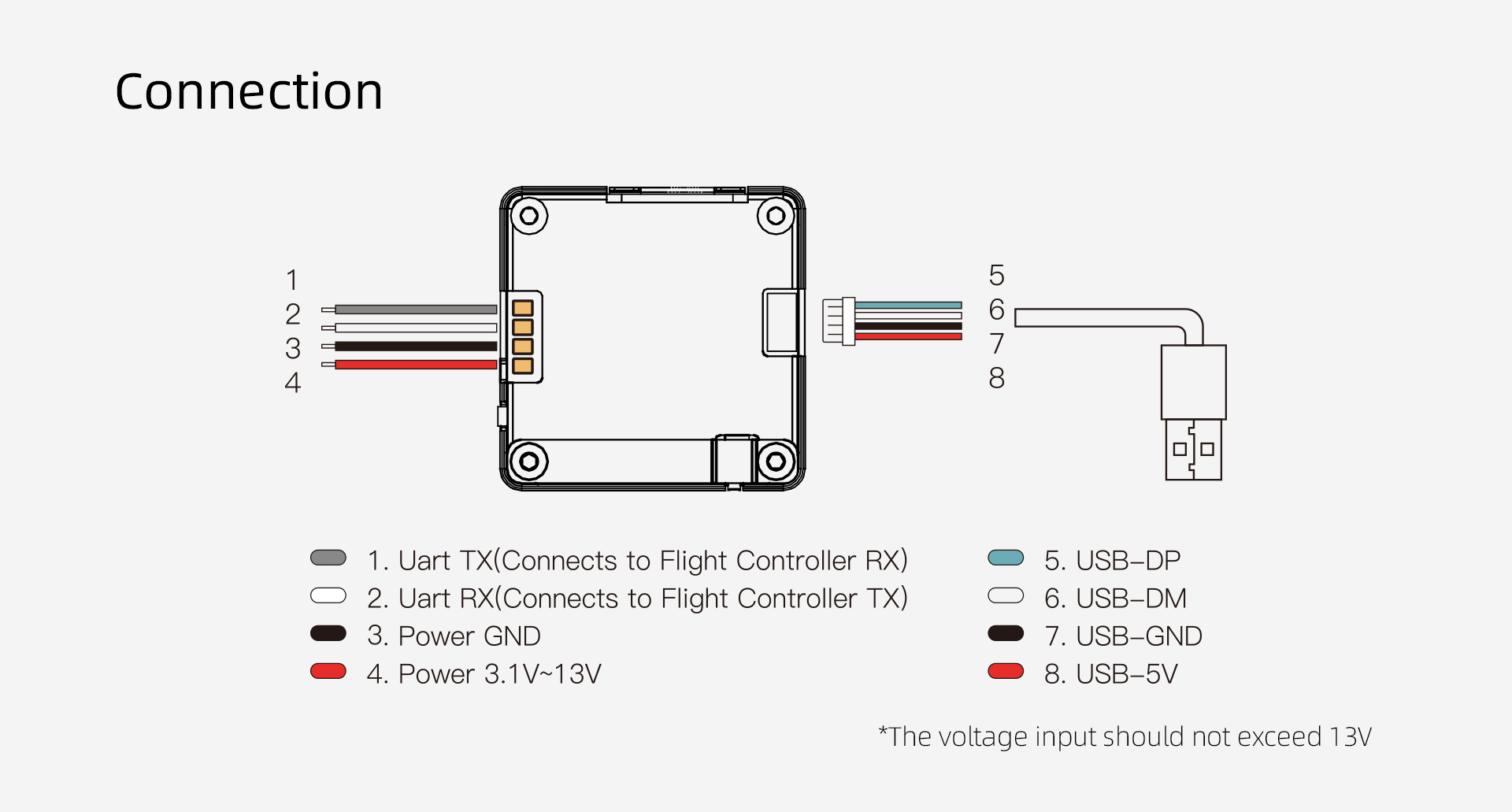

I/O InterfaceJST1.0*4(Power in)JST0.8*4(USB)
Mounting Holes25.5*25.5mm(M2 hole);20*20mm(M3 hole)
Dimensions31.5*31.5*9.4mm
Storage32G
Recording1080p/720p
Weight13.4g

Operating Temperature-20-40℃
Channels8
Wide Power Input3.1V-13V
Supported FC SystemBetaflight; Inav; Fettec; Kiss; ArduPliot
OSDCanvas mode
LatencyAverage latency 22ms
Antenna 1(IPEX)

VTX Antenna
ModelAvatar V2 antenna
PolarizationLHCP
Bandwidth5600MHz-6000MHz
Average Gain1.9dBi
VSWR≤1.5
InterfaceIPEX-1

Line Length105mm
DimensionR15*45mm(without cable)
Weight2g

Packing List
Avatar HD Nano Kit V3X1
4 Pin USB CableX1
4 Pin Power CableX1
M2x4/5/6mm Screws X2
M2x14mm Screws  X4
M2*5*0.5mm washerX4
2.1x3.4x1mm Gasket  X5
14 to19mm bracketX1
