Product features:1080P/60fps、22ms low latency、7.8g light weight、Canvas mode、HDMI out、3.1-13V、500mW、Small antenna

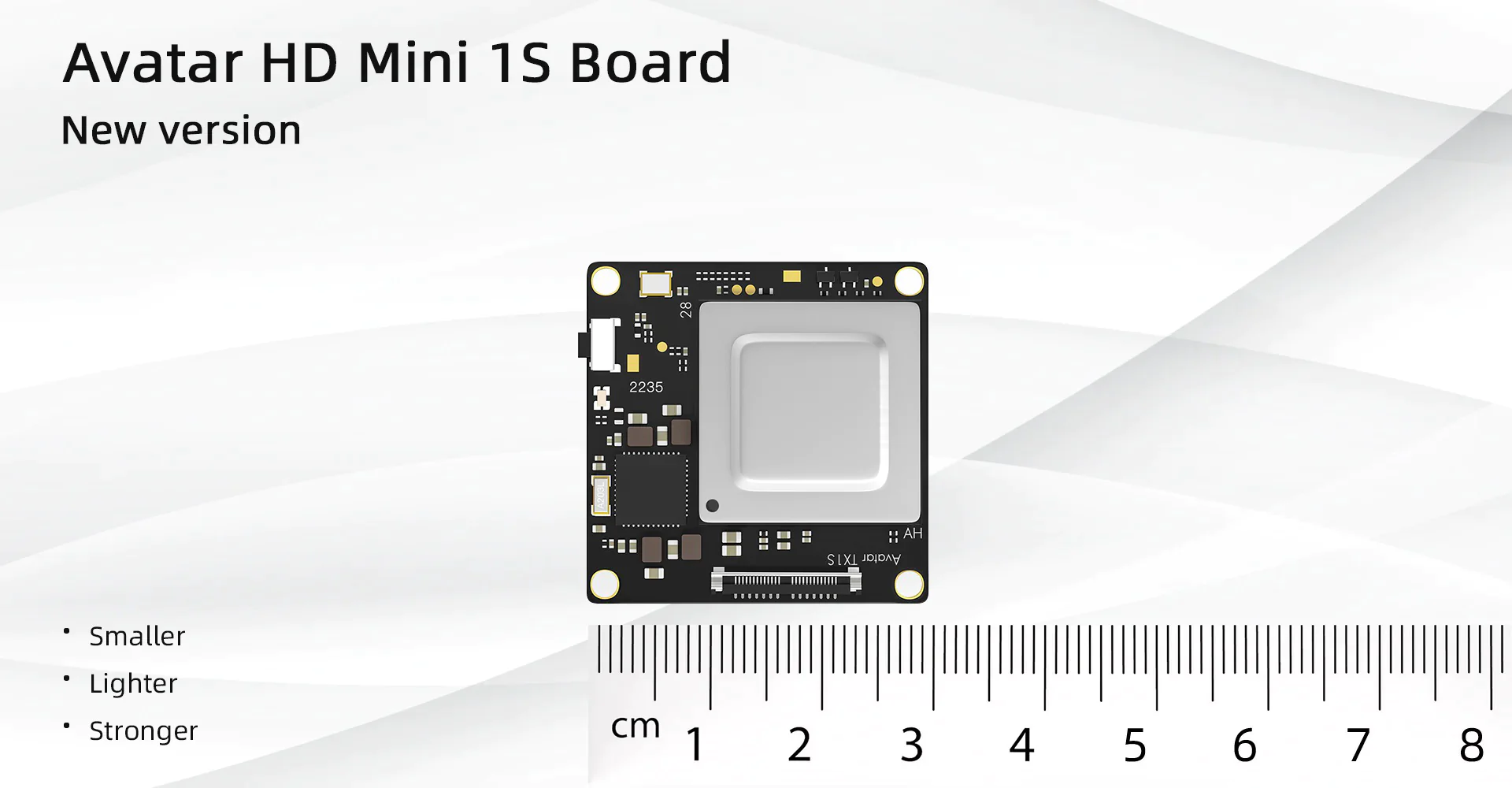

New version of VTXAvatar HD mini 1S lite kit comes with the smaller, lighter and stronger new version VTX board, 30*30mm size, 5.1g, which can be installed in smaller drones.

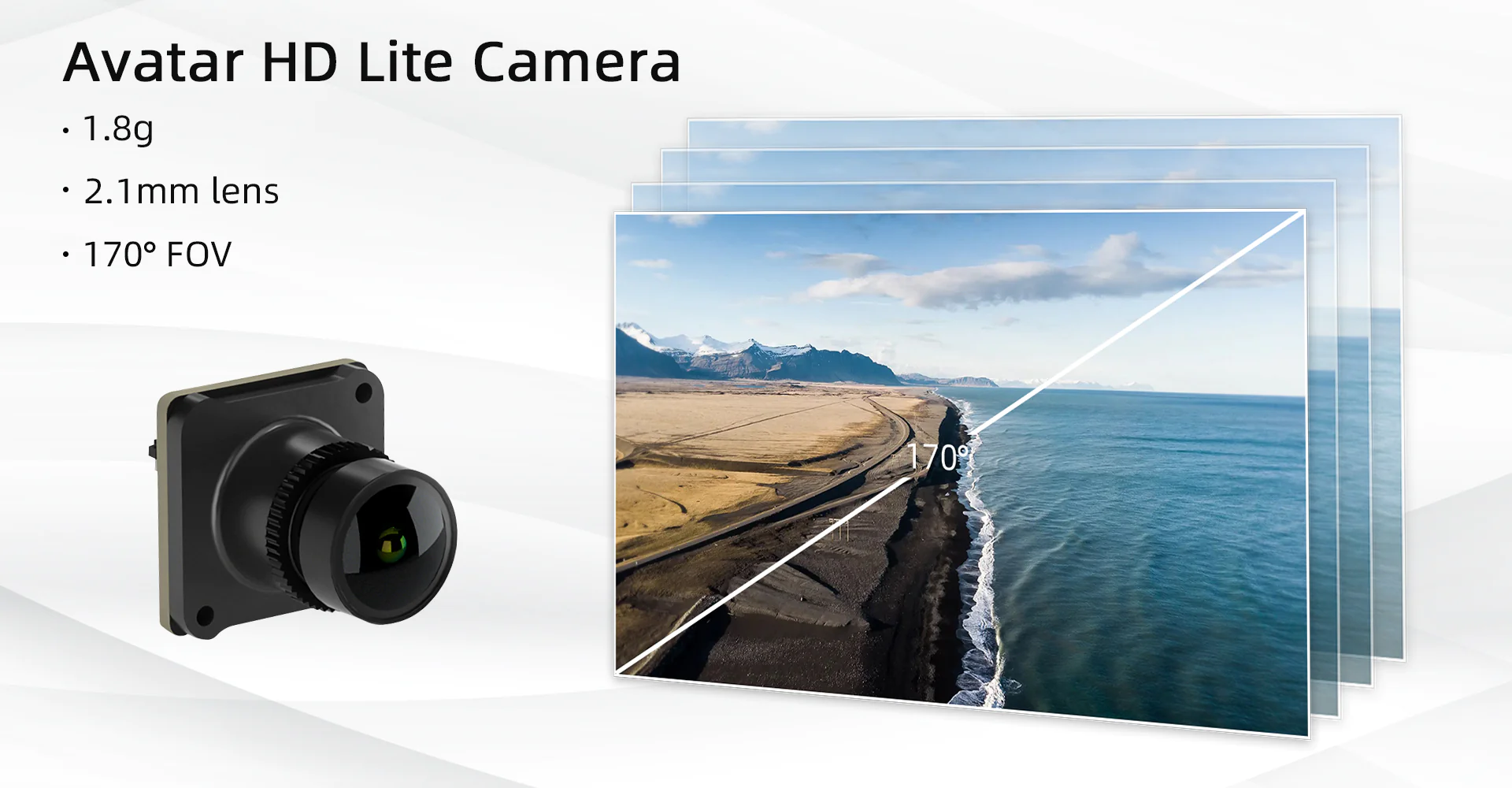

Brand new cameraAvatar HD lite camera weighs only 1.8g, but with 2.1mm lens and 170°FOV, which can bring you a clearer, more realistic image quality.
High quality, low latencyWeighing only 7.8g, but avatar mini 1s lite kit supports 1080P/60fps, 720P/100fps high definition FPV image quality with a average 22ms ultral-low latency, bring you a beautiful clear 1080P digital FPV video and an unforgettable flying experience.

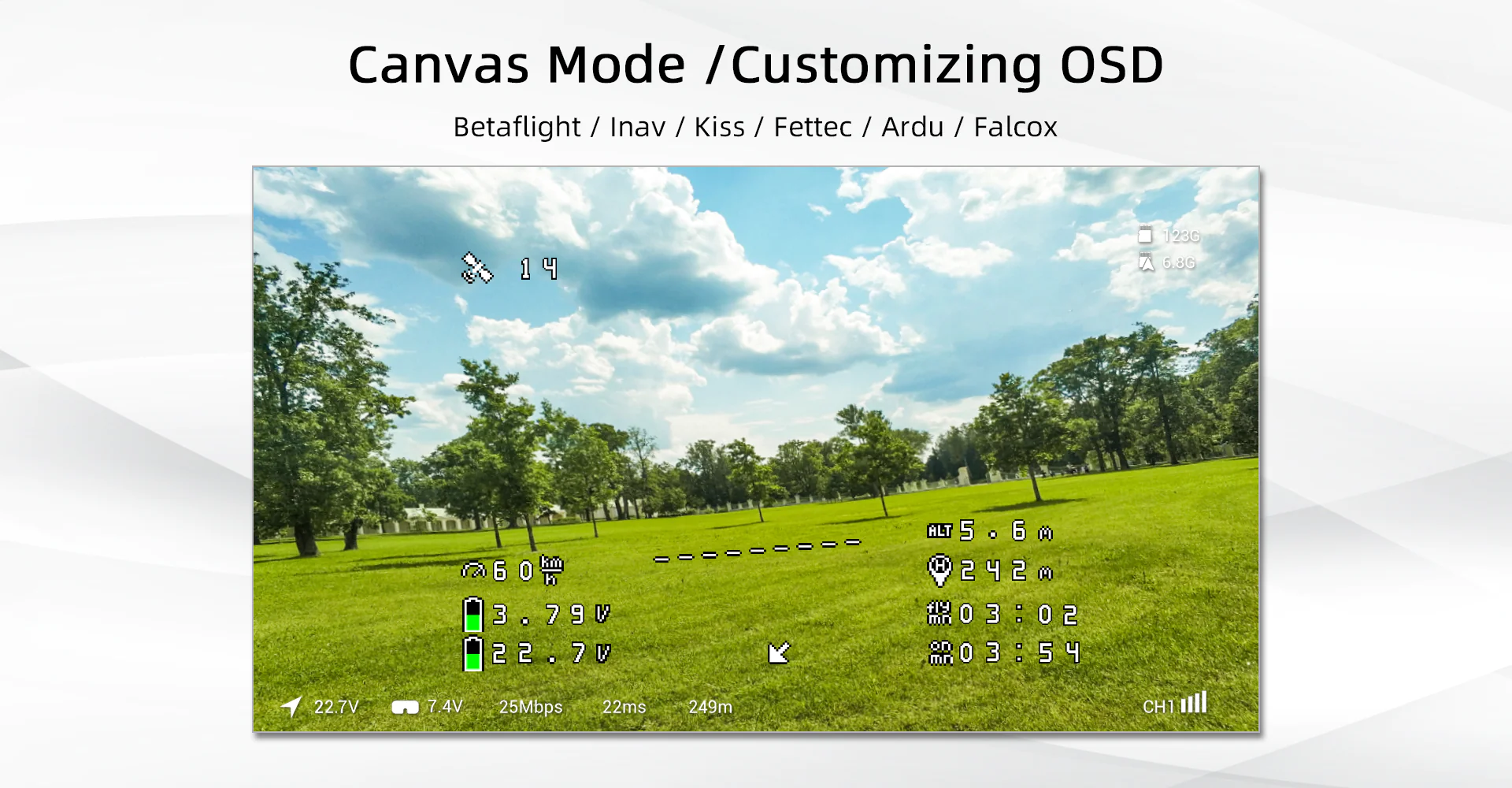

Canvas ModeSupporting Betaflight, kiss, Inav, Ardu full OSD display and customization, you'll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.
3.1-13V input, max 500mW outputThe avatar mini 1S lite kit is suitable for more types of drones, with 3.1-13V voltage input and 500mw power output, you'll be able to fly all kinds of tinywhoops in a amazing video quality and range.

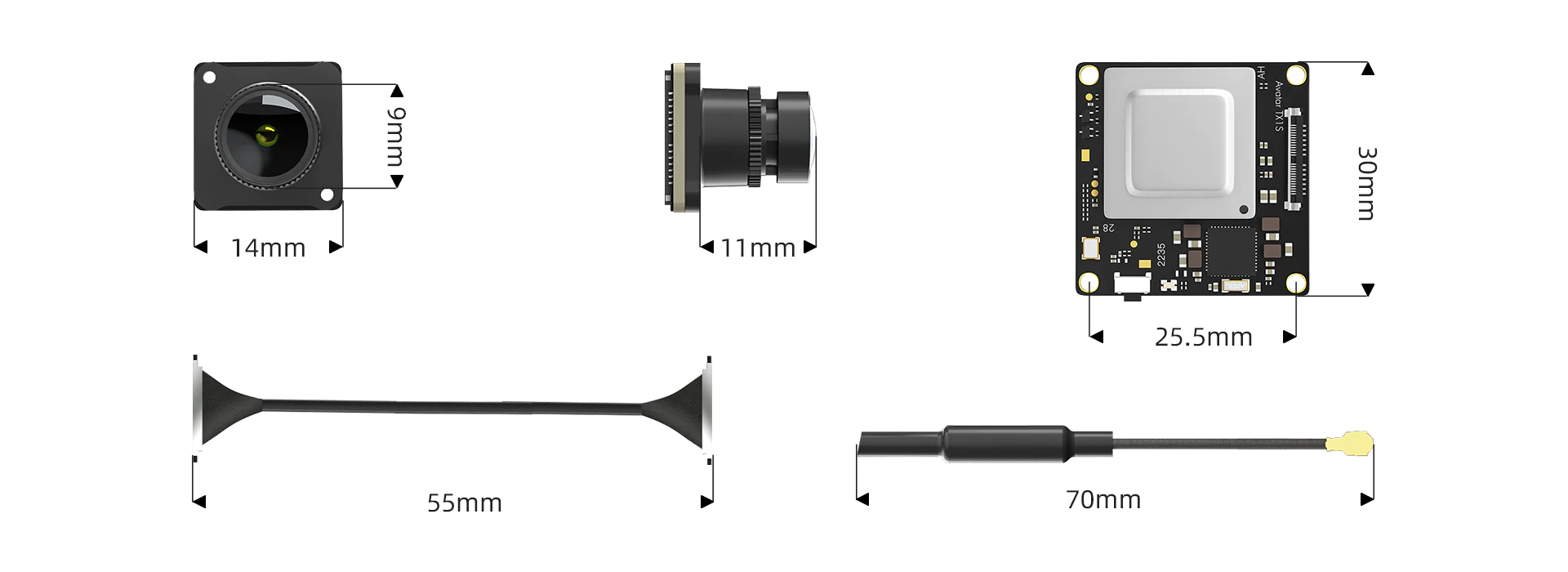

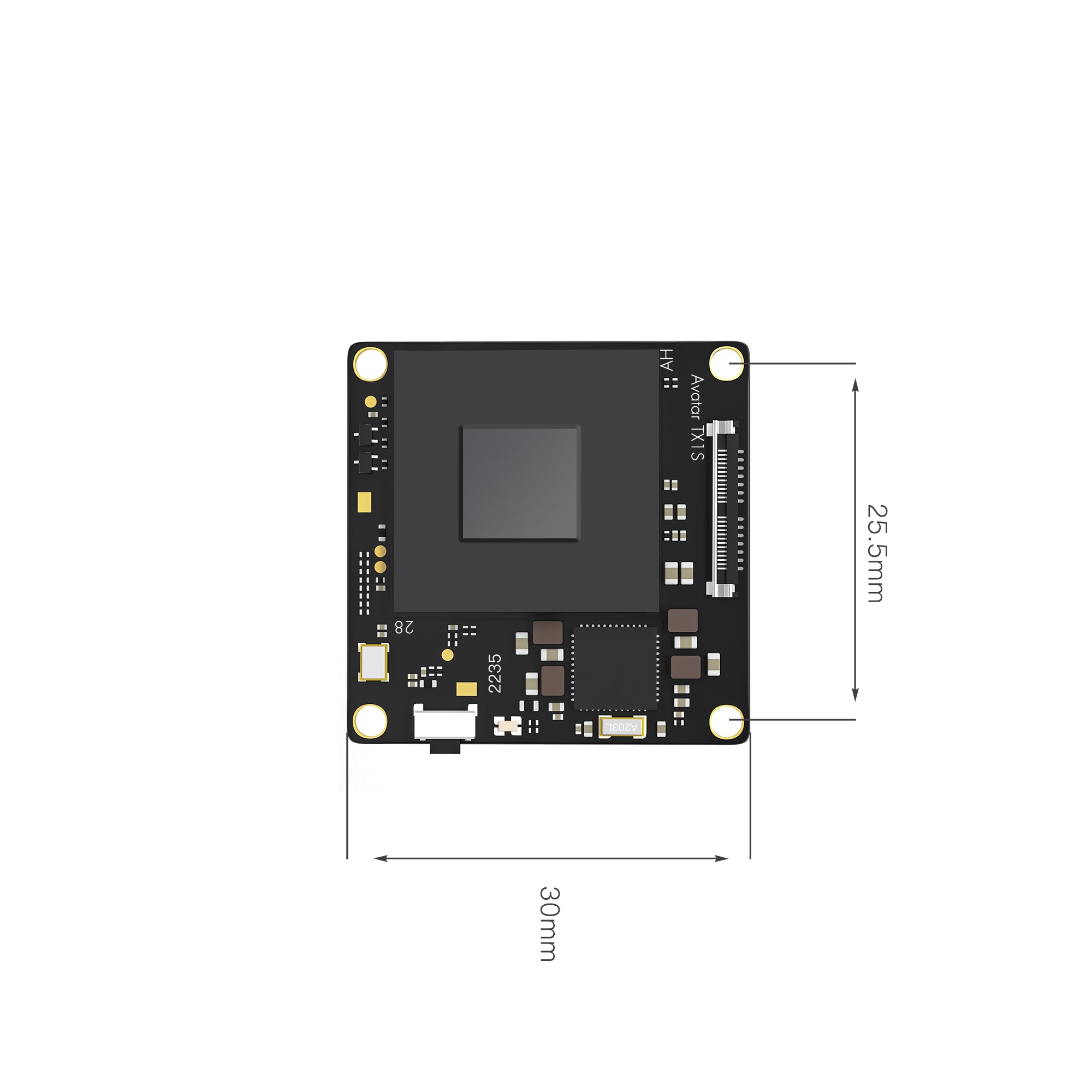

Product Size:
Specification | |
| Camera | |
| Model | Avatar lite camera |
| Image Sensor | 1/2.7”1nch |
| Resolution | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| FOV | 170° |
| Aperture | F2.0 |
| Shutter Rolling | Rolling shutter |
| Min.Illumination | 0.001Lux |
| Weight | 1.8g |
| Dimensions | 14*14*16mm |
| VTX | |
| Model | Avatar mini 1s module |
| Communication Frequency | 5.725-5.850GHz |
| Transmitter Power (EIRP) | FCC:<25.5dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |

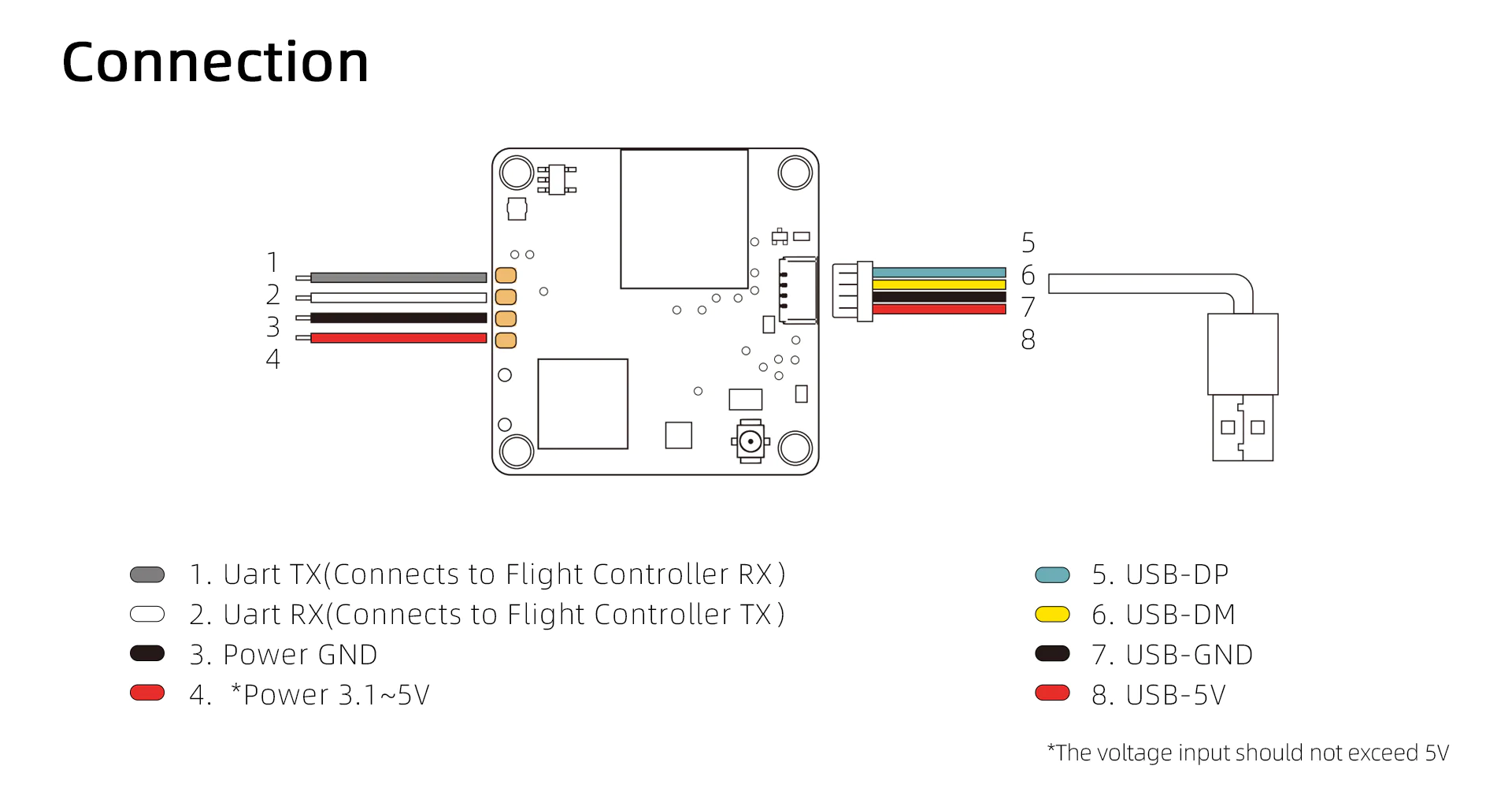

| I/O Interface | JST1.0*6(Power in)JST0.8*4(USB) |
| Mounting Holes | 25.5*25.5mm |
| Dimensions | 30*30*6.5mm |
| Storage | 8G |
| Recording | 1080p/720p |
| Weight | 6.8g |
| Operating Temperature | -20-40℃ |
| Channels | 8 |
| Wide Power Input | 3.1V-5V(V2) / 3.1-13V(V3) |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Bitrate | 25mbps 50mbps |
| Latency | Average delay 22ms |
| Antenna | IPEX |
| 1s lite antenna | |
| Polarization | Linear |
| Frequency range | 5600-5900MHz |
| Gain | 1.6 dbi |
| VSWR | ≤1.5 |
| Input Impedance | 50Ω |
| Interface | IPEX-1 |
| Size | R 5mm,L 70mm |
| Weight | 0.5g |
| Packing List | |
| Avatar Mini 1S lite KIT | X1 |
| 4 Pin USB Cable | X1 |
| 4 Pin Power Cable | X1 |
| 1.4×8mm Screws | X4 |
| 1.4×10mm Screws | X2 |
| M2 Anti-vibration Rubber Dampers *6mm | X4 |
