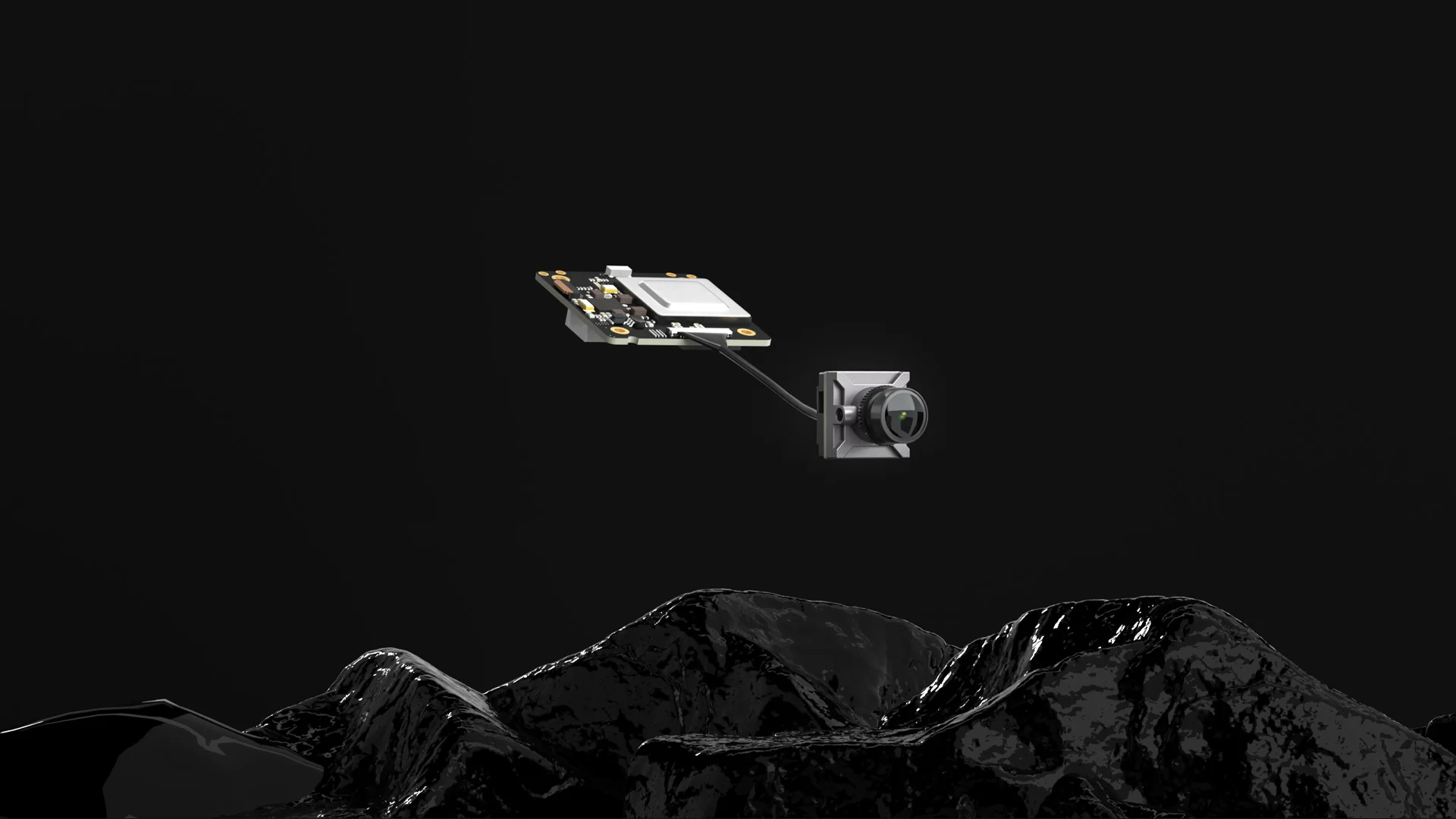

Walksnail Avatar HD Mini 1s Kit

Quantity

Summary

+
New version, 3.1-13V input

Product Details

Features
1080P/60fps, 22ms low latency, 3.1V-13V, Power 500mW, 6.8g light weight

1080P/60FPS,720P/120FPS
The Avatar HD system uses H.265 code,an industry-leading technology,
to provide 1080p FPV image quality with ultra-low latency.

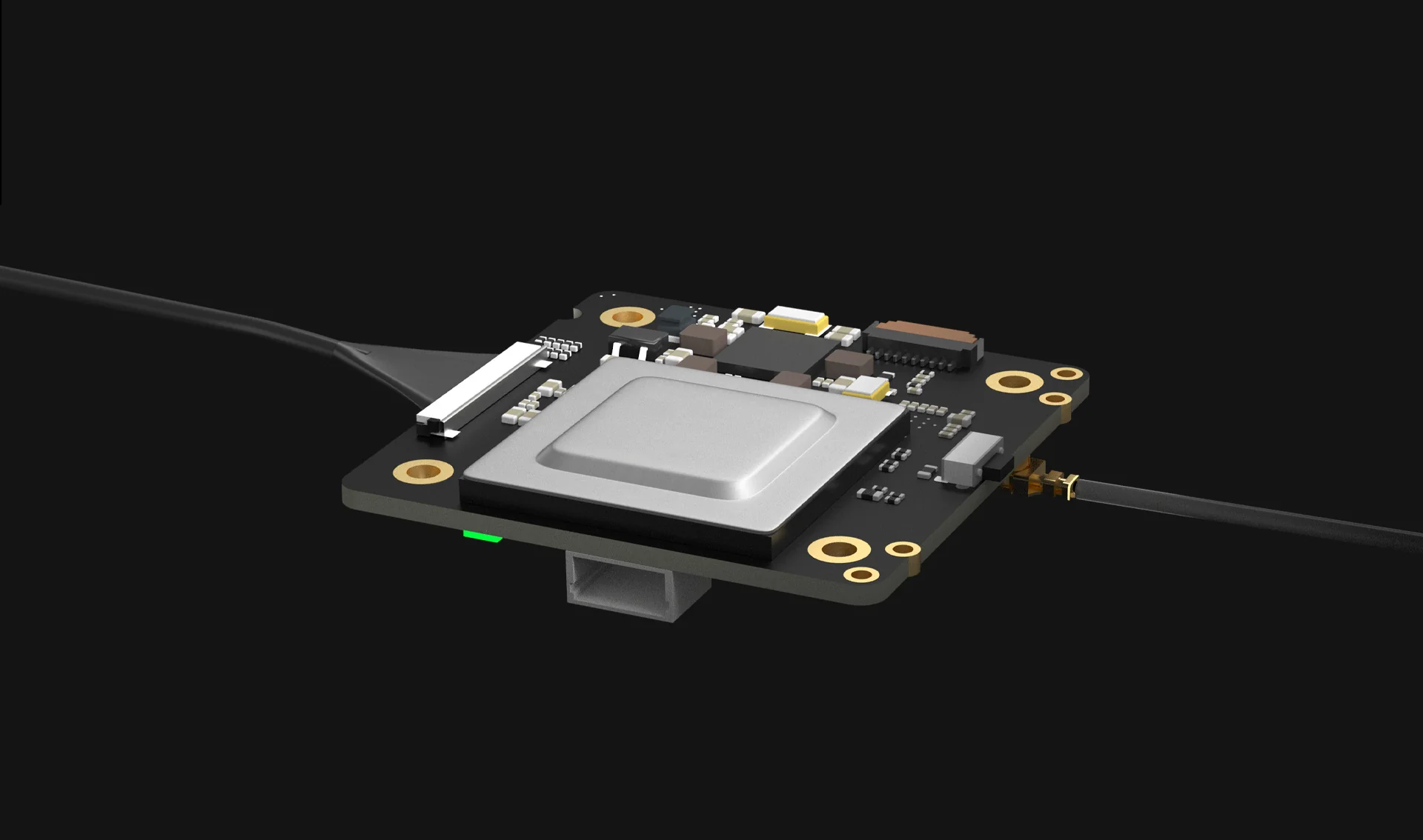

6.8g light weight board

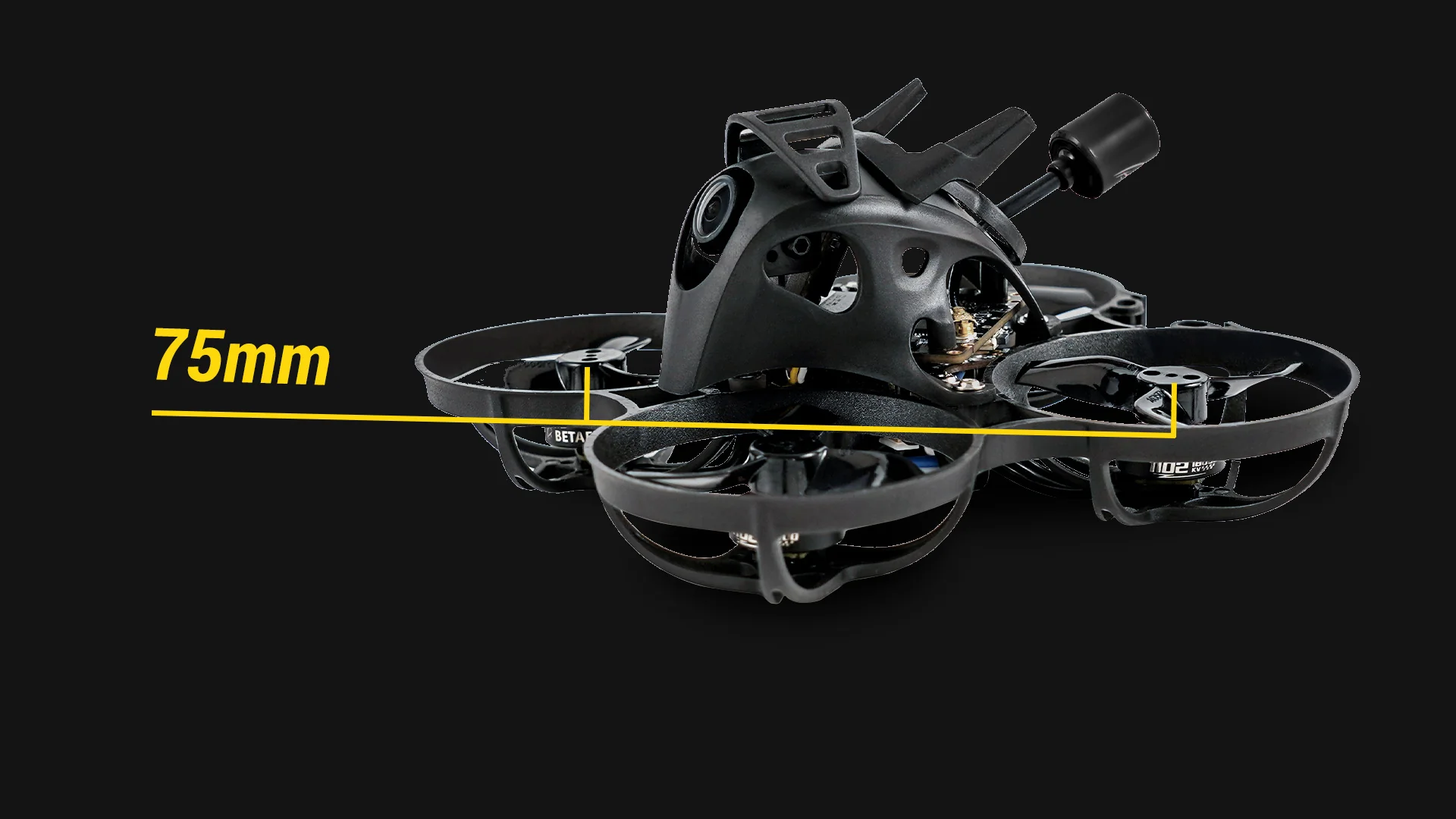

The Avatar mini 1S VTX weights only 6.8g and fits perfectly with the 75X quad.

22ms Low Latency
Supports both high frame rate and standard frame rate,
in high frame rate,it has an average latency of 22ms.

Built-in Storage
The Avatar mini 1s vtx comes with 8g built-in storage,it can record 1080p
with 60fps or 720pwith 100fps/60fps HD flight videos without interference.

Specification


Camera
Model   Avatar nano
Image Sensor 1/2.7”1nch
Resolution  1080P/60fps,720P/120fps,720P/60fps
Ratio      16/9  4/3
Lens 2.1mm
FOV    170°
Aperture    F2.0
Shutter Rolling shutter
Min.Illumination  0.001Lux
Weight 3.5g
Dimensions 14*14*17mm
Coaxial Cable 55mm(default)/90mm

VTX
ModelAvatar mini 1s module
Communication Frequency5.725-5.850GHz
Transmitter Power (EIRP)FCC:<25.5dBm; CE:<14dBm;
SRRC:<20dBm; MIC:<25dBm

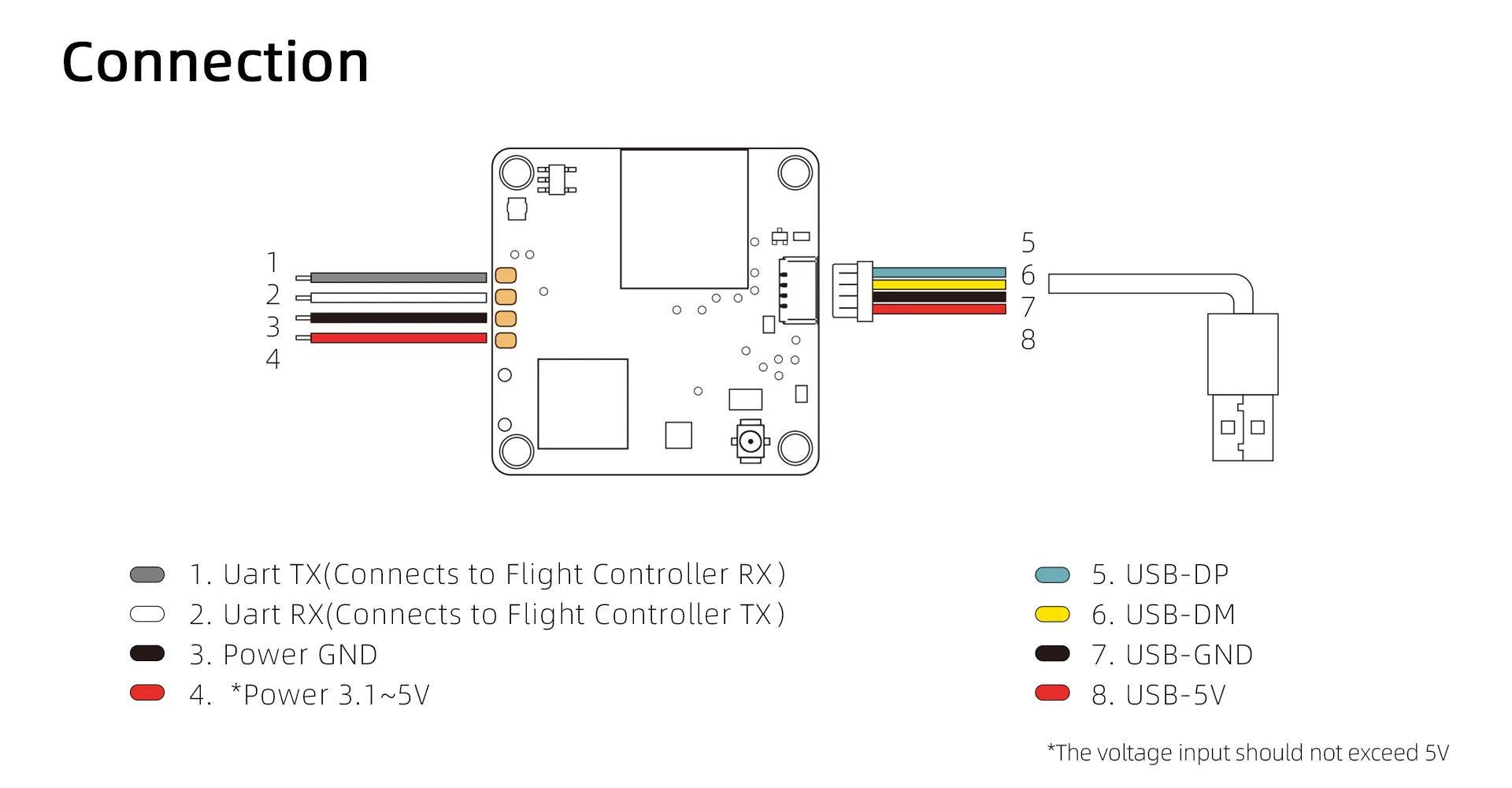

I/O InterfaceJST1.0*6(Power in)JST0.8*4(USB)

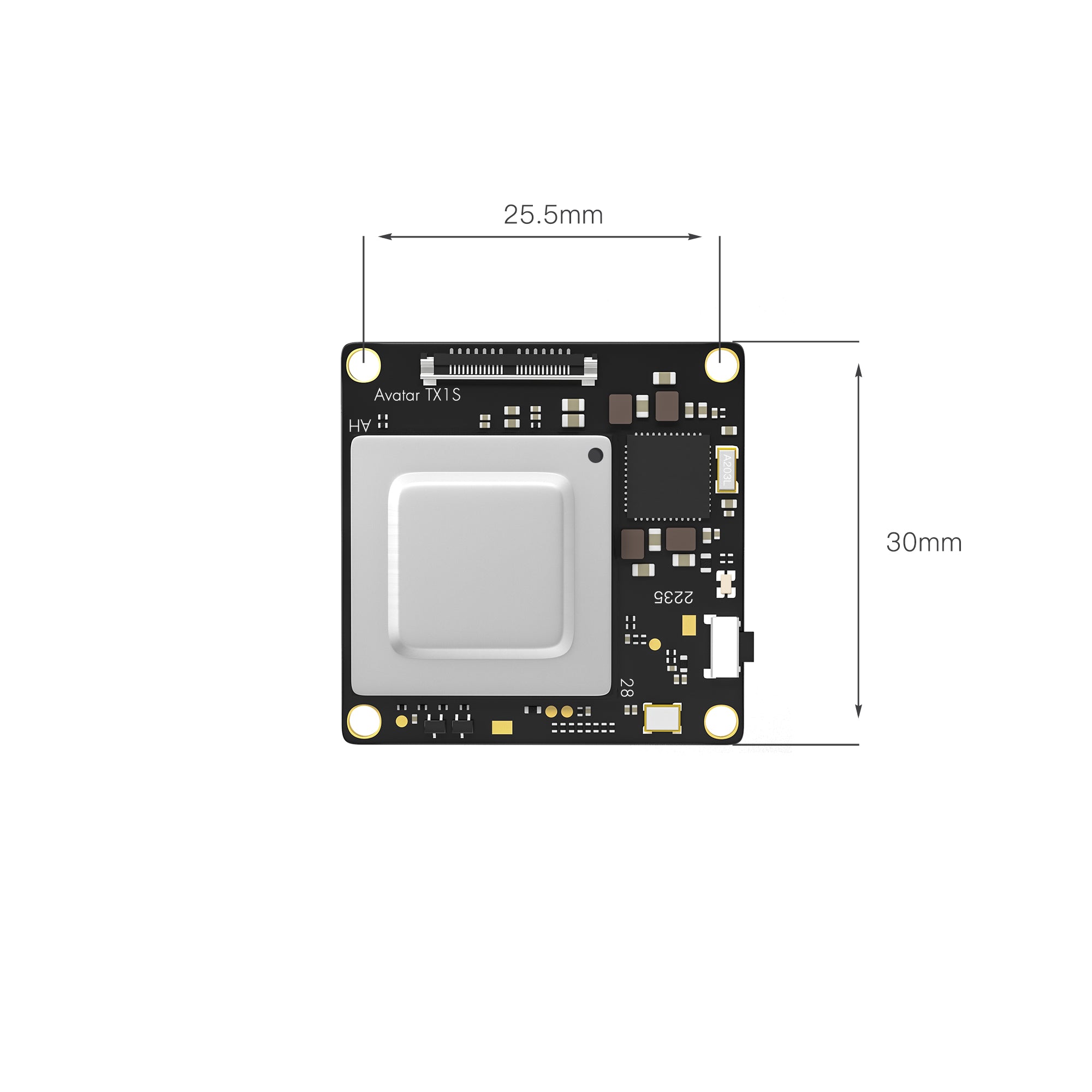

Mounting Holes25.5*25.5mm
Dimensions30*30*6.5mm
Storage8G
Recording1080p/720p
Weight6.8g
Operating Temperature-20-40℃
Channels8
Wide Power Input3.1V-5V(V2) / 3.1V-13V(V3)
Supported FC SystemBetaflight; Inav; Fettec; Kiss; ArduPliot
OSDCanvas mode
Bitrate25mbps 50mbps
LatencyAverage latency 22ms
AntennaIPEX

VTX Antenna
ModelPolar antenna
PolarizationLHCP
Bandwidth5.6GHz-5.9GHz
Average Gain2dBi
Radiation Efficiency≥98%
VSWR≤1.4
ConnectorU.FL
Line Length90mm
DimensionH105mm*R11.2mm
Weight1.5g

Packing List

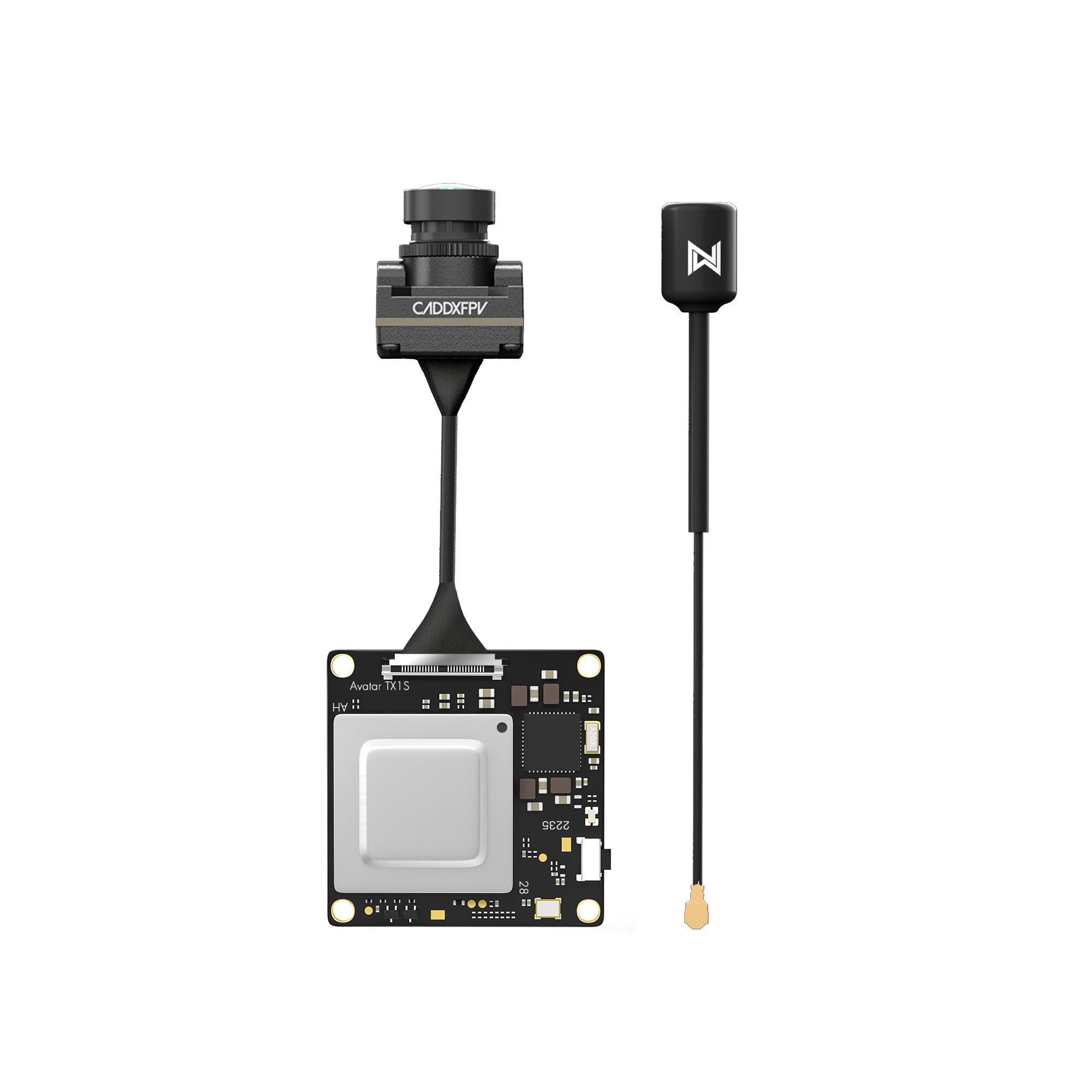

Avatar Mini 1S KIT X1
4 Pin USB CableX1
6 Pin Power CableX1
M2x3/4mm Screws X2
M2x16mm Screws  X4
M2 Screw nut X4
2.1x3.4x1mm Gasket  X5
