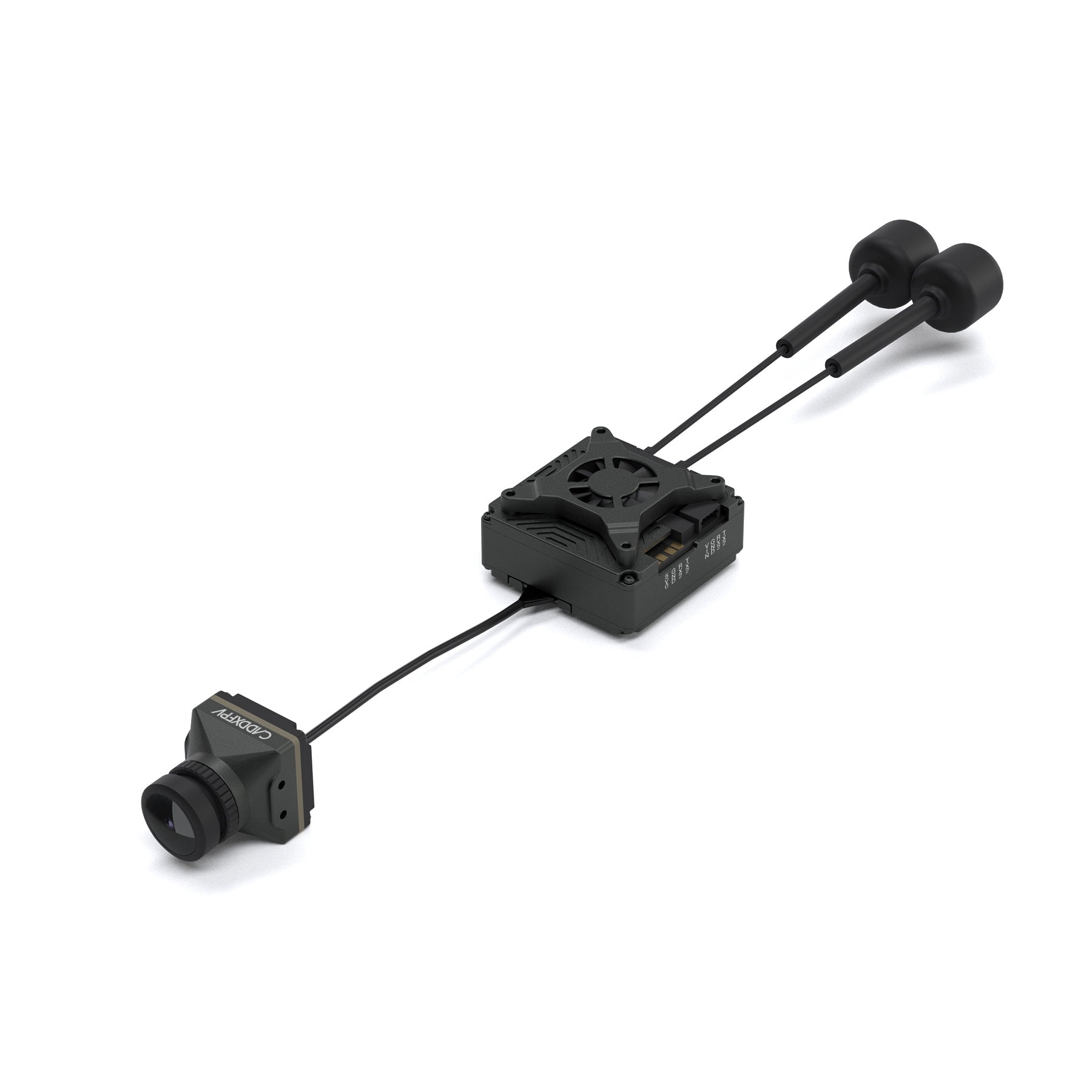

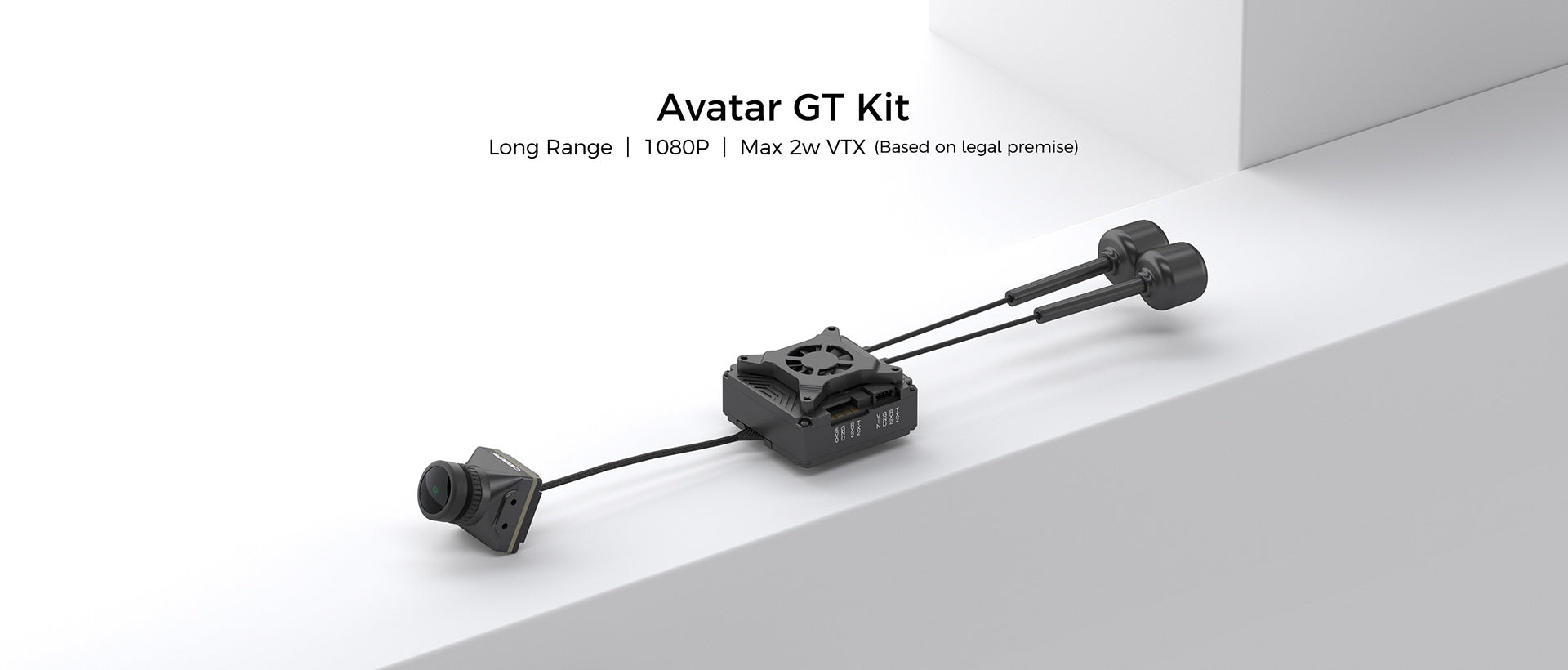

Walksnail Avatar GT KIT

數量

簡介

+

商品詳情

Top Features:

2W (Max)Long Range
11.1V-25.2V1080P 100fps
Dual AntennasHigh Frame Starlight
Micro SD Card SlotCompatible Moonlight Camera(DVR 4K)

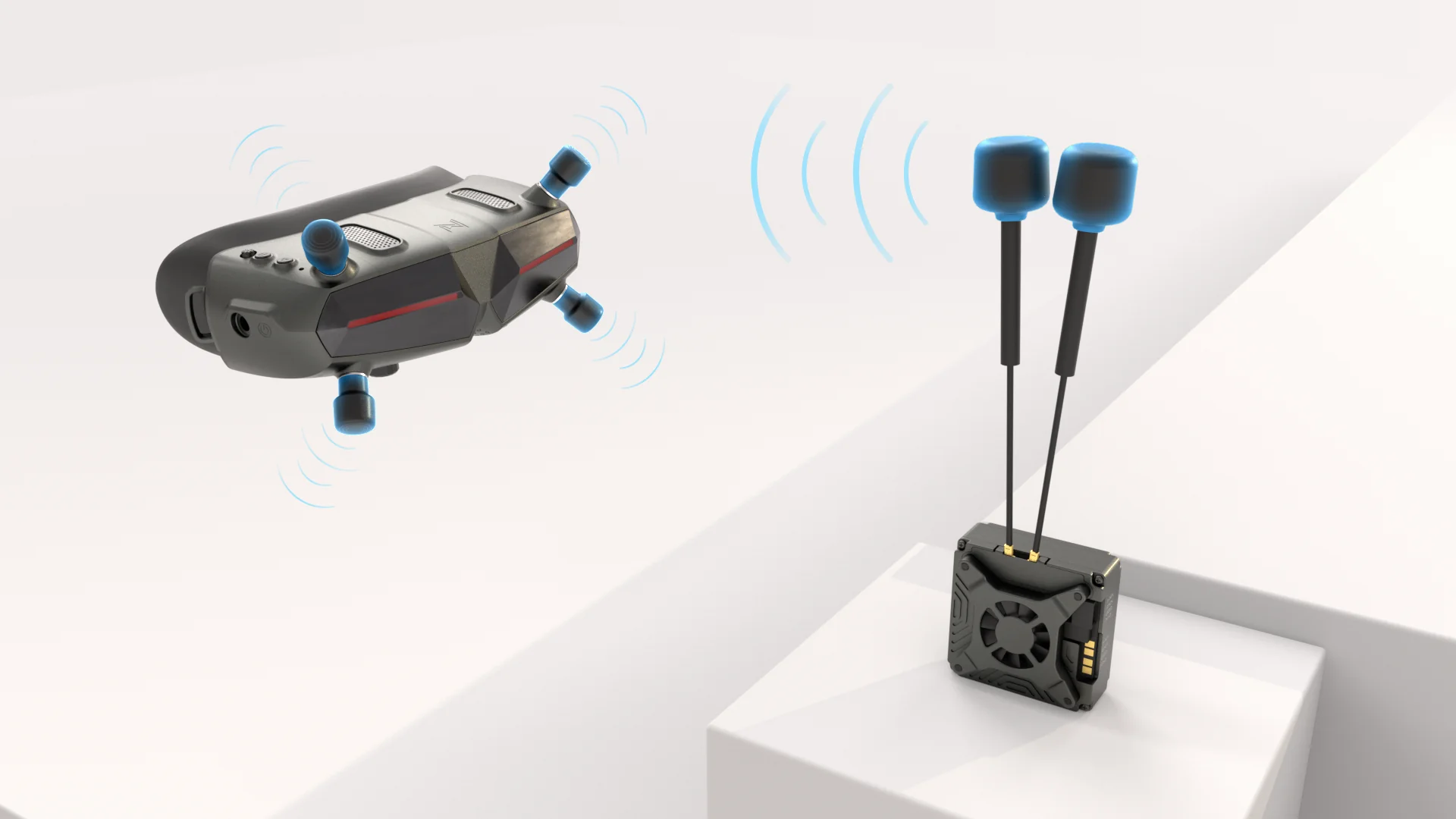

Avatar GT significantly enhances signal transmission distance, meeting various flight requirements, and can reach up to 2W power within legal and regulatory limits, ensuring uninterrupted flight exploration and enhancing your FPV experience.

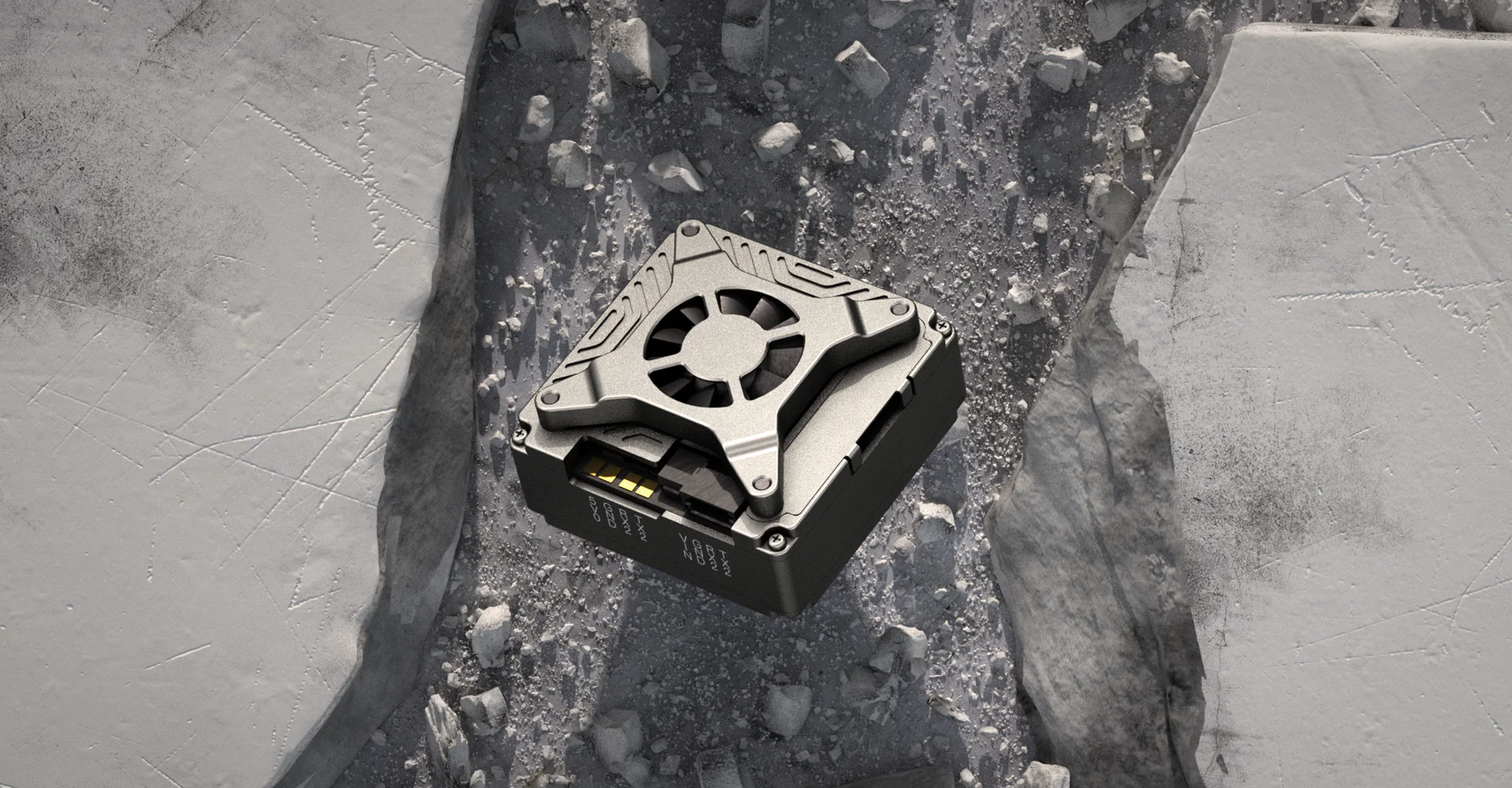

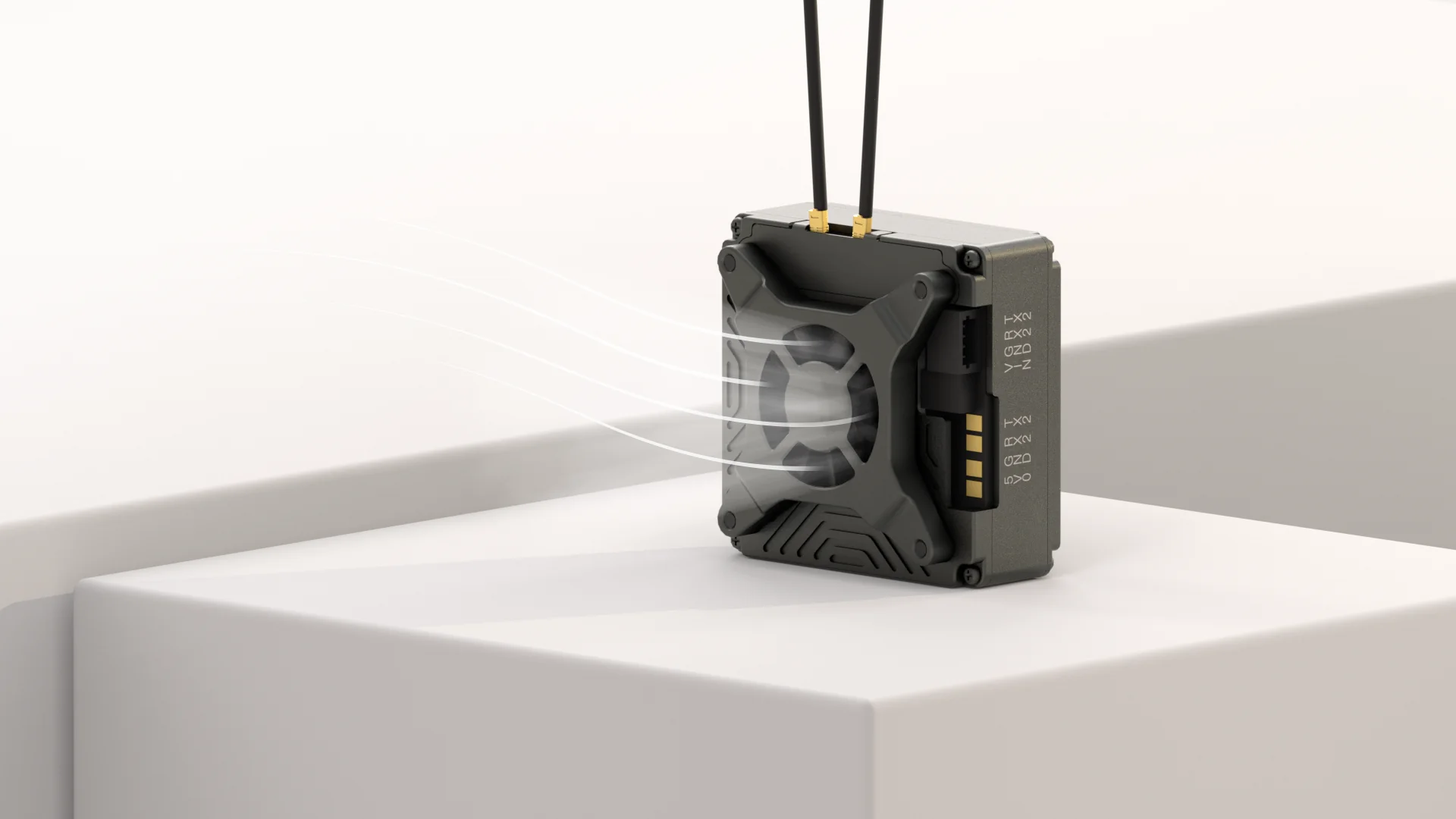

The Avatar GT features a top-mounted heatsink design, effectively dissipating heat to maintain optimal performance even during extended operation.

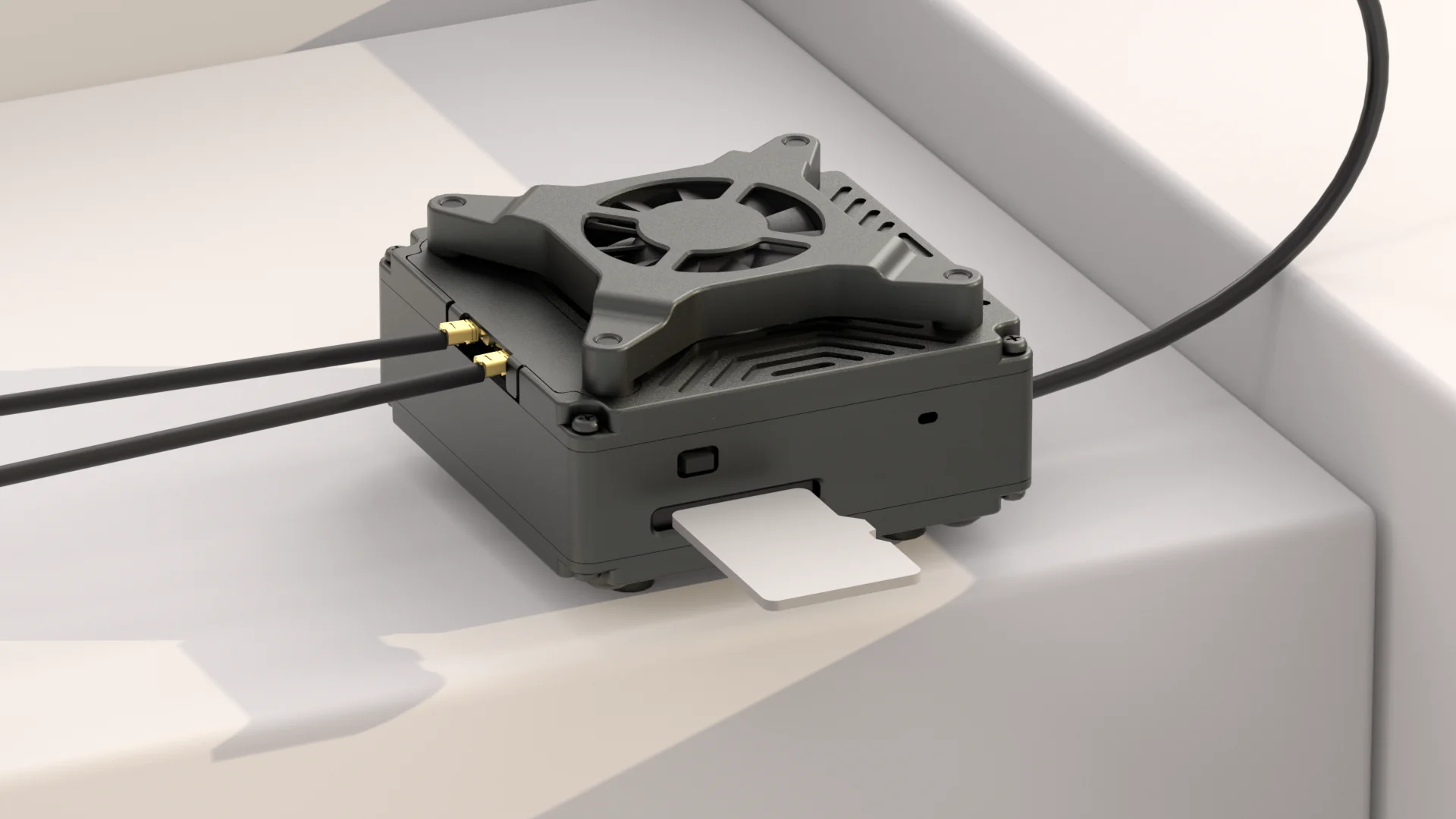

The Avatar GT is equipped with a Micro SD card slot, supporting up to 256GB of storage capacity, enabling uninterrupted recording of HD flight videos in either 1080p or 720p resolution.

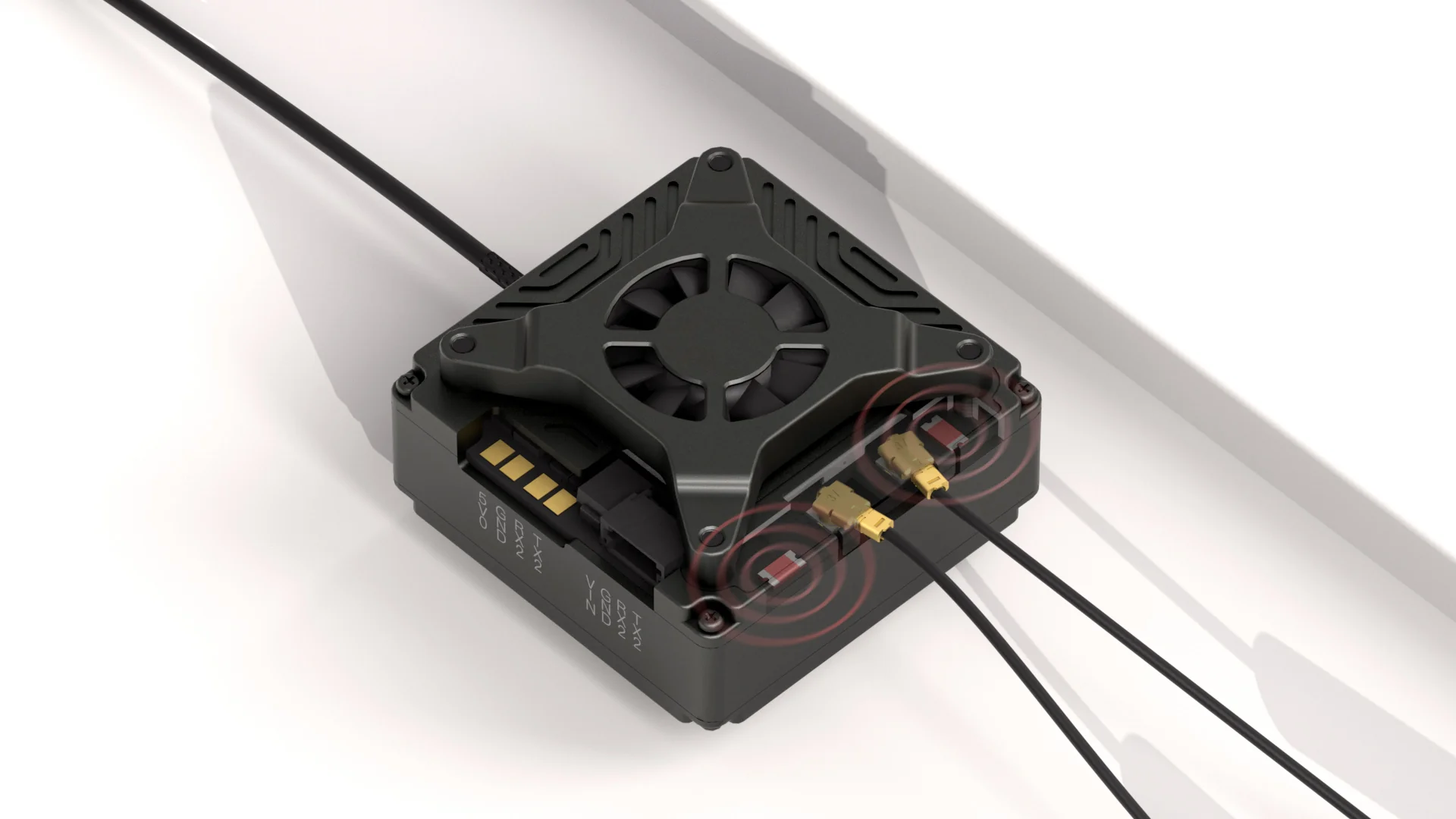

The Avatar GT boasts an internal ceramic antenna that optimizes performance during low-power mode, minimizing power consumption and heat generation.

The Walksnail Avatar GT KIT now features improved resistance to GPS interference, ensuring a more stable and reliable flight experience even in challenging environments.

Avatar GT comes with a Pro camera, equipped with a 1/1.8-inch Sony Starvis II sensor, providing excellent night vision capabilities with clarity comparable to daytime.

The camera supports Gyroflow, take you smooth and stable video quality.

It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.

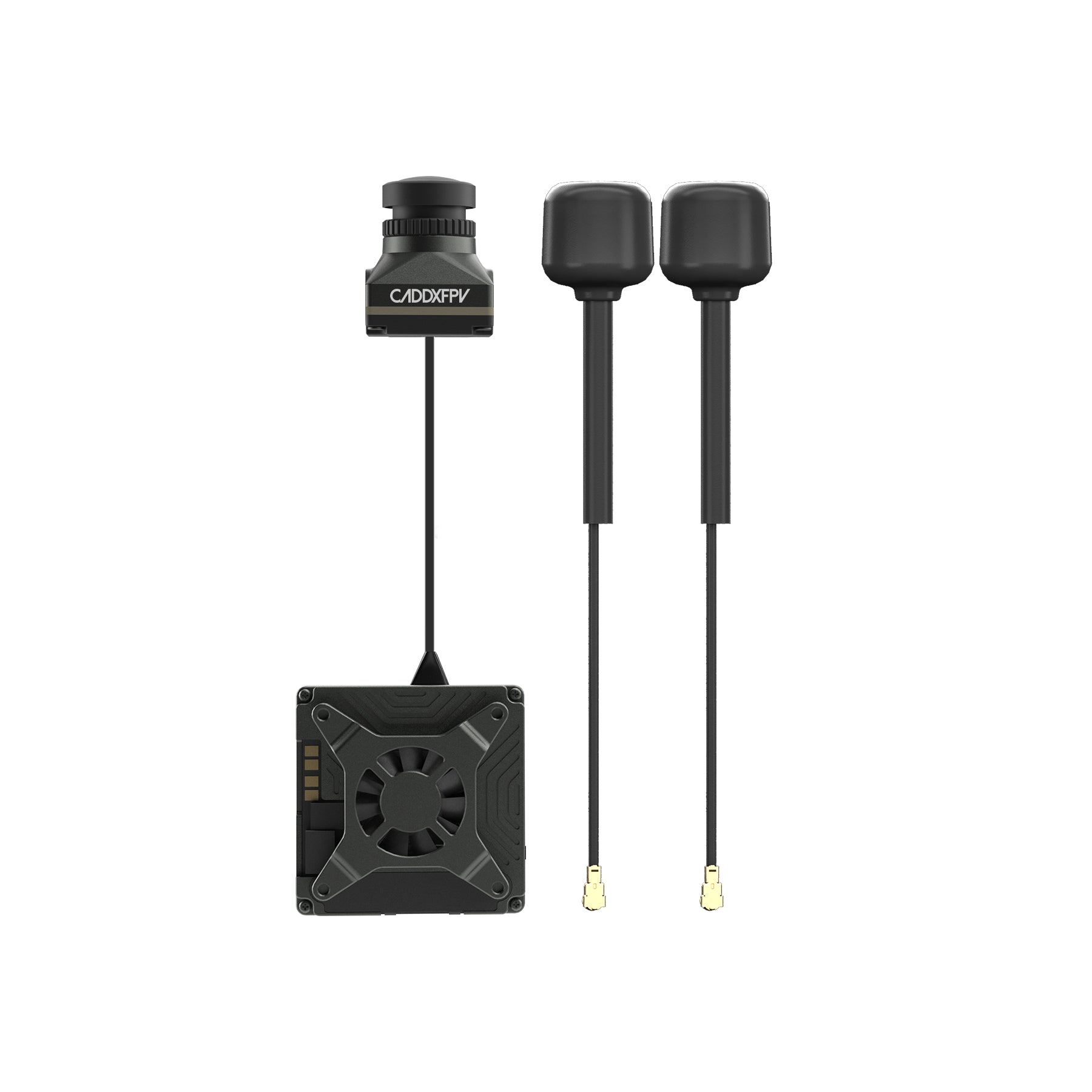

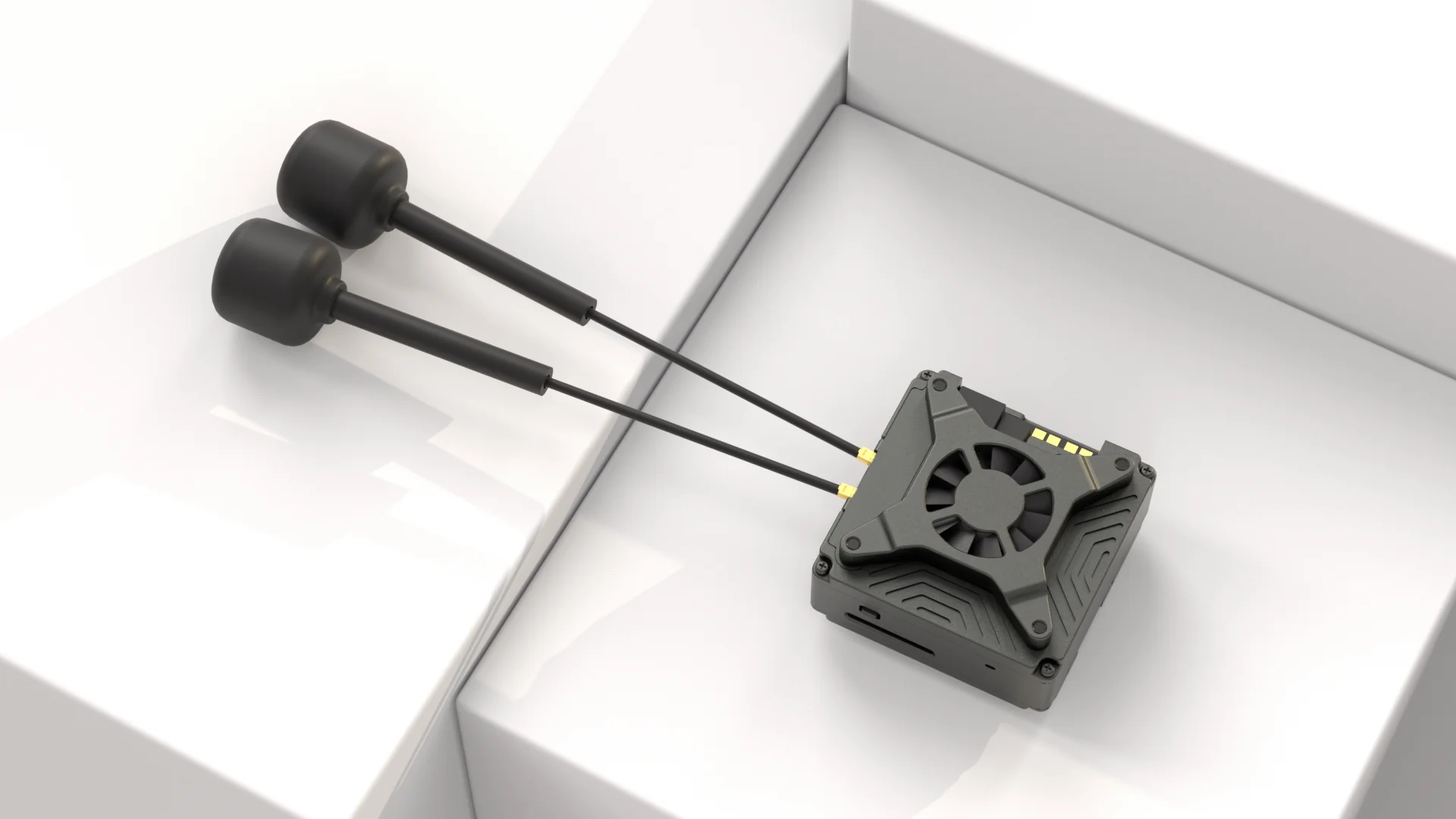

Designed to carry dual antennas to achieve more stable and powerful signals. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.

Specification
Camera
ModelAvatar HD Pro Camera
Image Sensor1/1.8-Inch Sony Starvis Ⅱ sensor
Resolution1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps;
Ratio16/9; 4/3
Lens8Mp
FOV160°
ApertureF1.6
ShutterRolling shutter
Min.Illumination0.00001Lux

Weight9.5g

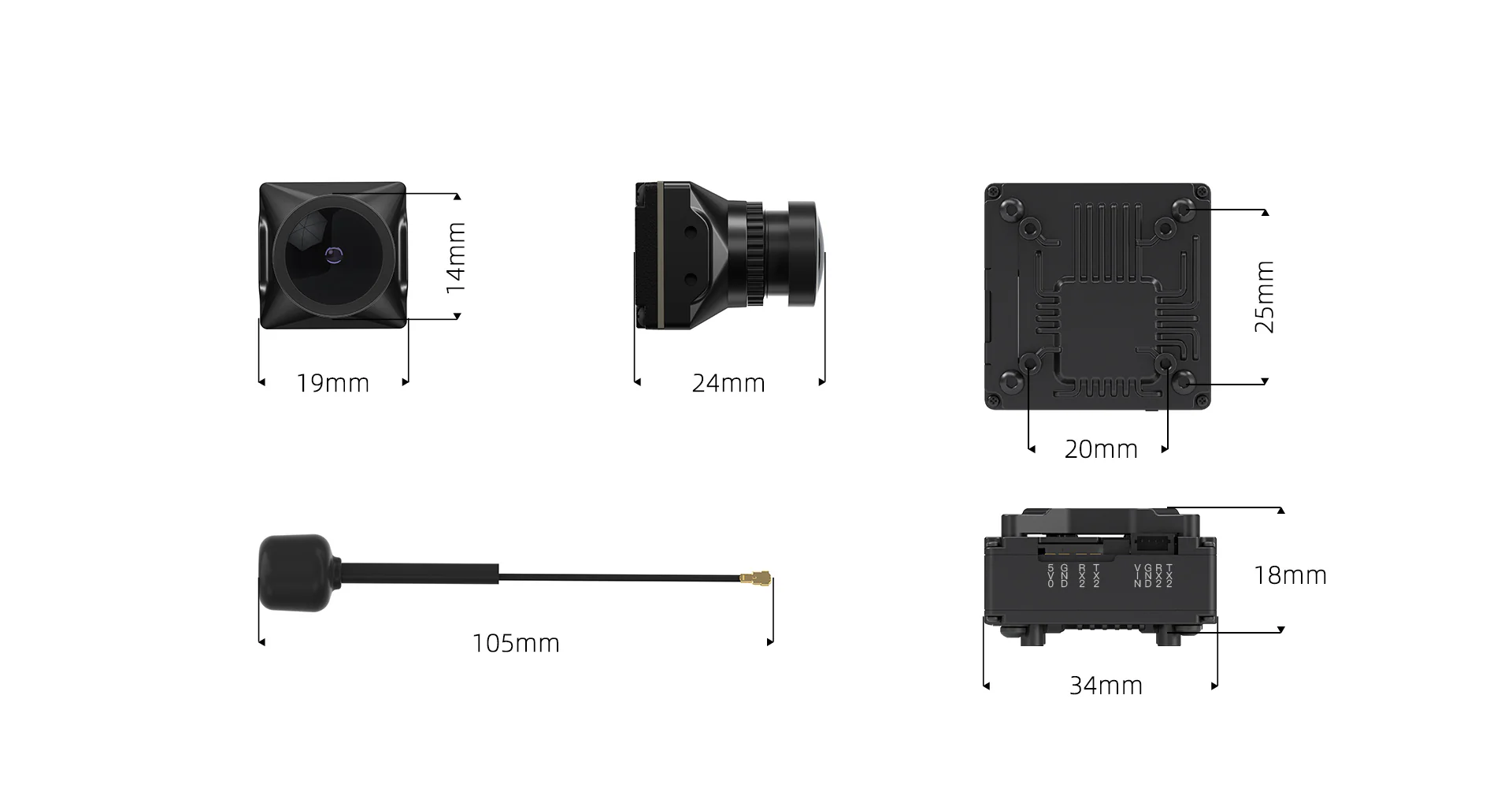

Dimensions19*19*24mm
Coaxial Cable140mm
Gyroflowsupported
VTX
ModelAvatar GT
Communication Frequency5.725-5.850 GHz
Transmitter Power (EIRP)FCC: <30dBm, MAX:33dBm ; CE: <14dBm;
SRRC: <20dBm; MIC: <25dBm

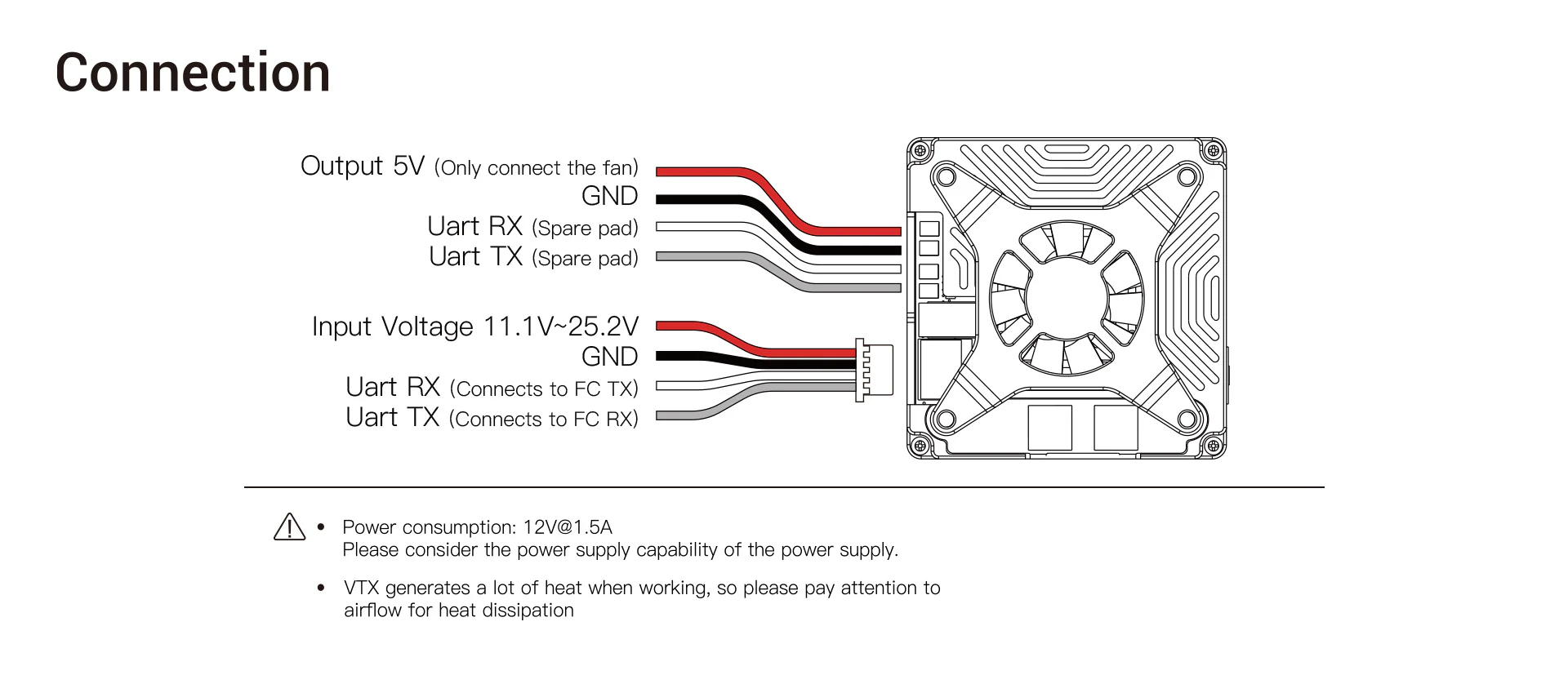

I/O InterfaceMicro SD card slot; JST1.0*4(power cable)
Supported SD CardsMicro SD (up to 256 GB)
Mounting Holes25.5*25.5mm; 20*20mm
Dimensions34*34*20mm
Recording1080p/720p
Weight41.6g (Antenna included)
Operating Temperature-10-40℃
Channels8
Wide Power Input11.1V-25.2V
Supported FC SystemBetaflight; Inav; Fettec; Kiss; ArduPilot
OSDCanvas mode
LatencyAverage delay 22ms
Antenna2(IPEX)

Note: Check area for risk of use before use.
