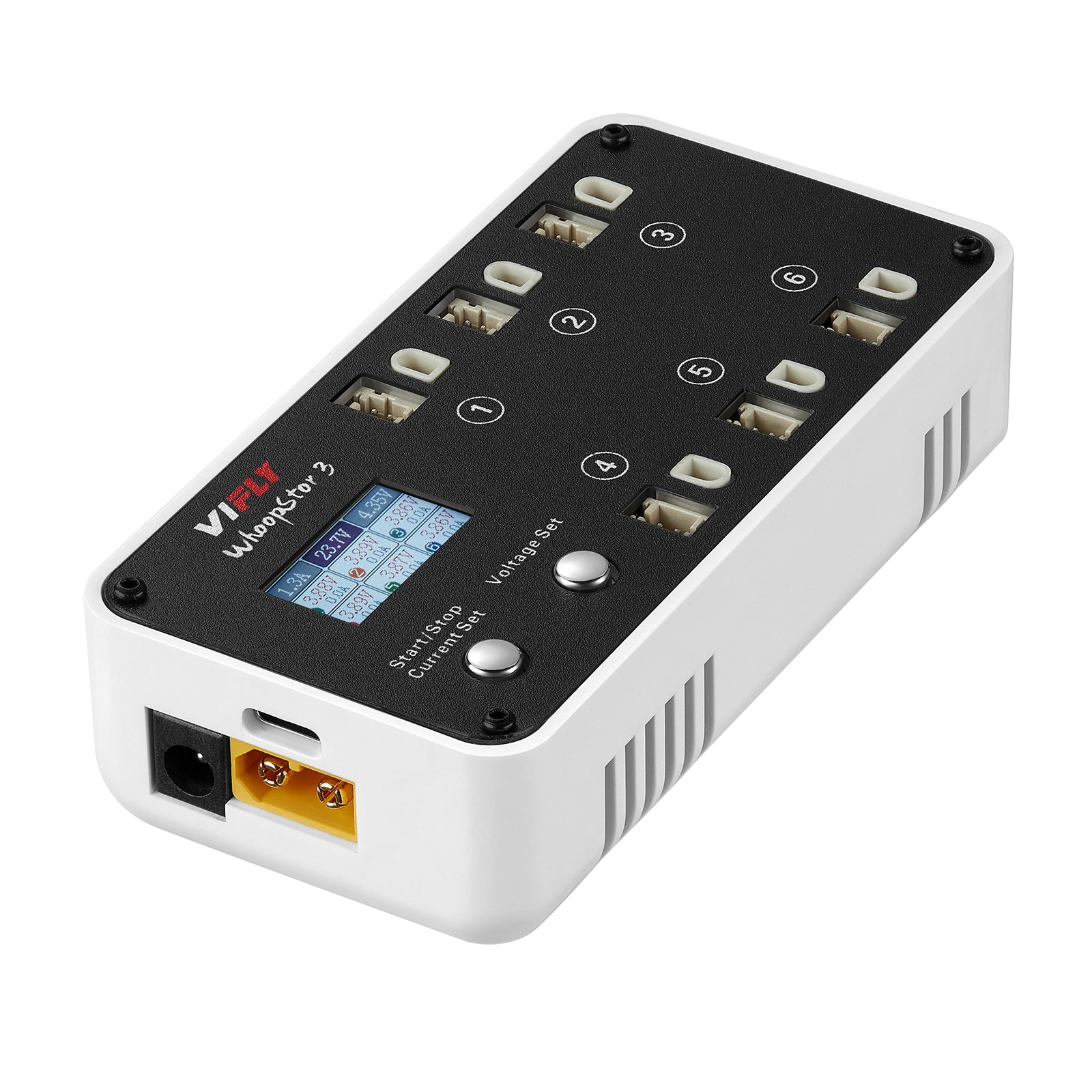

VIFLY WhoopStor 3

Color

Quantity

Summary

+
1S Battery Storage Charger and Discharger

Product Details

Storage Charger and Discharger

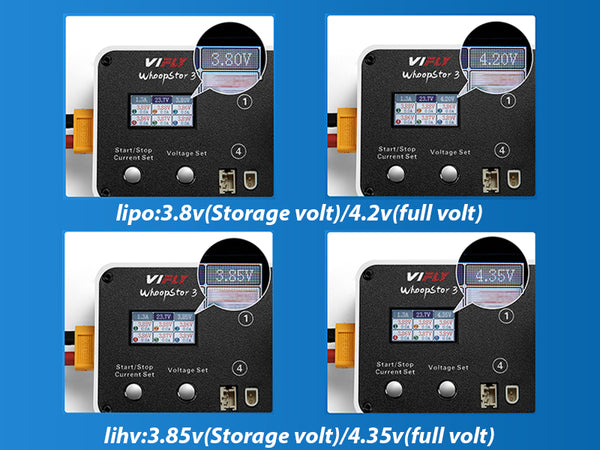

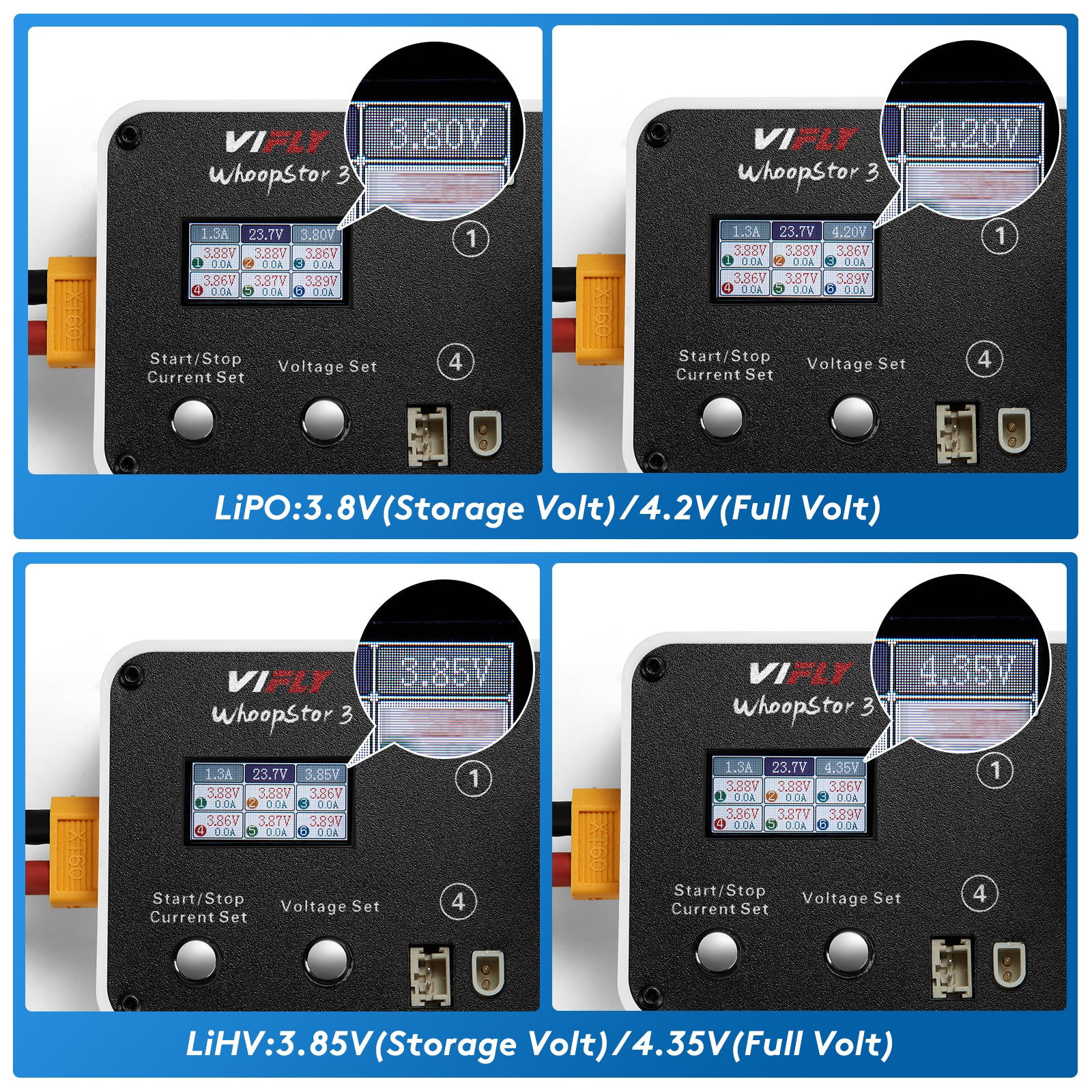

VIFLY WhoopStor 3 is a combination of charger and discharger. It has 4 target voltages (3.8V/3.85V/4.2V/4.35V), set your target voltage like 3.8V (LiPo Storage Voltage), it will start the charging or discharging process automatically when the battery is lower or higher than 3.8V.

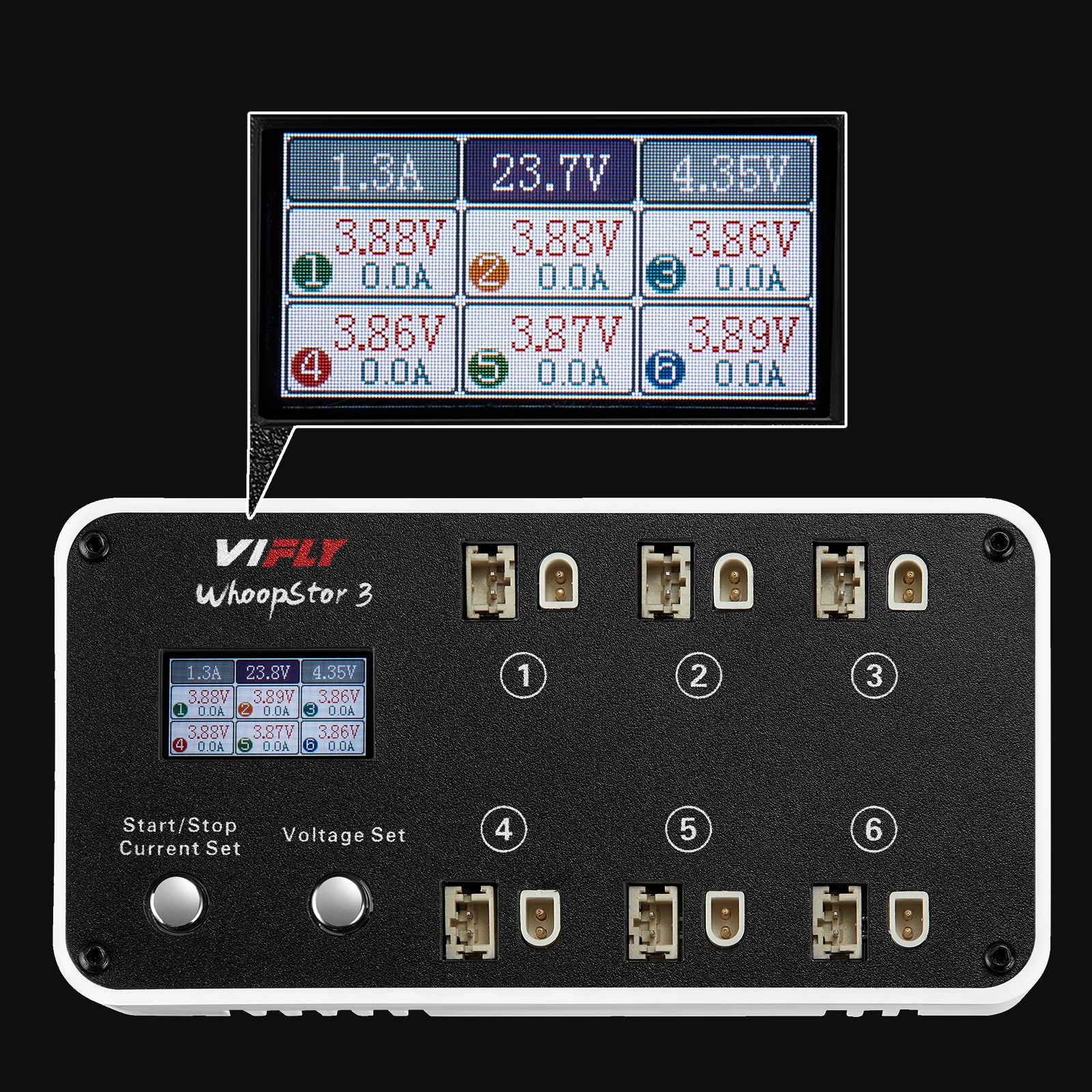

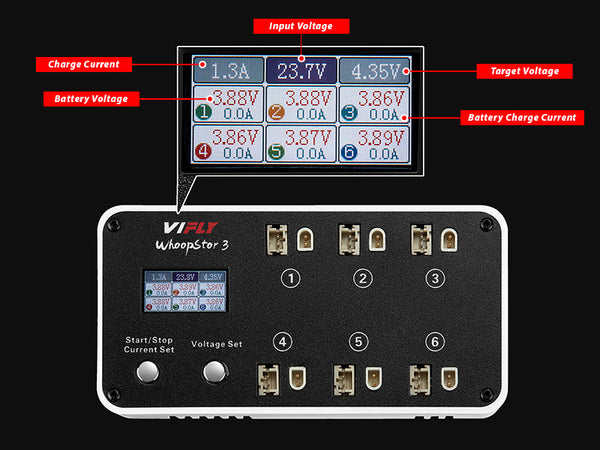

Colorful LCD Screen, Intuitive Interface

VIFLY WhoopStor 3 installs high quality LCD screen, the charging status is displayed clearly and the intuitive interface makes the operation very simple.

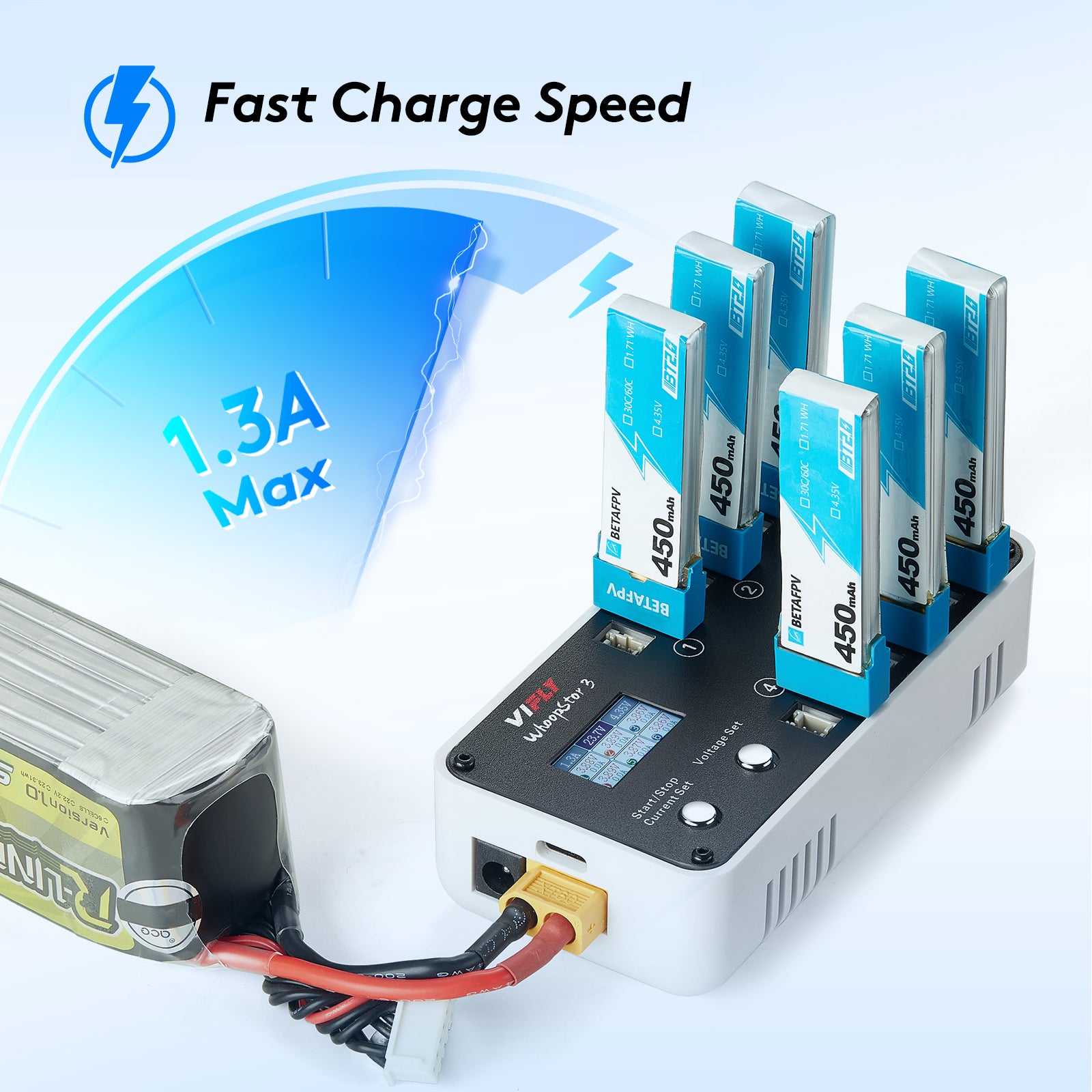

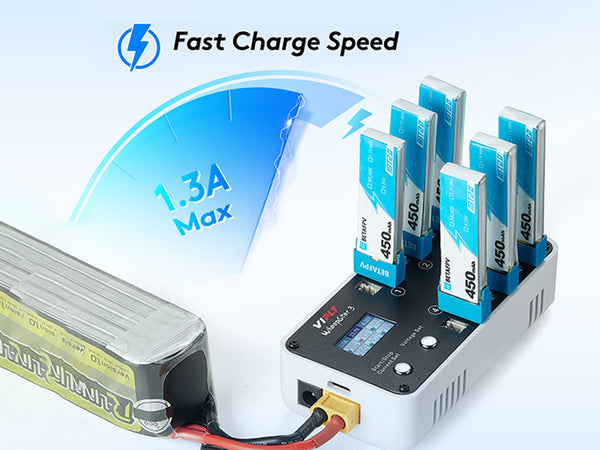

Fast Charge Speed

The charge current range is from 0.3A to 1.3A, you can choose different charge current for different size batteries, it is better to charge the battery with 2C rate.

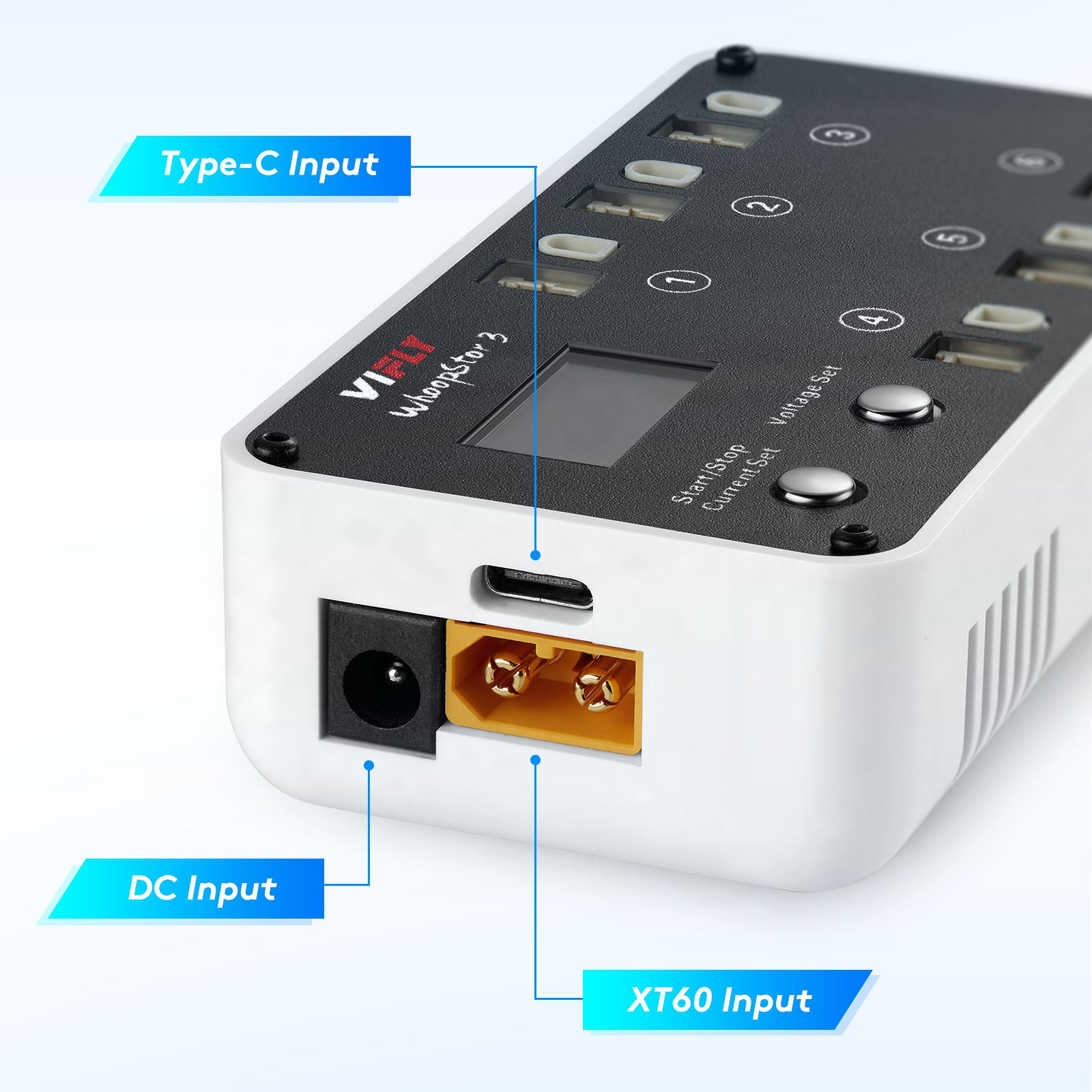

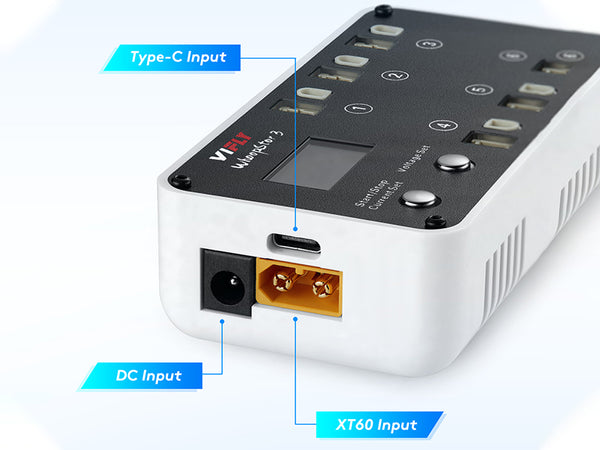

Multiple Power Input

VIFLY 1S LiPo charger supports Type-C, XT60 and DC power input. Type-C used PD and QC protocol that supports fast charge at 9V and 12V, but it not supports regular 5V USB charge.

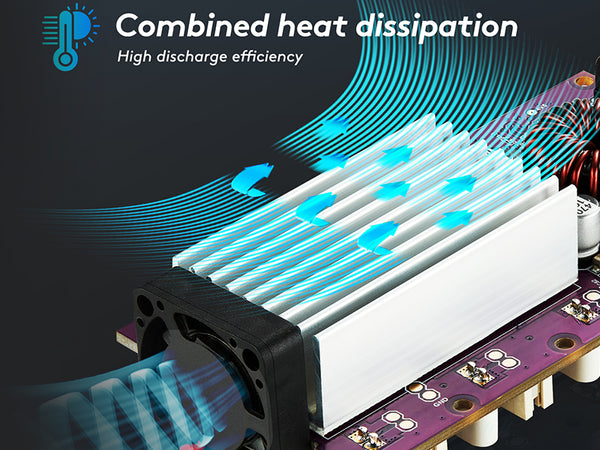

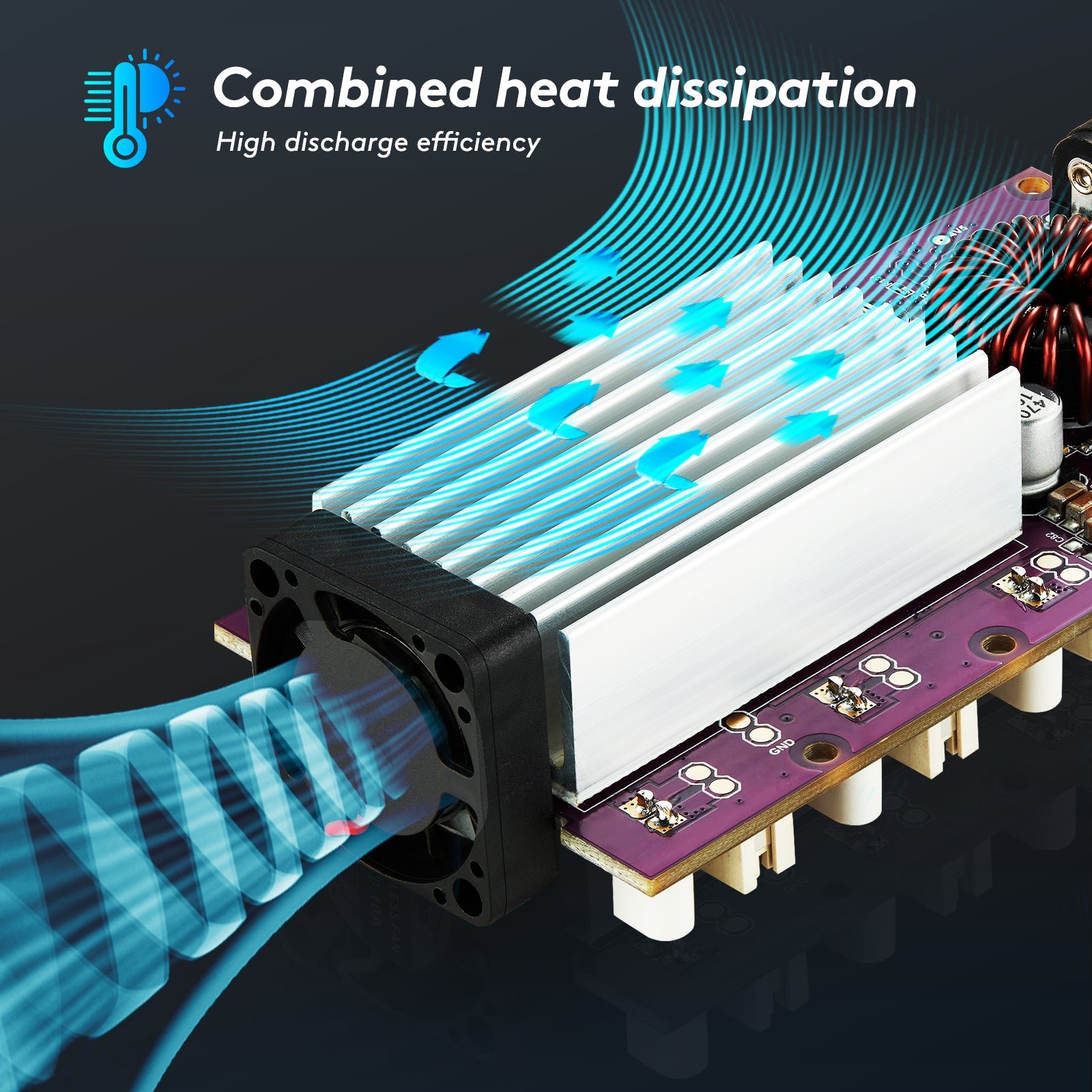

Strong Heat Dissipation Capability

The fan and big heat sink would effectively dissipate the heat to prevent the unit from overheating. This greatly improves the efficiency and speed of the discharging.

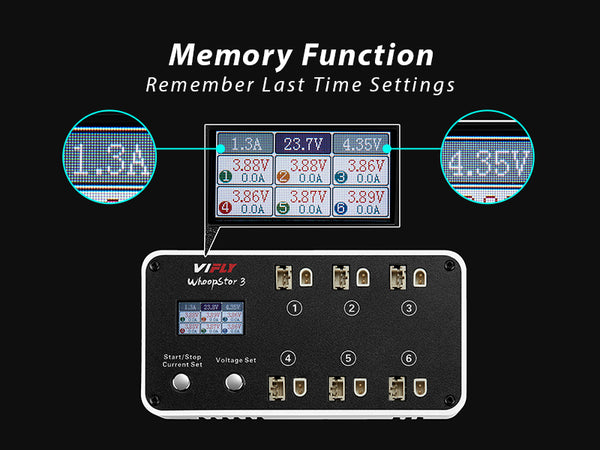

Memory Function

VIFLY WhoopStor 3 added the memory feature of remembering last time settings, no need to set the charge current every time you turn it on.

Features:

  • 【Storage Charger and Discharger】VIFLY WhoopStor 3 is the first 1S LiPo charger with storage function. It includes both charging and discharging functions. Just select your target voltage, it will do it for you automatically.
  • 【Colorful LCD Screen, Intuitive Interface】VIFLY WhoopStor 3 installs high quality LCD screen, the charging status is displayed clearly and the intuitive interface makes the operation very simple.
  • 【Fast Charge Speed】The charge current range is from 0.3A to 1.3A, you can choose different charge current for different size batteries, it is better to charge the battery with 2C rate.
  • 【6 Independent Ports】6 independent charging channels, not necessary to ensure the batteries are all the same voltage and same size. You also can unplug one that's done and plug in another while the others are still charging.
  • 【Multiple Power Input】It supports Type-C, XT60 and DC power input. Type-C used PD and QC protocol that supports fast charge at 9V and 12V, but it not supports regular 5V USB charge.
  • 【Memory Function】VIFLY WhoopStor 3 added the memory feature of remembering last time settings, no need to set the charge current every time you turn it on.
  • 【Buzzer Indication】VIFLY WhoopStor 3 added the buzzer to beep when one charging circle finished, if you don’t like beeping, you can turn the buzzer off manually.

Specifications:


Dimensions



108*55*30mm

Weight140g
Input connectorXT60, DC(5.5*2.1mm), USB-C(PD3.0)

Input voltage range6V-26V (XT60 2S-6S Battery, DC), 9V-20V (USB-C)

Minimum input power40W
Max charging current1.3A/port
Support battery connectorPH2.0 & BT2.0

Battery typeLiPO 4.20V(±0.05V) / LiHV 4.35V (±0.05V)
Storage voltage3.80V (±0.05V) / 3.85V (±0.05V)
Max discharge power1.1W/port
