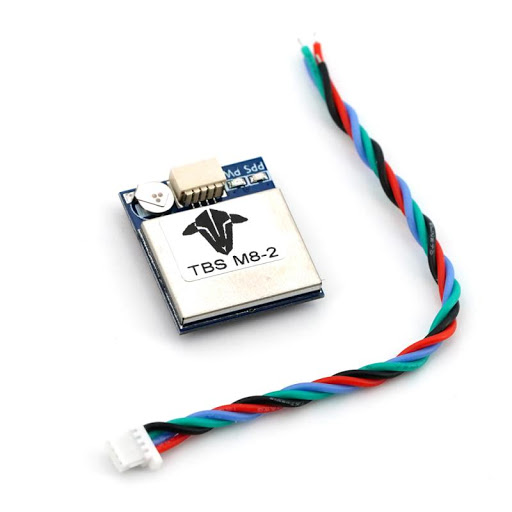

TBS M8.2 GPS GLONASS

Quantity

Summary

+ Precision GPS / Glonass module for betaflight or pixhawk. SPECIFICATION Chipset - ublox UBX-M8030 Frequency - L1, 1575.42MHz ; L2,1561.10MHZ；L3,1602.00MHZ Baud Rate - 4800bps-921600bps (Default - 9600bps) Channel - 72ch Sensitivity - (Tracking: -164dBm) | (Capture: -159dBm) | (Cold Start - 147dBm) Cold start - Average 26 seconds Warm start - Average 24 seconds Hot start - Average 1 second Accuracy - (HorizontalPosition:Autonomous<2m average) | (SBAS < 2.0m average) | (Timepulse signal: RMS 30 ns) Maximum height - 50000m Maximum speed - 500 m/s Maximum acceleration - ≦ 4G Refresh Rate - 1-10 Hz Size - 20 x 22 x 6 mm Weight - 5.2g Input Voltage - 3.3V-5V
