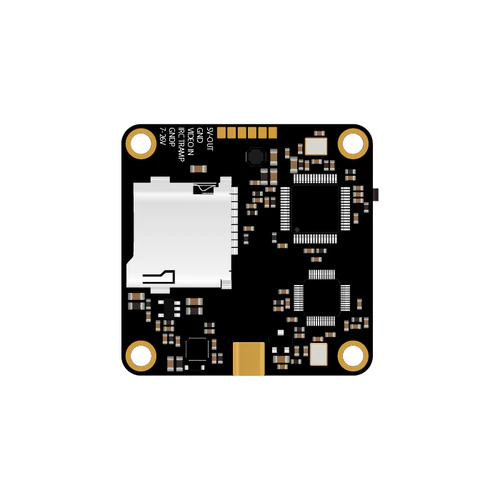

5.8G 48CH 600mW VTX w/ Built-in DVR
30.5x30.5mm M3 Mounting Pattern
Supports Betaflight CMS Control / IRC Tramp Protocol / VTX Pit Mode
Model: Speedy Bee VTX-DVR
DVR: Video in: CVBS@1Vp-p 75Ω
Encoder: MJPEG@AVI
Resolution: VGA ( 640 x 480 ) @ 30fps ( NTSC ) / 25 fps ( PAL )
Audio: Built-in MIC
Micro SD Card: Max 32G
VTX: Frequency Channel: 5.8G 48CH
Output Power: 25mW / 200mW / 600mW
Video Input Impedance: 75 Ohm
Antenna Connector: MMCX
: Power in: DC 7-26V
Working Current: DC 9V @Max 450mA
Power out: DC 5V @Max 250mA
Net Weight: 7.5 g (without antenna)
Dimension: 36mm*36mm @30.5 × 30.5 M3 holes
Package
1 X VTX-DVR
1 X MMCX antenna
1 X MMCX to SMA Cable
1 X 1.0mm 6pin Cable
1 X Set of screws
