Specifications
Size and Weight
Shell material: PC-ABS V0
Size: 70*50*32mm
Weight: 82g

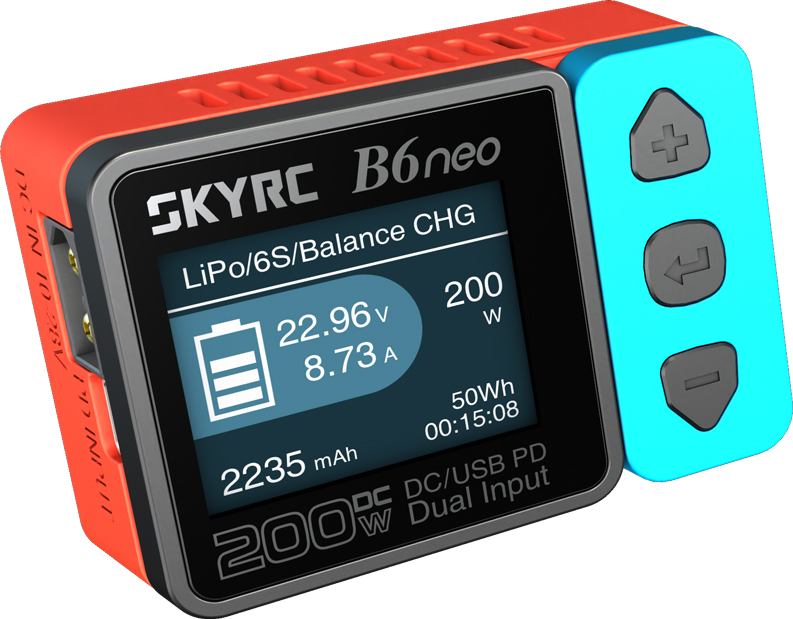

Display
Display Type: TN
Size: 1.77 inch
Panel Active Area: 28.03*35.04mm
Resolution: 128x160 Pixel
Number of Colors: 262K
Power
DC Input Voltage: 10-28.0V
PD3.0/QC Input Voltage : 12v-20v
Charger power:
DC: 200W
PD: Max. 80W (20V, 5A)
Discharge power:
Max. 24W based on 6S(4.2V/S)
Battery
Battery Types/Cells:
LiPo/LiFe/LiIon/LiHV: 1-6cells
NiMH/NiCd: 1-15cells
Pb: 3S/6S
Charge and Discharge
Charge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-10.0A

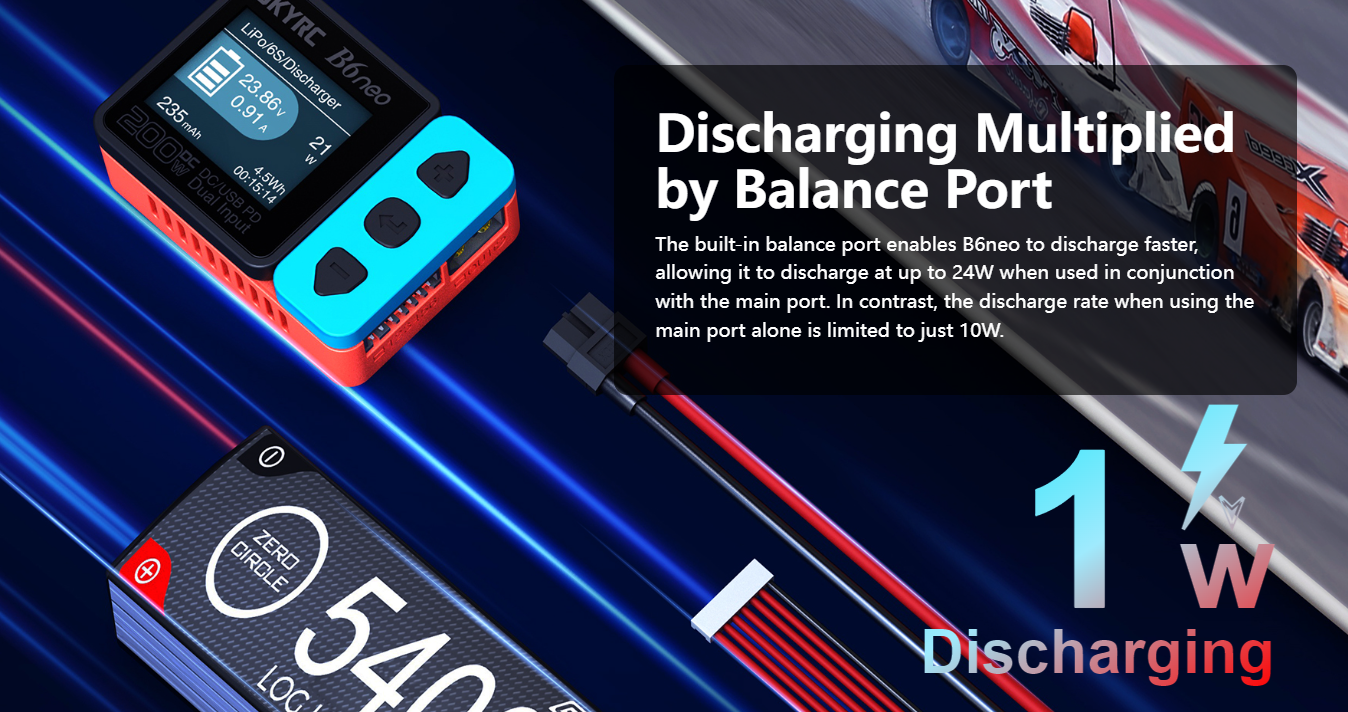

Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb：0.1-2.0A
Balance current
LiPo/LiFe/LiIon/LiHV: Max. 500mA
Operation
LiPo/LiFe/LiIon/LiHV: Balance charging, Charging, Discharging, Storage
NiMH/NiCd: Charge, Discharge, Cycle charge-discharge, Cycle discharge-charge, Repeat charge
Pb: Normal, Standard charge, Low temperature charge, AGM charge/discharge
