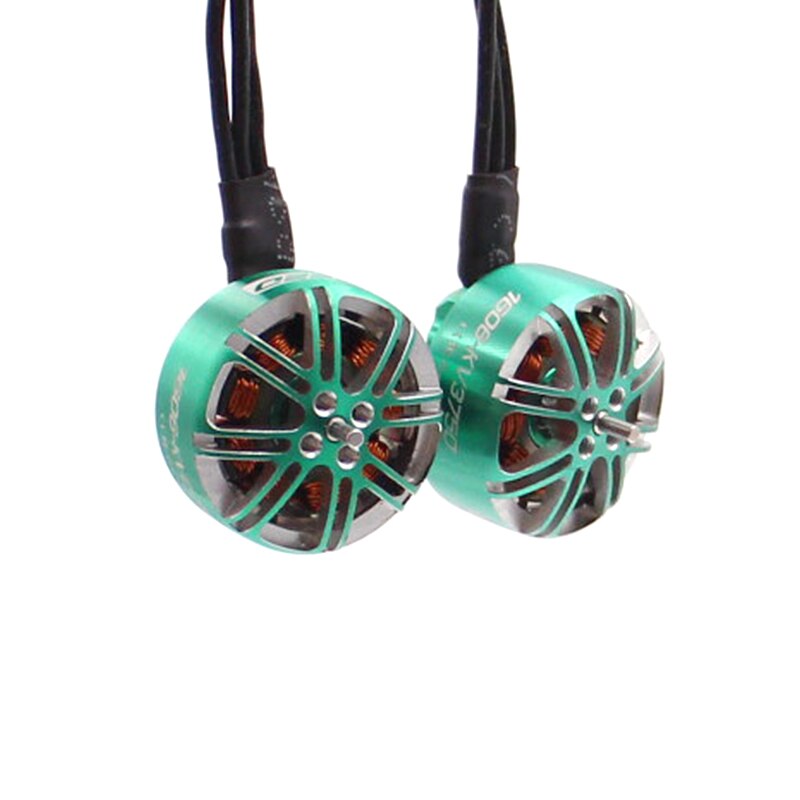

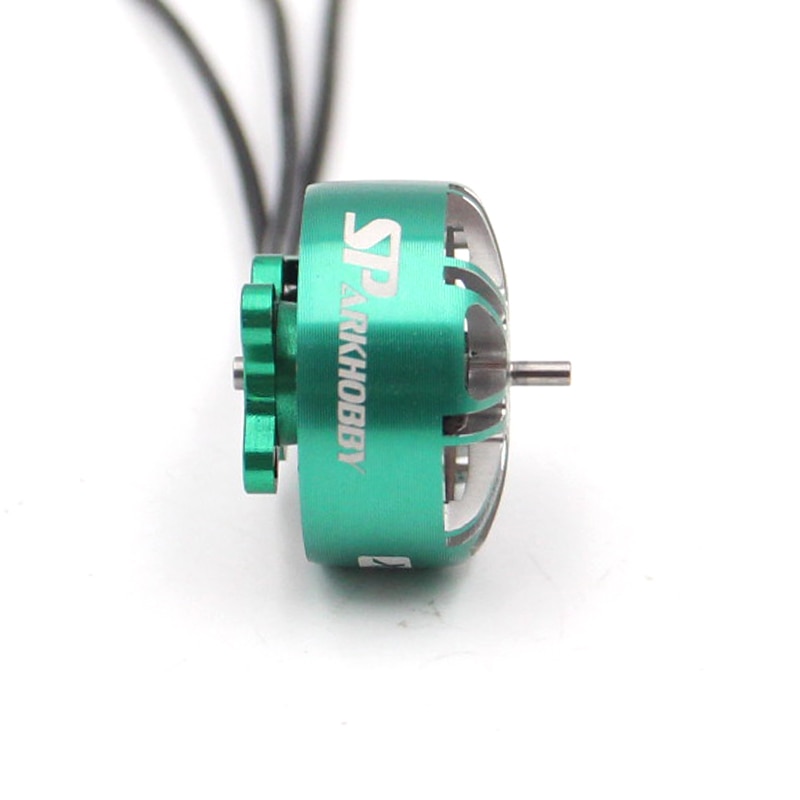

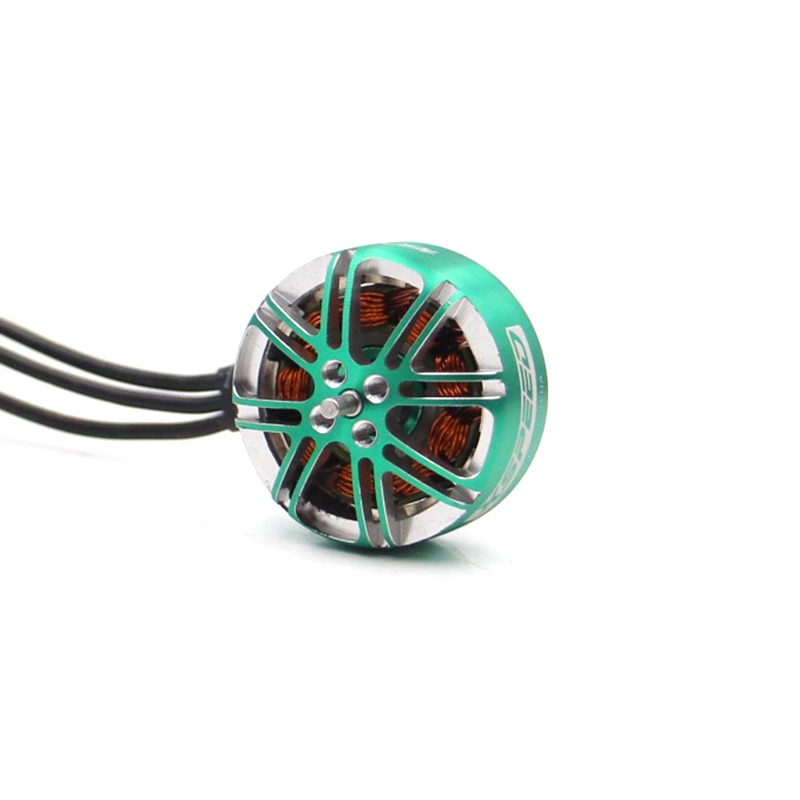

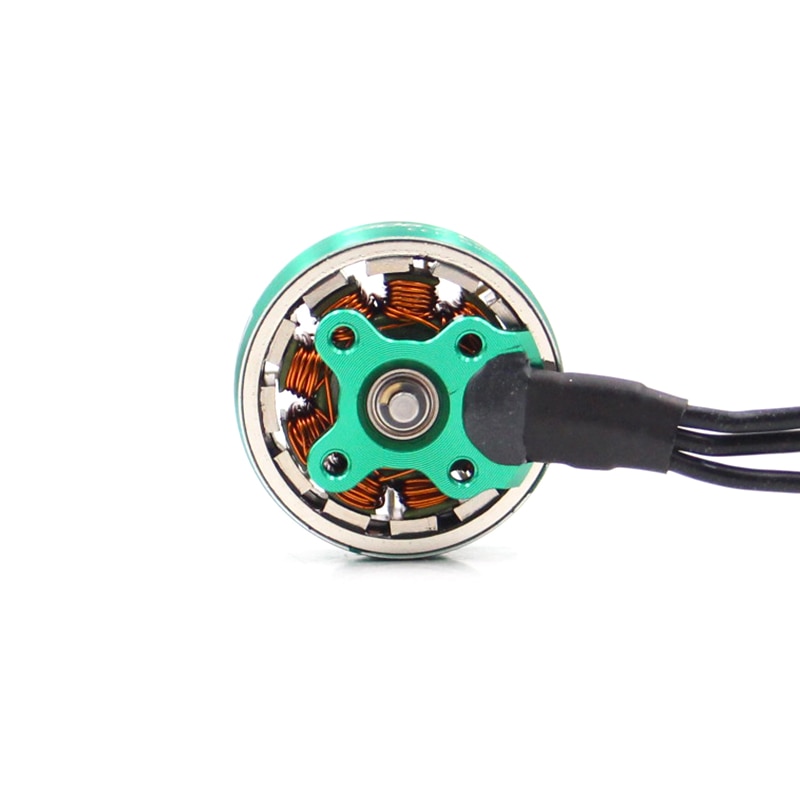

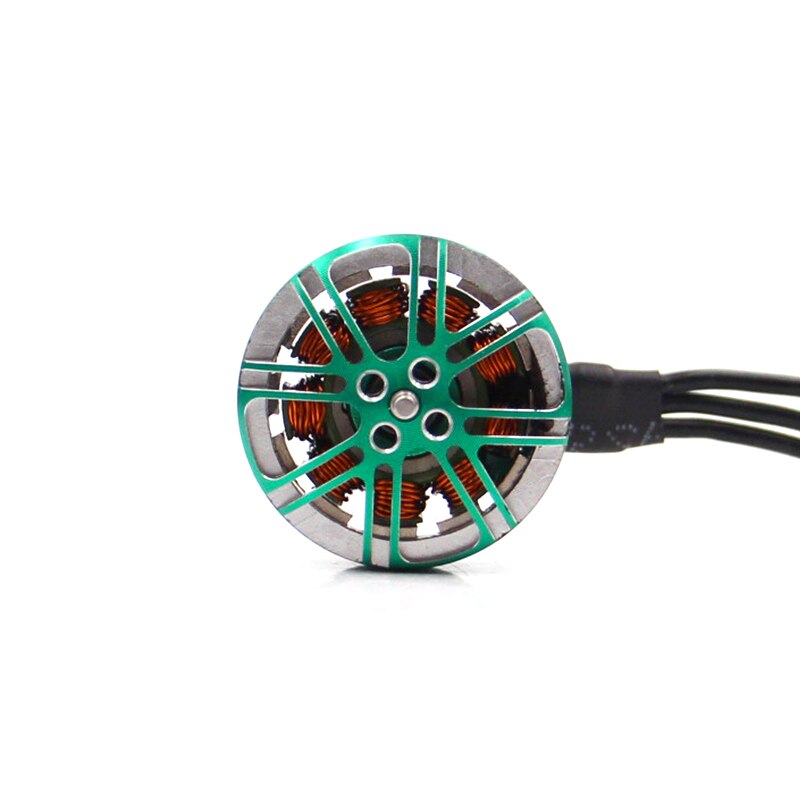

Item: SPARKHOBBY 1606 2750KV 3750KV Brushless Motor
Parameters:
2750KV
Overall Dimension:Φ22.5*18.5mm
Weight:17g
Shaft Diameter:1.5mm
Installation hole position:12×12mm,M2
Prop:3inch~4inch
Bearing:5*2*2.5
Shaft Diameter:2mm
Lead Wire Size:24AWG ×120mm
Configuration:9N12P
Magnet Wire:Class H,200℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage:4~6S (12.6V~25.2V)
Peak Current:17.6A
ldle Current:10V/0.5A
Maximum Power:409W
Internal Resistance:164mΩ
3750KV
Overall Dimension:Φ22.5*18.5mm
Weight:17g
Shaft Diameter:1.5mm
Installation hole position:12×12mm,M2
Prop:3inch~4inch
Bearing:5*2*2.5
Shaft Diameter:2mm
Lead Wire Size:24AWG ×120mm
Configuration:9N12P
Magnet Wire:Class H,200℃ Enameled Wire
Stator Diamter:16mm
Stator Height:6mm
Rated Voltage:3~4S (12.6V~16.8V)
Peak Current:21.1A
ldle Current:9v/0.8A
Maximum Power:338W
Internal Resistance:114mΩ
