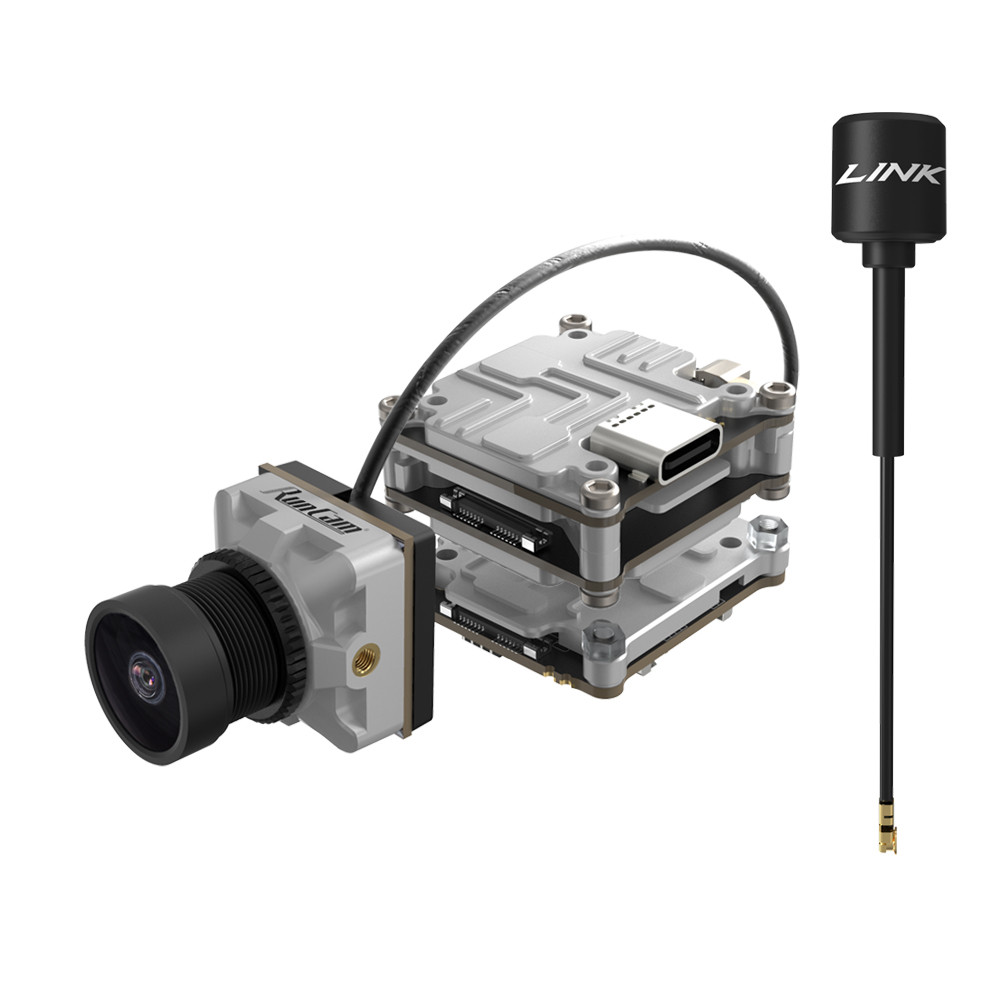

RunCam Split HD 2.7k RunCam Split HD for Caddx Vista / Runcam Link (Gyroflow support)

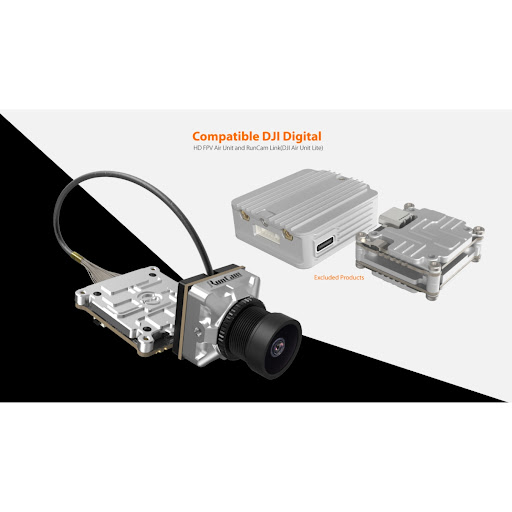

Features: 2.7K+720P FPV HD Video Integrated Real-time capability for 2.7k@60fps video recording + low latency 720p@60fps supports DJI digital VTX system Gyro Flow Image Stabilization Support generating GyroFlow data file, and use GyroFlow for making post-stage imafe stabilization video Standard ND 16 Filter Effectively reduce the jello of flight video under strong sunlight 16:9/4:3 Optional Support 2.7K@60fps(4:3), 2.7K@60fps(16:9), 1440P@60fps(4:3) 1080P@60fps(16:9) Four resolution recording settings (FPV Synchronization Effect) WDR Digital WDR is supported, effectively enhancing the brightness of the dark parts of the screen Simple installation PCB double aperture design, compatible with 20 and 25.5 aperture racks Compatible with DJI Digital FPV System Specifications: Model: RunCam Split HD Field of View(FOV): 154° Horizontal Perspective: 124° Video Resolution: 2.7K@60fps/2.7K@60fps(4:3): 1440P@60fps/1080P@60fps FPV Resolution: 720P@60fps Video File Format: MP4 Image Sensor: SONY(5MP) Communication Interface: Supported Max Micro SD Card Supported: Up to 128G. Samsung's U3 card is recommended (2.7K60/1080P120 requires U3 or above; other solutions require U1 or above)Please make sure that the file format of the SD card is FAT32 or exFAT, otherwise, it will easily cause errors. Mounting Hole Distance: 20*20mm / 25.5*25.5mm PCB Size: 29*30mm Lens Module Size: 19*19mm Lens Specs: M12*0.5 Power Input: DC 5V Working Current: 450mA@5V(Max) Weight: 19.9g
