~2.4g/915 mhz for export use ~
RadioMaster continues to redefine the open-source remote control landscape. After years of collaboration with our open-source partners and users, we are proud to introduce the TX15 MAX. Driven by the high-performance STM32 H7 chip, it’s the powerhouse behind our fastest radio ever — enabling ultra-smooth EdgeTX control, instant model switching, and lightning-quick script execution. With 4GB of flash storage and MicroSD card expansion, you’ll have virtually unlimited space for models, scripts, sounds, and themes.
The TX15 MAX features an LR1121 Semtech transceiver, supporting both 2.4GHz and 900MHz ExpressLRS (ELRS) for exceptional low-latency performance. Whether you're using it daily or in challenging RF environments, the TX15 is engineered to deliver reliable results. A smart balance battery circuit optimizes runtime, while the compact, foldable antenna design enhances portability and maintains strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, adjust accessories, or activate telemetry features with a simple tilt of your radio.
This versatile module combines durability, ease of use, and innovative features, making it an outstanding choice for demanding setups.

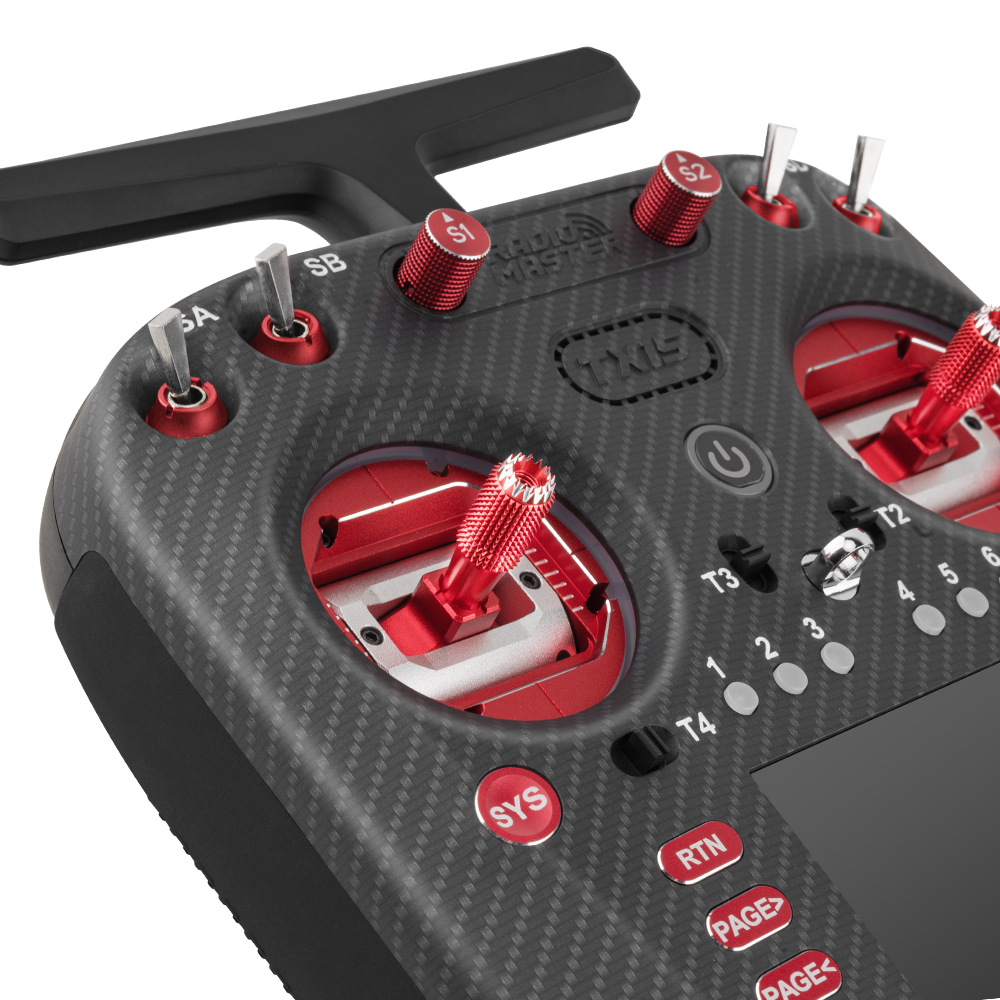

Enjoy sharp visuals on the 3.5-inch IPS touchscreen with 262k color resolution and 600 nits brightness, even in sunlight. The TX15 MAX boasts AG02 CNC aluminum gimbals in anodized red, black or gold, upgraded aluminum buttons, a scroll wheel, and a carbon-fiber-look case for a premium feel. Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting. It includes advanced cooling, a USB-C charging port, SIM connectivity, firmware updates, and fast memory access for top-tier performance. We’ve included additional switches so you can swap out the shoulder buttons with either a momentary or two-position latching switch—perfect if you prefer a traditional switch over a button. Prefer the standard model? See the TX15 Standard.
Step into the future. TX15: The Future Is Here, One Step Ahead.
Features
Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.
Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.
Precision Gimbals: the premium AG02 gimbals for enhanced smoothness.
Built-in ExpressLRS: 2.4GHz / 900MHz ExpressLRS integration for reliable and stable signal.
Smart Balance Battery Circuit: Maximizes battery efficiency and optimizes runtime.
Powerful, Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.
AG02 Gimbal: More than 20% reduced weight, with adjustable travel on both vertical and horizontal axis.
Customizable RGB Gimbal Light- Ring: Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting.
Foldable Antenna: Compact and easy to store without compromising signal strength.
Built-in Microphone: For future feature expansion.
Built-in Motion Sensor: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
Interchangeable Shoulder Switches: Customize your controls to match your style.
Specifications
Item: TX15 Max Radio Controller
Size: 178*168*81mm
Weight: 672g (without battery)
Color: Red/ Black/ Gold
Frequency: 2.400GHz OR Sub-G 900MHz
Internal RF: ELRS 2.4GHz / Sub-G 900MHz
Supported Protocols: Express-LRS
Cooling Fan: Yes
Transmitter Module: Built-in ELRS
Built-in Flash Size: 4GB
Built-in Microphone: Yes (Future expansion)
Built-in Motion Sensor: Yes (ICM-42607-C)
MicroSD card* (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
Antenna Gain: 2dB (transmit power adjustable)
Current: 875mA at max power output
Voltage Range: 6.6 - 8.4V DC
Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
Module Firmware: ExpressLRS
Channels: Max 16 channels (Receiver dependent)
Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
Connectivity: USB-C
Gimbals: AG02 CNC Hall sensor gimbals
Gimbal Sticks: M4
Upgrade Method: USB-C (UF2)
Module Bay: JR-compatible module bay for additional modules
