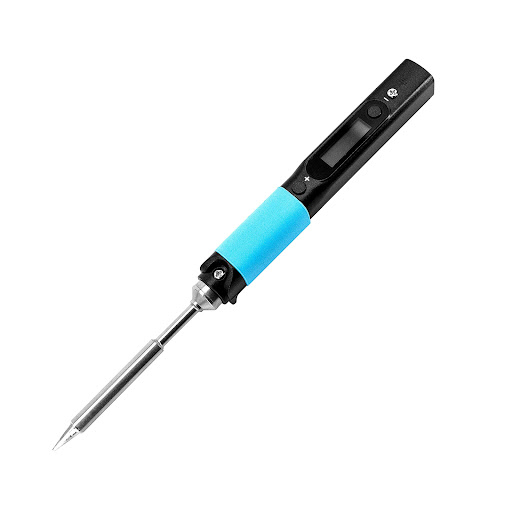

PINECIL – Smart Mini Portable Soldering Iron

Color

數量

簡介

+ Description The Pinecil is a smart mini portable soldering iron with a 32-bit RISC-V SoC featuring a sleek design, auto standby and it heats up to an operating temperature in just 12 seconds! Dual power input design: 1) USB-C supports both PD and QC 3.0 and; 2) DC5525 barrel DC jack. Speedy Rapid Warmup: Reaches operating temperature in 12 seconds. Support for on-demand rapid boost feature. Adjustable soldering tip temperature which can be set between 100° C and 400° C using the adjustment buttons and an easy-to-read OLED display. Portable: it features a sleek and slim design, comprised of an SAE 304 stainless steel core housed inside a polycarbonate shell. Auto standby mode engages when it is not in use ensuring the user safety. Specifications: BODY Dimensions: 170mm with solder tip / 98mm without solder tip x 12.8mm x 16.2mm Weight: 30g with solder tip / 20g without solder tip Build: Plastic with metal clip (Handle) PLATFORM OS: Ralim’s IronOS build Chipset: GigaDevice GD32VF103TB CPU: 32-bit RV32IMAC RISC-V “Bumblebee Core” @ 108 MHz DISPLAY Type: OLED White Colour Monochrome Display Size: 0.69 inches Resolution: 96x16pixels MEMORY Internal Flash Memory: 128KB System Memory: 32KB SRAM Expansion: None POWER PORTS USB type C: PD and QC 3.0 12V-20V 3A Barrel Jack: DC5525, 12V-21V DC 3A TIP Type B2 Length: 106mm Weight: 10g Compatible with TS100 FEATURES Capable received power from either USB-C port or barrel jack. GPIO break-out thru USB-C port CERTIFICATION FCC CE RED ROHS PACKAGE CONTENTS Pinecil Soldering Iron Type B2 Soldering Tip
