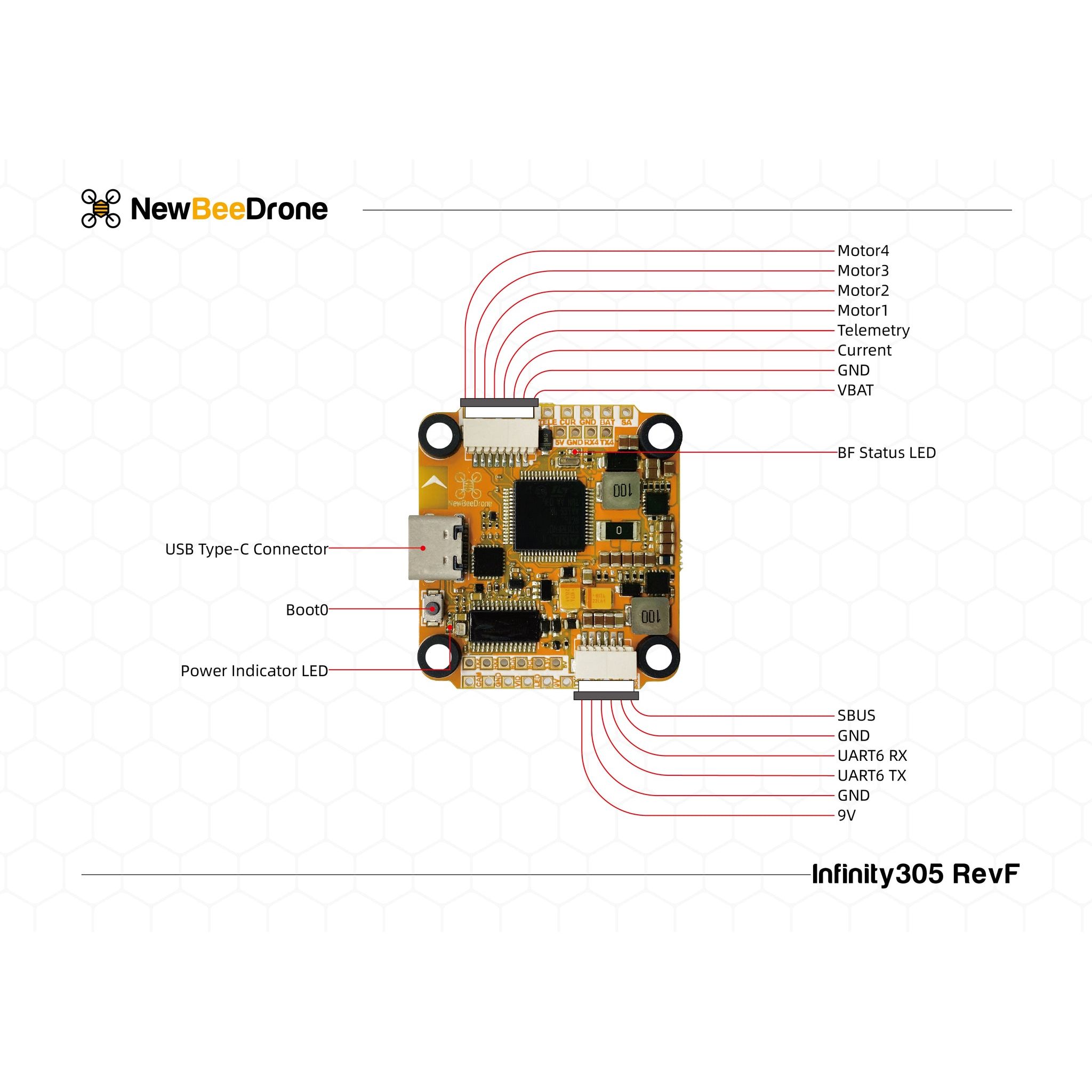

Flight Controller Spec:
MPU6000 Gyro
STM32F405 CPUE @ 168mhz, can be overclocked
3-6S direct battery input
5V 2A,
9V 2A 18W Design for DJI FPV Air Unit
5V Camera Power
betaflight OSD
Flat bottom PCB for SUPER CLEAN builds
36x39 CB with 30.5x30.5 mounting holes
6 UARTS. UART1 (INVERTER FOR SBUS)
UART2 (FREE)
UART3 (INVERTED TELEMETRY)
UART4 (Free)
UART5 (Smart Audio)
UART6 (Free)
Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin
Plug and plug with NBD Infinity30 ESC. Also compatible with most of the ESC on the market.
Built-in solder pads for ESC signal output and power

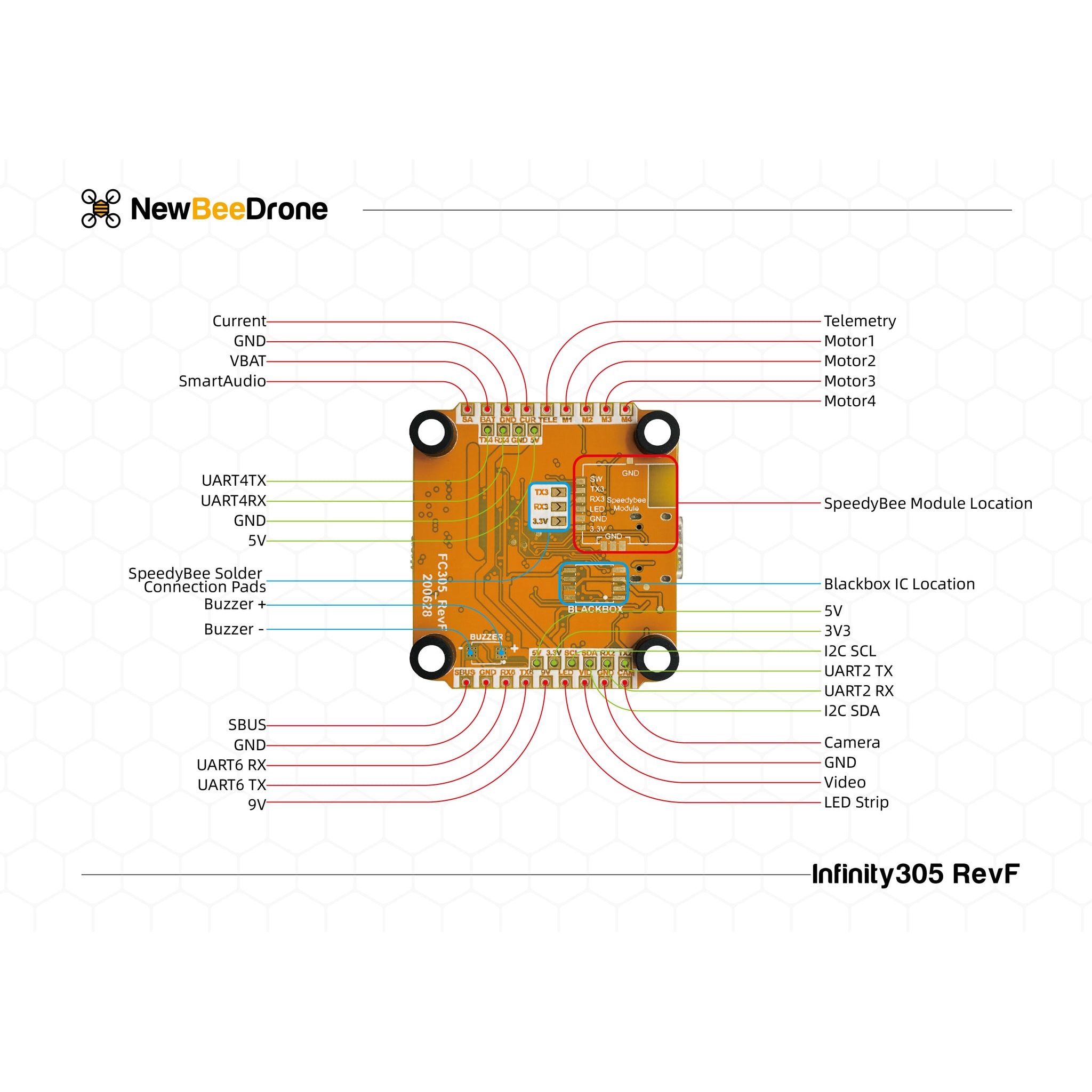

Printed layout instructions ON the board - no need for instructions!
DJI FPV Air Unit socket (use UART1 and UART6)
