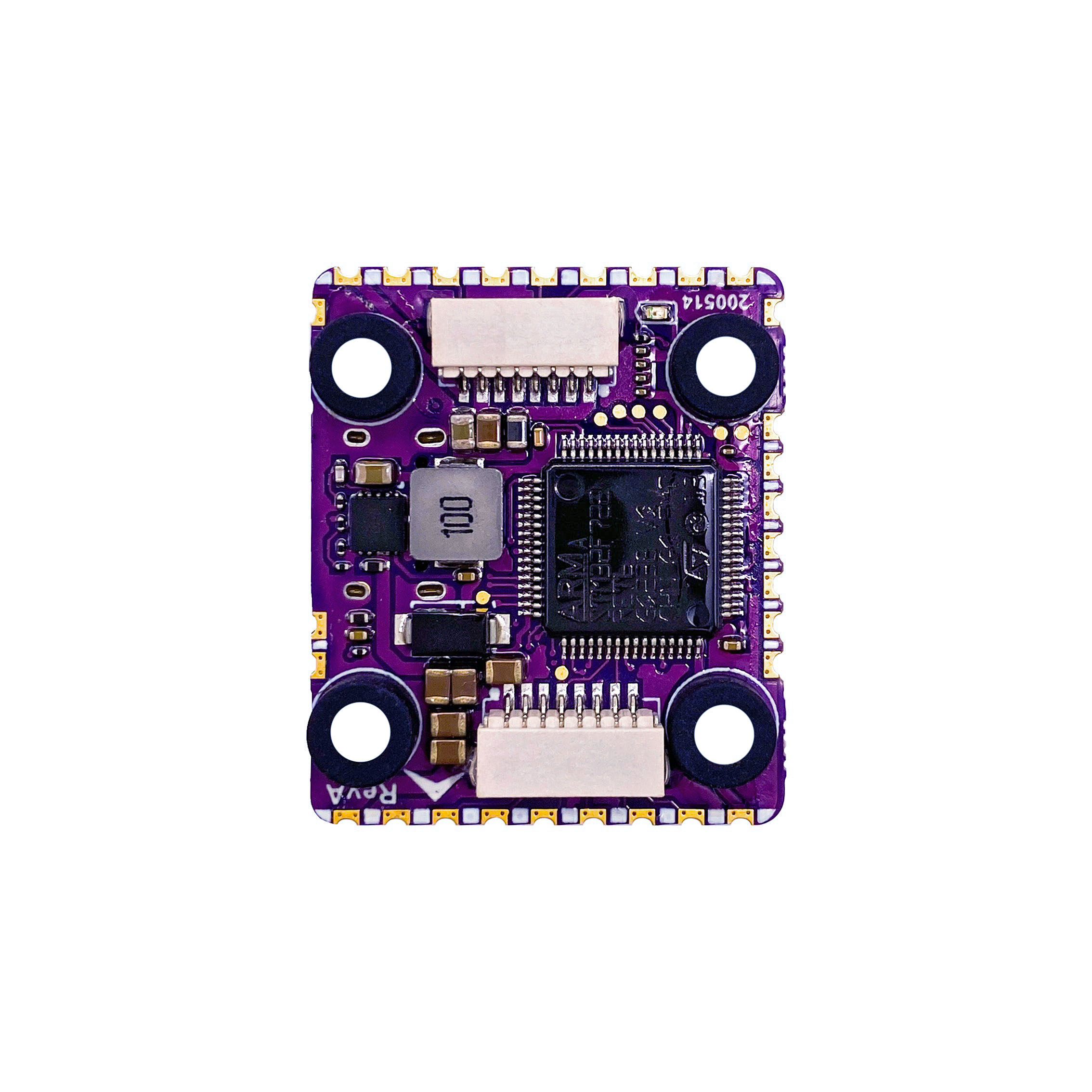

Cricket FC200 F7 Flight Controller Spec:
MPU6000 Gyro
STM32F722 216mhz
3-6S direct battery input
5V 1.5A,
3V3 100mA
9V 2A 18W Design for DJI FPV Air Unit
5V Camera Power
BetaFlight OSD
31.5x27 CB with 20x20 mounting holes, weight: 5.85g

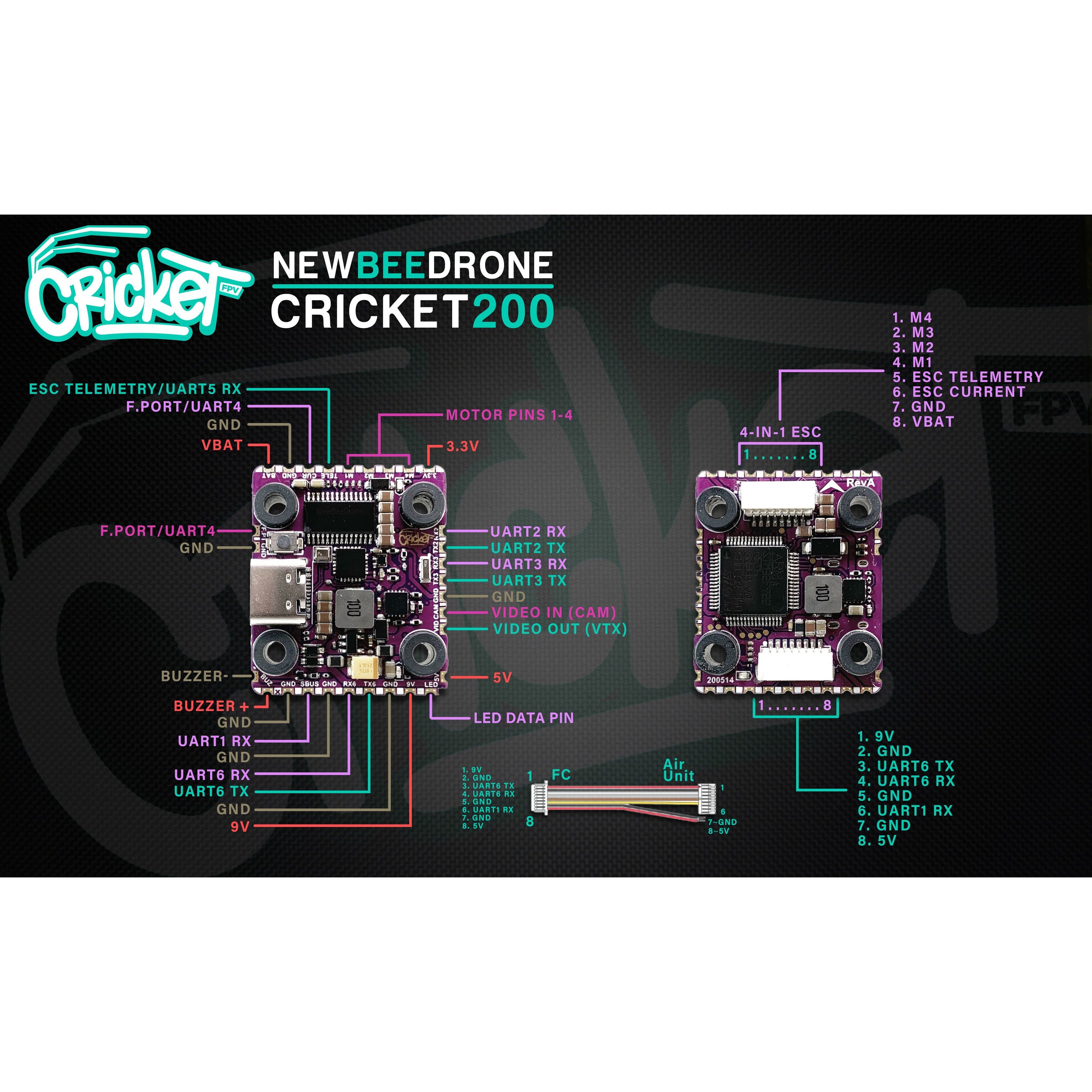

6 UARTS on board.
UART1 (Only RX, Air Unit connector)
UART2 (Free)
UART3 (Free)
UART4 (TX and RX connected together for F.Port)
UART5 (Only RX, ESC Telemetry)
UART6 (MSP/Configuration Port for Air Unit)
Built-in 4 IN 1 ESC socket(including ESC telemetry, External current sensor) JST1.0 8Pin
Plug and plug with NBD Infinity200 ESC. Also compatible with most of the ESC on the market.
Built-in solder pads for ESC signal output and power

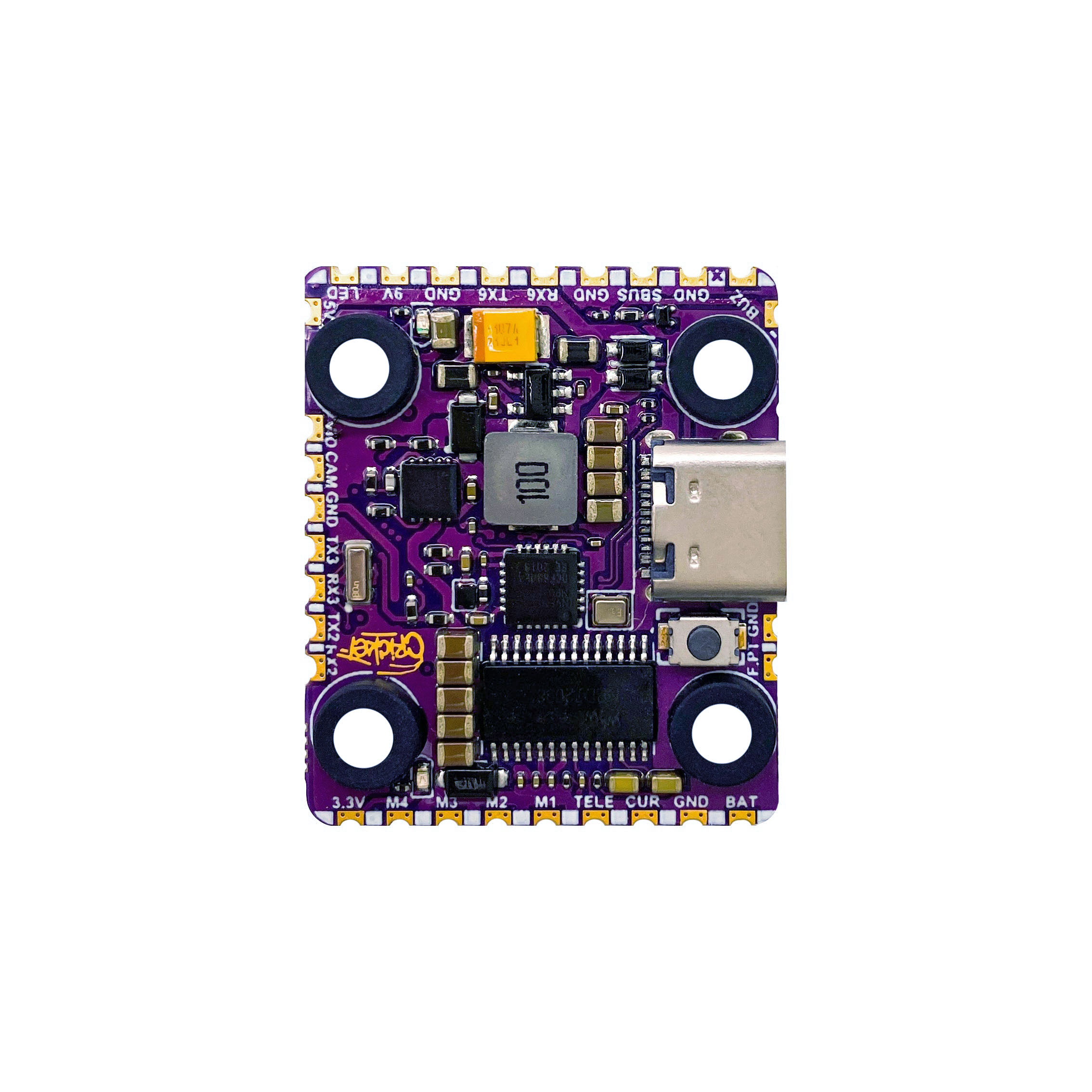

Printed layout instructions ON the board - no need for instructions!
DJI FPV Air Unit socket (use UART1 and UART6)
Firmware and configuration files: https://github.com/newbeedrone/Cricket200-FC-F7/releases/
