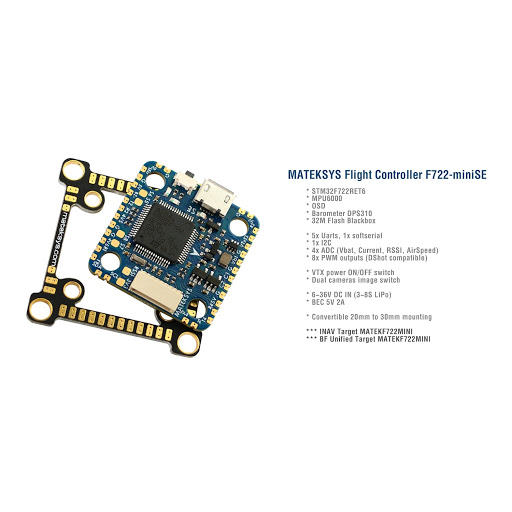

Matek F722-MiniSE Flight Controller

數量

簡介

+ STM32F722, MPU6000, OSD, DPS310, 32M Flash, 5x UARTs, 8x DShot, 2~8S, BEC 5V2A, VTX power switch, Dual Camera image switch. convertible 20mm to 30.5mm mounting. FC Specifications MCU: 216MHz STM32F722RET6 IMU: MPU6000 (SPI) OSD: AT7456E (SPI) Baro: Infineon DPS310 (I2C) Blackbox: 32M-byte Flash memory (SPI) 5x Uarts (1,2,3,4,6) with build-in inversion 1x Softserial supported 8x Dshot/Proshot/oneshot outputs 1x I2C 1x SH1.0_8pin connector (Vbat/G/Curr/R6/S1/S2/S3/S4) 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red) Vbat filtered output power for VTX, Switchable via AUX (modes tab-user1) Dual Camera image switchable via AUX (modes tab-user2) Convertible 20mm to 30.5mm mounting Camera control: Yes Smartaudio & Tramp VTX protocol: Yes DJI OSD: Yes (any spare Uart Tx & Rx) WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes Additional ADC for INAV analog airspeed Power Input: 6~36V (2~8S LiPo) BEC: 5V 2A LDO 3.3V: Max.200mA Battery Voltage Sensor: 1:10 (Scale 110) No Current Sensor built-in, supports external current sensor of PDB/4in1 Firmware INAV target: MATEKF722mini BetaFlight unified target: MATEKF722mini(MTKS) BetaFlight legacy target: MATEKF722SE Physical Mounting -20 x 20mm/Φ3mm with Silicon Grommets -20 x 20mm/Φ2mm with Silicon & Brass Grommets -30.5 x 30.5mm/Φ3mm with Conversion Plate and Silicon Grommets Dimensions: 28 x 28 mm Weight: 5g Including 1x FC F722-miniSE 1x 20mm to 30.5mm conversion plate 6x Silicon grommets M4 to M3 6x Brass grommets M3 to M2 1x SH1.0_8pin cable 5cm 2x SH1.0_8pin connectors
