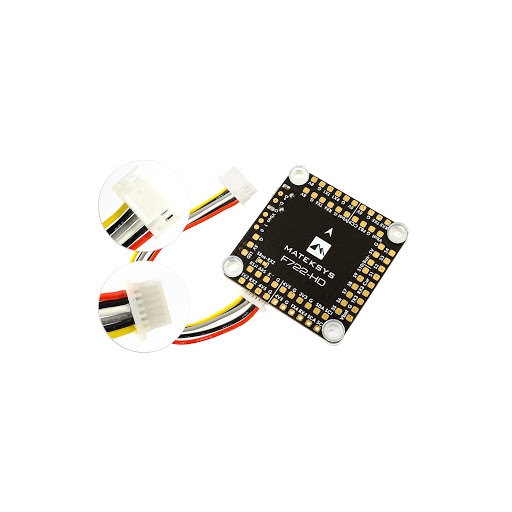

Matek F722-HD Flight Controller

數量

簡介

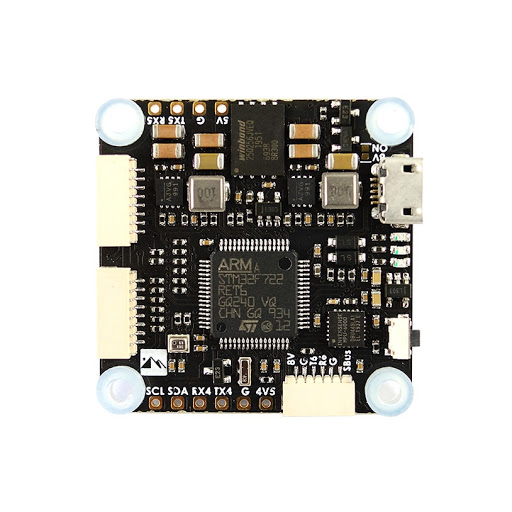

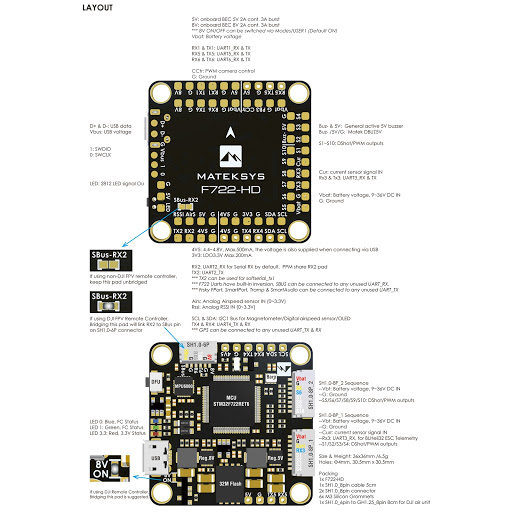

+ FC Specifications MCU: 216MHz STM32F722RET6 IMU: MPU6000 (SPI) Baro: BMP280 (I2C) Blackbox: 32M-byte Flash memory (SPI) OSD: Support external DJI OSD/FrskyOSD, No Analog MAX7456 OSD built-in 6x Uarts with built-in inversion 1x Softserial_Tx option 10x Dshot/PWM outputs 1x I2C 4x ADC (VBAT, Current, RSSI, AirSpeed) 2x SH1.0_8pin connector (Vbat/G/Curr/Rx3/S1~S10) 1x SH1.0_6pin connector for DJI FPV Air Unit 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red) Switchable 8V output PWM camera control: Yes TR/SA VTX control: Yes WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes Analog Airspeed sensor: Yes Digital Airspeed sensor: Yes Power Input: 9~36V (3~8S LiPo) BEC: 5V 2A cont. (Max.3A) BEC: 8V 2A cont. (Max.3A) LDO 3.3V: Max.200mA Battery Voltage Sensor: 1:10 (Scale 110) No Current Sensor built-in FC Firmware BetaFlight unified target: MATEKF722HD(MTKS) INAV target: MATEKF722PX Physical Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm Dimensions: 36 x 36 x 5 mm Weight: 6.5g Including 1x FC F722-HD 6x Silicon grommets M4 to M3 1x SH1.0_8pin cable 5cm 2x SH1.0_8pin connectors 1x SH1.0_6pin to GH1.25_8pin cable 8cm F722-HD has INAV firmware preloaded for QC. *** BetaFlight unified target MATEKF722HD Select “MATEKF722HD” in pull-down list of BetaFlight configurator when you flashing it. In BetaFlight CLI mode, type ” resource SERIAL_TX 11 A02 ” if you want to use TX2 pad as softserial1_TX. *** INAV target MATEKF722PX INAV firmware has FrskyOSD enabled on Uart6 by default, replace it with “DJI FPV VTX” protocol.
