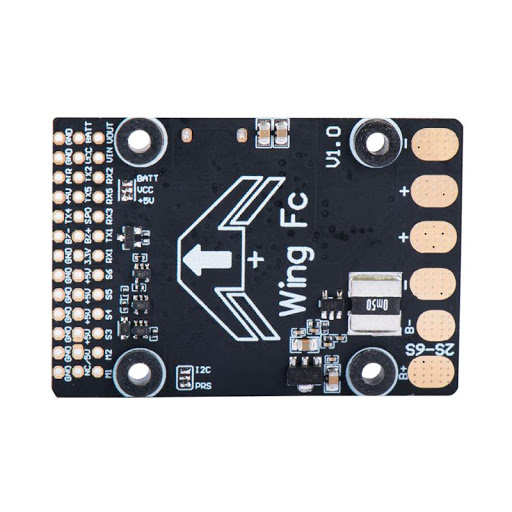

JHEMCU FC-10 DOF Wing FC

數量

簡介

+ TM32F405 MCU, the refresh rate is up to 168MHz, integrated MPU9250 nine axis sensors (three axis gyroscope + three axis accelerometer + three axis electronic compass) and barometer, built-in electronic compass (Compass), only need external GPS, can achieve fixed point fixed height, one key return and equal work energy, with very fast reaction, more suitable for high-speed competition. Aerobatic flight. FEATURES Support INAV tuning to support OSD data return. It has the function of partition board, and supports two simultaneous electrically adjustable output. There are 4 PMW steering gear output to meet various fixed wing models. It can connect to GPS and realize the function of positioning and returning. (GPS purchased separately). Reserved BB ring interface, easy to achieve unlock, lock, search star, search and other prompts. The built-in 5V/3A BEC output is convenient for power supply for all kinds of equipment. SPECIFICATION Mounting:30.5 x 30.5mm,Φ4mm with Grommets Φ3mm Dimensions:54 x 36 x 13 mm Weight:10g MCU:168MHz STM32F405 IMU:MPU-9250 accelerometer/gyro/Compass (SPI) Baro:BMP280 (I2C) OSD:INAV OSD w/ AT7456E chip Blackbox:NO VCP & 6x UARTs 2x Motors,4x Servos outputs Built in inverter for RC input (UART3-RX) TBS Receiver:UART5-RX Beeper:Yes Default firmware : inav_1.9.0_FF_F35_LIGHTNING.HEX Reference software : inav-configurator PACKING INCLUDED 1 x Wing Fc-10 DOF FC 4 x M3 Dumping Balls 1 x XT-60 1 x 14 AWG Red 1 x 14 AWG black 2 x Pins
