ISDT POWER 200 Series USB Charger

Model

Quantity

Summary

+
UK Type power cable

Product Details



 POWER 200POWER 200HPOWER 200X
Input Voltage range:AC100~240VAC100~240VAC100~240V
USB-A supported quick charging protocols:QC3.0/QC2.0QC3.0/QC2.0QC3.0/QC2.0
USB-A output voltage range:5-12V5-12V5-12V
USB-A maximum output power:24W24W24W
USB-C output voltage range:5V~20V5V~20VUSB-C1/C2: 5V~20V
   USB-C3: 5V~28V
USB-C maximum output power:65W USB-C1/C2: 65W  USB-C3: 100WUSB-C1/C2: 65W  USB-C3: 140W
USB-C supported quick charging protocols:PD3.0/PD2.0/PPS,
QC4+/QC4/QC3.0/QC2.0,
AFC, FCP, SCP,
PE2.0/PE1.1,
SFCP, BC1.2
PD3.0/PD2.0/PPS,
QC4+/QC4/QC3.0/QC2.0,
AFC, FCP, SCP,
PE2.0/PE1.1,
SFCP, BC1.2

USB-C1、C2:PD3.0/PD2.0/PPS,
QC4+/QC4/QC3.0/QC2.0, AFC
FCP/SCP, PE2.0/PE1.1, SFCP,
BC1.2

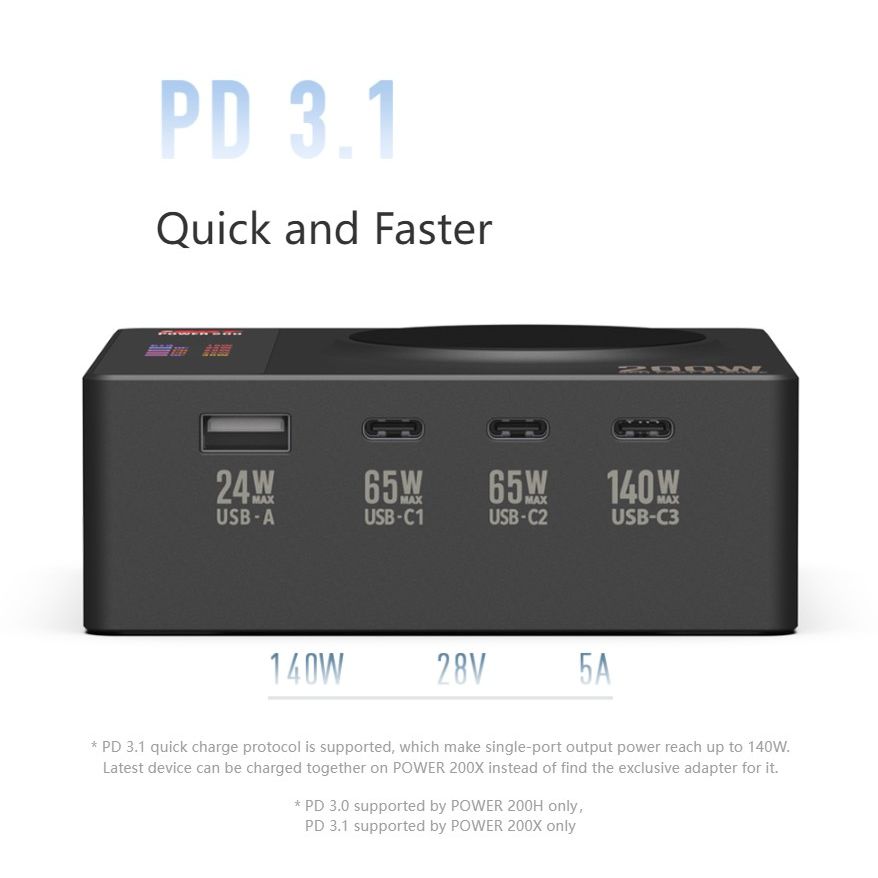

USB-C3:PD3.1/PD2.0/EPR 28V
/PPS, QC5/QC4+/QC3+/QC3.0/
QC2.0, AFC, FCP/SCP, PE2.0/
PE1.1, SFCP, BC1.2

Power distribution:Wireless charging:15W
USB-A output:Max 24W
USB-C output:Max 65W(C1、C2、C3)
(Power intelligent distribution)
Wireless charging:15W
USB-A output:Max 24W
USB-C output:Max 65W(C1、C2)   Max 100W(C3)
(Power intelligent distribution)
Wireless charging:15W
USB-A output:Max 24W
USB-C output:Max 65W(C1、C2)   Max 140W(C3)
(Power intelligent distribution)

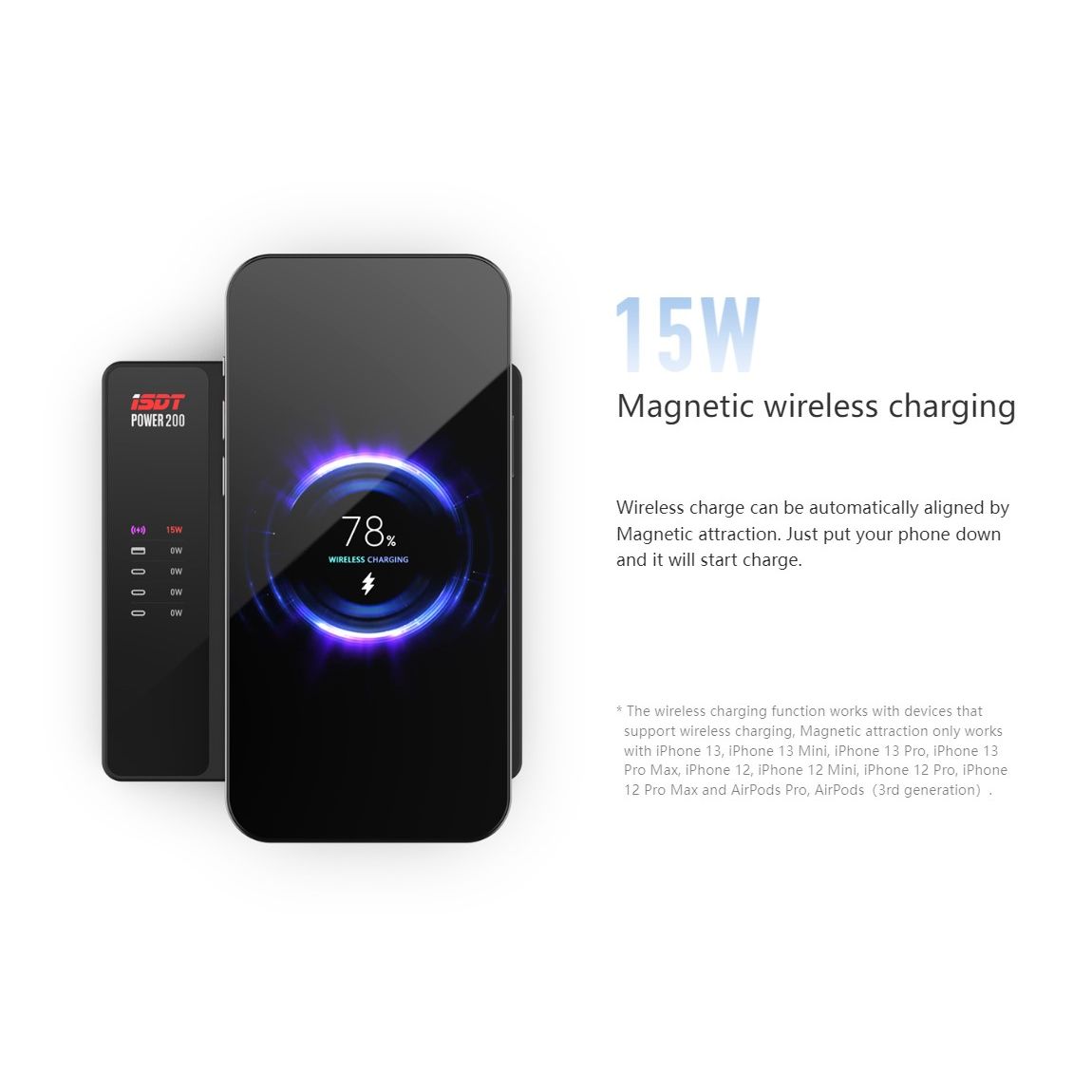

Wireless charging maximum output power:15W 15W 15W
Total output power:200W 200W 200W
Working temperature:0~40°C 0~40°C 0~40°C
Storage temperature:-20°C~60°C -20°C~60°C -20°C~60°C

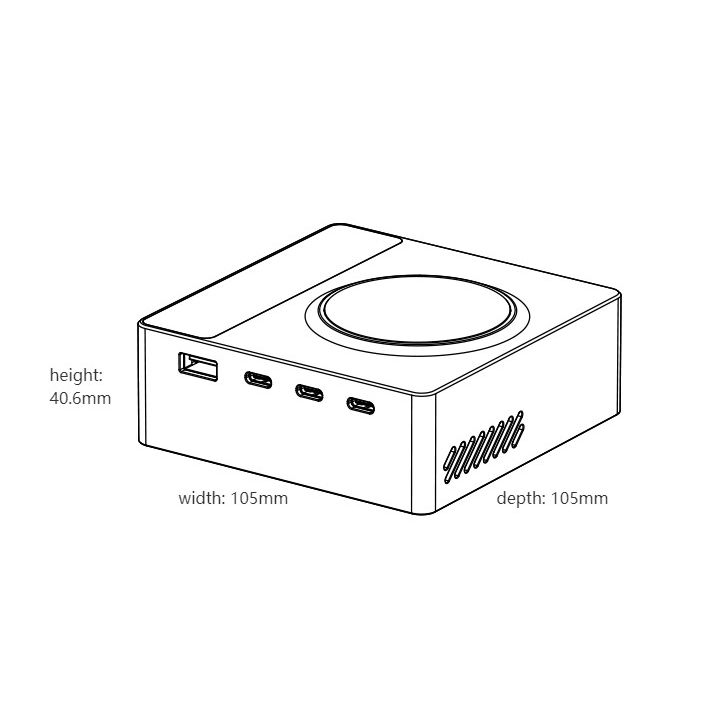

Size:105x105x40.6MM 105x105x40.6MM 105x105x40.6MM
Weight:430g430g435g
