Features:
AC/DC Dual Mode
Dual Channel Dast Charge
Synchronous Parallel Charging
AC/DC Dual Mode
Dual input meet different use requirements.
Output: AC/100W, DC/250Wx2
AC/DC Safe Access
Fool-proof input interface.
AC/DC input ports are mutually exclusive.
Only one input can be plugged in one time.
Ensure safety operation.

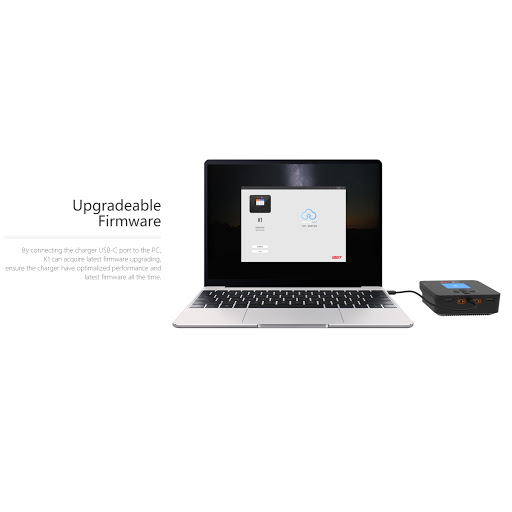

Upgradeable Firmware
By connecting the charger USB-C port to the PC,
K1 can acquire latest firmware upgrading,
ensure the charger have optimalized performance and latest firmware all the time.
Upgraded scOS 2.0, not only optimizing the system
with a new dimension level,
also further improved the system stability.
New features including DC Power mode,
dark mode, battery scrap and more.
Streamline support with BattGo and SmartPower,
for further interconnection to ISDT ecosystem
product information exchange.
High Power Synchronous Dual Channel, with Smart Charging.
Smart High Speed Processor delivers parameter interfere to each port.
Hassle Free with Maximum charging power up to 250W for single port.
Adjustable Digital Power Supply.
In adjustable digital power supply mode,
the Max. power is AC 100W / DC 120W.
CC: 0.2~5.0A
CV: 5~24V
Introducing the dark mode.
scOS 2.0 new dark mode feature,
Suitable for low light scenario,
System will adjust the interface in dark tone,
Reduce light damage to user’s eyes.
While remaining the iconic and
comfortable charging display style.
Battery destroy mode.
scOS 2.0 adds battery destroy mode.
The battery that needs to be discarded,
Put the voltage to 0V in a safe discharge.
Signature original creative interactive systems
Serve 152 countries and regions,
Support on line upgrading for more languages, and better interactive system for global market.
Specifications:
Input voltage: AC 100~240V / DC 10~30V
Output voltage: DC 1~26.4V
Max. input current: DC 20A
Charging current: 0.1~10.0A x2
Balance current: 0.5A/Cell Max
Max. charging power: AC 100W / DC 250W x2
Abnormal voltage alarm: Support
Incorrect cell count setting alarm: Support
Supported battery types and cell count: LiFe, Lilon, LiPo, LiHv 1-6S, Pb 1-12S; NiMH/Cd 1-16S
Working temperature: 0~40℃
Storage temperature: -20℃~60℃
Dimension: 135x115x49mm
Weight: Approx.485g
