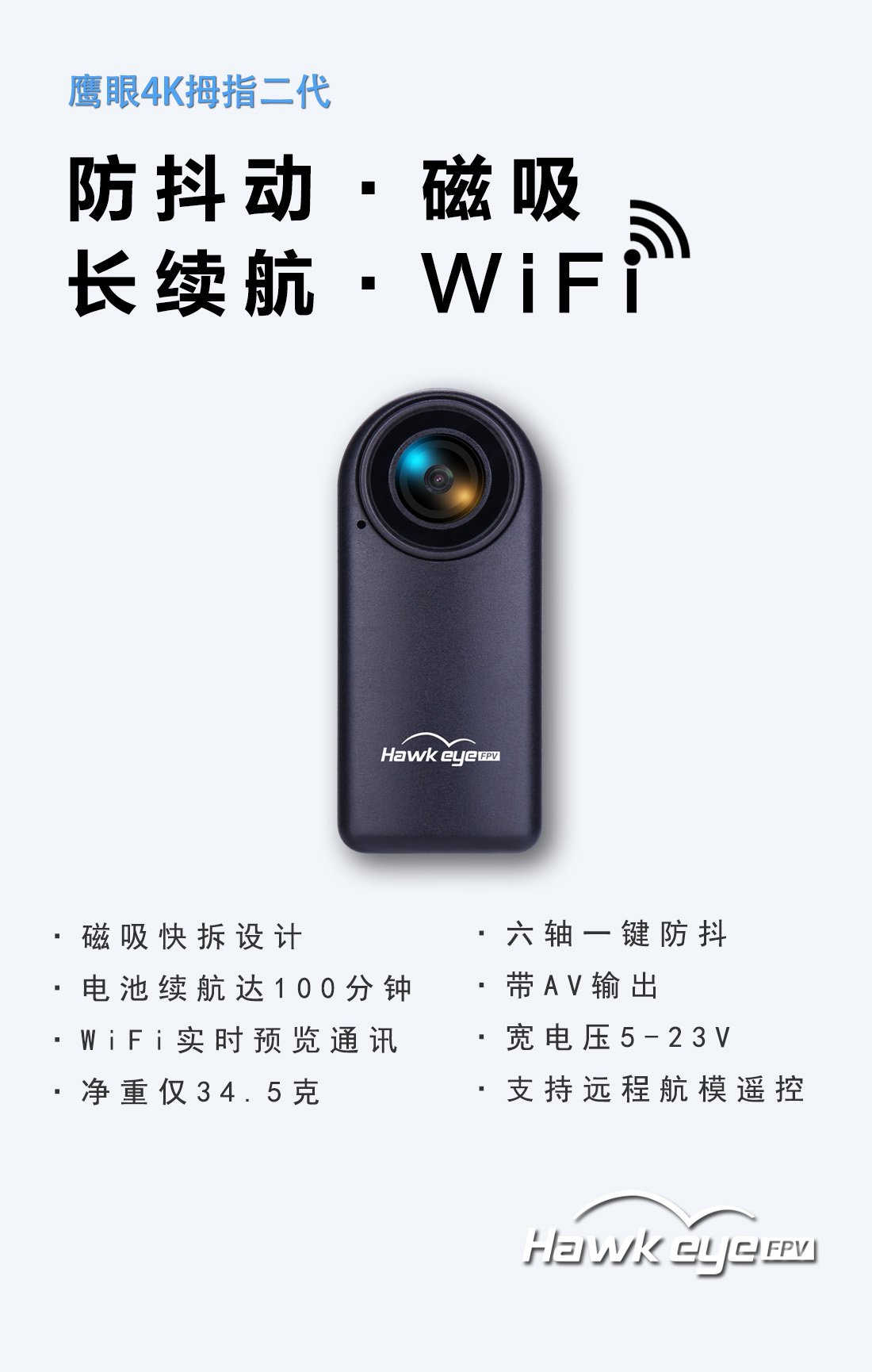

Hawkeye 4k Thumb 2
- Image Stabilization
- Maganetic mounting
- Long endurance battery
- Wifi connection w/ App support
User manual
Features:
- Magnetic mounting
- Long endurance battery up to 100 minutes operation
- WiFi connection, App with live preview support
- Net weight approx. 34.5g
- 6 axis image stabilization with Gyroflow support
- AV-out support
- Wide voltage range supprot 5-23V
- Remote activation with PWM / FC

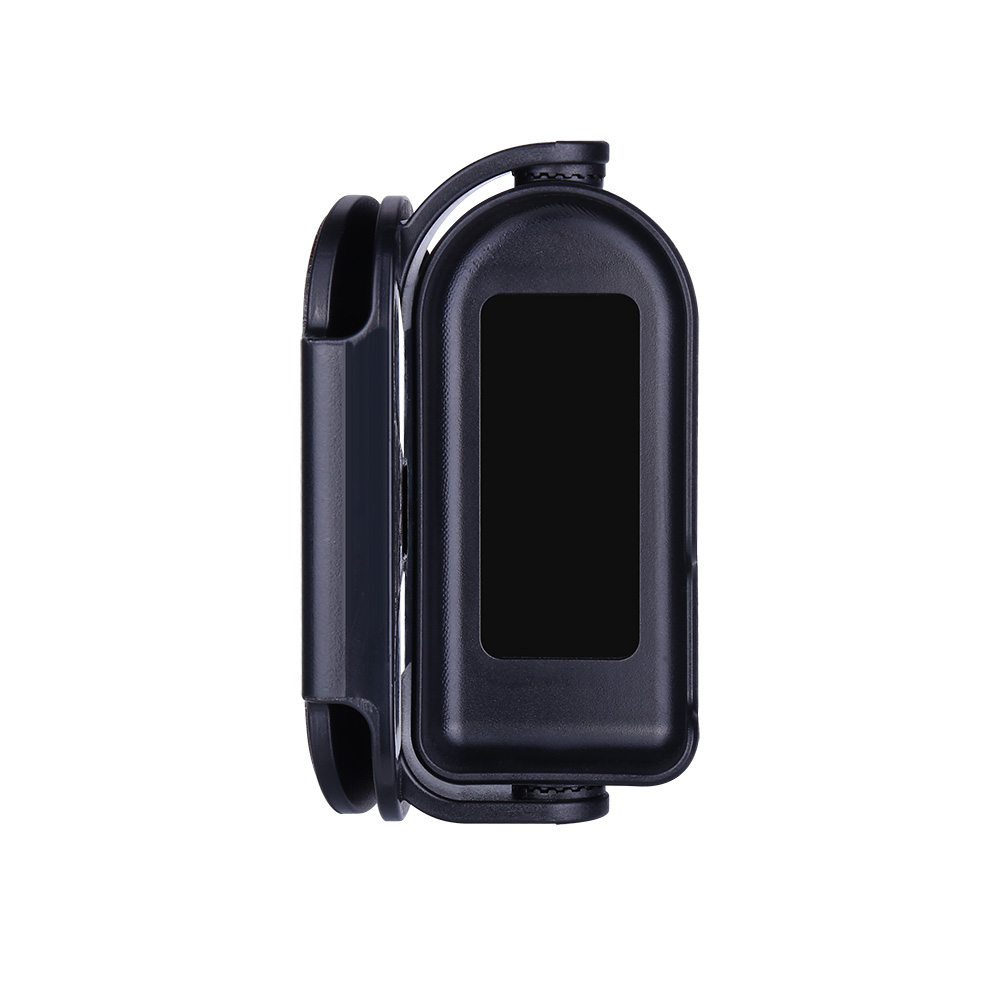

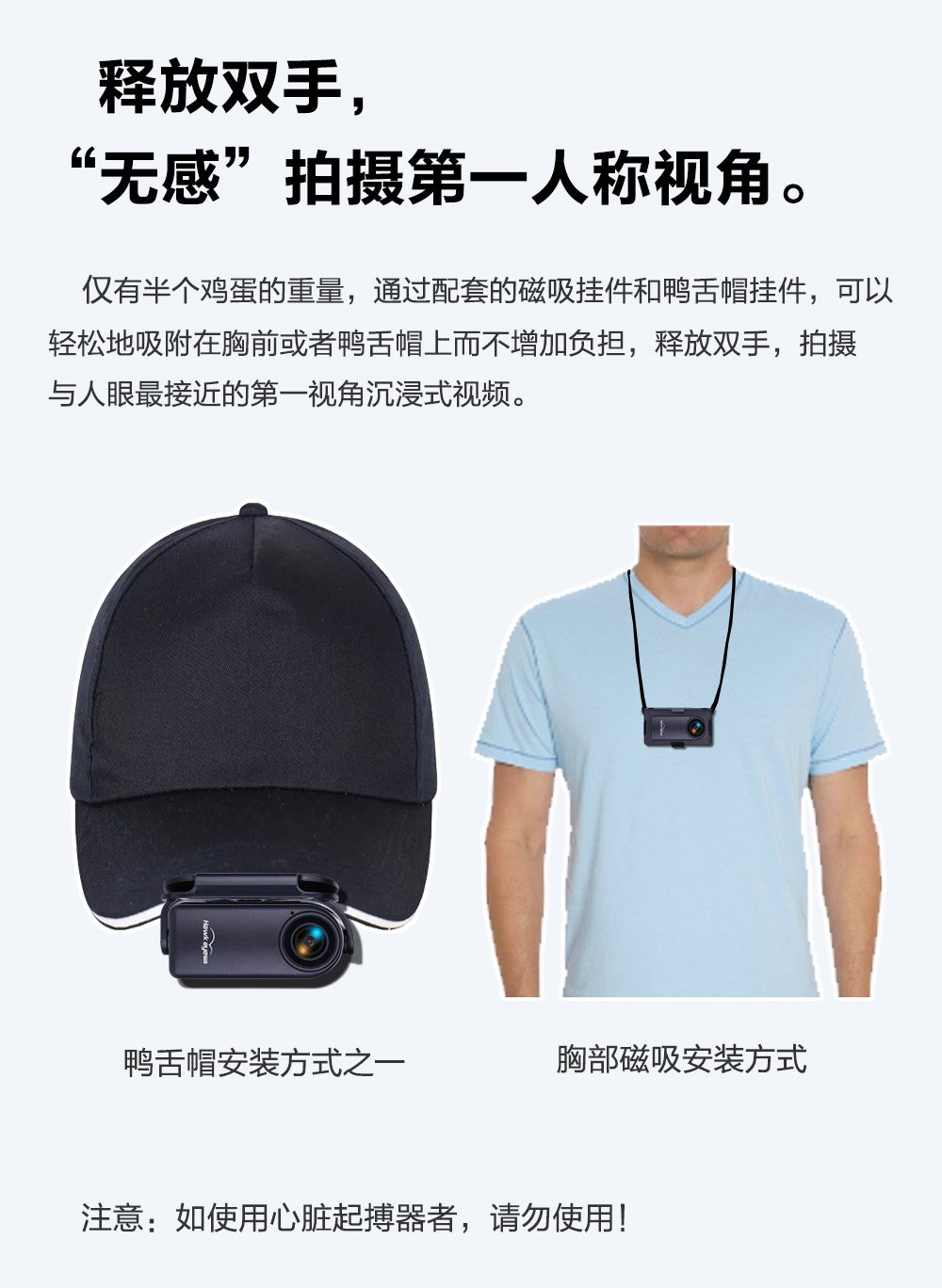

Magnetic mounting
Allows mounting to metal surfaces, lanyard mount and brim mount included.
NOTE: Not suitable for pacemaker users.

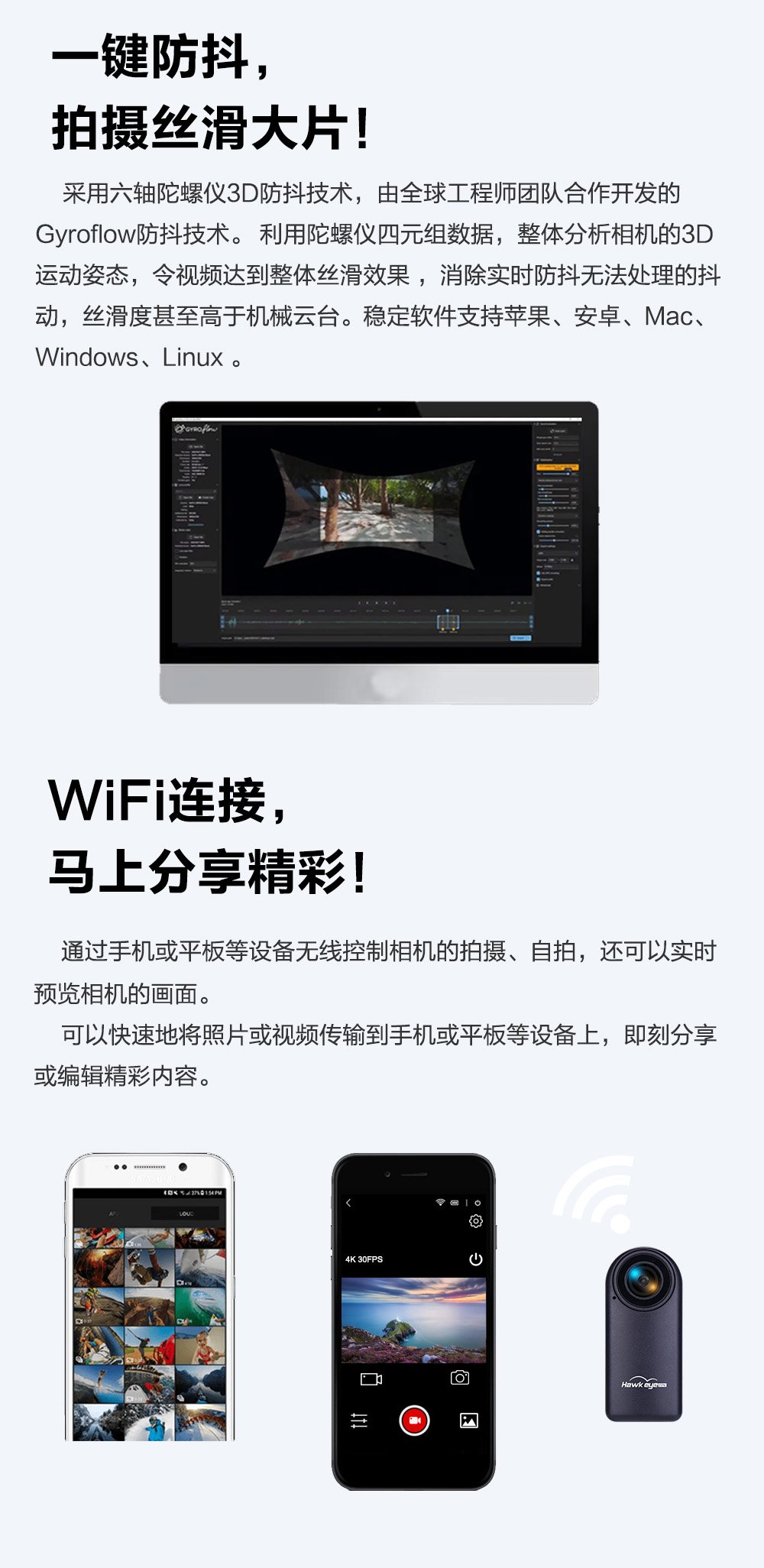

6-Axis Image Stabilization with Gyroflow Support
WiFi connection, File sharing and Live Preview through App

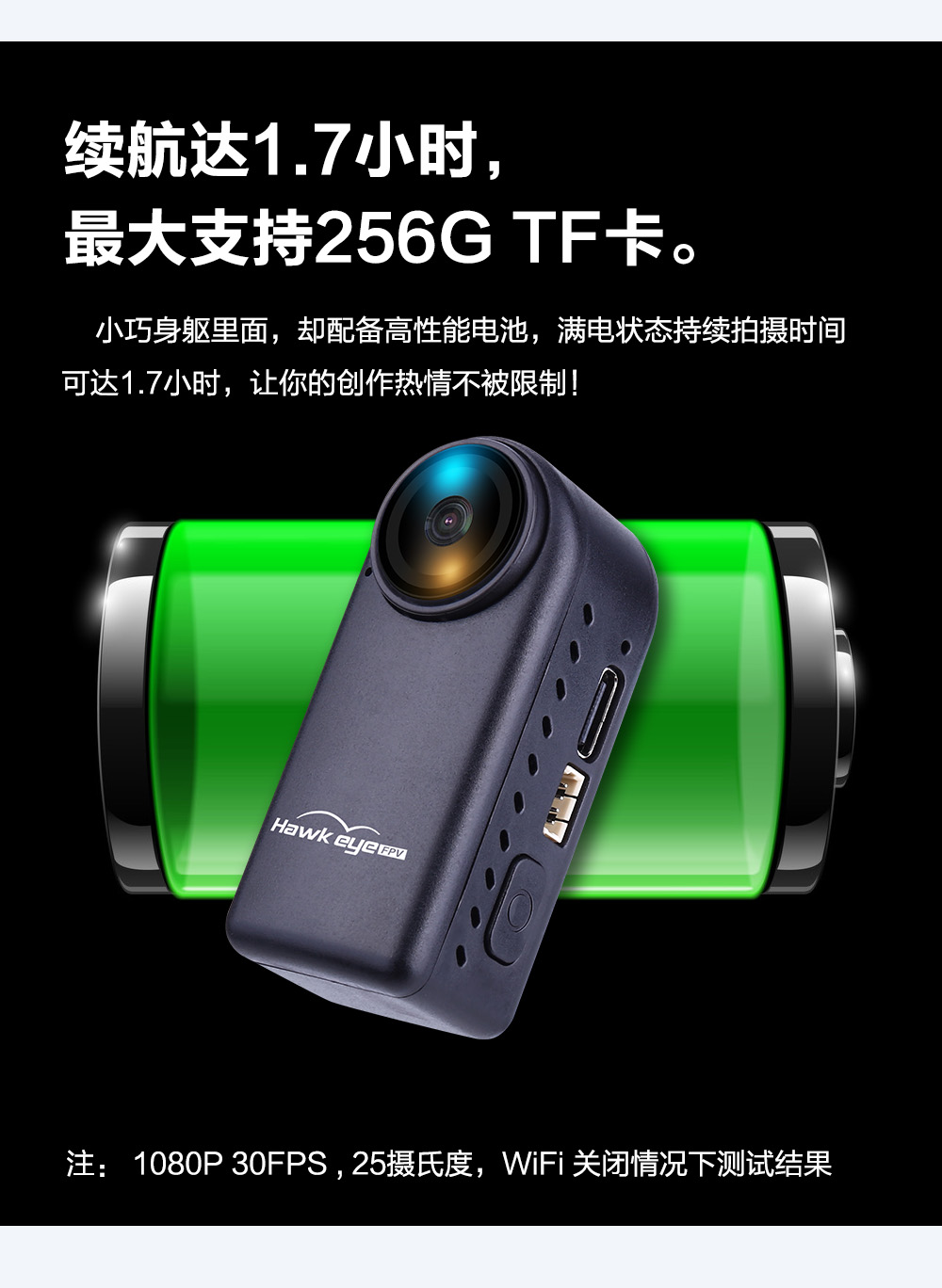

Long Endurance Battery, Operates up to 100 minutes*
*Filming 1080P at 30FPS, ambient temperature at 25°C with WiFi off.

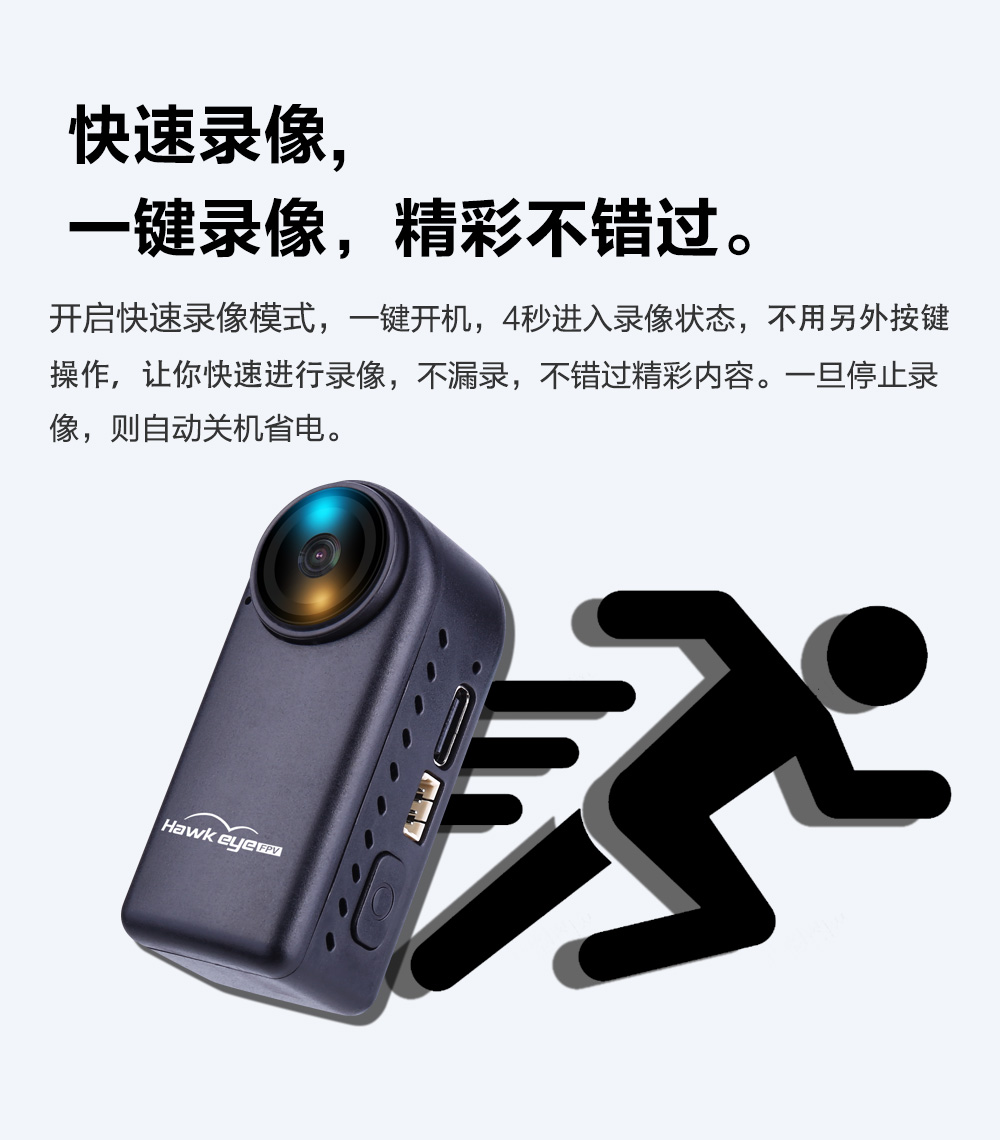

Single Button Mode
Quickly turn on and start filming within 4 seconds, turns off automatically after finished filming to save power.
USB Mass Storage Device Mode
Connects to computers/phones via USB-C, videos can be viewed directly on supported devices.
Sony 4:3 CMOS Sensor
36% bigger area compared to 16:9 sensors of similar size, more flexible during image stabilization.
Wide Voltage Range Support
5-23V DC power input

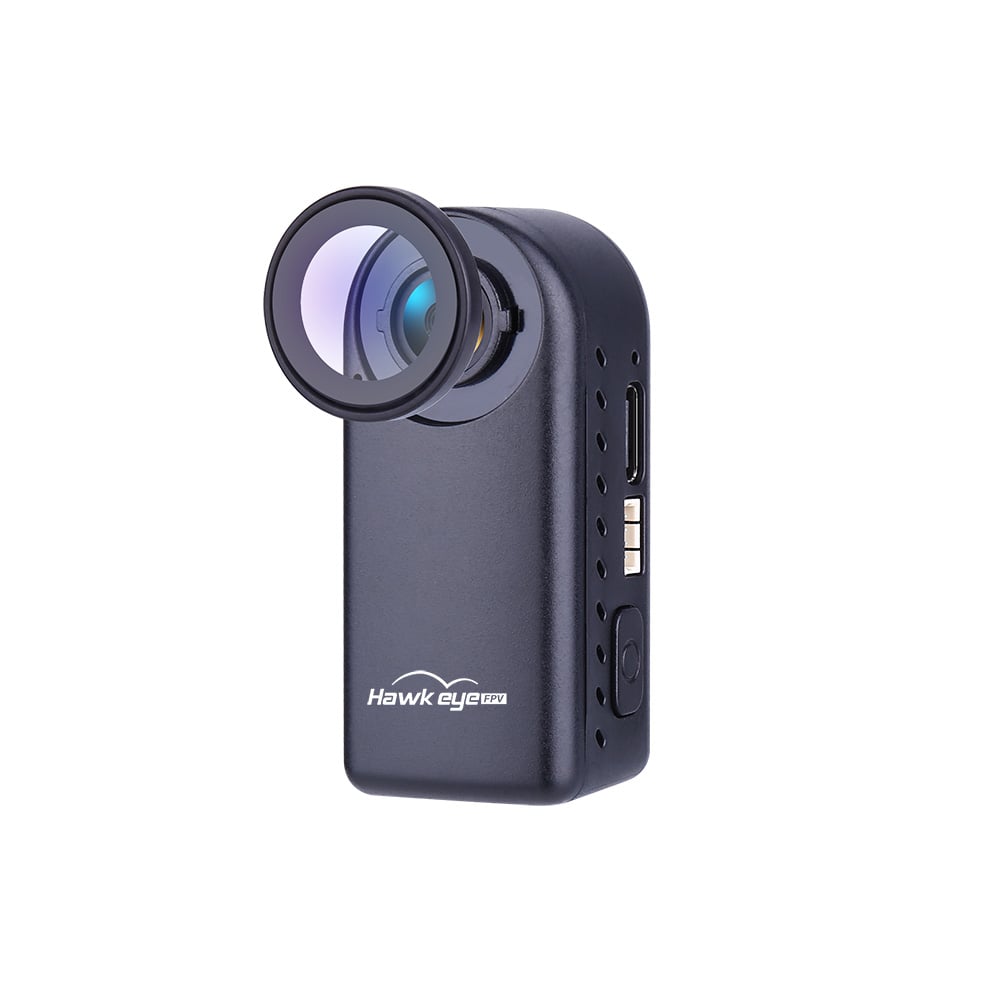

UV protective Lens Filter
Optional ND filter available for bright scenarios
Remotely Trigger via flight controller / PWM
Low Latency AV-out for FPV Feed
FPV feed latency: approx. 30-40ms

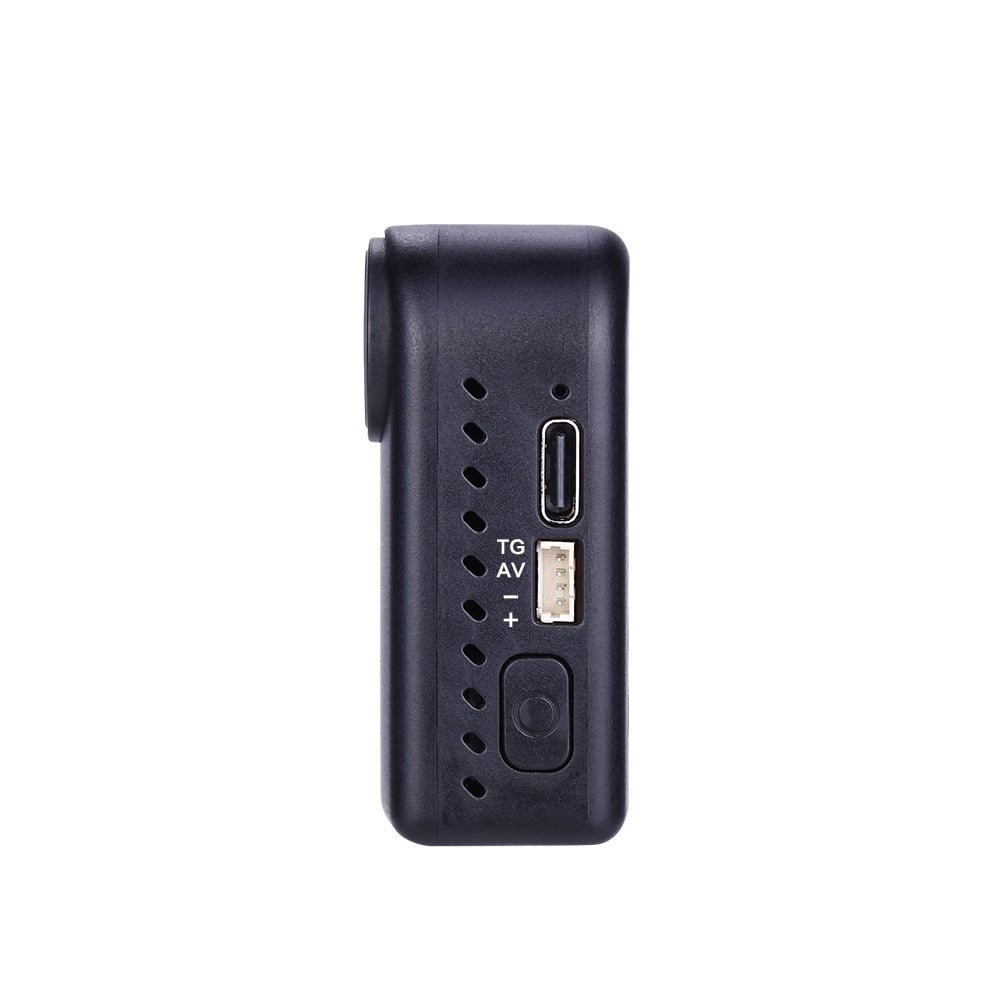

- TG: Trigger
- AV: Video out
- -: Ground
- +:5-23V DC in

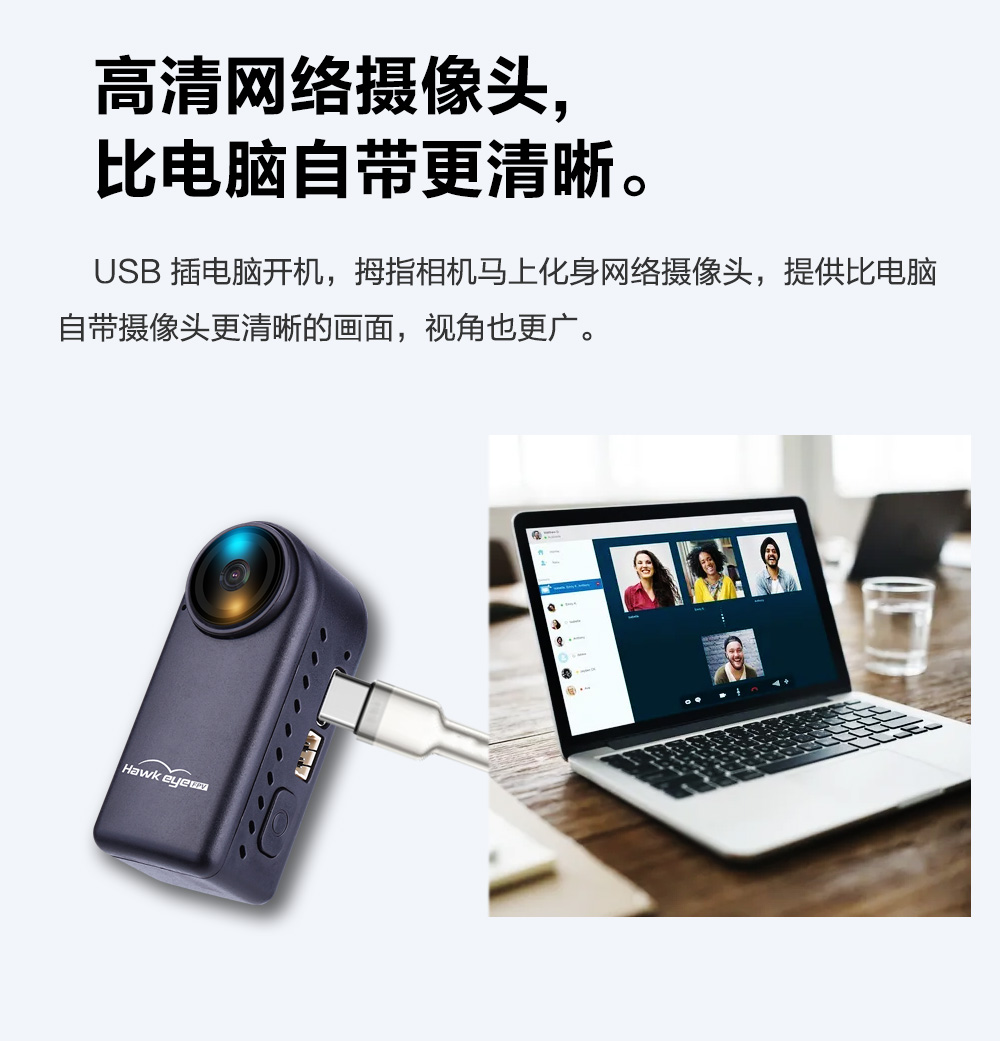

HD Webcam Mode via USB

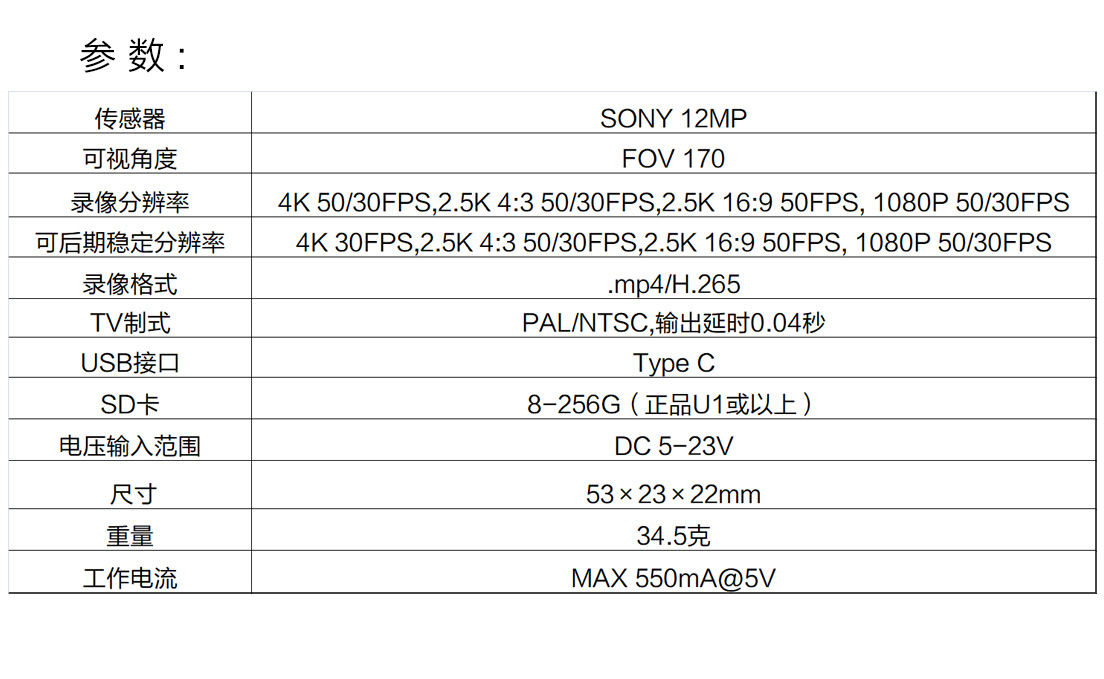

Specifications:
| Sensor | Sony 12MP |
| FPV | 170° |
| Recording resolutions | 4K 50/30FPS, 2.5K 4:3 50/30FPS, 2.5K 16:9 50FPS, 1080P 50/30FPS |
| EIS recording resolutions | 4K 30FPS, 2.5K 4:3 50/30FPS, 2.5K 16:9 50FPS, 1080P 50/30FPS |
| Video file format | .MP4 H.265 |
| TV format | PAL/NTSC, approx. 40ms |
| USB | Type-C |
| Storage | SD Micro 8-256GB (U1 or above) |
| DC Input | 5-23V |
| Dimensions | 53x23x22mm |
| Weight | 34.5g |
| Current draw | Max. 550mA @5V |
