Description

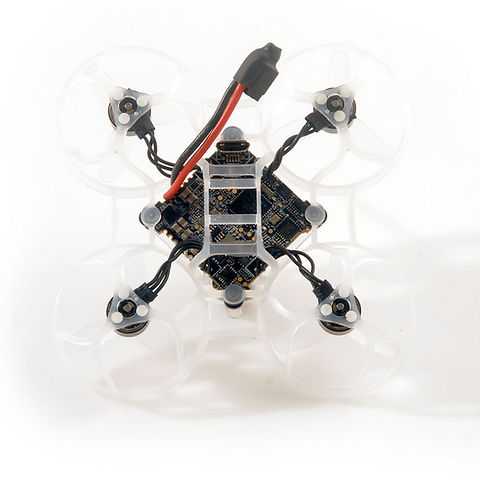

Happymodel Mobula6 Race BNF is the first 65nm low light micro FPV whoop BNF using the HDZero AIO5. It is the world’s first HD whoop under 20grams.
Specifications
Weight: 19.3g
Recommended Battery: 1S 300mAh with A30 or BT2.0 plug
Propeller Size: 31mm
AIO
MCU: STM32F411 (100MHz, 512K Flash)
Gyro: BMI270
On board voltage and amperage meters
Built-in 5A(each) BLHeli_S 4-in-1 ESC
Bluejay ESC firmware pre-installed
Built-in 5.8G HDZero VTX
Built-in SPI ExpressLRS 2.4GHz receiver compatible with expresslrs v3.0
Built-in 5V 1A BEC
Board size:28.5x28.5mm with a 25.5x25.5 mounting hole size
Betaflight firmware: CRAZYBEEF4SX1280 4.4.2 out of factory
HDZero Eco Camera
Sensor size: 1/3 inch
Resolution: 720p60 4:3
FOV: D:150° H:120° V:98°
Motors
Kv:28000
Stator diameter: 7mm
Stator length:2mm
Shaft diameter: Φ1mm
Weight:1.5g
Included
1x Happymodel Mobula6 Race BNF
1x Spare canopy
1x Spare propeller(set)
1x Screw driver
1x propeller disassemble tool
