Description

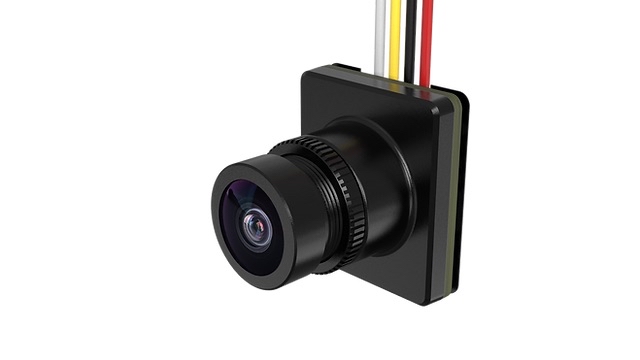

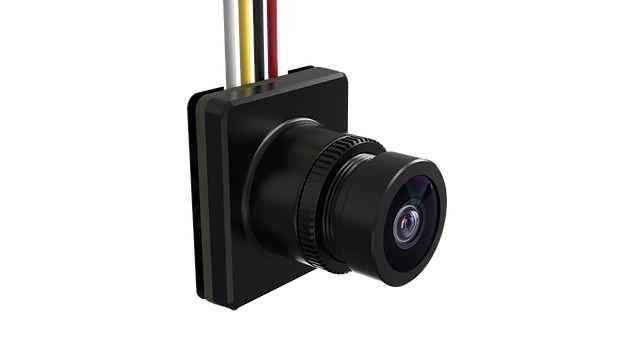

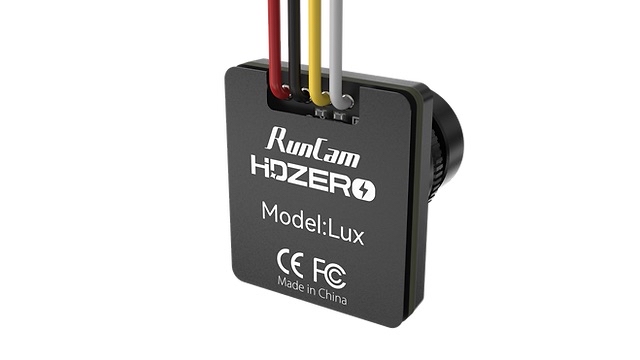

The Runcam HDZero Lux camera is compact, lightweight, and durable, making it perfect for whoop and micro drones. It features a half-inch CMOS sensor that delivers sharp image quality and excellent low-light performance. The camera outputs HD composite video via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability.
Optimized for a 4:3 aspect ratio, it can also be configured for a 16:9 aspect ratio with a reduced vertical FOV. Designed meticulously for ultra-lightweight drones like Tiny Whoops, where every fractional of a gram matters, the camera boasts a large 94-degree vertical FOV, ideal for fast indoor and outdoor proximity flying.
Specifications
Manufacturer:
RunCam
Model:
HDZero Lux
Sensor Size:
1/2 inch
Resolution:
720@60fps
Sensitivity:
10650mV/Lux-sec
Shutter:
Rolling Shutter
FOV:
D:155° H:126° V:94°(4:3)
D:170° H:145° V:82°(16:9)
Input Power:
3.3~5V
Power Consumption:
0.5W
Weight:
2.3 g
Dimensions:
L14mm*W16mm*H14mm
How to change 4:3/16:9
The HDZero AIO5 and ECO VTX lack a communication mechanism to automatically retrieve the Lux camera settings, such as aspect ratio. Users need to manually set the aspect ratio for both the AIO5/ECO VTX and the Lux camera. Here’s a short video demonstrating how to do that:
https://youtu.be/aenS9-K2mU4?si=9znMQGq9YQZuYC5T
