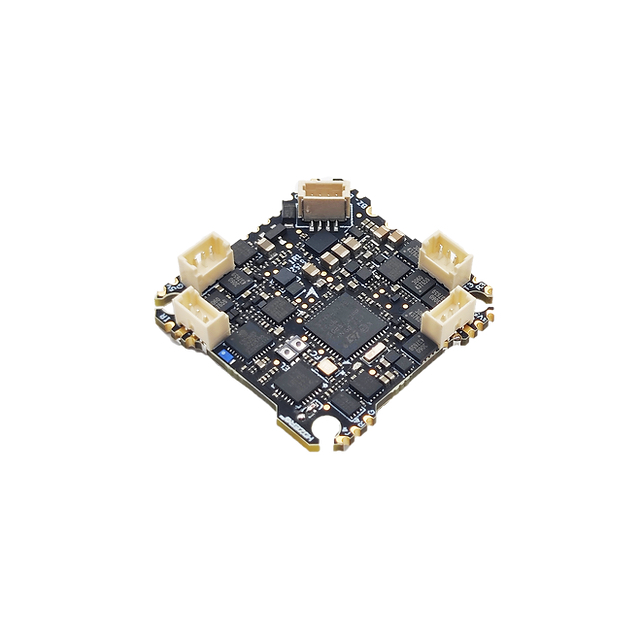

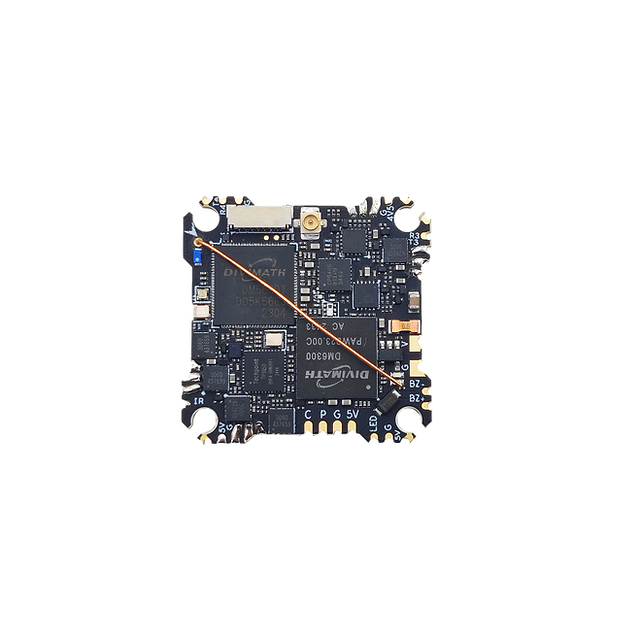

The HDZero AIO15 is the world’s first all-in-one (AIO) digital FPV flight system designed specifically for 2S–3S tiny whoops and micro freestyle builds. It combines everything you need—flight controller, digital video transmitter, ESC, receiver, and BEC - into a compact, ultra-lightweight 31.3x31.3mm board.
With an integrated 15A 4-in-1 ESC, the AIO15 supports higher-current motors and 2 - 3S batteries, enabling powerful sub-33.4g builds without compromising video quality or responsiveness. Whether you're building your own freestyle whoop or flying a ready-to-go platform like the M8 Freestyle HD, AIO15 delivers the performance micro pilots have been waiting for.
Designed in Response to Pilot Feedback
Pilots loved the convenience and weight of the HDZero AIO5, but wanted more power and voltage flexibility. The AIO5 was limited to:
5A ESCs
1S voltage only
The AIO15 solves this with:
15A ESCs (18A peak)
2S-3S battery support
Now you can fly harder, faster, and longer with the digital clarity and ultra-low latency HDZero is known for.
Key Features
Integrated HDZero 5.8GHz Digital VTX
Output Power: 25mW / 200mW
Channels: R1- R8, F2/F4, L1 - L8
U.FL connector with included ultra-light linear antenna
Built-in Serial ExpressLRS 2.4GHz Receiver
Packet rates: 50 - 1000Hz (50/100/150/250/333/500/D250/D500/F500/F1000Hz)
Pre-soldered enamel wire antenna
Flight Controller
MCU: STM32G473 @170MHz, 512K Flash
Gyro: ICM42688
Onboard voltage and current sensing
Firmware target: HDZERO_AIO15
4-in-1 15A ESC
MCU: EFM8BB21
Current: 15Ax4 continuous, 18Ax4 peak (3s)
BlueJay firmware (Z_H_30_48_v0.19.2)
DShot600 ready
5V BEC
5V @ 1A output for accessories and camera
Specifications
Battery Input: 2S–3S (3.5V–13V)
Mounting: 25.5x25.5mm M2
Board Dimensions: 31.3x31.3mm
Weight: 7.2g (with motor plugs)
Compatibility: Fits popular whoop frames
Applications
Perfect for:
80mm freestyle whoops
Lightweight micro drones
Pilots seeking minimal weight with maximum performance
Builders upgrading from the AIO5

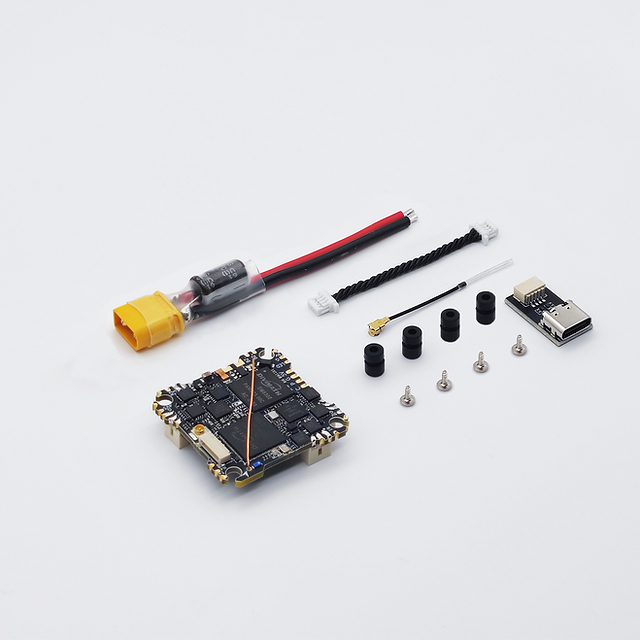

Included
1x HDZero AIO15 board
1x Power cable with xt30 connector
4x screws
4x rubber grommets
1x ultra-lite linear VTX antenna
1x Adapter board
1x Adapter cable
