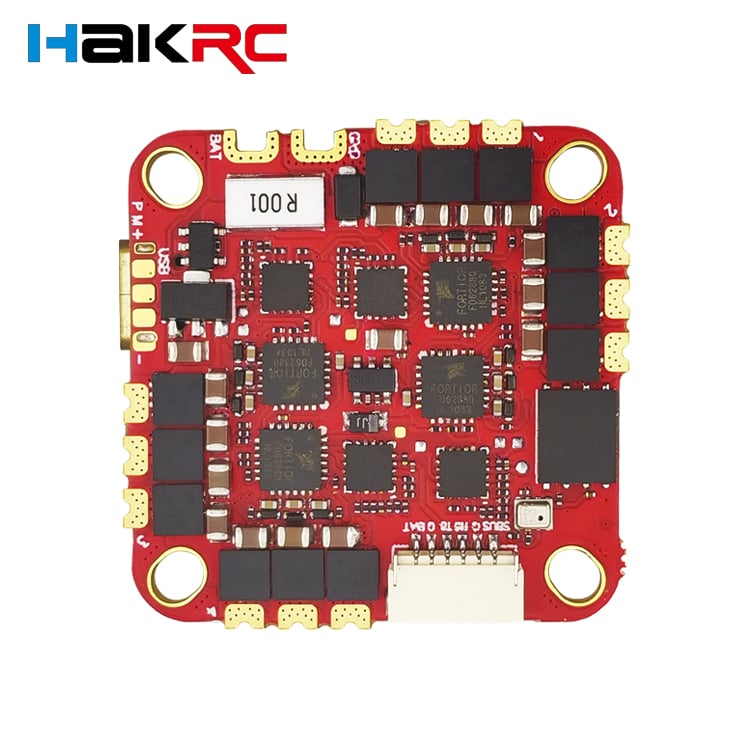

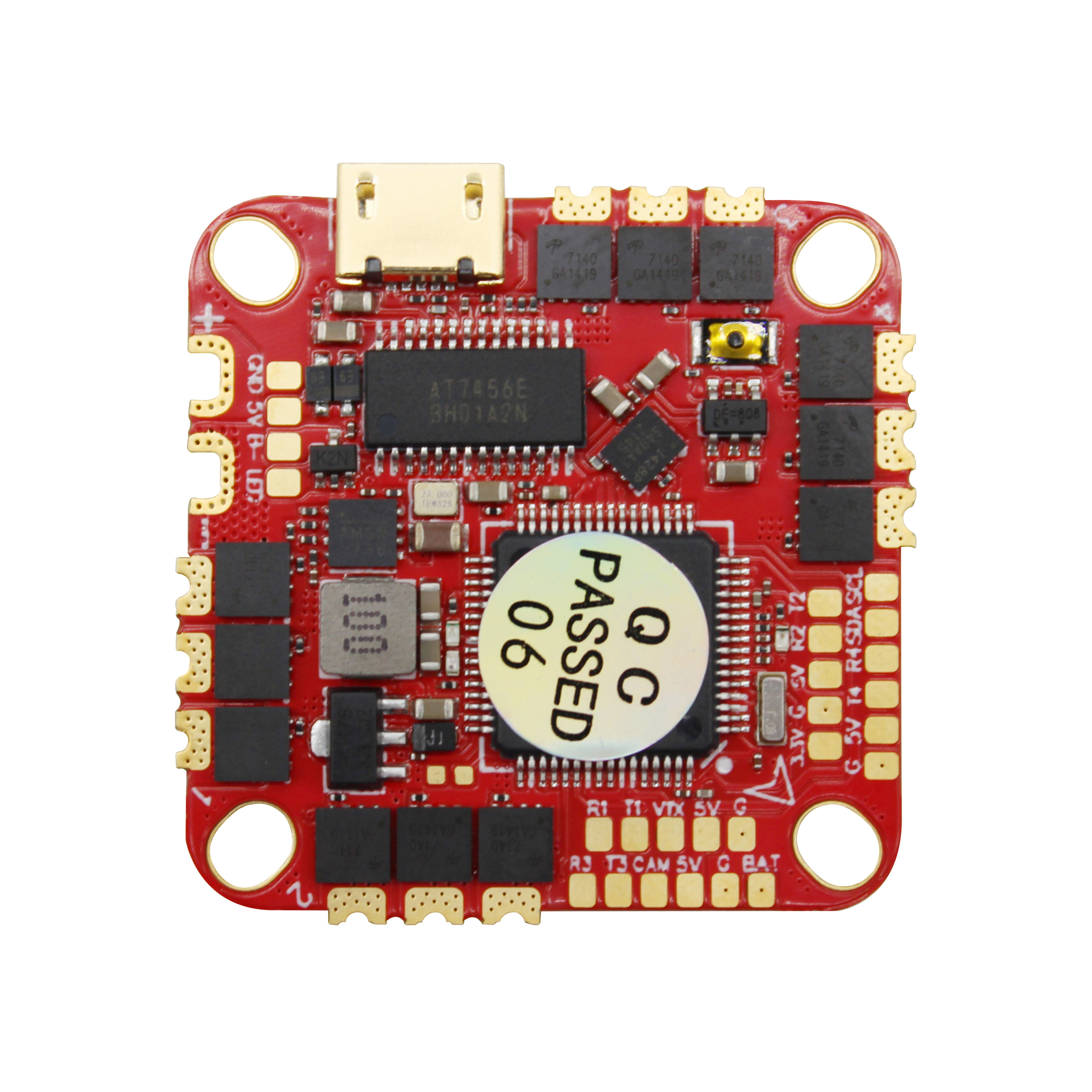

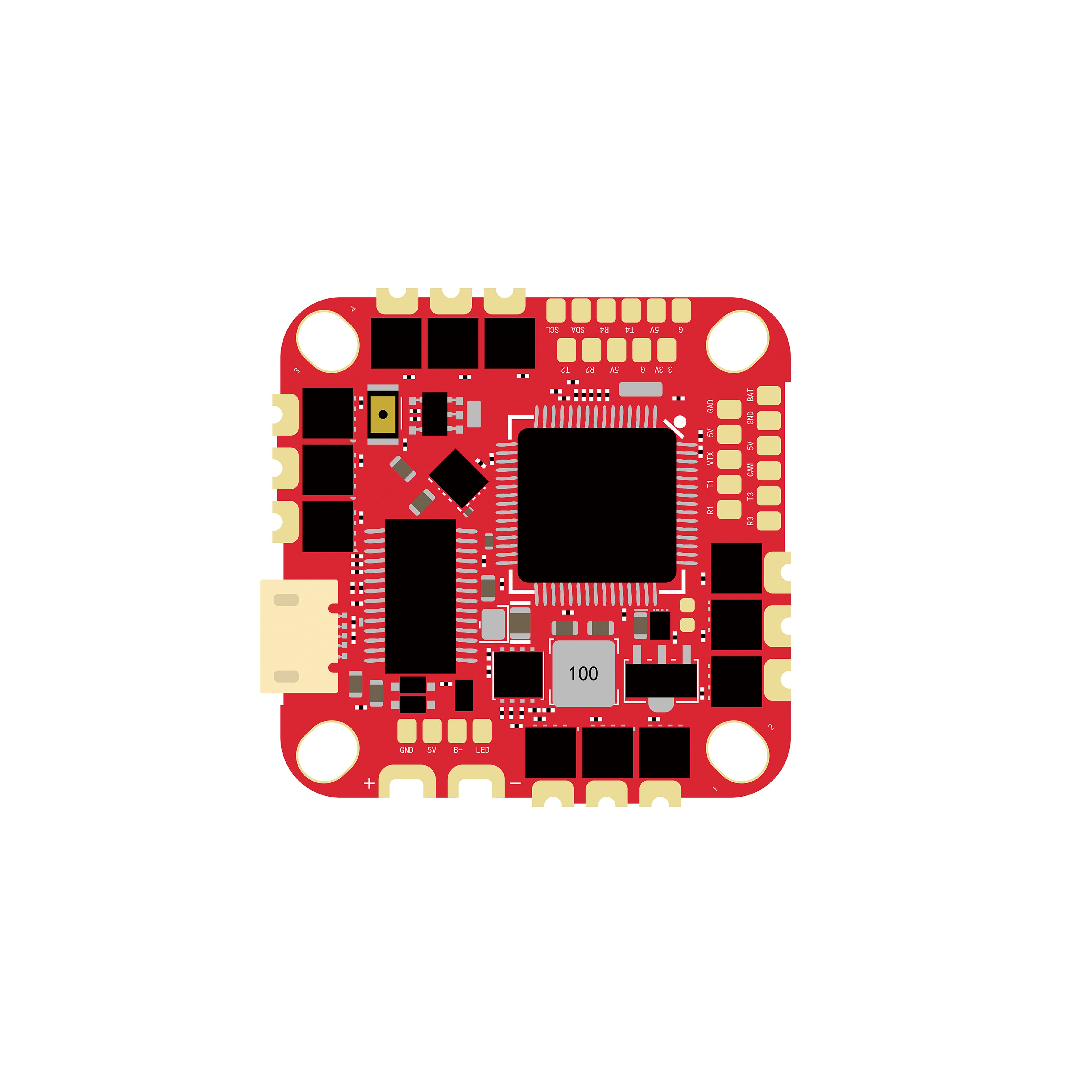

HKF7226 AIO
The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation.MOS adopts imported 40V high current resistance MOS, long life and strong load capacity.Using industrial grade LDO, high temperature resistance.Using high-quality Japanese Murata capacitors, strong filtering performance
Features:
- The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation.
- MOS adopts imported 40V high current resistance MOS, long life and strong load capacity.
- Using industrial grade LDO, high temperature resistance.
- Using high-quality Japanese Murata capacitors, strong filtering performance
Specifications:
- Brand: Hakrc
- Item Name: F722 FC Built-in 40A BLHELI_ S 2-6S AIO ESC
- Size: 32* 32mm (25.5mm-26.5mm mounting hole)
- Packing size: ø63*32mm
- Product net weight: 7g
- Package weight: 25g
Flight control parameters:
- CPU: STM32F722RET6
- IMU: ICM42688
- OSD: AT7456E
- Barometer: integrated
- BEC: 5V/3A
- Uart: 5
- LED: Support WS2812 and other programmable
- Sensor: Built-in current sensor
- Flight control firmware version: HAKRC F722D
- Receiver: CRSF / Frsky/ Futaba/ Flysky/
- TBS Crossfire/ DSMX: DSM2 receiver
ESC parameters:
- Firmware support: BLHELI_ S
- Protocol support: PWM, Oneshot125, Oneshot42,
- Multishot, Dshot150, Dshot300, Dshot600
- Input voltage: 2S-6S Lipo
- Continuous current: 40A
- Peak current: 50A
- Current meter proportional value: 450
- Firmware version: BLHELI _S (G- H-30)
