GEP-F722-45A AIO adopts MCU STM32F722,which has powerful performance and higher computing speed.It has 5 full UART ports and can connect more external devices.

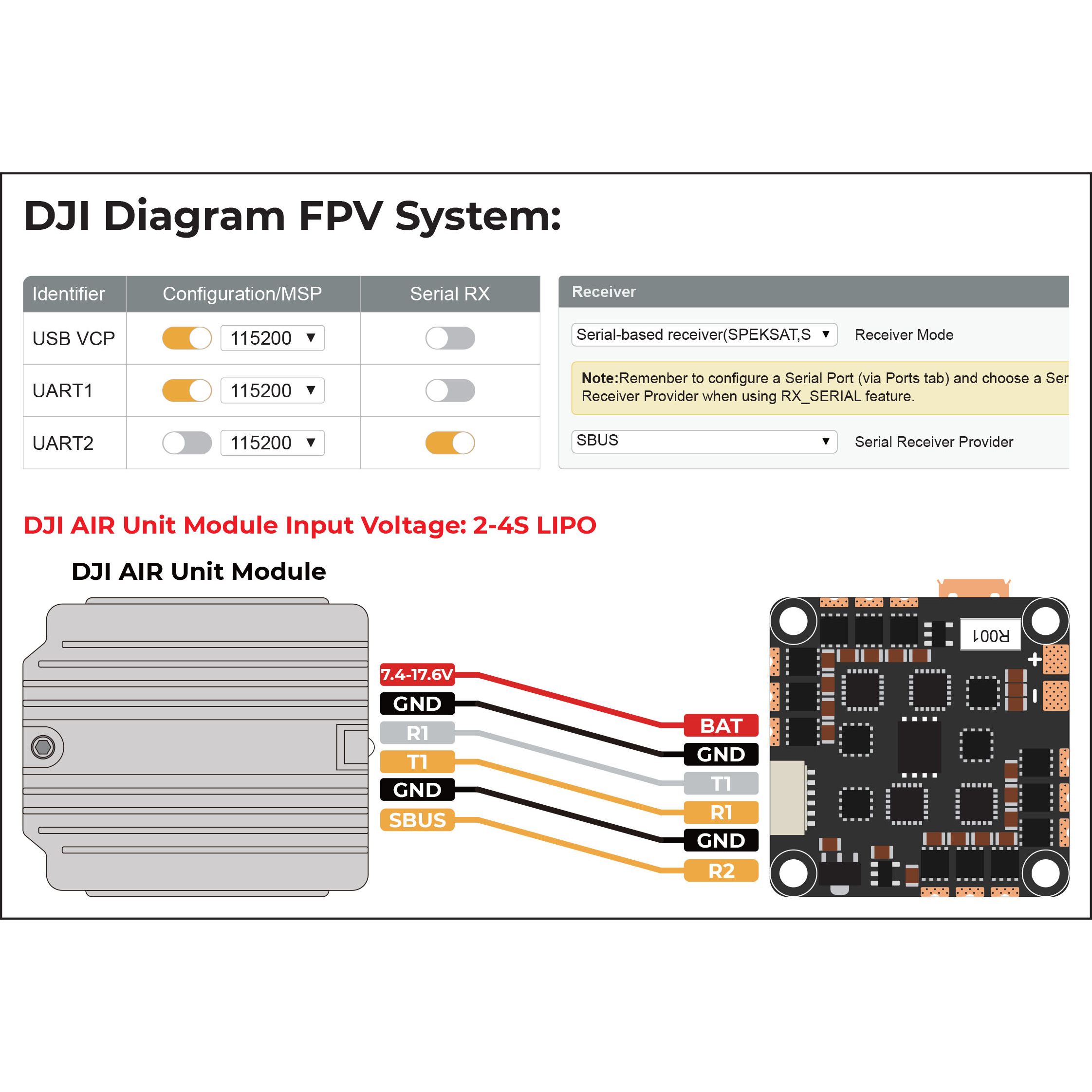

6-pin connector for DJI AIR UNIT MODULE,plug and play.
The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally supports the 2-6S lipo battery, brings the drone a stronger flight performance.It can support OSD parameter adjustment, buzzer, led and other functions. It is 8.8g ultra light weight, and 25.5mm * 25.5mm mounting hole, suitable for most of the frames on the market.
Specifications
Model Name:GEP-F722-45A AIO
MCU:STM32F722
IMU:BMI270/42688 gyro/accelerometer(SPI)
Firmware target:GEPRC_F722_AIO
OSD:Betaflight OSD w/ AT7456Ev
UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Beeper:YES
LED:YES
USB:Micro USB
BEC output:5V@1A
Intergrated LC Filter
ESC MCU:8BB21F16G
Continuous current:45A
MAX current:55A (10s)
Input:2~6S
Supports:Dshot600,Oneshot,Multishot
BlackBox: 16Mb
Traget:G_H_30
Size:32x32mm Board
Mounting Hole:25.5×25.5mm
Weight:8.8g
Features
MCU:STM32F722,with strong performance and higher computing speed.
It has 5 full UART ports, which can connect more external devices
Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
Support OSD parameter adjustment, buzzer, led and other functions.
8g ultra light weight
5mm * 25.5mm mounting hole, suitable for most frames
