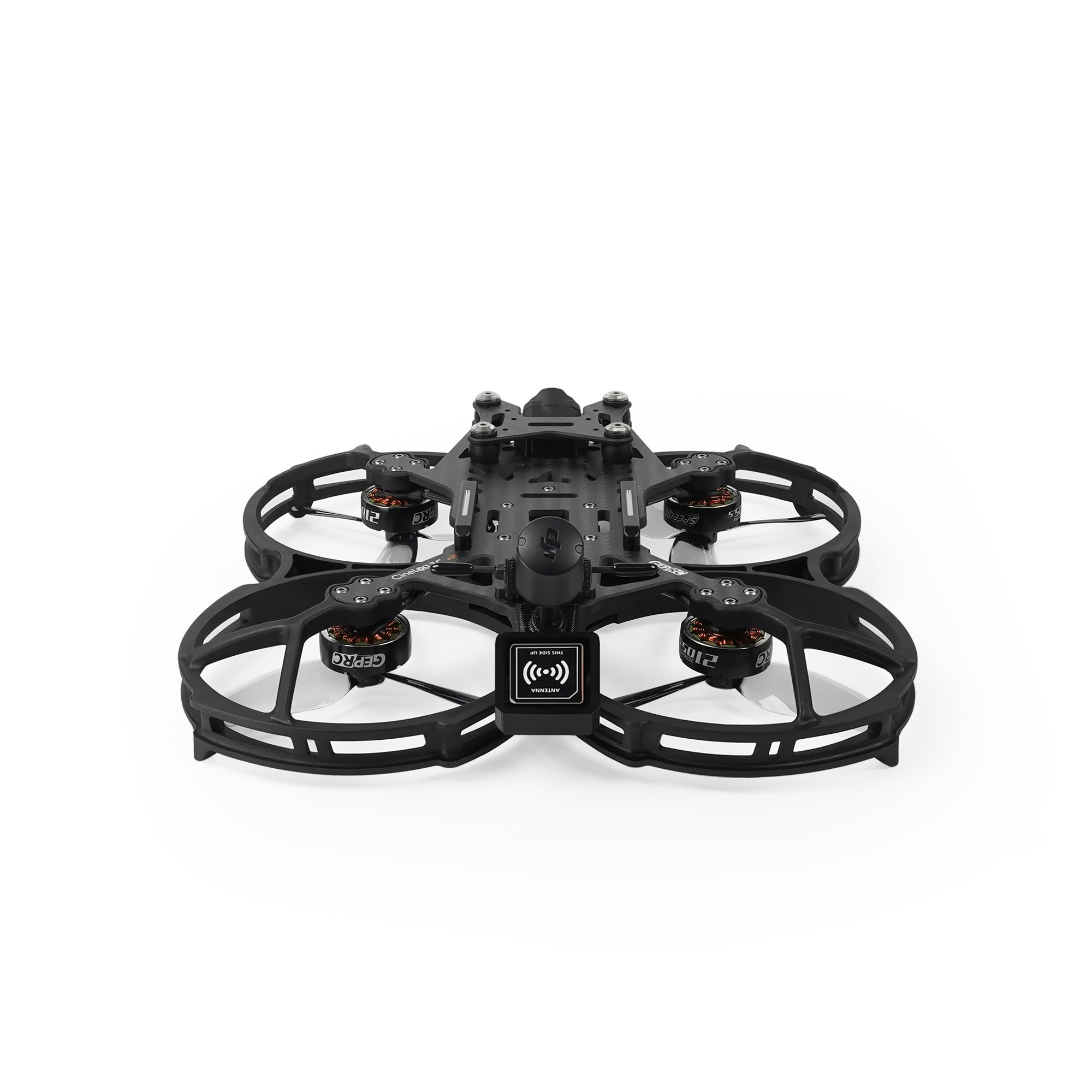

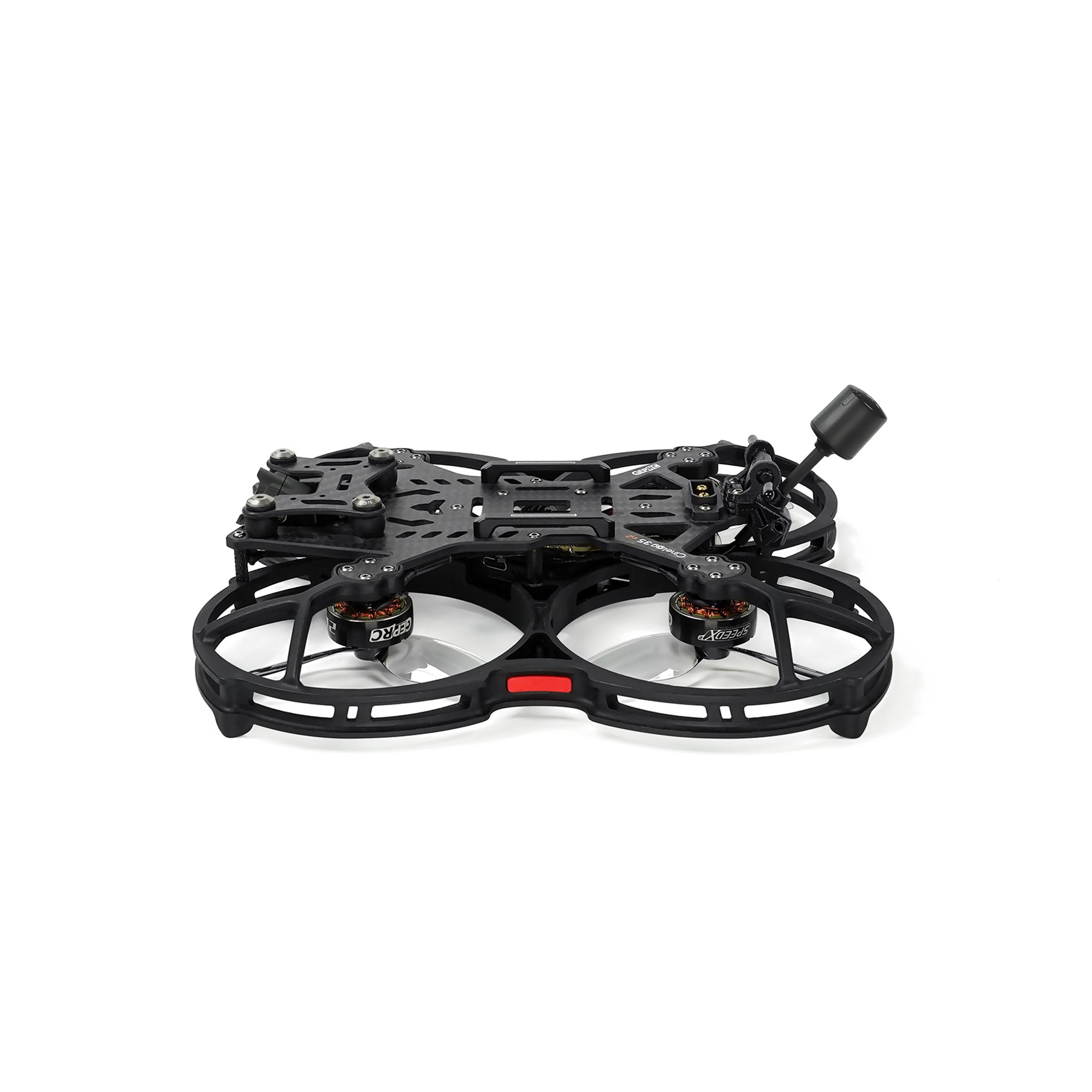

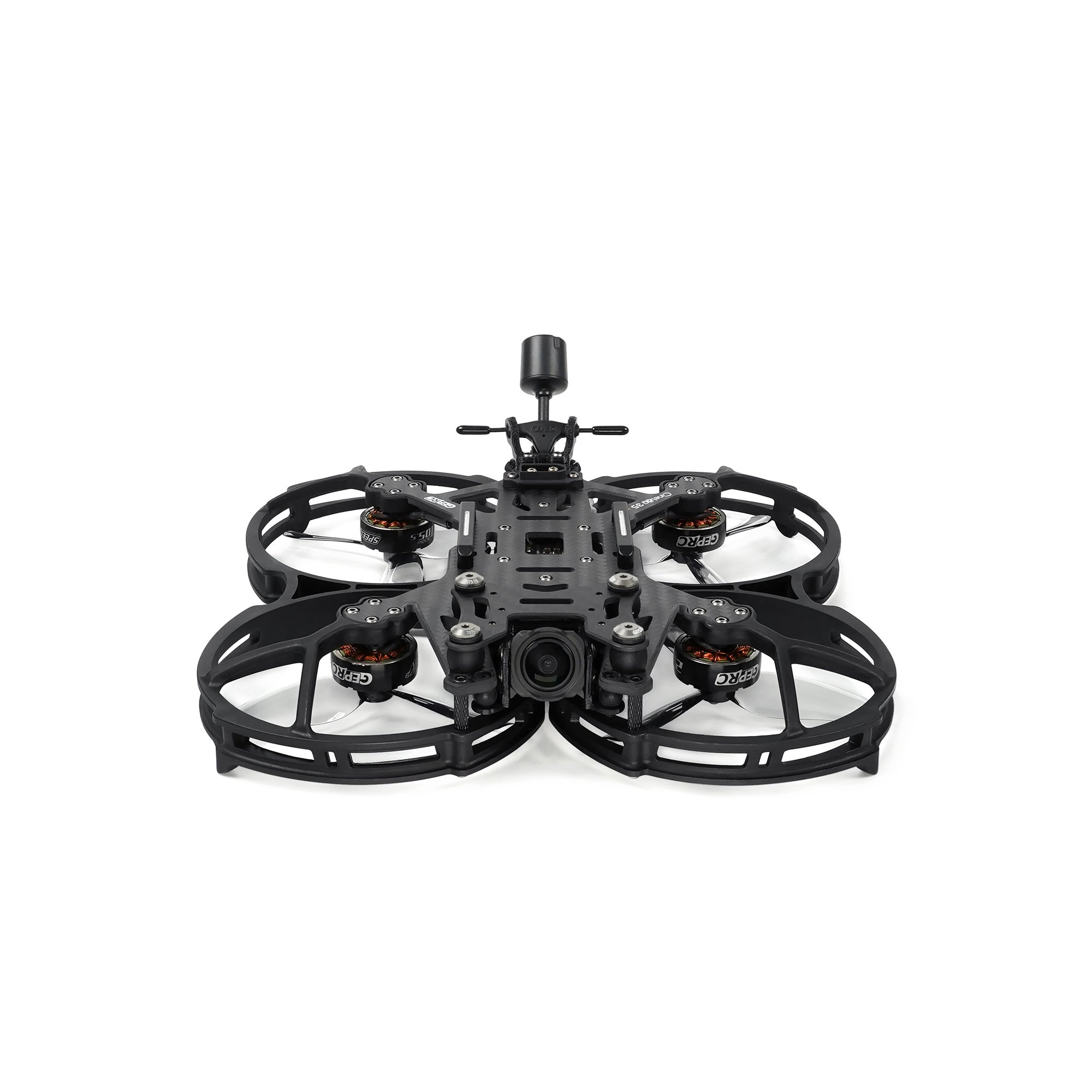

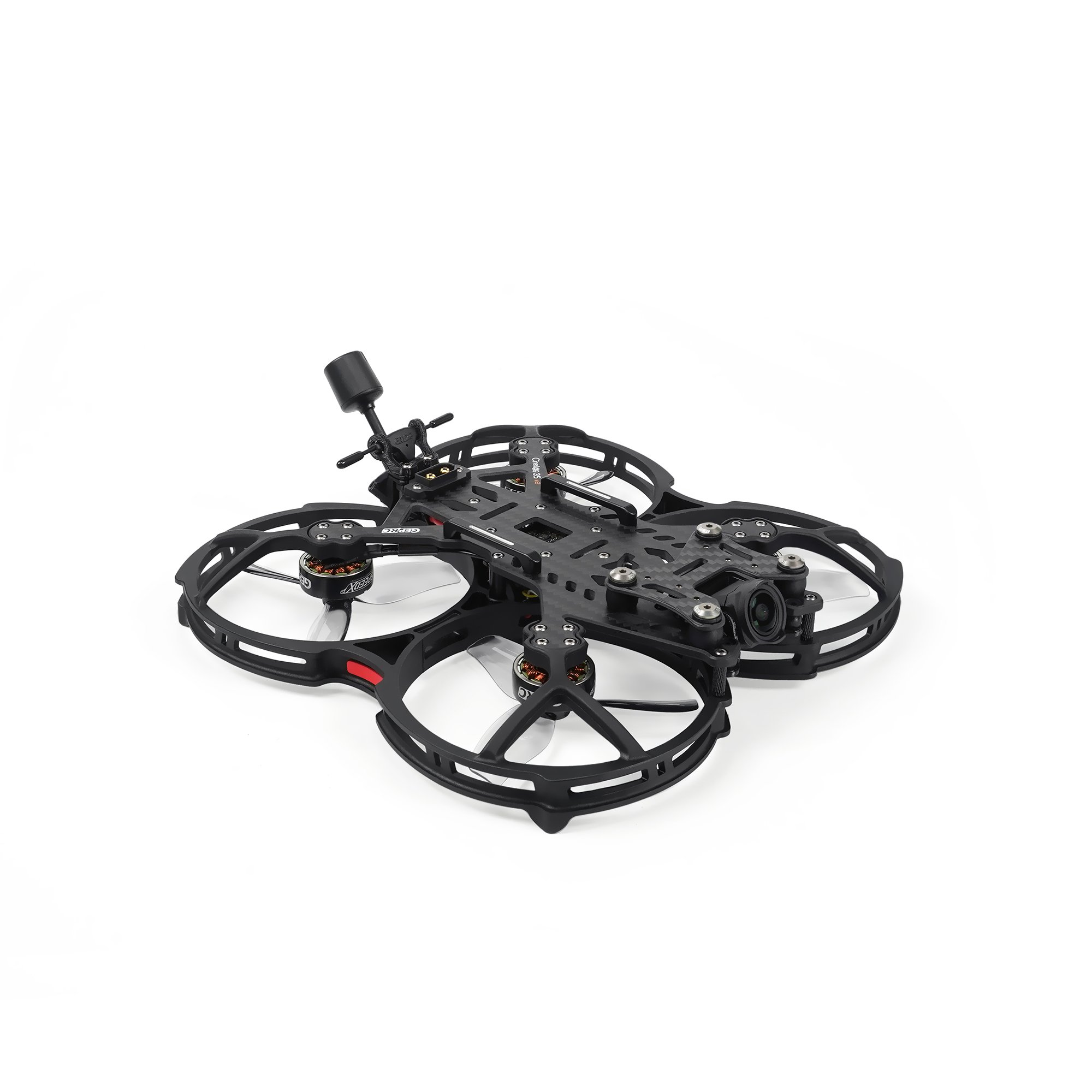

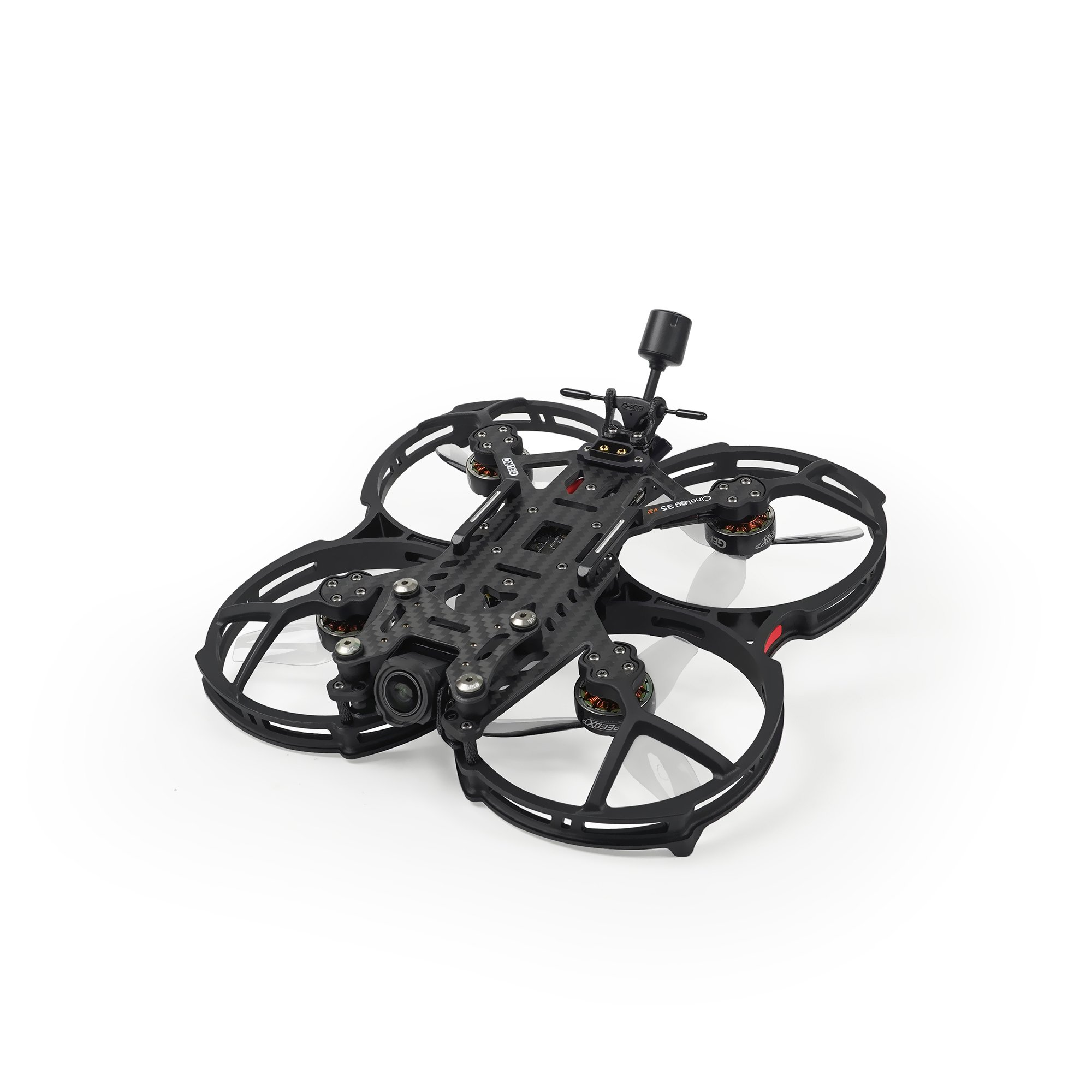

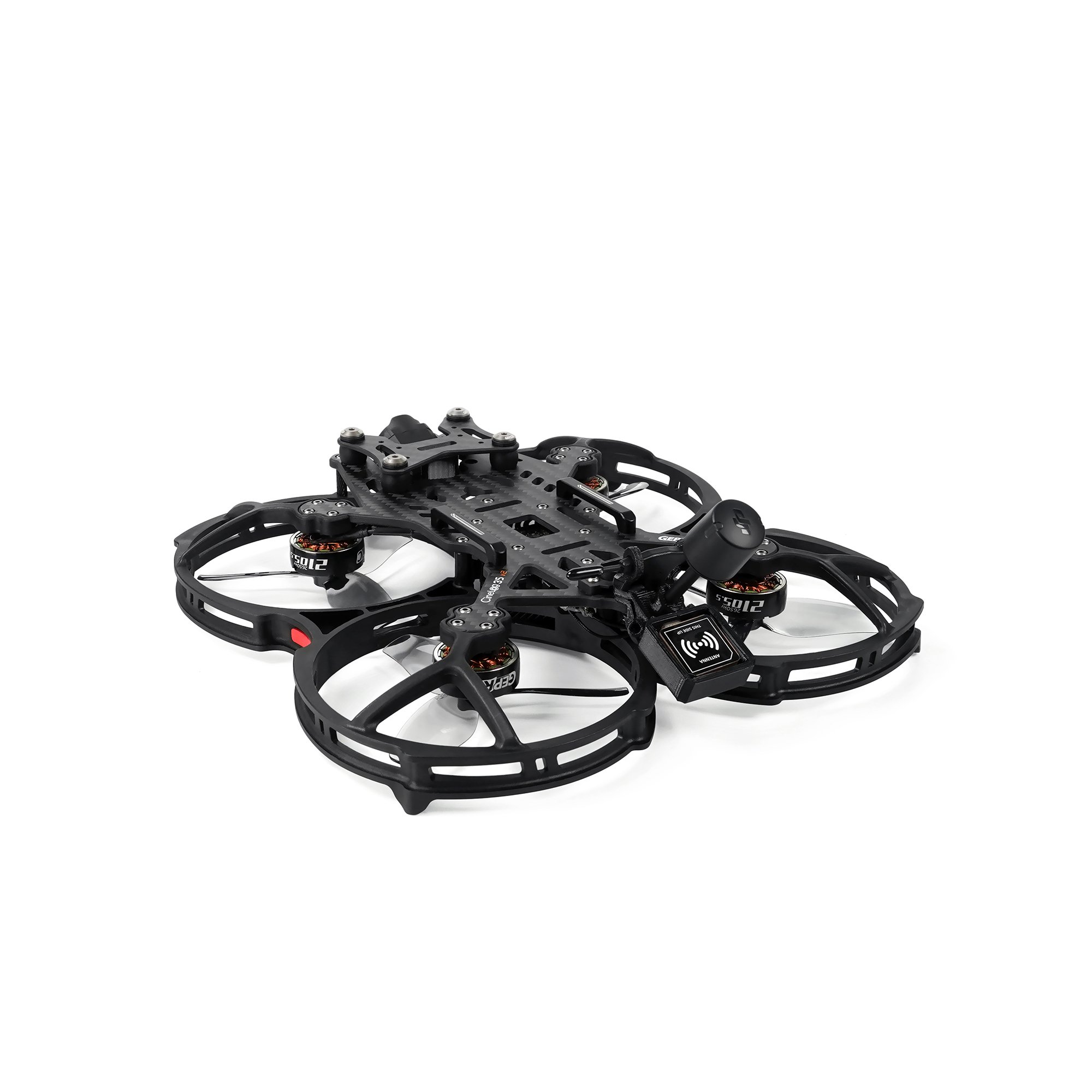

GEPRC CineLog 35 V2 HD O3 FPV Drone

Options

Quantity

Summary

+ CineLog35 v2 version integrated with O3 VTX. The CineLog35 V2 version of the main carbon plate and injection protection frame increased the 7075 aluminum column for structural strengthening. The battery mounting method uses a tie with 7075 aluminum parts fixed. The power XT60E1-M plug is integrated with the carbon plate for convenient application. The protective frame for O3 Air Unit adds a memory card and USB port for easy data reading. Equipped with F722-45A AIO and the new SPEEDX2 2105.5 motor, more power, with aggressive power system and faster response. This is a 3.5-inch HD FPV cinematic FPV drone that integrates cinematic, freestyle, leisure, and safety to meet the user’s requirements for flying and filming various scenes indoors and outdoors. The user’s satisfied voice is the motivation for us to move forward.

Product Details



Features

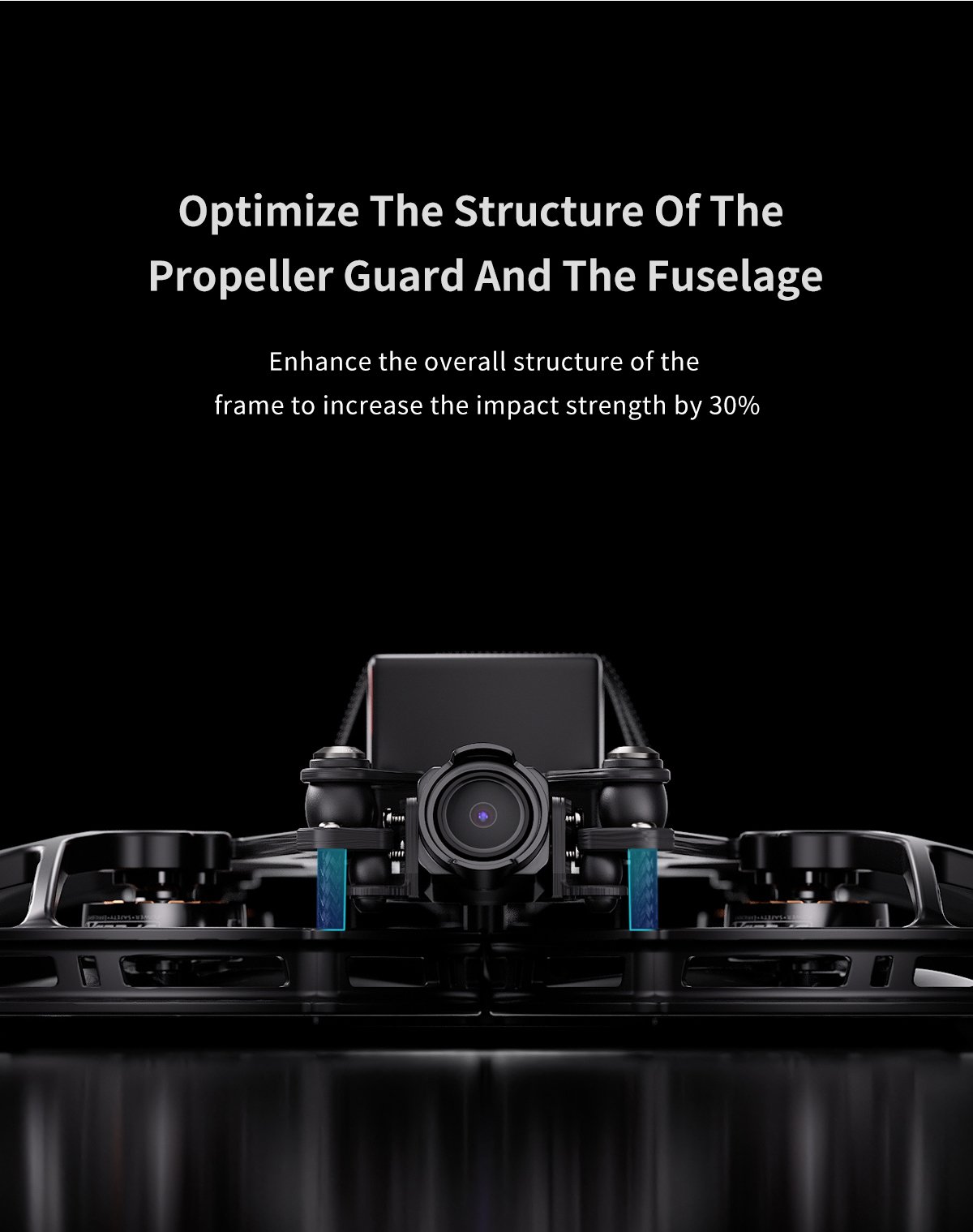

  1. New appearance design, strengthening carbon plate, hollow design, injection protection frame, noise reduction design, flight safety, silent.
  2. Adopts the GEP F722-45A AIO V2 high performance flight controller.

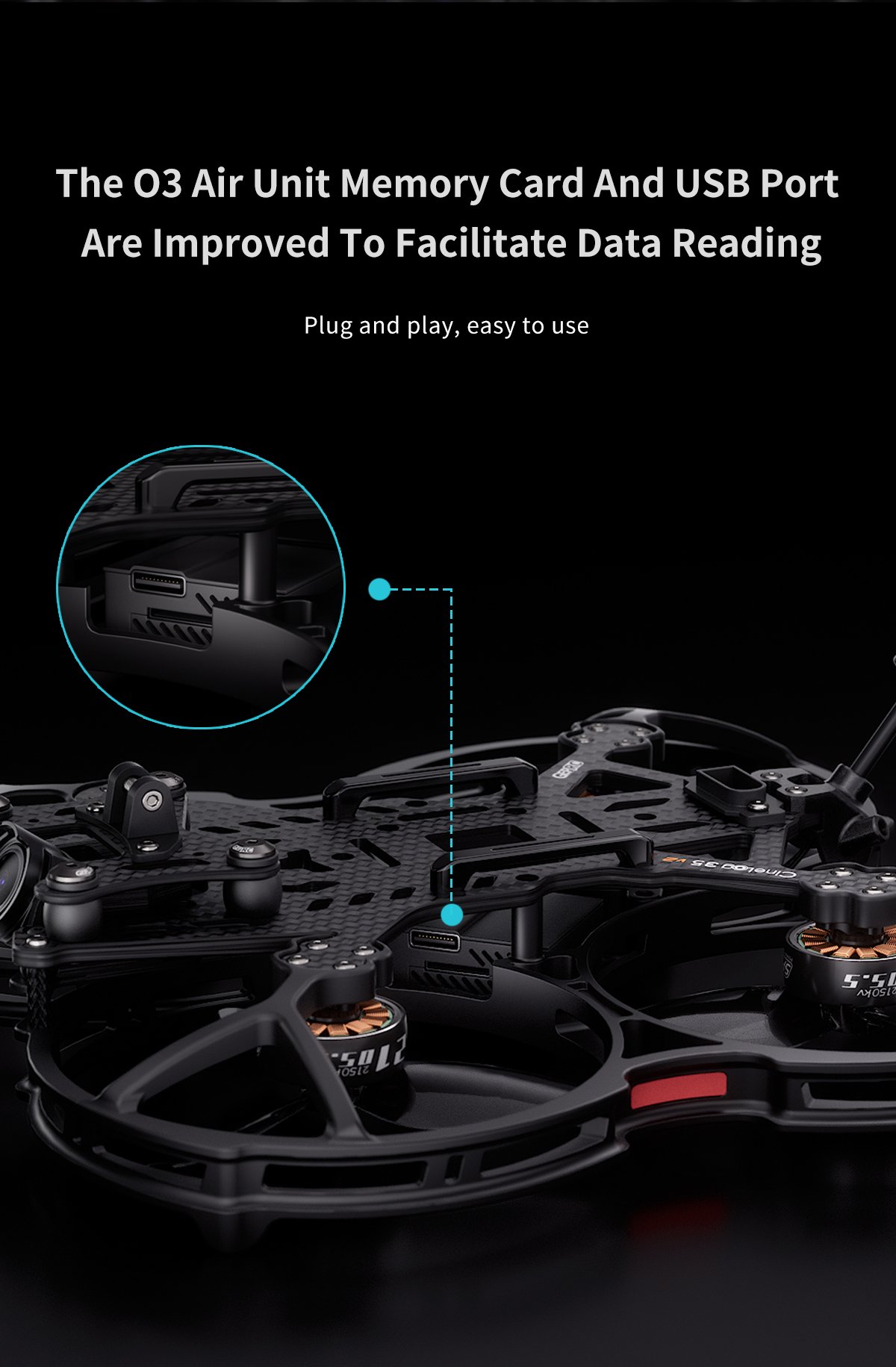

  3. Propeller Guard adds memory card and USB ports to O3 Air Unit for easy data reading

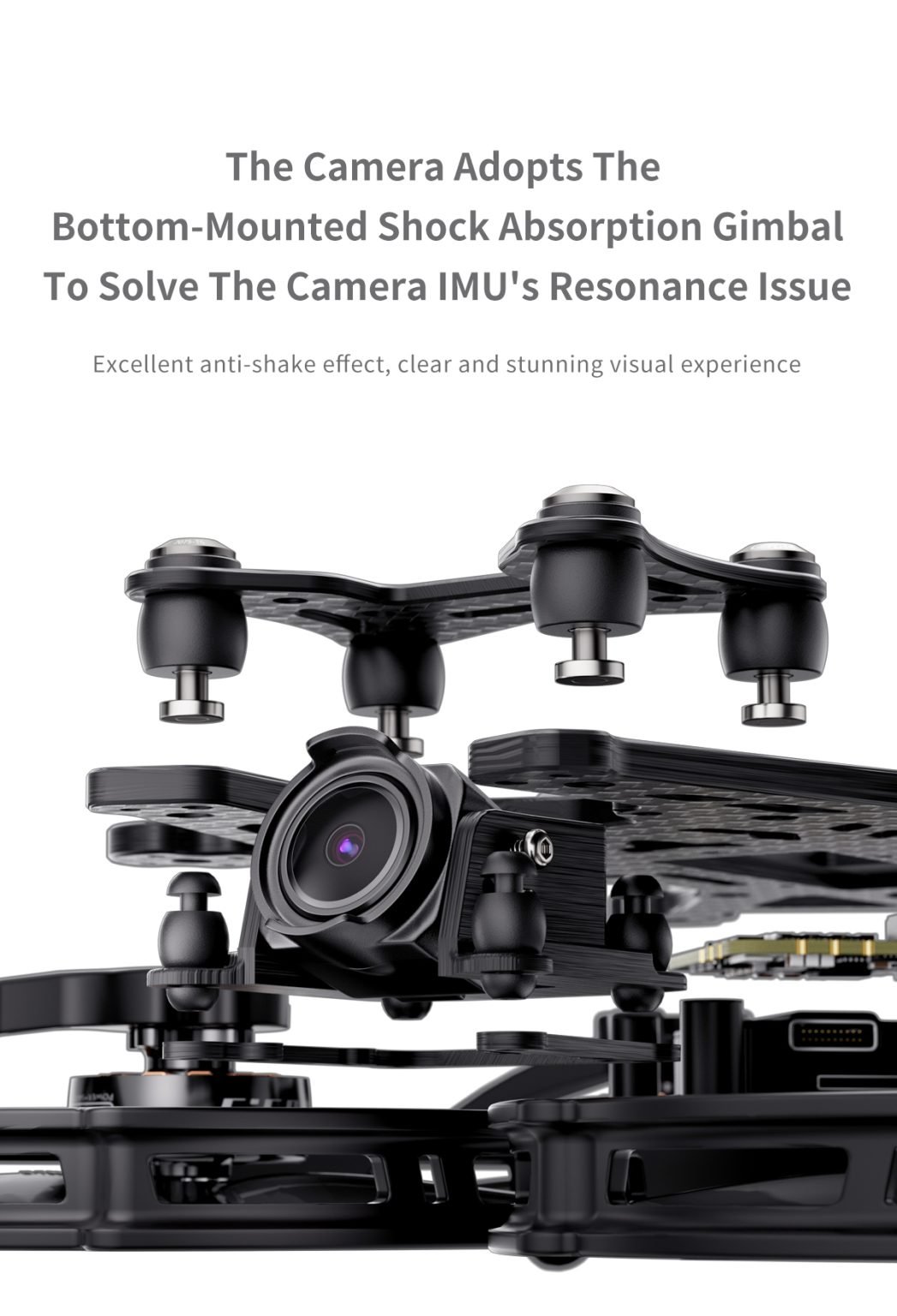

  4. For O3 camera design independent under hanging shock absorption gimbal, to solve the camera IMU resonance issues, to achieve the optimal anti-shake effect.
  5. SPEEDX2 2105.5 motor with HQ DT90 propeller, stable power output, and smooth flight feel.

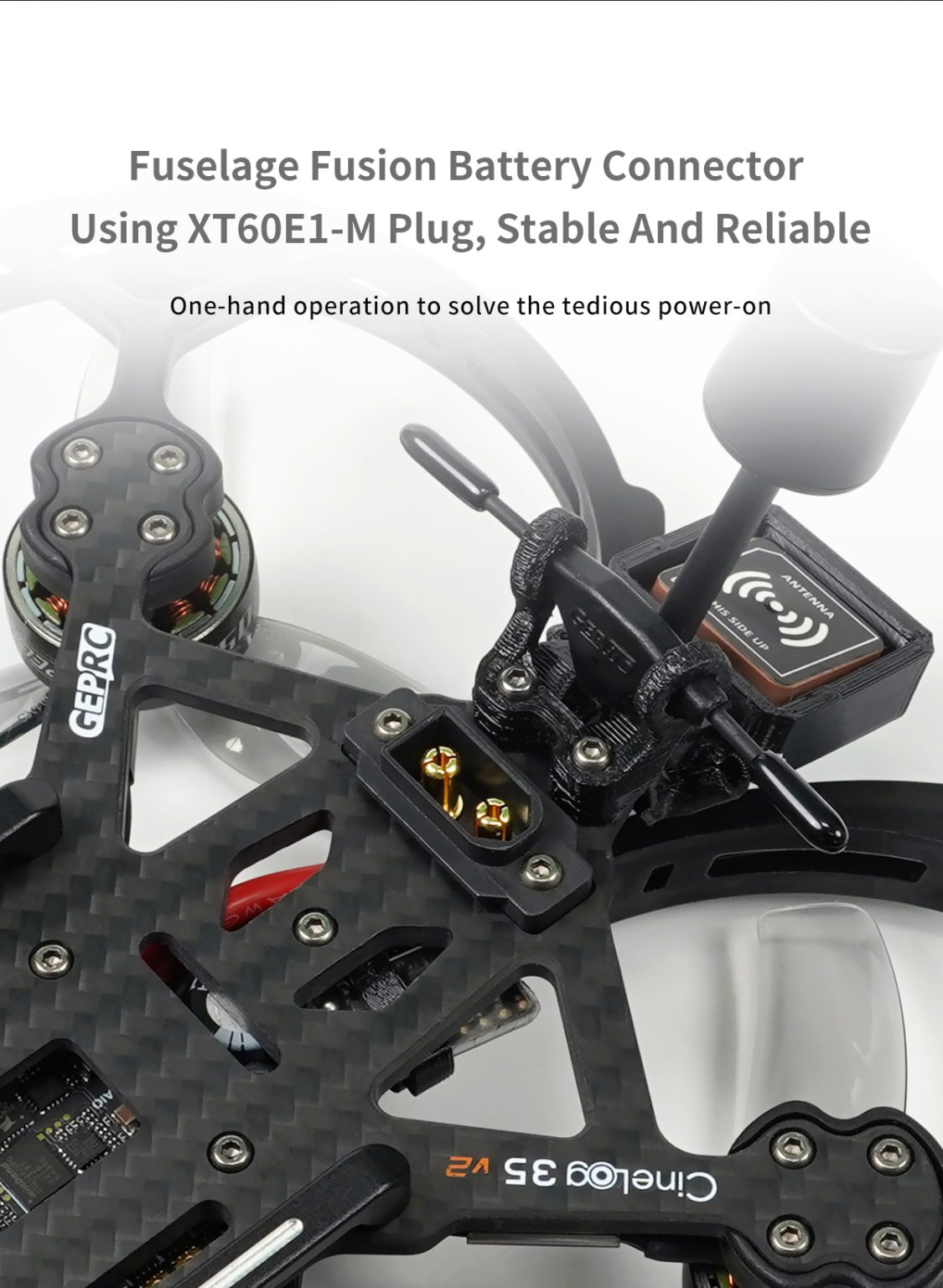

  6. Power cable using XT60E1-M plug and carbon plate integrated design, convenient application.
  7. Battery installation method using a tie with 7075 aluminum parts fixed, solid and stable.
  8. Carefully tuned 3.5-inch HD cinematic FPV with flexible and delicate flight feeling.

Specifications

  • Model: Cinelog35 V2 HD O3
  • Frame: GEP-CL35 V2
  • Wheelbase: 142mm
  • Gimbal plate: 2.0mm
  • Top plate: 3.5mm
  • Bottom plate: 1.5mm
  • FC system: GEP-F722-45A AIO V2
  • MCU: STM32F722RET6
  • Gyro: ICM 42688-P
  • OSD: Betaflight OSD w/AT7456E chip
  • ESC: 8Bit 45A
  • VTX: O3 Air Unit
  • Camera: O3
  • Antenna: 5.8G&2.4G
  • Motor: SPEEDX2 2105.5-2650KV（6S）
  • Propeller: HQProp D-T90MM

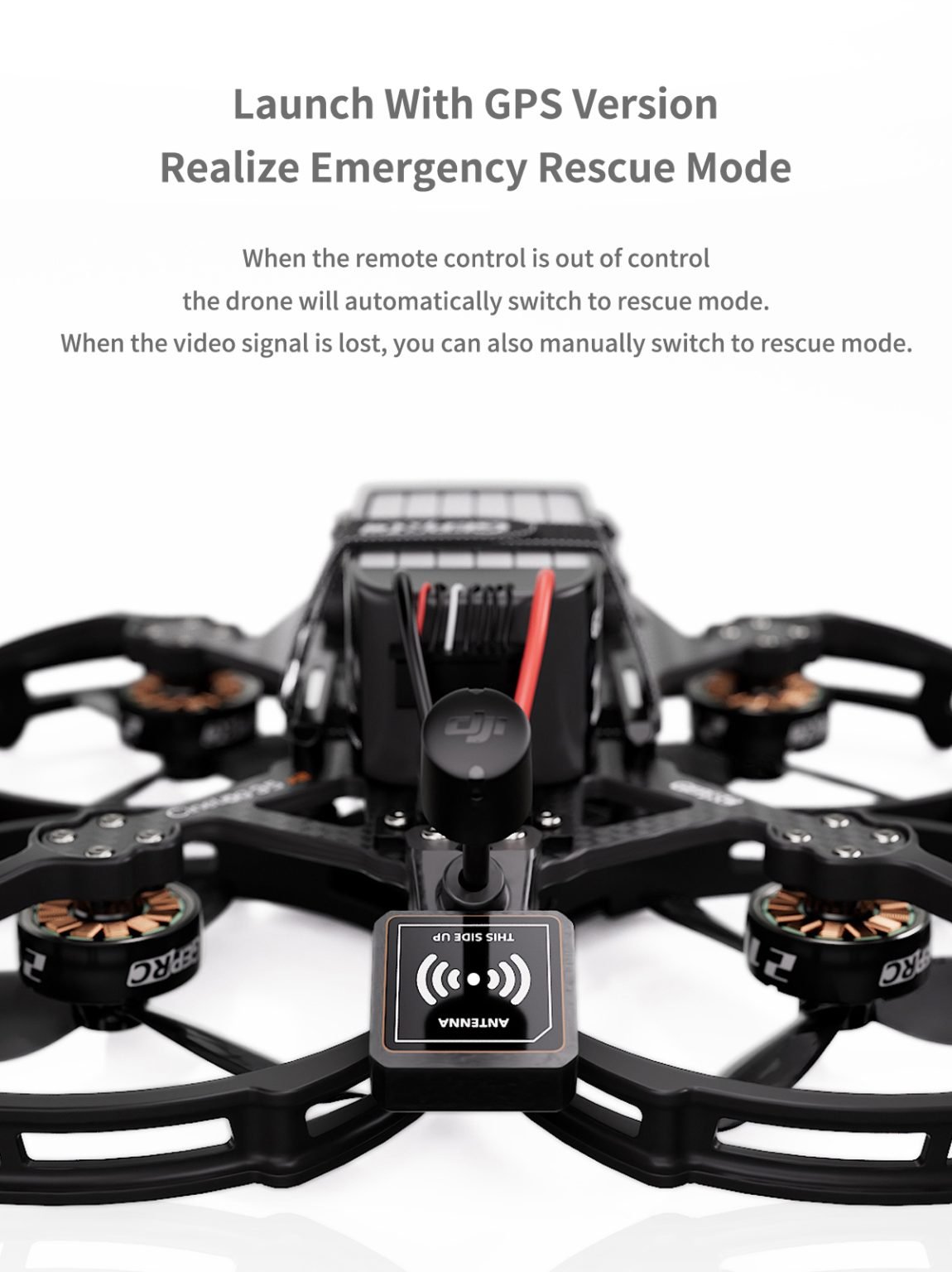

  • GPS: GEP-M10
  • CineLog35 V2 HD O3 TBSNanoRX weight: 285.8g
  • Receiver: PNP, GEPRC ELRS 2.4G, TBS Nano RX
  • Recommended battery: LiPo 1050mah-1300mah
  • Flight time: 5′00″ -8′ 30″
