Fatshark Attitude V6 FPV Goggles

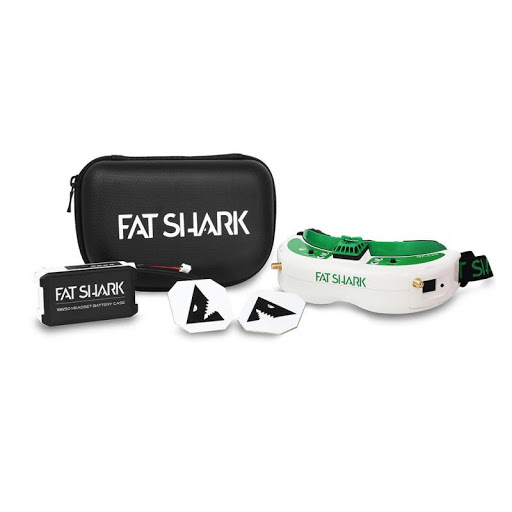

SPECIFICATIONS OPTICS: FOV (field of view): 39 degrees diagonal IPD (interpupillary distance): 54 to 74 mm (adjustable) Focus: +2 to -6 diopters (adjustable) DISPLAY: Two citizen 0.4” LCOS displays Resolution 1280 X 960 NTCS/PAL auto selecting AV Mode 4:3 AV Mode 16:9 HDMI Mode 16:9 AUDIO: Stereo USER CONTROLS: Channel Selection Volume Control Mode Selection Display Control (Brightness and Contrast) DVR Control Power Button / Fan Control ELECTRICAL: Power Supply: 7 – 13V input voltage (2S – 3S Supply) Power Consumption: 320mA @ 7.5V input power (no RX module) Analog DVR:MicroSD support to 32 GB Record Rate: 6Mbps (MJPG compression, 30 fps, AVI) File playback (native recording, no codec support) Upgradeable via SD card BATTERY: 7.4V, 1.8A 18650 Battery Case INTERFACE: 3.5mm AV in/out port Power input port 3.5mm 3p earphone port MicroSD RF Module Bay HT connector 3 pin internal connection Power Button INCLUDES 1x Fat Shark Attitude V6 FPV Goggles 1x Carry Case 1x 18650 Headset Battery Case (batteries not included) 1x True Diversity OLED Receiver already installed in the headset 2x Patch Antennas
