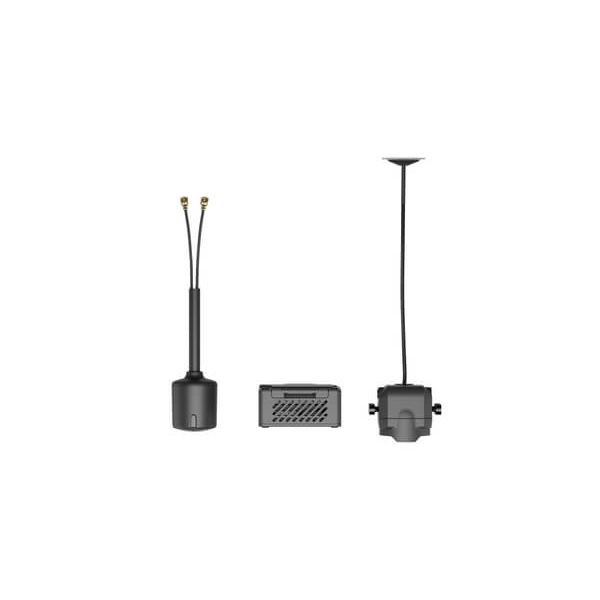

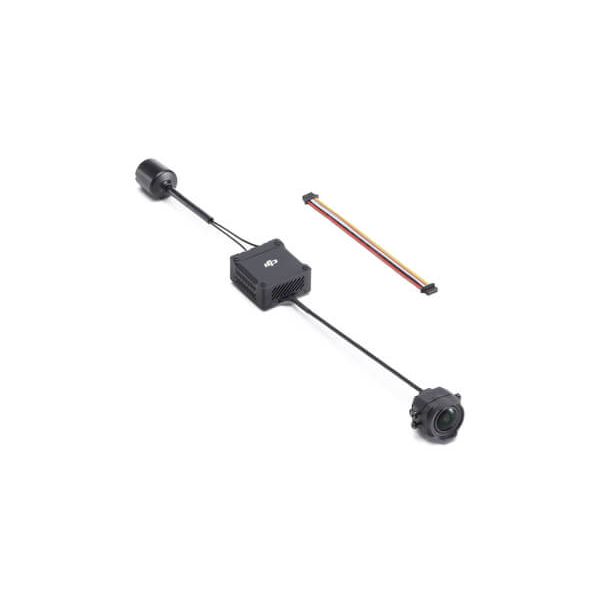

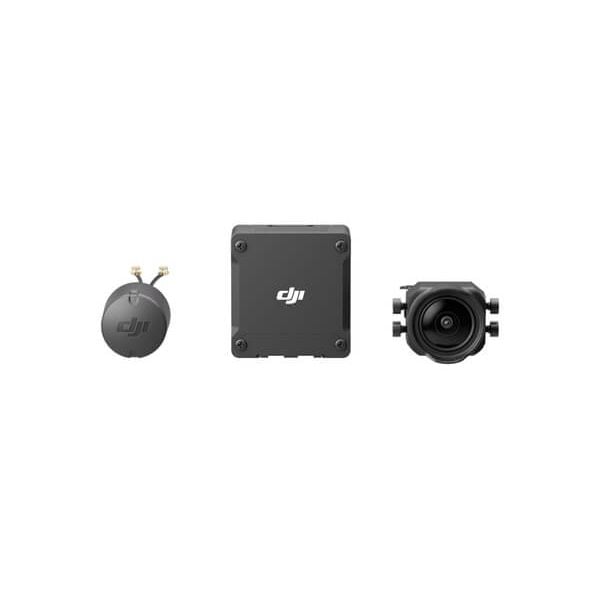

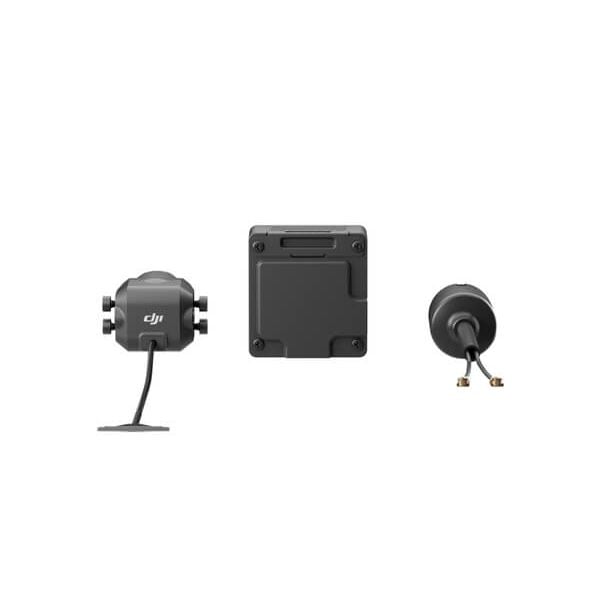

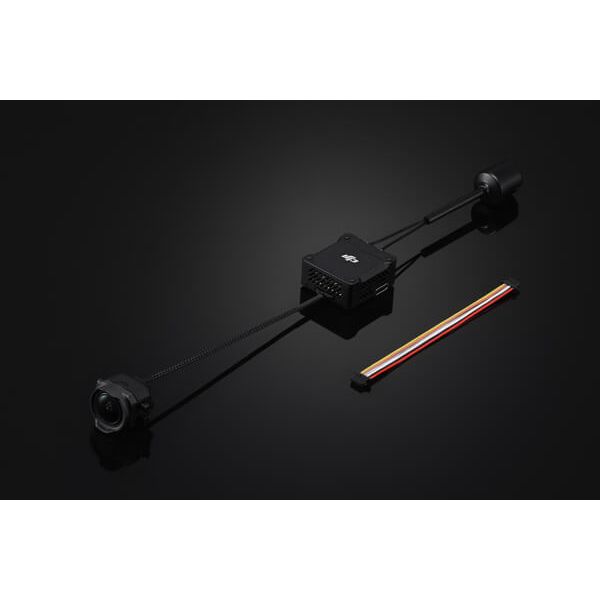

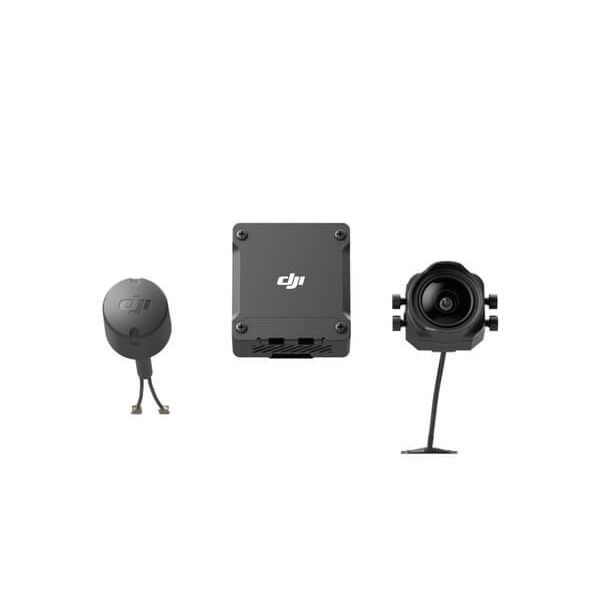

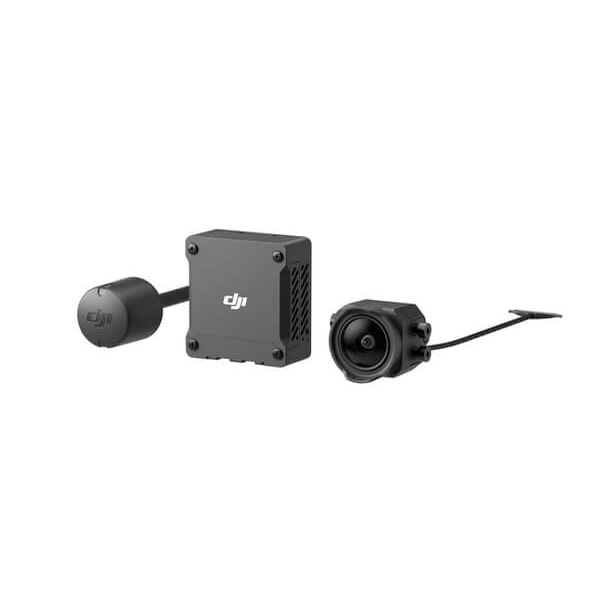

DJI O3 Air Unit





DJI O3 Air Unit

Go the Distance

Integrating DJI's cutting-edge video transmission technology in a compact and lightweight body, the DJI O3 Air Unit takes your FPV experience to new heights. Enjoy excellent high-definition video transmission from extended distances with low latency. The O3 Air Unit takes a leap forward in imaging performance with its 1/1.7-inch sensor, 155° super-wide FOV, flagship video technology, and other upgrades. [1] It is also compatible with a wide range of products and delivers a video transmission solution that helps you to fully release your aerial creativity. [2]


Powered by Flagship Video Transmission

Equipped with DJI O3+ Video Transmission, the DJI O3 Air Unit provides a host of powerful video transmission capabilities. Control your drone with snappy responsiveness and get a crisp, ultra-sharp live feed. The 2T2R omnidirectional antennas further ensure the stability and smoothness of video transmission within the signal coverage range.


H.265 Video Transmission [3]

10 km

Max Video Transmission Range [4]

30 ms

Ultra-Low-Latency Video Transmission [5]

50 Mbps

Max Video Transmission Bitrate [6]

Seeing is Believing

The DJI O3 Air Unit features a video transmission resolution of up to 1080p, while maintaining a high frame rate of 100 fps. It also supports the H.265 video coding format, presenting additional clarity and smoothness in your live view.

Go the Extra Mile

Fly farther and explore more with the DJI O3 Air Unit's extended 10km transmission range. It can even automatically select the frequency band to use the optimal signal, [7] and it delivers excellent anti-interference performance. The stable, long-range connection gives you peace of mind as you fly and lets you enjoy distant scenery in the palm of your hand.

Level-Up Your Visuals

1/1.7-inch Sensor, 12.7mm Equivalent Focal Length, f/2.8 Aperture

The DJI O3 Air Unit features upgraded imaging specs across the board. The air unit camera module is equipped with 20 GB of built-in storage as well as a 1/1.7-inch sensor to present richer details and high-quality imagery. It supports 4K/60fps video and shoots 155° super-wide FOV footage for stunning visual effects. [8] In addition, D-Cinelike color mode provides more creative freedom for color grading, allowing you to more flexibly edit and adjust your footage.

155° Super-Wide FOV

Immerse your audience with the 155° FOV as you capture more of the landscape around you.

D-Cinelike Color Mode

Dive into a world of colors by shooting in D-Cinelike mode. Make your footage pop with advanced color grading in post-editing.

4K/60fps Video

Film stable ultra-HD footage at 4K/60fps and elevate your FPV footage to new levels.

Elevate Your Creations

The O3 Air Unit camera module can be used with the DJI Avata ND Filters Set (ND8/16/32). [9] Made of high-quality materials, the ND filters present true color details and light-dark contrast, providing flexible aperture control and exposure selection.

Fine Tune Your Experience

The DJI O3 Air Unit supports Canvas mode, allowing you to customize the on-screen display information of your DJI Goggles 2 or DJI FPV Goggles V2. Adjust the PID parameters and set up the system to suit your style.

Packed with Power

The DJI O3 Air Unit offers vast compatibility in a lightweight and compact body for flexible combinations and assembly. When used with DJI Goggles 2 and DJI FPV Remote Controller 2, you can enjoy complete mobility. [10]

Approx. 36.4 g

Air Unit Weight (camera module included) [11]

32.5×30.5×14.5 mm

Air Unit Dimensions [11]

21.2×20×19.5 mm

Camera Module Dimensions [11]

Compatible with Multiple DJI Devices

DJI Goggles 2

Enjoy next-level comfort and convenience with DJI Goggles 2. Now smaller, lighter, and equipped with Micro-OLED screens so you experience outstanding clarity as you navigate the sky.

DJI FPV Goggles V2

Featuring DJI O3 image transmission for high-definition, low-latency, long-distance transmission, and strong anti-interference capabilities.

DJI FPV Remote Controller 2

The ultra-low-latency remote features Hall effect control sticks with an ergonomic design to offer high-accuracy control. Unlock M Mode to fly with freedom and achieve more advanced maneuvers.





1/1.7-inch CMOS
Effective Pixels: 48 MP


FOV: 155°
Equivalent Focal Length: 12.7 mm
Focal Length: 2.34 mm
Aperture: f/2.8
Focus Mode: FF
Focus Range: 0.6 m to ∞

ISO Range

100-6400 (Auto)
100-25600 (Manual)


Rolling Shutter



Video Resolution

With DJI Goggles 2:

With DJI FPV Goggles V2:

Video Format



Supports RockSteady


Approx. 8.3 g (coaxial cable included)

Air Unit


Air Unit (camera module excluded): Approx. 28 g
Air Unit (camera module included): Approx. 36.4 g
Antenna: Approx. 3 g


Transmission Module (L×W×H): 32.5×30.5×14.5 mm
Camera Module (L×W×H): 21.2×20×19.5 mm
Coaxial Cable: 115 mm
3-in-1 Cable: 100 mm
Antenna: 85 mm

Communication Frequency

2.400-2.4835 GHz (RX only)
5.725-5.850 GHz (RX and TX) [1]

Transmission Power (EIRP)

FCC: < 33 dBm
CE: < 14 dBm
SRRC: < 30 dBm

End-to-End Latency [2]

With DJI FPV Goggles V2:
810p/120fps Video Transmission Quality: The latency is lower than 28 ms.
810p/60fps Video Transmission Quality: The latency is lower than 40 ms.

With DJI Goggles 2:
1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Range [3]

10 km (FCC), 2 km (CE), 6 km (SRRC)

Supported Flight Control System

Only compatible with controllers that support Betaflight. For more information, check the product FAQ.

Input Voltage

7.4-26.4 V

Operating Temperature

-10º to 40º C (14° to 104° F)


Supports auto mode
Supports manual mode: 40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels

Channels Info

40 MHz:
Channel 1: 5794.5 MHz

20 MHz/10 MHz:
Channel 1: 5768.5 MHz
Channel 2: 5804.5 MHz
Channel 3: 5839.5 MHz

Supported SD Cards

microSD (up to 256 GB)

Recommended microSD Cards

SanDisk Extreme U3 V30 A1 32GB microSDXC
SanDisk Extreme Pro U3 V30 A1 32GB microSDXC
Kingston Canvas Go!Plus U3 V30 A2 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 64GB microSDXC
Kingston Canvas React Plus U3 V90 A1 128GB microSDXC
Kingston Canvas React Plus U3 V90 A1 256GB microSDXC
Samsung PRO Plus V30 U3 V30 A2 256GB microSDXC

Supported DJI Goggles

DJI Goggles 2 and DJI FPV Goggles V2

Supported DJI Remote Controller

DJI FPV Remote Controller 2



1. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
2. Tested in an outdoor open environment without interference. The video transmission latency data varies with different models.
3. Data is tested under different standards in an outdoor open environment without interference. Only to serve as a reference for the max one-way communication distance without considering RTH. Please pay attention to the RTH prompts during actual flight. Max one-way communication distance of DJI O3 Air Unit in countries/regions of different standards:
FCC: United States, Australia, Canada, Hong Kong, Taiwan, Chile, Colombia, Puerto Rico, and other regions.
SRRC: Mainland China.
CE: UK, France, Germany, Portugal, Spain, Switzerland, Macau, New Zealand, UAE, and other regions.
4. The 5.1 GHz frequency band is currently banned in Thailand and Israel. For details, please refer to local laws and regulations.
5. Tested in an outdoor open environment without interference. The video transmission bitrate varies with operating environments.
