Specifications
GOGGLES
Operating Temperature: -10°C to 40°C (14°F to 104°F)
Supported SD Cards: microSD (up to 512 GB)
Diopter Adjustment Range: -6.0 D to +2.0 D
Weight: Approx. 470 g (battery included)
Resolution (single screen): 1920×1080
Screen Size (single screen): 0.49 inch
Video Recording Format: MOV
Power Input: Built-in battery
Refresh Rate: Up to 100 Hz
FOV (single screen): 44°
Real View FOV: 44°
Model: TKGS3
Supported Video and Audio Playback Formats
3D Video: Half-Side-by-Side (HSBS), Full-Side-by-Side (FSBS), Half Over-Under (HOU), Full Over-Under (FOU)
Panoramic Video: Spherical 2D panoramic videos
Video coding formats: H.264, H.265
Max Video Specification: 4K/60fps
Audio formats: AAC, PCM
Dimensions (L×W×H)
With antennas folded: 170×109×112 mm (L×W×H)
With antennas unfolded: 205×109×112 mm (L×W×H)
Interpupillary Distance Range: 56-72 mm
VIDEO TRANSMISSION
Max Transmisssion Distance:13 km (FCC); 10 km (CE/SRRC/MIC)
Max Video Bitrate: 60 Mbps
Latency with DJI Avata 2:
1080p/100fps video transmission quality: latency down to 24 ms
1080p/60fps video transmission quality: latency down to 40 ms
Transmitter Power (EIRP): 2.4 GHz
< 20 dBm (CE/SRRC/MIC)
< 33 dBm (FCC)
5.1 GHz
< 23 dBm (CE)
5.8 GHz
< 30 dBm (SRRC)
< 33 dBm (FCC)
< 14 dBm (CE)
Operating Frequency
2.4000-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
BATTERY
Max Charging Power: 20 W (charging when powered off)
Charging Temperature: 0° C to 50° C (32° F to 122° F)
Dimensions: 121×65×52.5 mm (L×W×H)
Chemical System: LiNiMnCoO2
Runtime: Approx. 3 hours
Capacity: 3000 mAh
Voltage: 5.6-8.4 V
Energy: 21.6 Wh
Category: Li-ion
WIFI
Protocol: 802.11 a/b/g/n/ac
Transmitter Power (EIRP): 2.4 GHz
< 20 dBm (FCC/CE/SRRC/MIC)
5.1 GHz
< 20 dBm (FCC/CE/MIC)
5.8 GHz
< 20 dBm (FCC/SRRC)
< 14 dBm (CE)
Operating Frequency
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
BLUETOOTH
Operating Frequency: 2.400-2.4835 GHz
Transmitter Power (EIRP): < 10 dBm
Protocol: Bluetooth 5.0
GFSK
Operating Frequency: 2.4000-2.4835 GHz
Transmitter Power (EIRP)
< 20 dBm (CE/SRRC/MIC)
< 26 dBm (FCC)

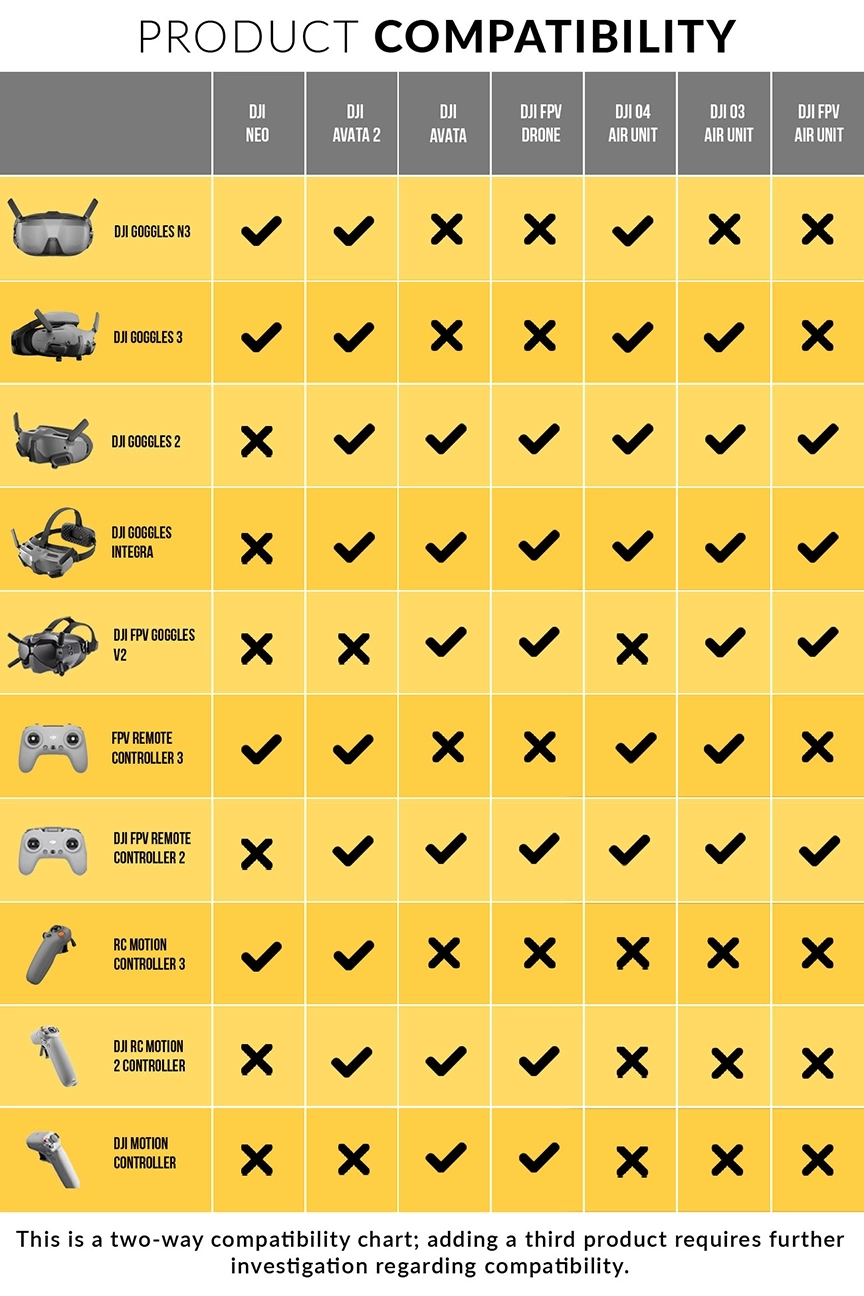

Compatibility:
DJI O4 Air Unit (If released - historically there's a new Air Unit for each DJI Goggle generation)
DJI Avata 2

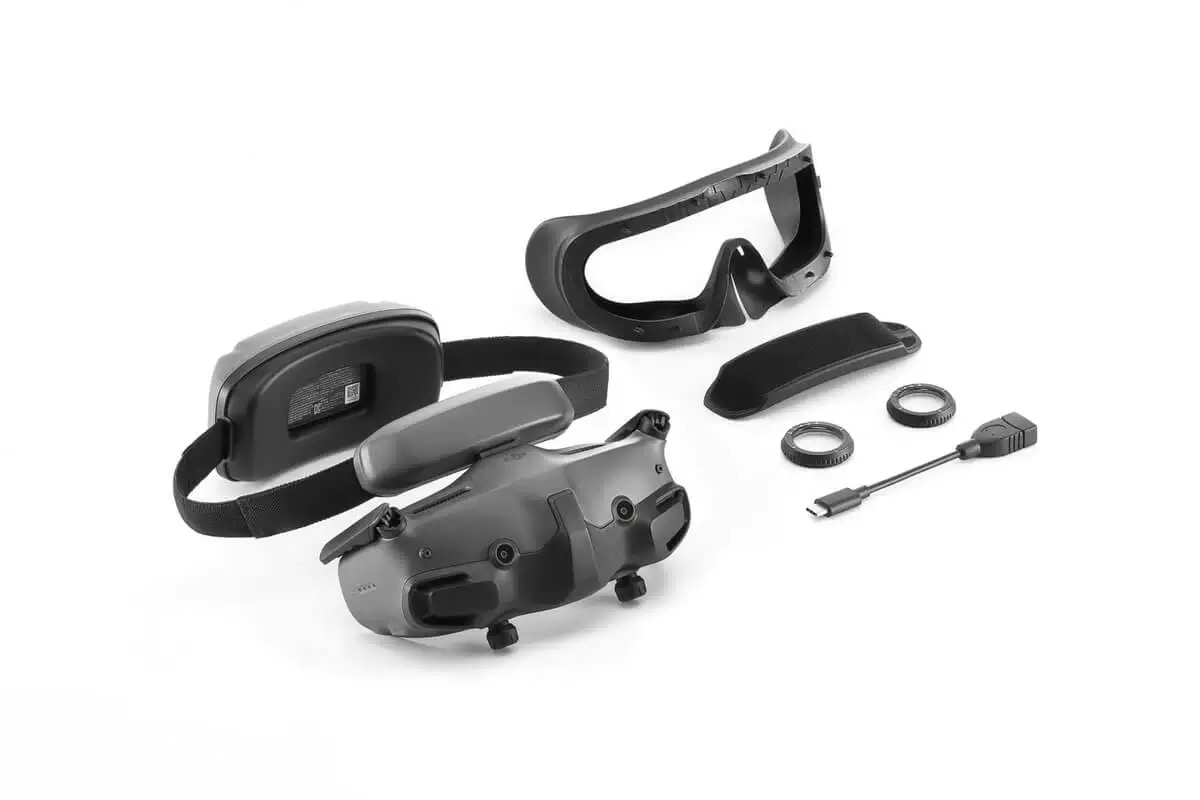

Includes
1x DJI Goggles 3 -2.0D Corrective Lenses (Pair)
1x DJI Goggles 3 Additional Forehead Pad
1x DJI Goggles 3 Foam Padding
1x USB-C OTG Cable
1x DJI Goggles 3
