DJI Goggles 2







Experience the thrill of flight with DJI Goggles 2. Dual-HD Micro-OLED screens immerse your senses in the sky. React in real-time as you navigate the skies with a 100Hz max frame rate. [1] The ultra-low-latency DJI O3+ video transmission ensures a clear and reliable live-feed as you explore. [2] DJI Goggles 2 is convenient to carry, comfortable to wear, and intuitive to pilot with the DJI Motion Controller. [3] Soak in the atmosphere and unlock a new way to capture aerial shots. With DJI Goggles 2, the dream of flight becomes a reality.

Lightweight and Light-Tight


Approx. 290 g

Antenna Design


Battery Life

Two hours [4]

Charge fast and fly high with a long-lasting battery.

An ultra-lightweight and breathable design makes DJI Goggles 2 enjoyable to wear for long flights without uncomfortable pressure. [5]

Soft replaceable foam padding ergonomically fits the face to reduce light leakage. [6]

Immerse the Senses

Display Technology


Screen Resolution


Max Brightness

700 nits

Max Frame Rate

100 Hz

Transmission CODEC Format

H.264 and H.265

Crisp, smooth video playback, and stunning true-to-life colors, DJI Goggles 2 presents a visual experience unlike any other. An independent video processing chip optimizes video smoothness and resolution, and a 10-bit color display unveils rich details in highlights and shadows.

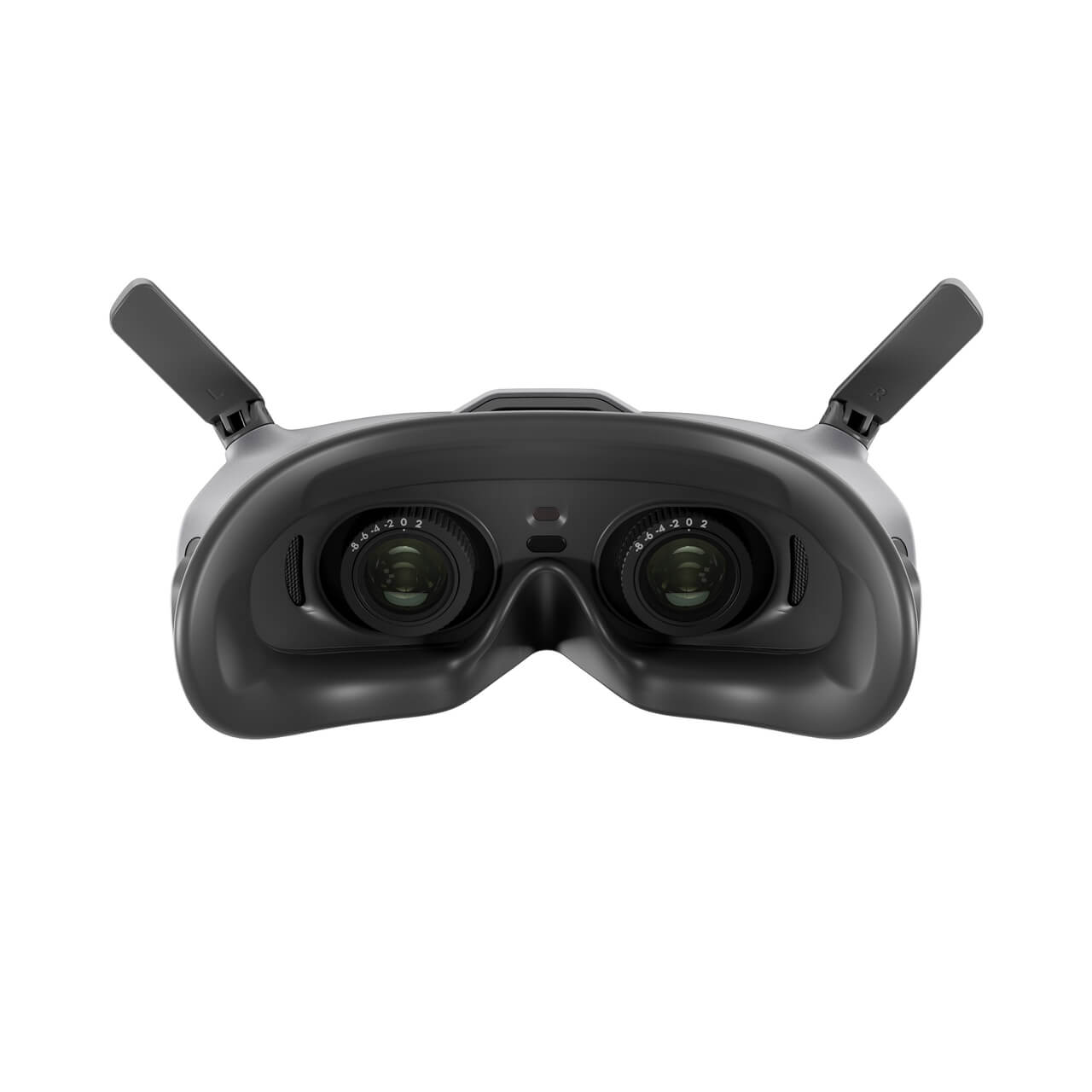

A new optical design allows DJI Goggles 2 to be smaller and lighter. The new system, comprised of multiple glass aspherical elements, provides a clean and clear image at any setting. Adjust the diopters from +2.0 to -8.0 to personalize the viewing experience and easily go glasses-free. [7][5] By locking the diopter adjustment knob, you can fix the diopter and effectively prevent accidental touches during use or storage.

With TÜV Rheinland Low Blue Light Certification,
DJI Goggles 2 presents enhanced display quality while protecting your eyes during every breathtaking flight.

Ultra-Low Latency
Smooth and Reliable Video Transmission

Lowest Video Transmission Latency

30 ms

Auto Frequency Band Selection

2.4 GHz or 5.8 GHz

Stable video transmission is essential when flying in the great outdoors. With latency as low as 30 ms, DJI Goggles 2 provides a stunning flight in real-time. [8] The goggles automatically switch between 2.4GHz and 5.8GHz frequency bands to keep a stable signal for a fluid viewing experience with minimal interference. [9]

New SyncSmooth technology produces smooth, fluent video transmission for high-speed aerial photography. [10] Viewing footage with DJI Goggles 2 is also easier on the eyes, effectively reducing visual fatigue and dizziness. [5]

DJI Goggles 2's display and aircraft video transmission algorithms are optimized to reduce dropped frames and have improved image capture and display synchronization.

More Ways to Experience

Bad weather? DJI Goggles 2 transforms into an in-home theater. Wi-Fi wireless streaming supports mainstream audio and video software using DLNA protocol, allowing videos to play straight to the goggles. A built-in power amplifier and a 3.5mm audio port allow synchronized audio output for an immersive cinematic experience.

Beyond Fly

DJI Fly App

Connect DJI Goggles 2 with a smartphone to share the flying experience or teach pilots in training.

  1. The screen frame rate changes with the video transmission frame rate. It may switch between 100 Hz and 60 Hz to adapt to the current video transmission frame rate.
  2. DJI Goggles 2 supports DJI O3+ transmission with DJI Avata and DJI O3 Air Unit.
  3. Compatible with DJI Motion Controller and DJI FPV Remote Controller 2.
  4. Measured with an ambient temperature of 25° C (77° F), screen brightness at 6, the video transmission mode set to 1080p/100fps, and the goggles' battery fully charged and not supplying power to external devices such as smartphones.
  5. Wearing and viewing experience may vary by user.
  6. Replacement DJI Goggles 2 Foam Padding is sold separately.
  7. DJI Goggles 2 does not support astigmatism adjustment. Consult your doctor if you have specific vision requirements.
  8. Measured using 1080p/100fps video transmission, tested outdoors in an open interference-free environment.
  9. The 5.8GHz frequency band is banned in certain countries/regions. Check and comply with local laws and regulations before flying.
  10. The frame synchronization algorithm for DJI Goggles 2 has been optimized from prior models.



DJI Goggles 2




Approx. 290 g (headband included)

Dimensions (L×W×H)

With antennas folded: 167.40×103.90×81.31 mm
With antennas unfolded: 196.69×103.90×104.61 mm

Screen Size (single screen)


Resolution (single screen)


Refresh Rate

Up to 100 Hz

Interpupillary Distance Range

56-72 mm

Diopter Adjustment Range

-8.0 D to +2.0 D

FOV (single screen)


Communication Frequency

2.400-2.4835 GHz
5.725-5.850 GHz [1]

Transmission Power (EIRP)

2.4 GHz: < 30 dBm (FCC), < 20 dBm (CE/SRRC/MIC/KC)
5.8 GHz: < 30 dBm (FCC), < 23 dBm (SRRC), < 14 dBm (CE/KC)

Video Recording Format


Supported Video and Audio Playback Formats

MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM)

Wi-Fi Wireless Streaming

Supports DLNA protocol

Operating Temperature

-10° to 40° C (14° to 104° F)

Power Input

DJI Goggles 2 Battery

Supported SD Cards

microSD (up to 256 GB)



Wi-Fi 802.11b/a/g/n/ac

Communication Frequency

2.400-2.4835 GHz
5.150-5.250 GHz (indoor use only) [2]
5.725-5.850 GHz

Transmission Power (EIRP)

2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC/KC)
5.1 GHz: < 20 dBm (FCC/CE/MIC/KC)
5.8 GHz: < 20 dBm (FCC/SRRC/KC), < 14 dBm (CE)



Bluetooth 5.2

Communication Frequency

2.400-2.4835 GHz

Transmission Power (EIRP)

< 8 dBm

Video Transmission

Video Transmission Latency [3]

1080p/100fps Video Transmission Quality: The latency is as low as 30 ms.
1080p/60fps Video Transmission Quality: The latency is as low as 40 ms.

Max Video Transmission Bitrate [3]

50 Mbps

Video Transmission Range [3]

When used with DJI Avata or DJI O3 Air Unit, DJI Goggles 2 can achieve the following max video transmission range:
10 km (FCC), 2 km (CE), 6 km (SRRC)

DJI Goggles 2 Battery


1800 mAh


7-9 V (1.5 A)



Chemical System



18 Wh

Charging Temperature

0° to 45° C (32° to 113° F)

Max Charging Power

12.6 W (5 V/2 A, 9 V/1.4 A)

Operating Time

Approx. 2 hours [4]


Approx. 122 g

Dimensions (L×W×H)

73.04×40.96×26 mm

DJI Motion Controller


Approx. 167 g

Communication Frequency

2.400-2.4835 GHz
5.725-5.850 GHz

Transmission Power (EIRP)

2.4 GHz: ≤ 28.5 dBm (FCC), ≤ 20 dBm (CE/SRRC/MIC)
5.8 GHz: ≤ 31.5 dBm (FCC), ≤ 19 dBm (SRRC), ≤ 14 dBm (CE)

Operating Temperature

-10° to 40° C (14° to 104° F)



1. The 5.8 GHz frequency band is currently banned in certain countries or regions. For details, please refer to local laws and regulations.
2. The 5.1 GHz frequency band is currently banned in Thailand and Israel. For details, please refer to local laws and regulations.
3. Tested in an outdoor open environment without interference. Please refer to actual use.
4. Tested with a fully charged battery in a 25°C (77°F) environment, screen brightness at 6, in 1080p/100fps video transmission mode, without supplying power to any external equipment. Actual operating time may vary due to differences in the number of charge cycles, environment temperature, or external factors.
