Specifications:

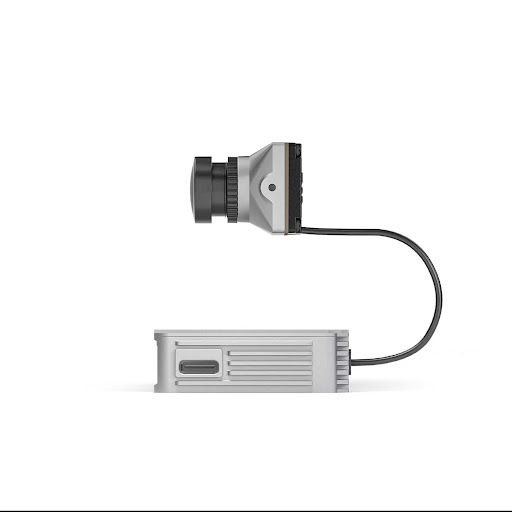

Model: Polar Air Unit Kit
Weight: Air Unit Kit (incl. camera) 42.61g | Antenna 3.9g
Dimensions: Air Unit 44x37.8x14.4mm | Camera 19x19x24mm | Coax Cable 110mm
Operating Frequency: 5.725-5.850GHz
Transmitter Power (EIRP): FCC/SRRC/MIC <30dBm | CE <14dBm
Min. latency (end to end): 720p 60FPS <32ms
Max. Transmission Distance: FCC/SRRC 4km | CE 0.7km
Video Format: MP4 (H.264;AAC-latency)
I/O Interface: USB-C, MMCX, Micro SD
Supported FC: F3/F4/F7
Operating Temperature Range: 0-40°C
Input Voltage: 7.4-17.6V
Power Output: 25/200/500/700mW
Compatible FPV System: DJI Digital FPV System
Camera:
Sensor: 1/1.8" Starlight CMOS
Min.Illumination: 0.00003Lux
Lens: F/1.6 8MP
Shutter: Rolling Shutter
ISO: 100-25600
FPV: 162°D 138°H 75°V
Aspect Ratio: 16:9
