CADDX AIR UNIT Micro Version
HD Digital Video Transmission
Features:
Video latency as low as 28ms, maximum transmission range up to 4km
Up to 8 drones can be flown simutaneously
1080P/60FPS video recording by Air Unit
Low latency transmission between the DJI FPV RC Controller and Air Unit
720P/120FPS FPV footage

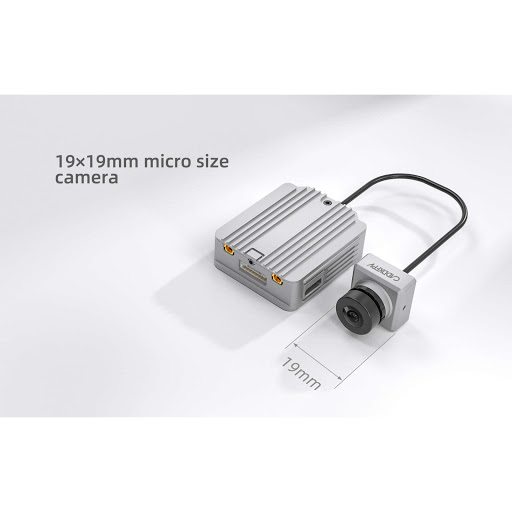

19x19mm Micro Camera
Specifications
Model: Caddx Air Unit
Weight:
|-Air Unit (incl. camera): 41.6g
|-Antenna: 3.7g (MMCX Straight) 3.9g (MMCX Elbow) 6g(RP-SMA)
Dimensions:
|-Air Unit: 44x37.8x14.4mm
|-Camera: 20.7x19x19mm
|-Coaxial Cable: 100mm
Operating Frequency: 5.725-5.850 GHz
Transmitter Power (EIRP):
|-FCC/SRRC: <30dBm
|-CE: <14dBm
Min. Latency (end-to-end):
|-Low Latency Mode (720P 120FPS) <28ms
|-High Quality Mode (720P 60FPS) <40ms
Max. Transmission Distance:
|-FCC/SRRC: 4km
|-CE: 0.7km
Video Format: MP4 H.264, AAC-LC
I/O: USB-C, MMCX, 3-in-1 Port, microSD card slot
Supported Flight Control System: BetaFlight, iNav
Operating Temperature Range: 0°-40°C (32°-104°F)
Input Power: 7.4-17.6V
Power Output: 25/200/500/700mW
Included Hardware: Caddx Air Unit / M2 screws / 3-in-1 Cable / Coaxial Cable / Antenna
Supported Goggles: DJI FPV Goggles
Camera:
Sensor: 1/3.2" CMOS
Effective Pixels: 4M
Lens: 2.1mm f/2.1
Shutter: Rolling Shutter
ISO: 100-25600
FPV: 150°(D) 122°(H) 93°(V)
