Bullet Points
Next-Gen Frame: The supported structure with guided mouting points and 4-screw design make assembly quick and incredibly rigid.
O4 & O4 Pro Compatibility: A redesigned carbon plate seamlessly integrates both O4 and O4 Pro for stunning HD footage and build versatility.
Lightweight Powerhouse: Weighing only 107.7g (O4 Pro Version), this 2.2″ cinewhoop is the perfect gateway for DJI pilots to dive into FPV.
Freestyle-Tuned Propulsion: The co-developed GF 2218 3-Blade Props and LAVA 1104 | 7200KV Brushless Motors offers unparalleled thrust, while the aerodynamic frame adds an 8–11% boost for aggressive maneuvers.
Cinematic Stability: The integrated O4 Air Unit Pro Bracket gurantees every frame you captured is perfect.
Flight Controller: The ultra-light F4 2-3S 20A AIO FC V1 (5.92g) is engineered for crisp digital performance, offering enhanced computing power and rapid response for precise freestyle control.

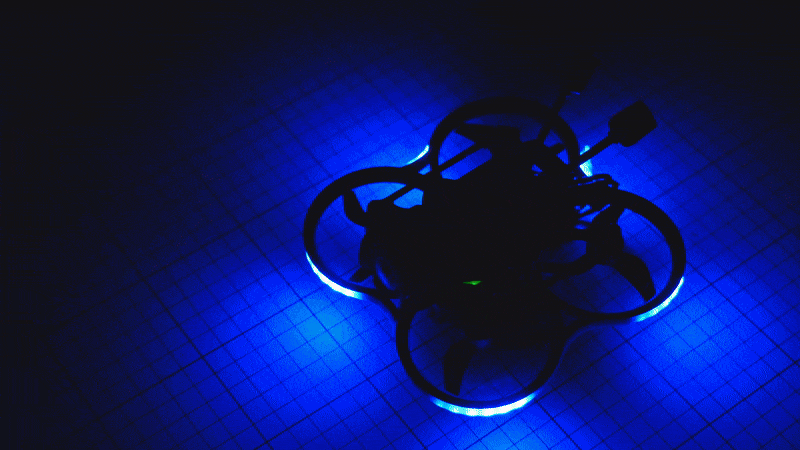

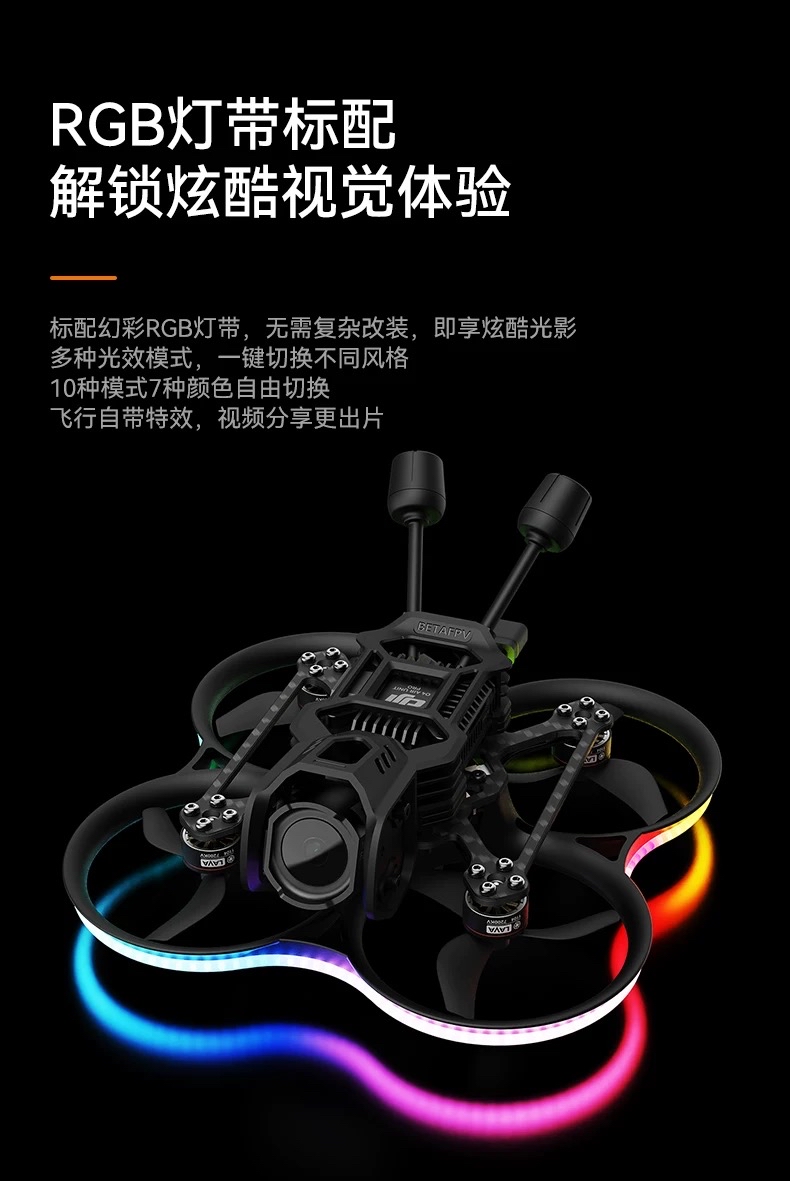

New RGB LED Strip: Enhanced visibility for in-flight orientation and a striking visual presence.
ND Filter Ready: ND/UV filters for O4 Pro let you master any lighting condition.
Plug-&-Play Tuned: Pre-optimized PIDs for O4 & O4 Pro. Select & fly via OSD.
Specifications

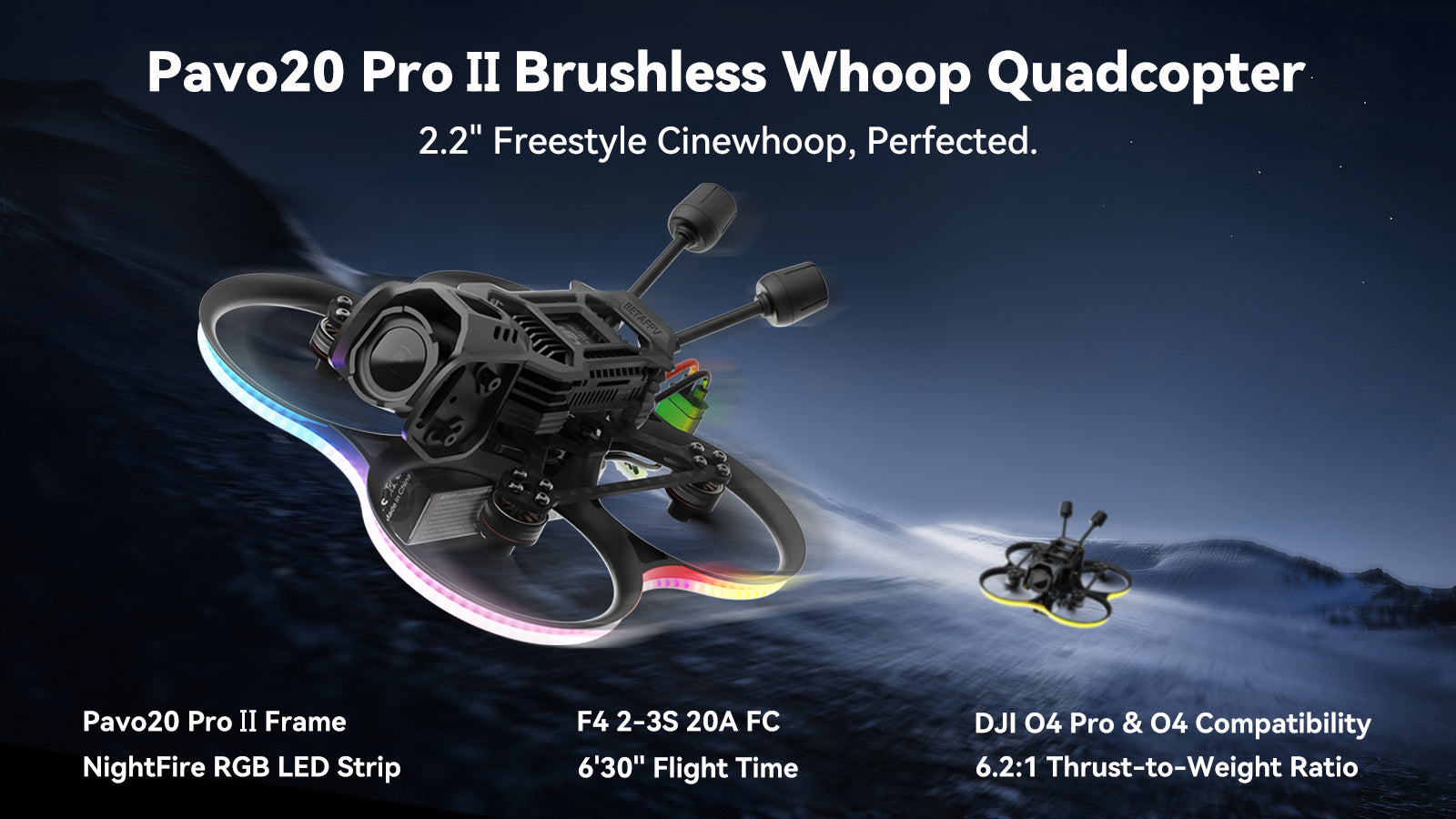

Item: Pavo20 Pro II Brushless Whoop Quadcopter
Wheelbase: 93.9mm
FC: F4 2-3S 20A AIO FC V1
Frame: Pavo20 Pro II Brushless Frame
Motor: LAVA Series 1104 | 7200KV Brushless Motors
Props: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
Flight Time: 6'30'' (with LAVA 3S 550mAh Battery)
RX Version: Serial ELRS, DJI SBUS
HD VTX Bracket: O4 Air Unit Pro Bracket, O4 Air Unit Bracket II
Weight: 65.2g (PNP Version), 107.7g (O4 Pro included)
Battery Connector: XT30
Battery Slot: 20mm * unlimited height
Strip: NightFire RGB LED Strip
Supported VTX: DJI O4 Air Unit Pro, DJI O4 Air Unit
Camera Filter Installation: Vertical
Recommended Filter: ND Filter for O4 Pro Camera
Recommended Battery: LAVA 3S 450mAh 75C Battery, LAVA 3S 550mAh 75C Battery
