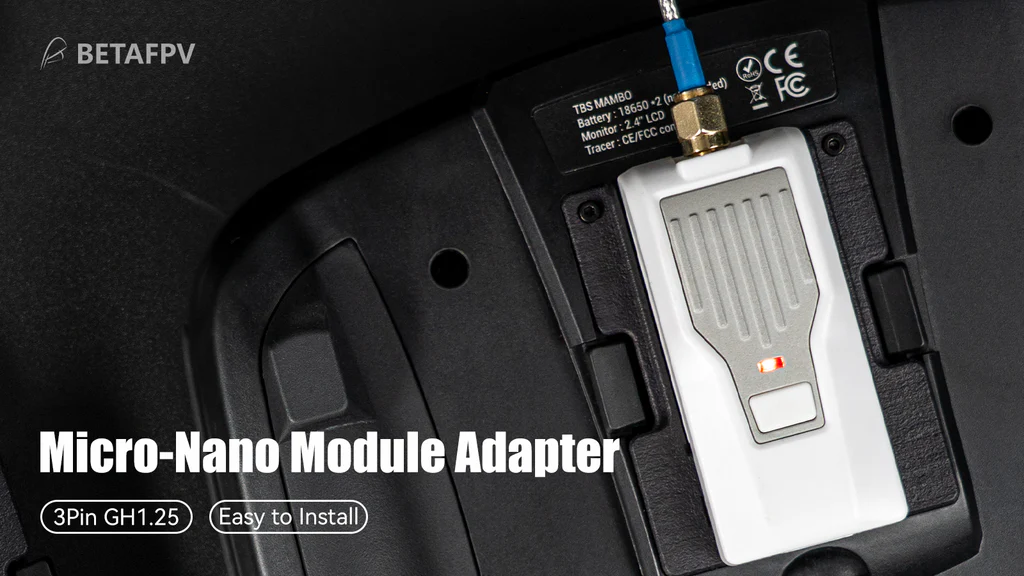

New adapter with upgrades is released now and is very easy to install. A 3PIN GH1.25 terminal socket, which can be used for Futaba, or other no-OpenTX radio controllers, is added to the bottom of the module adapter.
With the use of micro-nano module adapter, nano tx module can work on transmitters with a Micro port (or JR port) easily. Especially, it supports BETAFPV ELRS Nano TX Module.
Specification
- Item: Micro-Nano Module Adapter / Micro-Nano Module PCBA
- Size: 65*48*28mm (JR module size）
- Weight: 25g
- Input: JR module bay (Micro module bay)
- Output: Nano module bay (Lite module bay)
- Supported radio transmitter: Frsky X9D/X9D Plus/X12S/X10/X10S/X7/X7S,
Flysky TH9X, Turnigy 9XR/9XR PRO, FUTABA 16IZ, Jumper T16/T18/T18 Pro,
Radiomaster TX16S/TX18S, TBS Mambo - Supported TX Module: BETAFPV Nano TX Module, TBS Crossfire Nano TX、Frsky XJT Lite/R9M Lite/R9M Lite Pro.
Supported Radio TX
The module adapter is suitable for transmitters with a Micro port (or JR port). For example, Frsky X9D, FUTABA 16IZ, TBS Mambo, Turnigy 9XR, Jumper T18, etc.

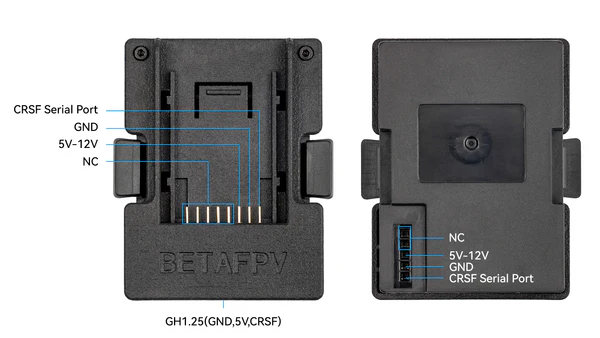

Diagram
Below is the diagram for the standard micro-nano module adapter

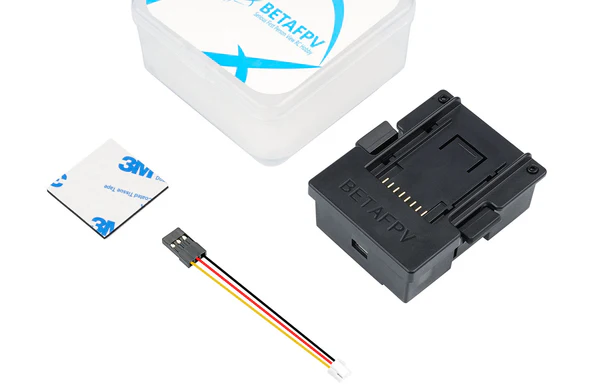

Package
- 1 * Micro-Nano Module Adapter
- 1 * Converter cable
- 1 * Double-sided tape
