Features:
- Unbrick and recover the ELRS receiver when having a failed update such as the missing bootloader.

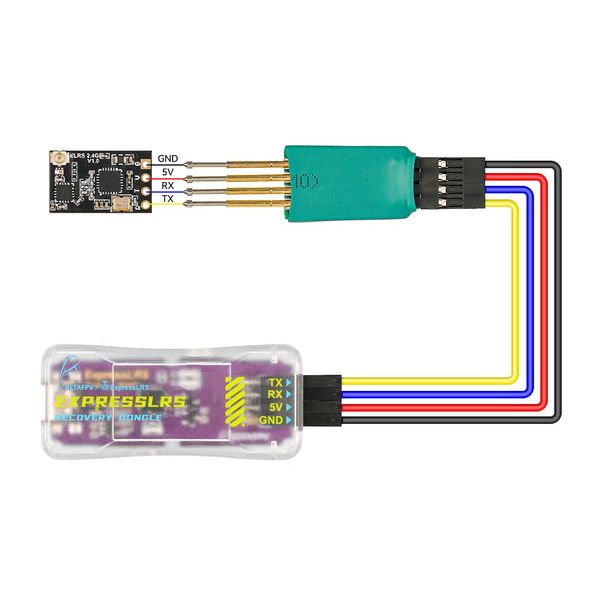

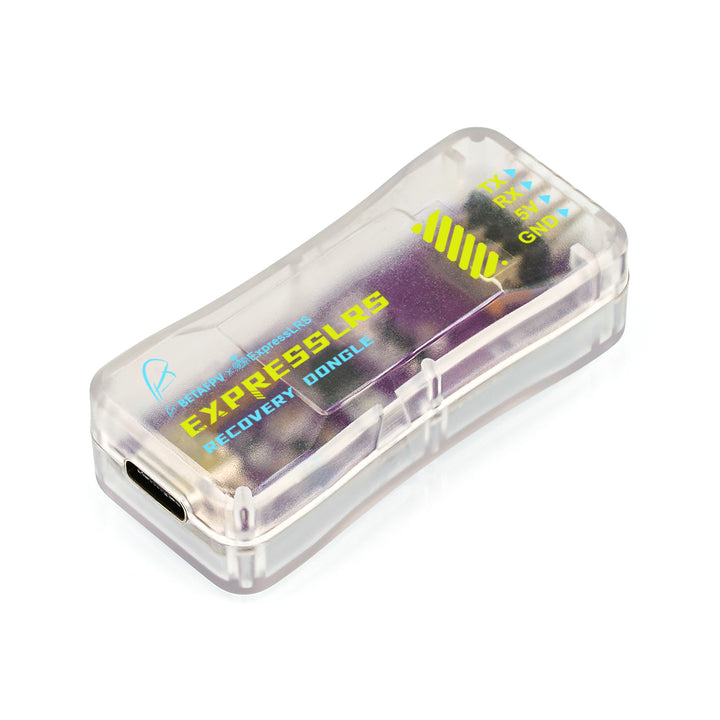

Soldering Free! It features spring probe pins for more convenient use. Connecting it with the ELRS receiver directly does not need to solder. - ExpressLRS Recovery Dongle FTDI USB to TTL module is covered by the case and is more durable and portable compared with the naked board version on the market.
- Support many computer systems in the market like Windows, MAC, and Linux. This module uses a Type-C USB port for connecting the computer.
Specifications:
- USB Interface: Type-C USB male connector
- Operating Voltage: 5V.
- Logic Voltage: 5V.
- 3.3V power supply output current: 400mA

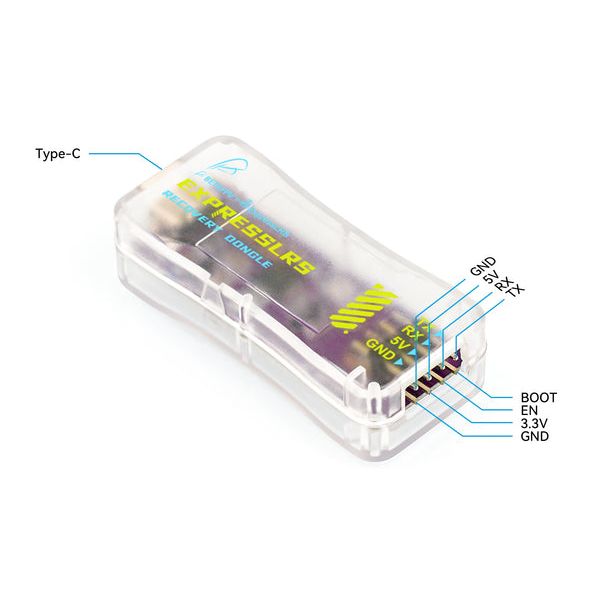

- Pins output method: 2*4P-2.54mm pin header
- Serial baud rate: Up to 921600bps.
- Support USB1.1, USB2.0
- USB to Serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, win10 / 11 32bits, 64bits, Linux, MAC
Know More About FTDI Module
ExpressLRS Recovery Dongle (FTDI Module) is mainly used to unbrick the ELRS receiver when having a failed update by Wifi upgrading or passthrough but also provides the UART way to upgrade the ELRS receiver or backpack. This FTDI module features spring probe pins and a connector for non-soldering use, which is more convenient for users. Besides, it is very durable and portable with a shell.
NOTE:
Driver requires for Windows PC systems.
