BetaFPV C03 FPV Micro Camera

Quantity

Summary

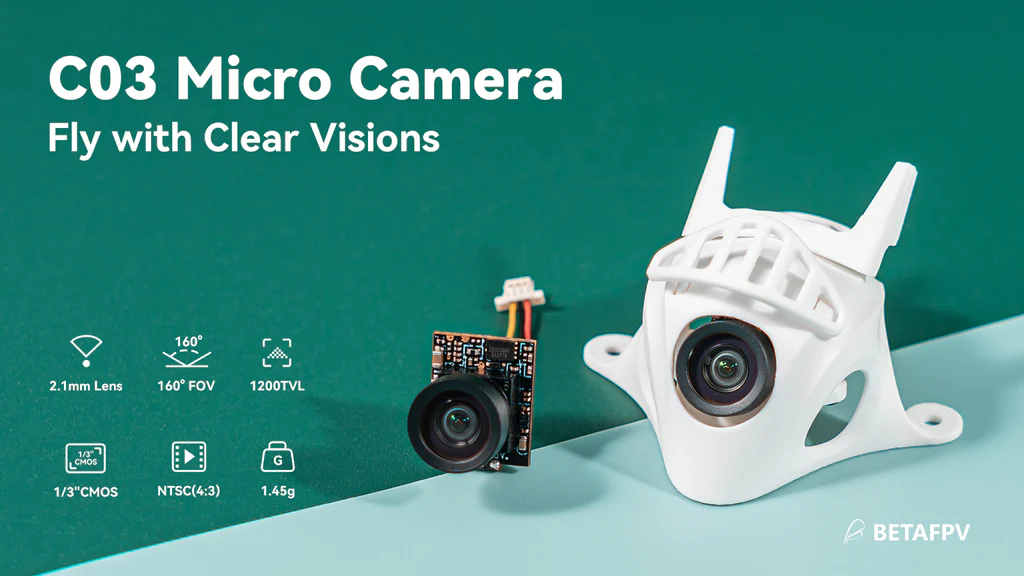

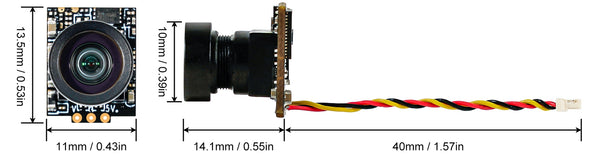

+ C03 FPV Micro Camera, specially designed for indoor micro FPV quadcopters, comes with a 1.52g lightweight, 1/3'' CMOS sensor, 2.1mm lens for 160° FOV, and excellent latency. Recommend using C03 FPV Micro Camera with BETAFPV Micro Canopy. Features Made of high-quality ABS material and covered by BETAFPV Micro Canopy, the C03 FPV Micro Camera is durable enough for use. Miniature, and lightweight design, weighing only 1.52g. Completely match with M03 5.8G VTX on micro whoop drone. 1200TVL resolution and 1/3" CMOS sensor ensure a high-quality and clear image Global WDR camera, 4:3 aspect ratio, shoot clear dynamic image even in low light condition 2.1mm lens, FOV 160° beyond the wide angle for recording more wide and beautiful scenes. Specification Item: C03 FPV Micro Camera Image Sensor: 1/3" CMOS Sensor Horizontal: 1200TVL with Global WDR Signal System: NTSC (4:3) Lens : 2.1mm(M7) FOV 160° S/N Ratio: >50db Electronic Shutter Speed: Auto Auto Gain Control (AGC): Auto Min. Illumination: 0.01Lux@1.2F D-WDR: Auto Day/Night: Color Power: DC 3-5.5V Current: 100mA@5V / 120mA@3.3V Housing Material: ABS Dimension: 11*14.1*13.5mm Net weight: 1.52g Plug-N-Play Connector C03 FPV Micro Camera features a JST-0.8 connector, a special design in plug-and-play, that makes it easy to install without soldering. Suitable for Meteor series drones, BETAFPV F4 1S 5A AIO FC, BETAFPV M03 VTX, and NBD BeeBrain flight controllers. Package 1 * C03 FPV Micro Camera 4 * M1.4*5 Screws
