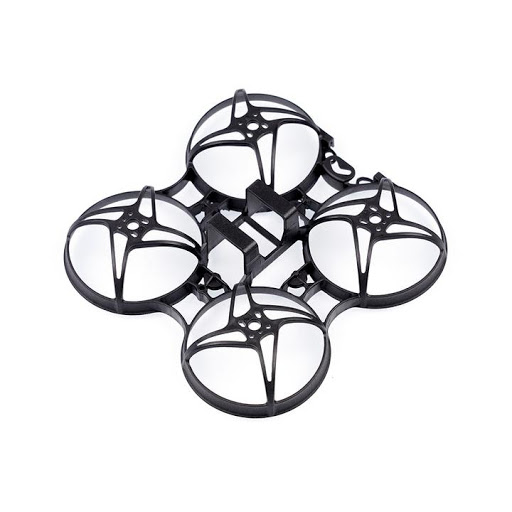

BetaFPV 75X V2 Micro Brushless Whoop Frame




- The Beta75X V2 frame only weighs 5.6g, it is lighter and the whole drone’s gravity center more concentrated than the Beta75X V1. Meanwhile, the motor mount position uses a quadrilateral stretch structure, makes the frame more durable and stable. - Increased the height of the frame loop, props are completely wrapped by the protective ring, more effectively protected the propellers. - Designed two different motor mounting holes that support 1102 and 1103 brushless motors at the same time. - With a 26mm*26mm FC mounting columns can match whoop style flight controllers like F4 AIO 12A FC. The battery slot fits BETAFPV 300mAh 2S and 300mAh 3S-S battery. Specification Material: Plastic Color: Black / White Weight: 5.6g Diagonal motor to motor distance: 75mm Motor mounting hole: for 110x series motors FC mounting hole: 26mm x 26mm, fully compatible with whoop style FC board mounting pattern Battery slot size: 6.8x16.1mm
