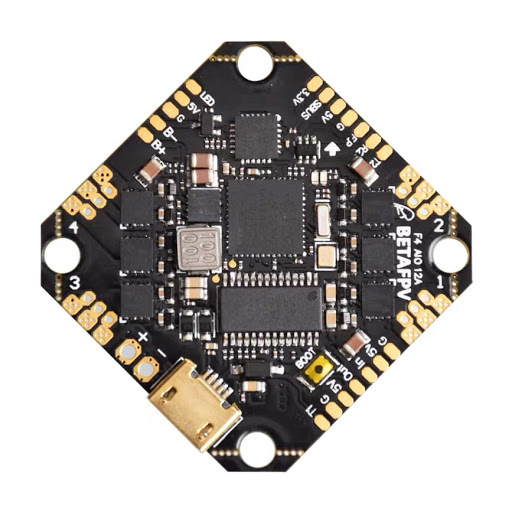

The new arrival F4 AIO FC(BLHeli_S) is customized for Toothpick Drone. The weight saving of the all in one board together with the 32.5*32.5mm mounting holes make this ideal for tight builds. It has integrated with a Betaflight MATEKF411 processor FC, Betaflight OSD and 2-4S 12A ESC which can support 4S battery for fast-flying experience.
Recommended Battery and Motor combo:
Battery Motor Combo
2S 1103 11000KV / 0802 12000KV / 08028 12000KV
3S 1103 8000KV / 1105 6000KV
4S 1105 5000KV
SPECIFICATIONS OF FC
CPU: STM32F411CEU6 (100MHZ )
Six-Axis: MPU6000 (SPI connection)
Size: 32.5*32.5mm, whoop mounting pattern
Firmware version: Betaflight MATEKF411 (MK41)
OSD: Build-in BetaFlight OSD (OSD chip: AT7456E)
Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver.
Support programmable LED like WS2812 etc
Built-in current sensor
Weight: 6.2g(Pins NOT Pre-solder), 6.5g(Pins Pre-solder)
