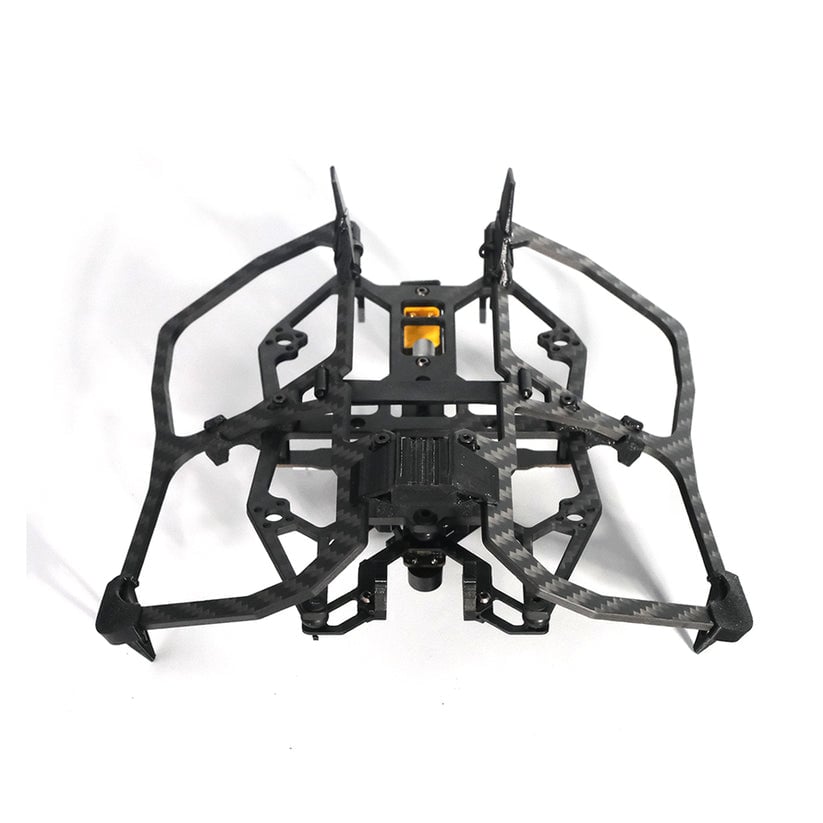

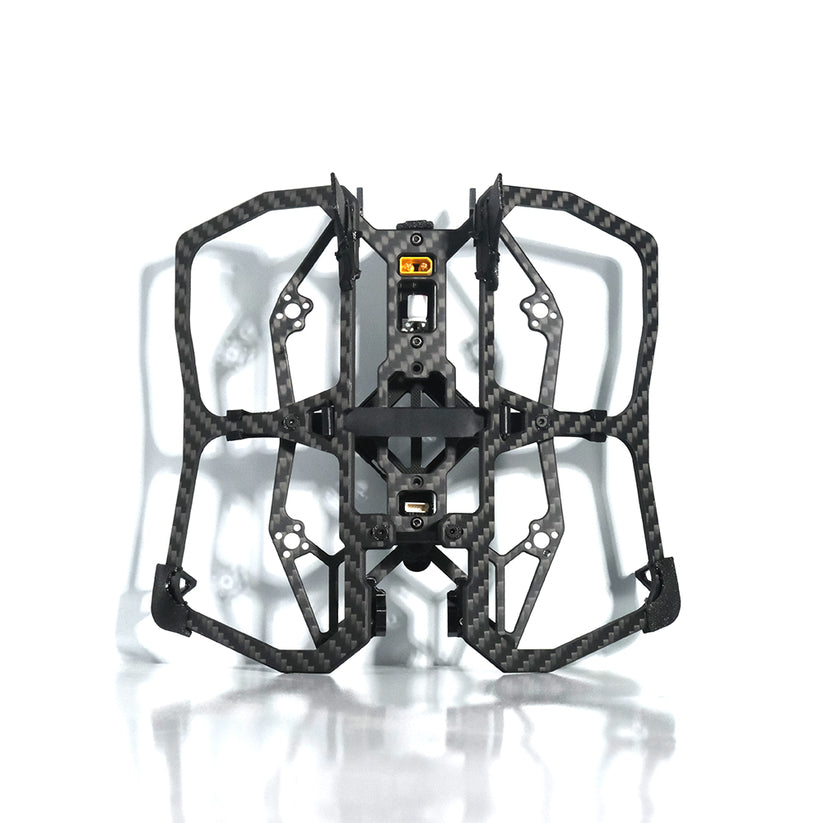

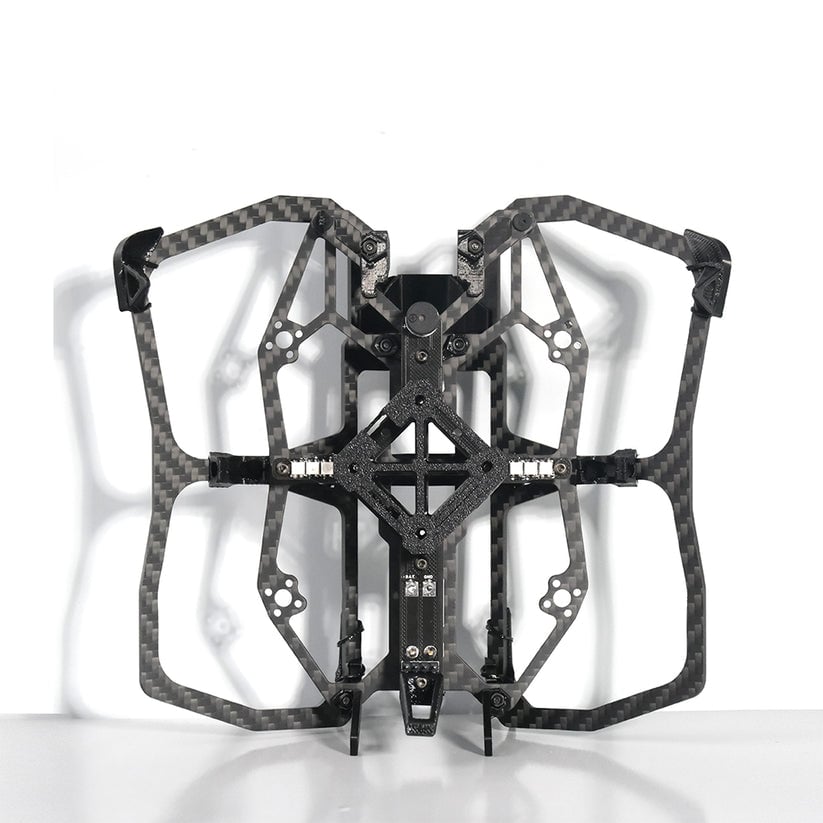

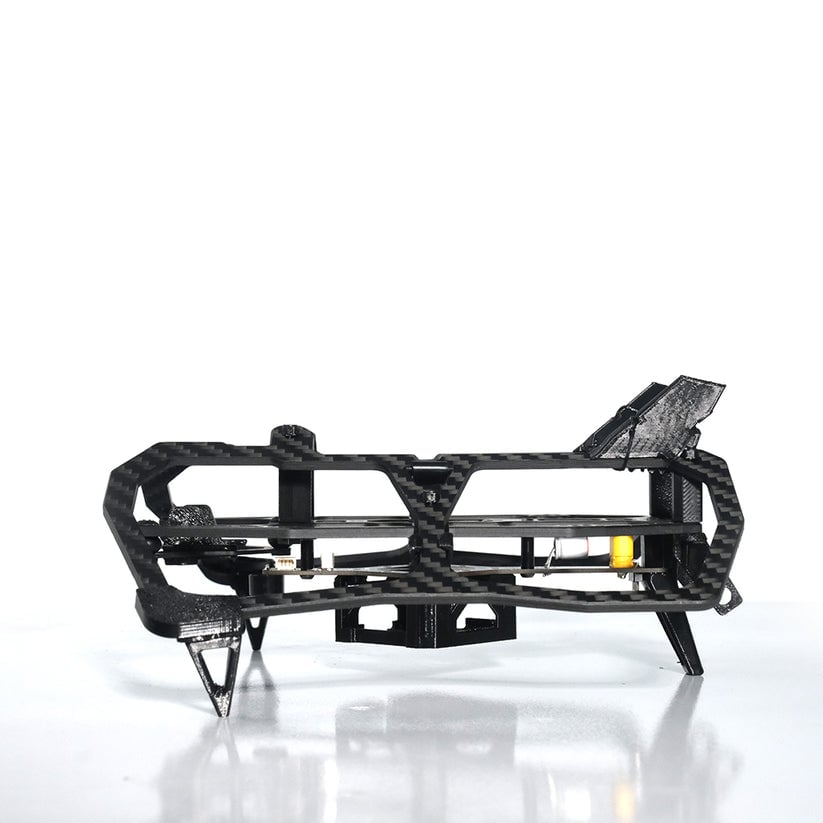

Version 2 with further optimized CARBONFLY structure.
Better overall rigidity, lower weight, higher compatibility and playability.
Inherited all design features of CarbonFly 20
1:3-point O3 lens vibration reduction
2: Good protection of the lens
3: Dedicated battery compartment
4: Highly acclaimed AstroRC link-plate structure
New link board system, onboard buzzer, 6 programmable LEDs and receiver mounting positions. All onboard interfaces only need one 5Pin socket to connect to the AIO.
Specifications:
Main Plate: 2.5mm
Bottom Plate: 2.0mm
FC Mounting Hole: 25.5mm x 25.5mm AIO only
VTX Mounting Hole: 25.5mm x 25.5mm(dji O3)
Motor Mounting Hole: 9mm x 9mm
FPV Camera Spacing: 19mm / 20mm
Suitable propeller size: 2.5 inch propeller
Weight: approx. 59g
